1. Introduction
Criticality, uniform flows and bulk quantities such as the mass flux (
$Q$
), total head (
$R$
) and flow force (
$S$
) are at the heart of the subject of open-channel hydraulics in one space dimension (Henderson Reference Henderson1966; Abbott Reference Abbott1979). The key properties of uniform flows
$(h_{0},u_{0})$
, where
$h_{0}$
is the constant depth and
$u_{0}$
is the horizontal mean velocity, are captured by the mass flux, total head and momentum flux,
$$\begin{eqnarray}\mathscr{Q}=h_{0}u_{0},\quad \mathscr{R}=gh_{0}+{\textstyle \frac{1}{2}}u_{0}^{2},\quad \mathscr{S}={\textstyle \frac{1}{2}}h_{0}u_{0}^{2}+{\textstyle \frac{1}{2}}gh_{0}^{2},\end{eqnarray}$$
where
$g$
is the gravitational constant and the fluid density is taken to be unity. Here and henceforth
$(\mathscr{Q},\mathscr{R},\mathscr{S})$
represent
$(Q,R,S)$
evaluated on a uniform flow.
There are various ways to define criticality of a uniform flow, but for the purposes of this paper the most useful definition is in terms of the mass flux. The uniform flow is critical if
$$\begin{eqnarray}\mathscr{Q}_{u}|_{\mathscr{R}\;\mathit{fixed}}=0,\quad \text{where }\mathscr{Q}_{u}:=\frac{\partial \mathscr{Q}}{\partial u_{0}}\end{eqnarray}$$
(see figure 1). Fixed
$\mathscr{R}$
determines
$h_{0}$
as a function of
$u_{0}$
and so
$$\begin{eqnarray}\mathscr{Q}_{u}\big|_{\mathscr{R}\;\mathit{fixed}}=\frac{1}{g}\left(\mathscr{R}-\frac{3}{2}u_{0}^{2}\right)=h_{0}-\frac{u_{0}^{2}}{g},\end{eqnarray}$$
recovering the usual ‘Froude number unity condition’. A curiosity in the theory of open-channel hydraulics is that the second derivative of
$\mathscr{Q}$
,
$$\begin{eqnarray}{\it\kappa}=\mathscr{Q}_{uu}\big|_{\mathscr{R}\;\mathit{fixed}},\end{eqnarray}$$
evaluated at criticality is never considered. Here,
${\it\kappa}$
is a curvature, its calculation in this case is elementary,
${\it\kappa}=-(3/g)u_{0}$
, and there is no obvious reason why it might be interesting.
Figure 1. Mass flux versus uniform velocity for fixed total head.
However, remarkably,
${\it\kappa}$
appears as the critical coefficient of the nonlinearity in the Korteweg–de Vries (KdV) equation when dispersion emerges in shallow water hydrodynamics. To show this, and its generalisation to two dimensions, it is useful to establish how and why the KdV equation emerges from a uniform flow.
The traditional argument for the emergence of dispersion in shallow water, going back to the paper of Korteweg & de Vries (Reference Korteweg and de Vries1895), starts with a quiescent background flow, the shallow water limit, small amplitude and the assumption that ‘amplitude balances dispersion’. This latter assumption can be manifested by expanding the governing equation in terms of two parameters (the dispersion parameter and the amplitude parameter) and taking the limit to zero with their ratio constant. This balancing takes place on a trivial background flow and leads to a two-way Boussinesq equation. Unidirectionalisation is then the splitting of the Boussinesq equation into left-running and right-running KdV equations. See § 13.11 of Whitham (Reference Whitham1974) for a discussion of this strategy for deriving the KdV equations. The standard form for the two emergent KdV equations in dimensional coordinates is
$$\begin{eqnarray}U_{t}\pm \sqrt{gh_{0}}U_{x}+\frac{3}{2}UU_{x}\pm \frac{h_{0}^{2}}{6}\sqrt{gh_{0}}V_{xxx}=0,\end{eqnarray}$$
where
$V$
is a characteristic velocity. It is derived relative to a moving frame of reference, with the frame speed
$c=\pm \sqrt{gh_{0}}$
. The
$\pm$
signs here are an indication of left- and right-running versions.
A new approach to the derivation of the KdV equation was presented in Bridges (Reference Bridges2013) based on modulation of the uniform flow near criticality. This modulation is shown schematically in figure 2. In the modulation
$X={\it\varepsilon}x$
,
$T={\it\varepsilon}^{3}t$
and
${\it\varepsilon}$
is a measure of the distance from criticality. Carrying out the modulation results in the following equation for
$q$
:
$$\begin{eqnarray}2\mathscr{M}_{u}q_{T}+\mathscr{Q}_{uu}qq_{X}+\mathscr{K}q_{XXX}=0,\end{eqnarray}$$
where
$\mathscr{M}$
is the mass density, evaluated on a uniform flow, with
$\mathscr{R}$
fixed. If
$(x,z)$
coordinates are used with
$z$
vertically upward,
$z=0$
the horizontal bottom and the free surface at
$z={\it\eta}(x,t)$
, then the mass conservation law for the full water-wave problem is
$$\begin{eqnarray}M_{t}+Q_{x}=0,\quad M=\int _{0}^{{\it\eta}}\text{d}z,\quad Q=\int _{0}^{{\it\eta}}u(x,z,t)\text{d}z,\end{eqnarray}$$
with fluid density taken to be unity. For uniform flow,
$\mathscr{M}=h_{0}=(1/g)(\mathscr{R}-u_{0}^{2}/2)$
and so
$\mathscr{M}_{u}=-(u_{0}/g)$
. Substituting the expressions for
$\mathscr{M}_{u}$
,
$\mathscr{Q}_{uu}$
and
$\mathscr{K}=(h_{0}^{3}/6)$
into (1.6) and noting that
$u_{0}=\pm \sqrt{gh_{0}}$
at criticality reduces it exactly to (1.5), except that (1.6) is relative to a laboratory frame (but Galilean invariance assures that they are equivalent).

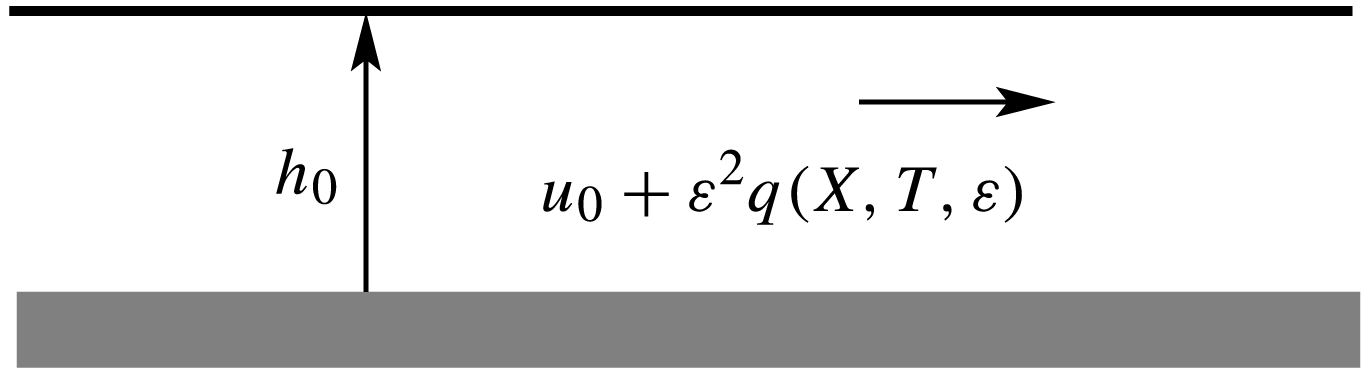

Figure 2. Modulation of the uniform flow.
The detailed derivation leading from
$u=u_{0}+{\it\varepsilon}^{2}q$
to the precise form (1.6) is given in Bridges (Reference Bridges2013). Substitution of the modulation ansatz into the governing equations, and expansion of all terms in powers of
${\it\varepsilon}$
, is straightforward. The key new idea is how to relate the coefficients in the resulting KdV equation to the components of the conservation law evaluated on the uniform flow. That theory relies on the fact that the governing equations are deduced from a Lagrangian and the fact that Noether’s theorem gives a precise connection in this setting between symmetries and conservation laws. Indeed, since the Lagrangian symmetry connection is quite general, it can be established that criticality, suitably generalised, is a universal mechanism for the emergence of the KdV equation, and gives a rule for construction of the coefficients (cf. Bridges Reference Bridges2013).
The purpose of this paper is to generalise the emergence of nonlinearity and dispersion via modulation to the case of two horizontal space dimensions, giving a new theory for the emergence of the Kadomtsev–Petviashvili (KP) equation. Given a uniform flow
$(h_{0},u_{0},v_{0})$
the mass flux is now vector valued,
$$\begin{eqnarray}\mathscr{Q}(u_{0},v_{0})=h_{0}u_{0}\quad \text{and}\quad \mathscr{P}(u_{0},v_{0})=h_{0}v_{0},\quad \text{with }gh_{0}+{\textstyle \frac{1}{2}}(u_{0}^{2}+v_{0}^{2})=\mathscr{R},\end{eqnarray}$$
and the generalisation of (1.6) is the KP equation,
$$\begin{eqnarray}2\mathscr{M}_{u}q_{T}+\mathscr{Q}_{uu}qq_{X}+\mathscr{K}q_{XXX}+\mathscr{P}_{v}p_{Y}=0\quad \text{and}\quad q_{Y}=p_{X}.\end{eqnarray}$$
The first three coefficients are the same as the KdV equation in (1.6), and the new coefficient,
$\mathscr{P}_{v}$
, is determined from the transverse mass flux (it is immediate from (1.8) that
$\mathscr{P}_{v}=h_{0}$
at criticality). The mass conservation law in three dimensions is
$$\begin{eqnarray}M_{t}+Q_{x}+P_{y}=0,\quad \text{with }P=\int _{0}^{{\it\eta}}v(x,y,t)\text{d}z,\end{eqnarray}$$
with
$\mathscr{P}$
equal to
$P$
evaluated on a uniform flow.
The KP equation (1.9) arises due to modulation of the uniform flow near criticality, but what is criticality in this case? The theory shows that the right generalisation is
$$\begin{eqnarray}\mathscr{Q}_{u}\big|_{\mathscr{R}\;\mathit{fixed}}=0\quad \text{and}\quad \mathscr{P}_{u}\big|_{\mathscr{R}\;\mathit{fixed}}=0.\end{eqnarray}$$
The latter requirement does not appear in the classic hydraulics literature, but it appears naturally as the required condition in the modulation theory. Evaluation of the coefficients on the uniform flow gives the KP equation that is found in textbooks (e.g. Dingemans Reference Dingemans1997; Johnson Reference Johnson1997; Mei Reference Mei1989; Osborne Reference Osborne2010).
There are three interesting precedents for the theory here. In Benjamin & Lighthill (Reference Benjamin and Lighthill1954) the steady KdV equation is derived based on a perturbation of the uniform flow, with the mass flux (
$Q$
), total head (Bernoulli constant) (
$R$
) and flow force (
$S$
) playing a central role. However, the Benjamin–Lighthill theory is for the steady problem only, and the coefficients in the KdV equation are not expressed in terms of the properties of the uniform flow (for example, the coefficient of the nonlinearity is not the curvature of
$Q$
). Moreover, in Benjamin & Lighthill (Reference Benjamin and Lighthill1954) it is the extension to finite-amplitude waves of
$S$
,
$Q$
and
$R$
that is important, whereas here it is
$Q$
and
$R$
evaluated on the uniform flow that is important.
The second precedent is Whitham modulation theory (WMT) (Whitham Reference Whitham1974). Indeed, the modulation theory here can be considered as a generalisation of Whitham modulation theory. If the modulation ansatz is changed so that the slow time variable is
$T={\it\varepsilon}t$
, then WMT is obtained, which is a first-order partial differential equation and dispersionless. To get dispersion the slow time scale needs to be changed and degeneracy is necessary.
The third precedent is the classical method of multiple scales (e.g. Grimshaw Reference Grimshaw and Grimshaw2005, and references therein). In this approach, an amplitude function
$A(X,T)$
which multiplies the eigenfunction of the linear problem is introduced, where
$X$
and
$T$
are slow space and time variables. A key in this approach is that a solvability condition is central and generates the KdV equation at third order. This combination of multiple scales and a solvability condition is particularly useful for deriving the KdV and KP equations for other settings such as internal waves in stratified flow.
An outline of the paper is as follows. First, in §§ 2 and 3, the derivation of the KP equation from modulation of two-dimensional uniform flows in the full water-wave problem is sketched. In § 3.1 it is shown that the new KP equation agrees with the KP equation in textbooks. A curiosity is that the theory works directly with the uniform flows and the dispersion relation is never used. This missing link is surprising since the dispersion relation is important is almost every derivation of model equations in the theory of nonlinear waves. In § 4 it is shown that indeed the dispersion relation is in the theory – it is implicit. Some discussion and concluding remarks are given in § 5.
2. Water waves and multi-dimensional uniform flows
Consider the inviscid irrotational water-wave problem in three dimensions
$(x,y,z,t)$
with
$0\leqslant z\leqslant {\it\eta}(x,y,t)$
and velocity potential
${\it\phi}(x,y,z,t)$
. The governing equations can be deduced from Luke’s Lagrangian,
$$\begin{eqnarray}\mathscr{L}=\iiint {\mathcal{L}}\text{d}x\text{d}y\text{d}t,\end{eqnarray}$$
with
$$\begin{eqnarray}{\mathcal{L}}=\int _{0}^{{\it\eta}}\left[{\it\phi}_{t}+\frac{1}{2}\big({\it\phi}_{x}^{2}+{\it\phi}_{y}^{2}+{\it\phi}_{z}^{2}\big)+gz-R\right]\text{d}z,\end{eqnarray}$$
where
$R$
is the Bernoulli function. The Euler–Lagrange equations deduced from this functional produce the governing equation for water waves (§ 13.2 of Whitham Reference Whitham1974).
As solutions of the full water-wave problem, uniform flows are
$$\begin{eqnarray}{\it\eta}(x,y,t)=h_{0}\quad \text{and}\quad {\it\phi}(x,y,z,t)={\it\theta}=u_{0}x+v_{0}y+{\it\theta}_{0}.\end{eqnarray}$$
Bernoulli’s equation then gives the expression for
$\mathscr{R}$
in (1.8). For the time-dependent problem the Bernoulli ‘constant’ depends on time, although here it is taken to be a constant. (It is an interesting exercise to modulate the Bernoulli function as well, but it leads to the same KdV equation – see the comments in § 5.)
The uniform flow is intrinsically connected to the symmetry
$a\mapsto {\it\phi}+a$
; that is, the velocity potential is invariant under addition of an arbitrary constant. Although this symmetry appears to be trivial physically, it generates via Noether’s theorem the mass conservation law (Benjamin & Olver Reference Benjamin and Olver1982), and it is modulation of the mass conservation law that will result in the KP equation in (1.9).
2.1. Criticality of multi-dimensional uniform flows
The components of the mass conservation law are evaluated on the basic state
$(h_{0},u_{0},v_{0})$
with
$h_{0}$
determined from the Bernoulli equation,
$$\begin{eqnarray}\left.\begin{array}{@{}rcl@{}}\mathscr{M}(u_{0},v_{0})\ & =\ & h_{0}=\displaystyle \frac{1}{g}\left(\mathscr{R}-\frac{1}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2}\right),\\ \mathscr{Q}(u_{0},v_{0})\ & =\ & h_{0}u_{0}=\displaystyle \frac{u_{0}}{g}\left(\mathscr{R}-\frac{1}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2}\right),\\ \mathscr{P}(u_{0},v_{0})\ & =\ & h_{0}v_{0}=\displaystyle \frac{v_{0}}{g}\left(\mathscr{R}-\frac{1}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2}\right).\end{array}\right\}\end{eqnarray}$$
The generalisation of
$\mathscr{Q}_{u}\big|_{\mathscr{R}\;\mathit{fixed}}$
is the matrix of first derivatives
$$\begin{eqnarray}\left[\begin{array}{@{}cc@{}}\mathscr{Q}_{u} & \mathscr{Q}_{v}\\ \mathscr{ P}_{u} & \mathscr{P}_{v}\end{array}\right]=\frac{1}{g}\left[\begin{array}{@{}cc@{}}\mathscr{R}-\frac{3}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2} & -u_{0}v_{0}\\ -u_{0}v_{0} & \mathscr{R}-\frac{3}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2}\end{array}\right]=\frac{1}{g}\left[\begin{array}{@{}cc@{}}gh_{0}-u_{0}^{2} & -u_{0}v_{0}\\ -u_{0}v_{0} & gh_{0}-v_{0}^{2}\end{array}\right],\end{eqnarray}$$
after substituting for
$\mathscr{R}$
.
What is the appropriate generalisation of criticality? Setting the determinant to zero,
$$\begin{eqnarray}0=\det \!\left[\begin{array}{@{}cc@{}}\mathscr{Q}_{u} & \mathscr{Q}_{v}\\ \mathscr{ P}_{u} & \mathscr{P}_{v}\end{array}\right]=\frac{h_{0}}{g}(gh_{0}-(u_{0}^{2}+v_{0}^{2})),\end{eqnarray}$$
recovers the usual Froude number unity condition with the two-dimensional velocity field. Here, the generalisation of criticality is taken to be
$$\begin{eqnarray}0=\mathscr{Q}_{u}=gh_{0}-u_{0}^{2}\quad \text{and}\quad 0=\mathscr{P}_{u}=-u_{0}v_{0},\end{eqnarray}$$
which gives a zero determinant but also retains the one-dimensional criticality. The second condition identifies the
$x$
-direction as dominant. These conditions arise naturally in the modulation theory leading to the KP equation, but are heretofore unknown in the water-wave literature.
3. Symmetry, modulation and the KP equation
The dependent variables in the water-wave problem are
$$\begin{eqnarray}U(x,y,z,t)=\left(\begin{array}{@{}c@{}}h(x,y,t)\\ {\it\phi}(x,y,z,t)\end{array}\right),\end{eqnarray}$$
with basic state
$$\begin{eqnarray}\widehat{U}({\it\theta},u_{0},v_{0})=\left(\begin{array}{@{}c@{}}\displaystyle \frac{1}{g}\left(\mathscr{R}-\frac{1}{2}u_{0}^{2}-\frac{1}{2}v_{0}^{2}\right)\\ {\it\theta}\end{array}\right),\quad \text{with }{\it\theta}=u_{0}x+v_{0}y+{\it\theta}_{0},\end{eqnarray}$$
where
${\it\theta}_{0}$
is an arbitrary constant.
Now the modulation is introduced: a solution of the full water-wave problem is proposed in the form
$$\begin{eqnarray}U(x,y,z,t)=\widehat{U}({\it\theta}+{\it\varepsilon}{\it\psi}(X,Y,T,{\it\varepsilon}),u_{0}+{\it\varepsilon}^{2}q(X,Y,T,{\it\varepsilon}),v_{0})+{\it\varepsilon}^{3}W(X,Y,T,z,{\it\varepsilon}),\end{eqnarray}$$
with
$$\begin{eqnarray}q={\it\psi}_{X},\quad X={\it\varepsilon}x,\quad Y={\it\varepsilon}^{2}y,\quad T={\it\varepsilon}^{3}t.\end{eqnarray}$$
The solution is an ansatz. It is substituted into the governing equations, everything is expanded in powers of
${\it\varepsilon}$
and the system is solved order by order, with a solvability condition appearing at each order.
This expansion is to be contrasted with a classical multiple-scale formulation,
$$\begin{eqnarray}U(x,y,z,t)=\widehat{U}({\it\theta},u_{0},v_{0})+\mathop{\sum }_{j=1}^{\infty }{\it\varepsilon}^{\,j}W_{j}(X,Y,T,z).\end{eqnarray}$$
In principle they are the same since the
$\widehat{U}$
arguments in (3.3) can be expanded in Taylor series and absorbed in something like the second term on the right-hand side of (3.5). The advantage of (3.3) is that the derivatives of
$\widehat{U}$
carry information that feeds into the modulation equation.
Expanding out the terms in (3.3) gives the following expressions for
$({\it\eta},{\it\phi})$
:
$$\begin{eqnarray}\left.\begin{array}{@{}rcl@{}}{\it\eta}\ & =\ & h_{0}-\displaystyle \frac{u_{0}}{g}{\it\varepsilon}^{2}q-\frac{1}{2g}{\it\varepsilon}^{4}q^{2}+{\it\varepsilon}^{3}H(X,Y,T,{\it\varepsilon}),\\ {\it\phi}\ & =\ & {\it\theta}+{\it\varepsilon}{\it\psi}+{\it\varepsilon}^{3}f(X,Y,T,z,{\it\varepsilon});\end{array}\right\}\end{eqnarray}$$
$H$
and
$f$
are further expanded in powers of
${\it\varepsilon}$
, up to third order. The expansions are all substituted into the governing equations. The general result for the 2D case is given in Bridges (Reference Bridges2013), and so here just a sketch of the additional theory is given, with the only new result being the appearance of
$\mathscr{P}_{v}$
as the new coefficient of transverse dispersion.
The terms proportional to
${\it\varepsilon}^{0}$
and
${\it\varepsilon}^{1}$
just recover the equations for the uniform flow, and the second-order equation gives the homogeneous linearisation about the uniform flow.
At third order the solvability condition requires
$\mathscr{Q}_{u}=0$
, and gives the leading-order terms for
$H,f$
,
$$\begin{eqnarray}\left.\begin{array}{@{}rcl@{}}H_{1}\ & =\ & -\displaystyle \frac{v_{0}}{g}{\it\psi}_{Y},\\ f_{1}\ & =\ & -\frac{1}{2}h_{0}^{2}z^{2}q_{X}+{\it\alpha},\end{array}\right\}\end{eqnarray}$$
where
${\it\alpha}$
is an arbitrary function of
$X,Y,T$
.
At fourth order, solvability requires
$\mathscr{P}_{v}=0$
. Establishing this follows the same strategy (relating components of conservation laws via symmetry to the uniform flows) as for
$\mathscr{Q}_{u}=0$
in Bridges (Reference Bridges2013). The fourth-order solution is
$$\begin{eqnarray}\left.\begin{array}{@{}rcl@{}}H_{2}\ & =\ & \displaystyle -\frac{1}{g}{\it\psi}_{T}+\frac{u_{0}h_{0}^{2}}{2g}q_{XX}-\frac{u_{0}}{g}{\it\alpha}_{X},\\ f_{2}\ & =\ & {\it\beta},\end{array}\right\}\end{eqnarray}$$
where
${\it\beta}$
is an arbitrary function of
$X,Y,T$
.
At fifth order a linear system of the following form is found:
$$\begin{eqnarray}\boldsymbol{L}W_{3}=(\quad )q_{T}+(\quad )q_{XXX}+(\quad )qq_{X}+(\quad ){\it\psi}_{YY}.\end{eqnarray}$$
The coefficients in the first three terms are given in Bridges (Reference Bridges2013), with the coefficient of
${\it\psi}_{YY}$
being new. Application of the solvability condition then gives
$$\begin{eqnarray}a_{1}q_{T}+a_{2}qq_{X}+a_{3}q_{XXX}+a_{4}{\it\psi}_{YY}=0.\end{eqnarray}$$
These coefficients are complicated expressions in terms of inner products. The key next step is to use the connection between symmetry and conservation laws to give simple expressions for the coefficients. In Bridges (Reference Bridges2013) it is shown that
$a_{1}=-2\mathscr{M}_{u}$
,
$a_{2}=-\mathscr{Q}_{uu}$
and
$a_{3}=-\mathscr{K}$
. A similar argument shows that
$a_{4}=-\mathscr{P}_{v}$
. Defining
$p={\it\psi}_{Y}$
gives
$p_{X}=q_{Y}$
and then (3.10) becomes
$$\begin{eqnarray}2\mathscr{M}_{u}q_{T}+\mathscr{Q}_{uu}qq_{X}+\mathscr{K}q_{XXX}+\mathscr{P}_{v}p_{Y}=0,\end{eqnarray}$$
completing the derivation of (1.9). The case where the dispersions have the same sign,
$\mathscr{K}\mathscr{P}_{v}>0$
, is KP-II and is the case associated with shallow water when gravity is dominant. The case
$\mathscr{K}\mathscr{P}_{v}<0$
is KP-I and is a model in shallow water when surface tension is dominant. It should be noted that when surface tension is present, the only effect is on the coefficient
$\mathscr{K}$
. Surface tension cannot affect the other coefficients since they are determined by the uniform flow!
3.1. Comparison with the standard form of the KP equation
Evaluating the coefficients in the KP equation (1.9) on the uniform flow at criticality and using the expressions for
$\mathscr{K}$
and
$\mathscr{P}_{v}$
from (4.4), it becomes
$$\begin{eqnarray}\left(-2\frac{u_{0}}{g}q_{T}-3\frac{u_{0}}{g}qq_{X}+\frac{h_{0}^{3}}{3}q_{XXX}\right)_{X}+h_{0}q_{YY}=0,\end{eqnarray}$$
or, after dividing through by
$-2u_{0}/g$
and imposing criticality,
$u_{0}=\mp \sqrt{gh_{0}}$
,
$$\begin{eqnarray}\left(q_{T}+\frac{3}{2}qq_{X}\pm \sqrt{gh_{0}}\frac{h_{0}^{2}}{6}q_{XXX}\right)_{X}\pm \frac{1}{2}\sqrt{gh_{0}}q_{YY}=0.\end{eqnarray}$$
The standard form for the two emergent KP equations in dimensional coordinates is
$$\begin{eqnarray}\frac{\partial }{\partial x}\left(\pm {\it\eta}_{t}+\sqrt{gh_{0}}{\it\eta}_{x}+\frac{1}{2}\sqrt{\frac{g}{h_{0}}}{\it\eta}{\it\eta}_{x}+\frac{h_{0}^{2}}{6}\sqrt{gh_{0}}{\it\eta}_{xxx}\right)+\frac{1}{2}\sqrt{gh_{0}}{\it\eta}_{yy}=0.\end{eqnarray}$$
This is the ‘height form’ of the KP equation. It is derived relative to a moving frame of reference, with the frame speed
$c=\pm \sqrt{gh_{0}}$
, and the background velocity field is quiescent. The
$\pm$
signs here are an indication of left- and right-running versions. A derivation of this equation can be found in § 6.8 of Dingemans (Reference Dingemans1997) (see equation (6.275c) on p. 776). The ‘velocity form’ of the KP equation is obtained by substituting
${\it\eta}=3\sqrt{(h_{0}/g)}u$
, giving
$$\begin{eqnarray}\frac{\partial }{\partial x}\left(u_{t}\pm \sqrt{gh_{0}}u_{x}+\frac{3}{2}uu_{x}\pm \frac{h_{0}^{2}}{6}\sqrt{gh_{0}}u_{xxx}\right)\pm \frac{1}{2}\sqrt{gh_{0}}u_{yy}=0.\end{eqnarray}$$
It is this equation that corresponds to (3.13).
4. Implicit role of the dispersion relation
The dispersion relation, associated with the linearisation about the uniform flow, does not play an explicit role in the modulation theory for emergence of the KP equation. It is implicit. On replacing
$\partial _{T}$
by
$-\text{i}{\it\omega}$
,
$\partial _{X}$
by
$\text{i}k$
and
$\partial _{Y}$
by
$\text{i}\ell$
, the linear part of (1.9) becomes
$$\begin{eqnarray}-2\mathscr{M}_{u}\text{i}{\it\omega}+\text{i}k\mathscr{Q}_{u}+\mathscr{K}(\text{i}k)^{3}+\mathscr{P}_{v}\text{i}\frac{\ell ^{2}}{k}=0.\end{eqnarray}$$
This is just the leading-order expansion of the exact dispersion relation
$$\begin{eqnarray}({\it\omega}-ku_{0}-\ell v_{0})^{2}=g{\it\kappa}\tanh ({\it\kappa}h_{0}),\quad {\it\kappa}=\sqrt{k^{2}+\ell ^{2}}.\end{eqnarray}$$
A calculation shows that
$$\begin{eqnarray}{\it\omega}_{k}=0\Leftrightarrow \mathscr{Q}_{u}=0\quad \text{and}\quad {\it\omega}_{k\ell }=0\Leftrightarrow \mathscr{P}_{u}=0.\end{eqnarray}$$
This correspondence can be verified by direct calculation, but in fact can be proved directly from the governing equations; however, it is outside the scope of this paper. Carrying the calculation to higher order shows that
$$\begin{eqnarray}\left.\begin{array}{@{}rcl@{}}2\mathscr{M}_{u}\displaystyle \frac{1}{6}{\it\omega}_{kkk}\ & =\ & {\it\delta}\displaystyle \frac{h_{0}^{3}}{3}={\it\delta}\mathscr{K},\\ k\mathscr{M}_{u}{\it\omega}_{\ell \ell }\ & =\ & {\it\delta}h_{0}={\it\delta}\mathscr{P}_{v}.\end{array}\right\}\end{eqnarray}$$
where
${\it\delta}=\left(\pm (u_{0}/\sqrt{gh_{0}})\right)$
. Since
$u_{0}=\pm \sqrt{gh_{0}}$
,
${\it\delta}$
can be taken to be unity. All derivatives are evaluated at
$k=\ell =0$
except
${\it\omega}_{\ell \ell }$
which is evaluated at
$\ell =0$
only. One byproduct is that the coefficients of the classical dispersion relation for irrotational water waves (4.2) can be given an interpretation in terms of the geometry of uniform flows.
5. Concluding remarks
The main result in this paper is that the KP equation, the same KP equation that appears in textbooks, arises due to a much simpler mechanism than previously thought, and that mechanism is closely tied to classical hydraulics.
Since the mechanism involves starting with a Lagrangian with symmetry, and looking for degeneracy of the flux vector of the attendant conservation law, the theory should generalise to many other situations. For example, in Bridges (Reference Bridges2013), it is shown how the KdV equation can be found in many other situations. That theory generalises to the KP equation.
Anywhere criticality appears in hydrodynamics, one can expect a generalisation of the theory here to be developable. For example, the theory of criticality for two-layer fluids (e.g. Bridges & Donaldson Reference Bridges and Donaldson2007) is manifestly more interesting, and the theory in this paper can be suitably generalised to generate a theory for the emergence of dispersion in that setting by modulating the two-layer uniform flow. Another example is finite-amplitude criticality of Stokes waves (Bridges & Donaldson Reference Bridges and Donaldson2006).
Changing the scaling will change the modulation equation. For example, modulation of the uniform flow with the ansatz (3.3) but with the scaling
$X={\it\varepsilon}x$
and
$T={\it\varepsilon}^{2}t$
will generate a two-way Boussinesq equation, with coefficients determined by derivatives of the uniform flow.
The basic state (2.3a,b
) can be include time modulation, replacing
${\it\theta}$
with
$$\begin{eqnarray}{\it\theta}=u_{0}x+v_{0}y-rt+{\it\theta}_{0}\end{eqnarray}$$
and replacing the modulation (3.3) with
$$\begin{eqnarray}U(x,y,z,t)=\widehat{U}({\it\theta}+{\it\varepsilon}{\it\psi},u_{0}+{\it\varepsilon}^{2}q,v_{0},r+{\it\varepsilon}^{4}R)+{\it\varepsilon}^{3}W(X,Y,T,z,{\it\varepsilon}),\end{eqnarray}$$
with
$R=-{\it\psi}_{T}$
and
${\it\varepsilon}^{4}$
chosen so that
$q_{T}+R_{X}=0$
is in balance. However, at fifth order the same KP equation emerges. The full details of this derivation (and other possible modulations like
$v_{0}\mapsto v_{0}+{\it\varepsilon}^{3}V$
) will be given elsewhere.
A moving frame can be included by introducing the transformation
$x\mapsto x-ct$
, where
$c$
is the frame speed. Examples in the
$1+1$
setting are discussed in Bridges (Reference Bridges2013).
