2 Governing equations

The transient diffusiophoretic motions of suspended particles are governed by both the fluid and solute profiles in a channel or pore. We model the coupled fluid/solute/particle dynamics with governing equations that include the incompressible Navier–Stokes and continuity equations, an advection–diffusion equation for the solute transport and a diffusiophoretic advection–diffusion equation for the transport of suspended particles. For the following discussion, $\unicode[STIX]{x1D70C}$ , $\unicode[STIX]{x1D707}$ , $p^{\ast }$ and $\boldsymbol{u}^{\ast }=(u^{\ast },v^{\ast },w^{\ast })$ are the fluid density, viscosity, pressure and velocity, respectively, $c^{\ast }$ and $D_{s}$ are the solute concentration and diffusivity, respectively, and $n^{\ast }$ , $D_{p}$ and $\unicode[STIX]{x1D6E4}_{p}$ are the particle concentration, diffusivity and diffusiophoretic mobility, respectively. Throughout this analysis, we will assume that the solute is a single $z$ – $z$ electrolyte, where $z$ is the valence number. In three dimensions, and assuming that the influence of gravity is negligible, the dimensional form of this system of equations is given by

(2.1a ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D70C}\left(\frac{\unicode[STIX]{x2202}\boldsymbol{u}^{\ast }}{\unicode[STIX]{x2202}t^{\ast }}+\boldsymbol{u}^{\ast }\boldsymbol{\cdot }\unicode[STIX]{x1D735}^{\ast }\boldsymbol{u}^{\ast }\right)=-\unicode[STIX]{x1D735}^{\ast }p^{\ast }+\unicode[STIX]{x1D707}{\unicode[STIX]{x1D735}^{\ast }}^{2}\boldsymbol{u}^{\ast }, & \displaystyle\end{eqnarray}$$

(2.1b ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D735}^{\ast }\boldsymbol{\cdot }\boldsymbol{u}^{\ast }=0, & \displaystyle\end{eqnarray}$$

(2.1c ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}c^{\ast }}{\unicode[STIX]{x2202}t^{\ast }}+\unicode[STIX]{x1D735}^{\ast }\boldsymbol{\cdot }(\boldsymbol{u}^{\ast }c^{\ast })=D_{s}{\unicode[STIX]{x1D735}^{\ast }}^{2}c^{\ast }, & \displaystyle\end{eqnarray}$$

(2.1d ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}n^{\ast }}{\unicode[STIX]{x2202}t^{\ast }}+\unicode[STIX]{x1D735}^{\ast }\boldsymbol{\cdot }((\boldsymbol{u}^{\ast }+\boldsymbol{u}_{dp}^{\ast })n^{\ast })=D_{p}{\unicode[STIX]{x1D735}^{\ast }}^{2}n^{\ast }, & \displaystyle\end{eqnarray}$$

$^{\ast }$

$\boldsymbol{u}_{dp}^{\ast }$

$\boldsymbol{u}_{dp}^{\ast }=\unicode[STIX]{x1D6E4}_{p}\unicode[STIX]{x1D735}^{\ast }\ln c^{\ast }$

$\unicode[STIX]{x1D735}^{\ast }\ln c^{\ast }$

$n$

$c$

$x=0$

$\boldsymbol{u}^{\ast }$

$c^{\ast }$

$n$

2.1 Non-dimensional equations

Before proceeding to examine the fluid/solute/particle dynamics in long, narrow pores of height $2h$ and length $L\gg h$ , we first non-dimensionalize the system of governing equations. The average fluid speed in the pores is denoted $\bar{U}$ . We restrict ourselves to two dimensions and non-dimensionalize the system of governing equations for the fluid velocity $\boldsymbol{u}^{\ast }=(u^{\ast },v^{\ast })$ as follows:

(2.2) $$\begin{eqnarray}\left.\begin{array}{@{}c@{}}\displaystyle t=\frac{t^{\ast }D_{s}}{L^{2}},\quad x=\frac{x^{\ast }}{L},\quad y=\frac{y^{\ast }}{h},\quad u=\frac{u^{\ast }}{\bar{U}},\quad v=\frac{v^{\ast }L}{\bar{U}h},\quad n=\frac{n^{\ast }}{n_{c}},\\ \displaystyle c=\frac{c^{\ast }}{c_{c}},\quad \text{and}\quad p=\frac{p^{\ast }h^{2}}{\unicode[STIX]{x1D707}\bar{U}L},\end{array}\right\}\end{eqnarray}$$

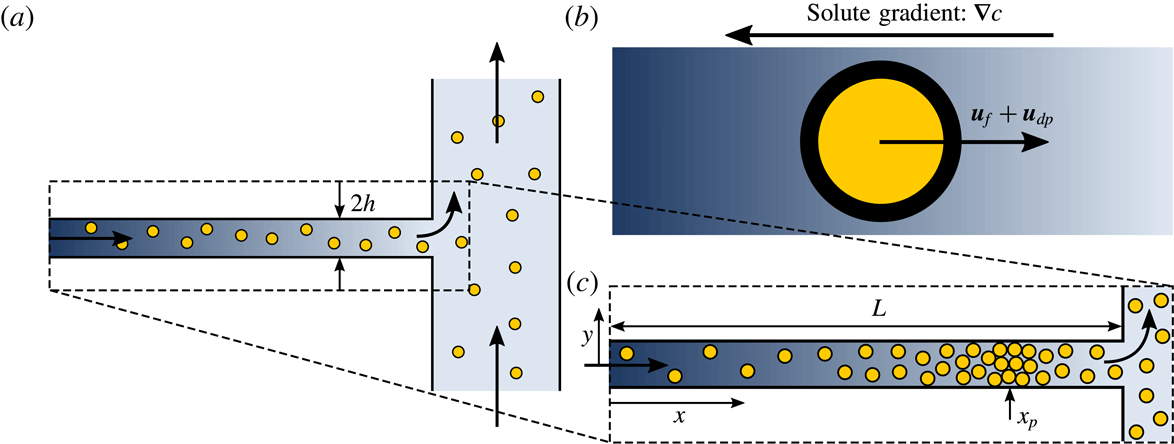

where $n_{c}=n^{\ast }(x=0)$ and $c_{c}=c^{\ast }(x=0)$ . With these non-dimensionalizations and considering the channel configuration shown in figure 1, the governing equations can be rewritten as

(2.3a ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D716}^{2}\frac{D_{s}}{\unicode[STIX]{x1D708}}\frac{\unicode[STIX]{x2202}u}{\unicode[STIX]{x2202}t}+\unicode[STIX]{x1D716}Re\left(u\frac{\unicode[STIX]{x2202}u}{\unicode[STIX]{x2202}x}+v\frac{\unicode[STIX]{x2202}u}{\unicode[STIX]{x2202}y}\right)=-\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}x}+\unicode[STIX]{x1D716}^{2}\frac{\unicode[STIX]{x2202}^{2}u}{\unicode[STIX]{x2202}x^{2}}+\frac{\unicode[STIX]{x2202}^{2}u}{\unicode[STIX]{x2202}y^{2}}, & \displaystyle\end{eqnarray}$$

(2.3b ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D716}^{4}\frac{D_{s}}{\unicode[STIX]{x1D708}}\frac{\unicode[STIX]{x2202}v}{\unicode[STIX]{x2202}t}+\unicode[STIX]{x1D716}^{3}Re\left(u\frac{\unicode[STIX]{x2202}v}{\unicode[STIX]{x2202}x}+v\frac{\unicode[STIX]{x2202}v}{\unicode[STIX]{x2202}y}\right)=-\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}y}+\unicode[STIX]{x1D716}^{4}\frac{\unicode[STIX]{x2202}^{2}v}{\unicode[STIX]{x2202}x^{2}}+\unicode[STIX]{x1D716}^{2}\frac{\unicode[STIX]{x2202}^{2}v}{\unicode[STIX]{x2202}y^{2}}, & \displaystyle\end{eqnarray}$$

(2.3c ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}u}{\unicode[STIX]{x2202}x}+\frac{\unicode[STIX]{x2202}v}{\unicode[STIX]{x2202}y}=0, & \displaystyle\end{eqnarray}$$

(2.3d ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D716}^{2}\frac{\unicode[STIX]{x2202}c}{\unicode[STIX]{x2202}t}+Pe_{s}\unicode[STIX]{x1D716}^{2}\left(u\frac{\unicode[STIX]{x2202}c}{\unicode[STIX]{x2202}x}+v\frac{\unicode[STIX]{x2202}c}{\unicode[STIX]{x2202}y}\right)=\unicode[STIX]{x1D716}^{2}\frac{\unicode[STIX]{x2202}^{2}c}{\unicode[STIX]{x2202}x^{2}}+\frac{\unicode[STIX]{x2202}^{2}c}{\unicode[STIX]{x2202}y^{2}}, & \displaystyle\end{eqnarray}$$

(2.3e ) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D716}^{2}\frac{D_{s}}{D_{p}}\left[\frac{\unicode[STIX]{x2202}n}{\unicode[STIX]{x2202}t}+Pe_{s}\left(\frac{\unicode[STIX]{x2202}(u_{p}n)}{\unicode[STIX]{x2202}x}+\frac{\unicode[STIX]{x2202}(v_{p}n)}{\unicode[STIX]{x2202}y}\right)\right]=\unicode[STIX]{x1D716}^{2}\frac{\unicode[STIX]{x2202}^{2}n}{\unicode[STIX]{x2202}x^{2}}+\frac{\unicode[STIX]{x2202}^{2}n}{\unicode[STIX]{x2202}y^{2}}, & \displaystyle\end{eqnarray}$$

where $Re=\bar{U}h/\unicode[STIX]{x1D708}$ is the flow Reynolds number, $Pe_{s}=L\bar{U}/D_{s}$ is the solute Péclet number, $\unicode[STIX]{x1D716}=h/L$ and $\boldsymbol{u}_{p}=\boldsymbol{u}+\boldsymbol{u}_{dp}$ is the particle velocity due to fluid advection and diffusiophoresis, i.e.

(2.4a,b ) $$\begin{eqnarray}u_{p}=u+\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c}{\unicode[STIX]{x2202}x}\quad \text{and}\quad v_{p}=v+\frac{1}{\unicode[STIX]{x1D716}^{2}}\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c}{\unicode[STIX]{x2202}y}.\end{eqnarray}$$

2.2 Boundary and initial conditions

The solution of (2.3) is subject to boundary conditions on the fluid, solute and particle dynamics. These boundary conditions are summarized by:

(2.5a ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{No fluid penetration at the walls:}~v(x,\pm 1,t)=0, & \displaystyle\end{eqnarray}$$

(2.5b ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{Fixed outlet pressure:}~p(1,y,t)=0, & \displaystyle\end{eqnarray}$$

(2.5c ) $$\begin{eqnarray}\displaystyle & \displaystyle \!\!\text{Fixed inlet and outlet solute concentrations:}~c(0,y,t)=1~\text{and}~c(1,y,t)=\unicode[STIX]{x1D6FD},\hspace{16.49995pt} & \displaystyle\end{eqnarray}$$

(2.5d ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{Fixed inlet and outlet particle concentrations:}~n(0,y,t)=n(1,y,t)=1, & \displaystyle\end{eqnarray}$$

(2.5e ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{No-flux conditions at the channel walls:}~\frac{\unicode[STIX]{x2202}c}{\unicode[STIX]{x2202}y}=\frac{\unicode[STIX]{x2202}n}{\unicode[STIX]{x2202}y}=0\quad \text{at }y=\pm 1, & \displaystyle\end{eqnarray}$$

(2.5f ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{Symmetry conditions:}~\frac{\unicode[STIX]{x2202}u}{\unicode[STIX]{x2202}y}=\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}y}=\frac{\unicode[STIX]{x2202}c}{\unicode[STIX]{x2202}y}=\frac{\unicode[STIX]{x2202}n}{\unicode[STIX]{x2202}y}=v=0\quad \text{at }y=0, & \displaystyle\end{eqnarray}$$

(2.5g ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{Fixed average fluid velocity:}~\int _{y=0}^{y=1}u(x,y,t)\,\text{d}y=1, & \displaystyle\end{eqnarray}$$

(2.5h ) $$\begin{eqnarray}\displaystyle & \displaystyle \text{Diffusioosmotic wall slip condition:}~u(x,\pm 1,t)=u_{w}(x,t)=-\left.\frac{\unicode[STIX]{x1D6E4}_{w}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c}{\unicode[STIX]{x2202}x}\right|_{y=\pm 1}.\qquad & \displaystyle\end{eqnarray}$$

The slip boundary condition given by (2.5h ) describes the deviation from the no-slip condition on the channel walls due to diffusioosmosis. The origin of a diffusioosmotic wall slip boundary condition is physically the same as the origin of diffusiophoresis itself, namely electrophoretic and chemiphoretic effects, where $\unicode[STIX]{x1D6E4}_{w}$ is the diffusioosmotic mobility of the wall, and the minus sign is because we are now interested in the motion of the fluid, whereas with diffusiophoresis the focus is on the motion of the particle. As initial conditions, we assume an initially uniform distribution of particles throughout the channel, i.e.  $n(x,y,0)=1$ . In later sections, we will show that the transient solute dynamics occurs much faster than the transient particle dynamics. Thus, for the purposes of modelling the diffusiophoretic particle motions, we may assume either an initially uniform solute concentration profile, i.e.  $c(x,y,0)=1$ , or we can simply directly impose the fully developed solute concentration profile as the initial condition. With these boundary and initial conditions and the non-dimensional governing equations given by (2.3), we next seek solutions for the fluid/solute/particle dynamics in long, narrow pores through the application of the lubrication approximation.

Note that, by assuming uniform pressure and solute concentration profiles at $x=1$ , we have assumed that any ‘end effects’ due to the presence of the junction are negligible. Of course, such an assumption is generally invalid, and the main channel flow must in turn affect the fluid/solute/particle dynamics within the pore. It is perhaps more appropriate to describe this boundary condition as ‘effective’ in nature, such that the outlet is not located exactly at $x=1$ . However, because we have assumed that the channel has a large aspect ratio, i.e.  $h/L\ll 1$ , this deviation is negligible, and we effectively have uniform boundary conditions at $x=1$ , which we have also confirmed with three-dimensional numerical simulations.

3 Diffusiophoresis in quasi-one-dimensional pores

We consider the motion of colloidal particles under the combined influences of fluid flow and solute gradients in long, narrow channel geometries such as illustrated in figure 1. For sufficiently long, narrow geometries, the diffusiophoretic particle dynamics is well approximated by a one-dimensional model. While in general the fluid velocity and pressure, as well as the solute and particle concentrations, will all be functions of $x$ , $y$ and $t$ in a channel flow, i.e.  $\boldsymbol{u}(x,y,t)$ , $p(x,y,t)$ , $c(x,y,t)$ and $n(x,y,t)$ , the lubrication approximation may be used to show that both the solute and particle concentrations are independent of $y$ to leading order for high-aspect-ratio channels, i.e.  $\unicode[STIX]{x1D716}=h/L\ll 1$ .

We consider low-Reynolds-number flows ( $Re\ll 1$ ) and seek the leading-order dynamics through a formal expansion with the small parameter $\unicode[STIX]{x1D716}$ . As can be seen in the non-dimensionalized governing equations (2.3), with $Re\ll 1$ , only $\unicode[STIX]{x1D716}^{2}$ appears. So, we seek solutions of the form

(3.1a ) $$\begin{eqnarray}\displaystyle & \displaystyle u(x,y,t)=u_{0}+\unicode[STIX]{x1D716}^{2}u_{1}+\unicode[STIX]{x1D716}^{4}u_{2}+\unicode[STIX]{x1D716}^{6}u_{3}+\cdots \,, & \displaystyle\end{eqnarray}$$

(3.1b ) $$\begin{eqnarray}\displaystyle & \displaystyle v(x,y,t)=v_{0}+\unicode[STIX]{x1D716}^{2}v_{1}+\unicode[STIX]{x1D716}^{4}v_{2}+\unicode[STIX]{x1D716}^{6}v_{3}+\cdots \,, & \displaystyle\end{eqnarray}$$

(3.1c ) $$\begin{eqnarray}\displaystyle & \displaystyle p(x,y,t)=p_{0}+\unicode[STIX]{x1D716}^{2}p_{1}+\unicode[STIX]{x1D716}^{4}p_{2}+\unicode[STIX]{x1D716}^{6}p_{3}+\cdots \,, & \displaystyle\end{eqnarray}$$

(3.1d ) $$\begin{eqnarray}\displaystyle & \displaystyle c(x,y,t)=c_{0}+\unicode[STIX]{x1D716}^{2}c_{1}+\unicode[STIX]{x1D716}^{4}c_{2}+\unicode[STIX]{x1D716}^{6}c_{3}+\cdots \,, & \displaystyle\end{eqnarray}$$

(3.1e ) $$\begin{eqnarray}\displaystyle & \displaystyle n(x,y,t)=n_{0}+\unicode[STIX]{x1D716}^{2}n_{1}+\unicode[STIX]{x1D716}^{4}n_{2}+\unicode[STIX]{x1D716}^{6}n_{3}+\cdots \,, & \displaystyle\end{eqnarray}$$

$u_{i}$

$v_{i}$

$p_{i}$

$c_{i}$

$n_{i}$

$x$

$y$

$t$

(3.2a-e ) $$\begin{eqnarray}\frac{\unicode[STIX]{x2202}^{2}u_{0}}{\unicode[STIX]{x2202}y^{2}}-\frac{\unicode[STIX]{x2202}p_{0}}{\unicode[STIX]{x2202}x}=0,\quad \frac{\unicode[STIX]{x2202}p_{0}}{\unicode[STIX]{x2202}y}=0,\quad \frac{\unicode[STIX]{x2202}u_{0}}{\unicode[STIX]{x2202}x}+\frac{\unicode[STIX]{x2202}v_{0}}{\unicode[STIX]{x2202}y}=0,\quad \frac{\unicode[STIX]{x2202}^{2}c_{0}}{\unicode[STIX]{x2202}y^{2}}=0,\quad \text{and}\quad \frac{\unicode[STIX]{x2202}^{2}n_{0}}{\unicode[STIX]{x2202}y^{2}}=0.\end{eqnarray}$$

Integrating the last two of these and applying the no-flux boundary condition given by (2.5e ), we find that $c_{0}=c_{0}(x,t)$ and $n_{0}=n_{0}(x,t)$ , i.e. the solute and particle concentrations are independent of $y$ to leading order. We further see that $p_{0}=p_{0}(x,t)$ , and the pressure is also independent of $y$ to leading order, as expected by the lubrication approximation. Thus, the effects of diffusioosmosis on the solute and particle concentrations and on the pressure are negligible to leading order, and only the mean flow velocity $\bar{U}$ affects the leading-order solute and particle distributions. Substituting these results into (2.3d ) and (2.3e ) we find to leading order

(3.3a ) $$\begin{eqnarray}\frac{\unicode[STIX]{x2202}c_{0}}{\unicode[STIX]{x2202}t}+Pe_{s}u_{0}\frac{\unicode[STIX]{x2202}c_{0}}{\unicode[STIX]{x2202}x}-\frac{\unicode[STIX]{x2202}^{2}c_{0}}{\unicode[STIX]{x2202}x^{2}}-\frac{\unicode[STIX]{x2202}^{2}c_{1}}{\unicode[STIX]{x2202}y^{2}}=0,\end{eqnarray}$$

(3.3b ) $$\begin{eqnarray}\displaystyle & & \displaystyle \frac{\unicode[STIX]{x2202}n_{0}}{\unicode[STIX]{x2202}t}-\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}n_{0}\left(\frac{\unicode[STIX]{x2202}\ln c_{0}}{\unicode[STIX]{x2202}x}\right)^{2}+Pe_{s}u_{0}\frac{\unicode[STIX]{x2202}n_{0}}{\unicode[STIX]{x2202}x}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}n_{0}}{\unicode[STIX]{x2202}x}\frac{\unicode[STIX]{x2202}\ln c_{0}}{\unicode[STIX]{x2202}x}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\frac{n_{0}}{c_{0}}\frac{\unicode[STIX]{x2202}^{2}c_{0}}{\unicode[STIX]{x2202}x^{2}}-\frac{D_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}^{2}n_{0}}{\unicode[STIX]{x2202}x^{2}}\nonumber\\ \displaystyle & & \displaystyle \quad +\,Pe_{s}n_{0}\frac{\unicode[STIX]{x2202}v_{0}}{\unicode[STIX]{x2202}y}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\frac{n_{0}}{c_{0}}\frac{\unicode[STIX]{x2202}^{2}c_{1}}{\unicode[STIX]{x2202}y^{2}}-\frac{D_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}^{2}n_{1}}{\unicode[STIX]{x2202}y^{2}}+Pe_{s}n_{0}\frac{\unicode[STIX]{x2202}u_{0}}{\unicode[STIX]{x2202}x}=0.\end{eqnarray}$$

$c_{1}$

$n_{1}$

(3.4a ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}c_{0}}{\unicode[STIX]{x2202}t}+Pe_{s}\frac{\unicode[STIX]{x2202}c_{0}}{\unicode[STIX]{x2202}x}-\frac{\unicode[STIX]{x2202}^{2}c_{0}}{\unicode[STIX]{x2202}x^{2}}=0, & \displaystyle\end{eqnarray}$$

(3.4b ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}n_{0}}{\unicode[STIX]{x2202}t}+\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}x}\left[\left(Pe_{s}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}\ln c_{0}}{\unicode[STIX]{x2202}x}\right)n_{0}\right]-\frac{D_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}^{2}n_{0}}{\unicode[STIX]{x2202}x^{2}}=0, & \displaystyle\end{eqnarray}$$

Before we attempt to solve this system, we first comment on the relevant time scales of the physical processes. First, note that we focus on solute Péclet numbers that are $Pe_{s}=O(1)$ . We will show below that this magnitude of Péclet numbers tends to locate the accumulating particle peak near the centre of the channel for typical values of $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ and $\unicode[STIX]{x1D6FD}$ , and also provides the best separation dynamics for applications with multiple types of particles. Then, with $Pe_{s}=O(1)$ , equation (3.4a ) shows that the solute concentration profile $c_{0}$ evolves on a time scale $O(1)$ . Furthermore, with the imposed boundary conditions, $c_{0}$ will approach a steady-state distribution, and thus we expect $\unicode[STIX]{x2202}c_{0}/\unicode[STIX]{x2202}t\approx 0$ for $t\gg 1$ . However, the diffusive term in (3.4b ) is $O(D_{p}/D_{s})$ . Since we expect the formation of a peak in the particle concentration within the channel, where diffusion must play a significant role, we thus expect that the accumulation dynamics of the particles occurs over a much longer time scale, since $D_{s}/D_{p}$ is typically $O(10^{3})$ for common combinations of solutes and particles. With this reasoning, and with supporting results from numerical simulations to be provided below, we assume that the solute concentration profile is steady over the relevant time scale of particle accumulation. That is, we solve the slightly modified system

(3.5a ) $$\begin{eqnarray}\displaystyle & \displaystyle Pe_{s}\frac{\text{d}c_{0}}{\text{d}x}-\frac{\text{d}^{2}c_{0}}{\text{d}x^{2}}=0, & \displaystyle\end{eqnarray}$$

(3.5b ) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}n_{0}}{\unicode[STIX]{x2202}t}+\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}x}\left[\left(Pe_{s}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\frac{\text{d}\ln c_{0}}{\text{d}x}\right)n_{0}\right]-\frac{D_{p}}{D_{s}}\frac{\unicode[STIX]{x2202}^{2}n_{0}}{\unicode[STIX]{x2202}x^{2}}=0, & \displaystyle\end{eqnarray}$$

$c_{0}=c_{0}(x)$

$c_{0}(0)=1$

$c_{0}(1)=\unicode[STIX]{x1D6FD}$

$n_{0}(0,t)=n_{0}(1,t)=1$

$\unicode[STIX]{x1D6FD}$

$Pe_{s}$

$\unicode[STIX]{x1D6E4}_{p}/D_{s}$

$D_{p}/D_{s}$

Equation (3.5a ) has a straightforward solution given by

(3.6) $$\begin{eqnarray}c_{0}(x)=\frac{\unicode[STIX]{x1D6FD}-1}{\text{e}^{Pe_{s}}-1}(\text{e}^{Pe_{s}x}-1)+1.\end{eqnarray}$$

In the limit of $Pe_{s}\rightarrow 0$ , solute diffusion dominates, and $c_{0}(x)$ approaches a linear profile. However, for $Pe_{s}\rightarrow \infty$ , the solute concentration approaches $c_{0}(x)=1$ throughout the pore, except for a shrinking region near the outlet where steeper and steeper solute concentration gradients develop. With the solution for the solute concentration given by (3.6), the diffusiophoretic contribution to (3.5b ) is known analytically, and (3.5b ) can be solved to yield the transient leading-order particle concentration $n_{0}$ . We seek intuition towards an analytical solution approach for (3.5b ) by performing one-dimensional (1-D) numerical simulations of the full governing equations (2.1). We assume an initial particle concentration distribution of $n(\boldsymbol{x},0)=1$ . Furthermore, because of the time scale arguments previously mentioned, we assume an initial solute concentration profile given by (3.6), i.e. we impose the leading-order steady-state solute concentration profile as the initial condition in our 1-D simulations. Assuming instead, for example, an initial uniform solute concentration of $c=1$ has a negligible influence on the particle dynamics because the solute quickly evolves towards (3.6) within $t=O(1)$ .

Typical numerical simulations of the 1-D particle dynamics are shown in figure 2. As can be seen, for typical, physically realistic non-dimensional parameters, the particle concentration initially forms a peak near the outlet that then moves upstream and approaches a steady location within $t=O(1)$ . After this initial transient period, the dynamics approaches an asymptotic behaviour in which the particle concentration can apparently be described by three separate solutions, each valid in a certain region. The location of the particle concentration peak approaches a steady position, and the peak grows larger in time (we will show that this growth is linear in $t$ until the maximum packing fraction is approached and short-range interactions dominate), whereas upstream and downstream of the peak the particle concentrations are steady and independent of time.

Figure 2. Typical suspended particle concentrations $n$ for $Pe_{s}=0.75$ , $D_{p}/D_{s}=6.25\times 10^{-4}$ , $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0.475$ and $\unicode[STIX]{x1D6FD}=0.01$ . Dimensionless parameters were chosen to reflect typical physical conditions. At early times, the particle concentration increases everywhere inside the pore as particles are brought in at both $x=0$ and $x=1$ . The profile quickly develops a peak at a pore position $x_{p}(t)$ . To the left and right of the peak, particle diffusion is negligible, and $n$ quickly approaches the steady-state solutions $n_{\ell }(x)$ and $n_{r}(x)$ in those regions of the pore, whereas the peak itself grows linearly in time as we will show. The figure inset shows the growth of the peak particle concentration in the channel $n_{max}$ . As can be seen, this growth is linear in time except for a brief initial development period that is $t=O(1)$ .

Furthermore, because $D_{p}/D_{s}\ll 1$ for typical combinations of solute and particles, and because gradients of $n$ are relatively small in the regions upstream and downstream of the peak, we first seek steady-state solutions to (3.5b ) with negligible particle diffusivity, i.e. we seek solutions to

(3.7) $$\begin{eqnarray}\frac{\text{d}}{\text{d}x}\left[\left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\text{d}\ln c_{0}}{\text{d}x}\right)n_{l,r}\right]=0,\end{eqnarray}$$

where $n_{\ell }$ and $n_{r}$ denote the steady-state particle concentrations to the left and right of the peak, respectively.

Analytical solutions to (3.7) for the particle concentrations upstream and downstream of the peak, i.e.  $n_{\ell }(x)$ and $n_{r}(x)$ , respectively, each satisfying one boundary condition at the inlet or outlet, are given by

(3.8a ) $$\begin{eqnarray}\displaystyle & \displaystyle n_{\ell }(x)=F(x)\frac{\displaystyle \text{e}^{Pe_{s}}+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}(\unicode[STIX]{x1D6FD}-1)-1}{\text{e}^{Pe_{s}}-1}, & \displaystyle\end{eqnarray}$$

(3.8b ) $$\begin{eqnarray}\displaystyle & \displaystyle n_{r}(x)=F(x)\frac{\displaystyle \text{e}^{Pe_{s}}\left(\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}(\unicode[STIX]{x1D6FD}-1)+\unicode[STIX]{x1D6FD}\right)-\unicode[STIX]{x1D6FD}}{(\text{e}^{Pe_{s}}-1)\unicode[STIX]{x1D6FD}}, & \displaystyle\end{eqnarray}$$

(3.9) $$\begin{eqnarray}F(x)=\frac{\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD}}{\displaystyle \text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}\left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD}}.\end{eqnarray}$$

Because the solutions $n_{\ell }(x)$ and $n_{r}(x)$ satisfy the particle-diffusion-free equation (3.7), they only satisfy the upstream and downstream boundary conditions, respectively. Both solutions diverge at the steady-state peak location, $x_{p}^{\infty }$ , which is given by $F(x_{p}^{\infty })\rightarrow \infty$ or

(3.10) $$\begin{eqnarray}x_{p}^{\infty }=Pe_{s}^{-1}\ln \left[\frac{\unicode[STIX]{x1D6FD}-\text{e}^{Pe_{s}}}{\displaystyle \left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)(\unicode[STIX]{x1D6FD}-1)}\right].\end{eqnarray}$$

This peak location can be understood as the location in the flow where the advective velocity exactly balances the diffusiophoretic velocity, such that particles accumulate. As can be seen from (3.10), for a given particle and solute, i.e. for fixed $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ , the flow parameters $Pe_{s}$ and $\unicode[STIX]{x1D6FD}$ can be tuned to drive particle accumulation at any location in the channel. This feature is shown graphically in figure 3, where the position of the particle peak within the channel is shown as a function of $Pe_{s}$ for a range of  $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ . Equation (3.10) demonstrates why we limit our focus to $Pe_{s}=O(1)$ . Assuming $\unicode[STIX]{x1D6FD}\ll 1$ and rearranging, we find that $Pe_{s}=\ln (1+\unicode[STIX]{x1D6E4}_{p}/D_{s})/(1-x_{p}^{\infty })$ . Then with $x_{p}^{\infty }\approx 0.5$ , i.e. fixing the particle accumulation near the centre of the channel, for typical values of $\unicode[STIX]{x1D6E4}_{p}/D_{s}=O(1)$ we also have $Pe_{s}=O(1)$ . Much smaller or larger values of $Pe_{s}$ will shift the particle dynamics towards the channel inlet or outlet, respectively.

Figure 3. Steady-state peak particle concentration location $x_{p}^{\infty }$ in the channel as a function of the solute Péclet number $Pe_{s}$ for a variety of particle diffusiophoretic mobilities $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ for $\unicode[STIX]{x1D6FD}=0.01$ . For a given $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ , both $Pe_{s}$ and $\unicode[STIX]{x1D6FD}$ can be tuned to selectively determine the channel position at which particles accumulate. Note that for $x_{p}^{\infty }<0$ , particle diffusiophoresis is too strong relative to fluid advection, and particles will be continuously pumped upstream without accumulating in the channel. Also note that $\unicode[STIX]{x1D6E4}_{p}/D_{s}<1$ for most realistic combinations of solute and particles.

With analytical expressions for the steady-state particle concentrations at the inlet and outlet of the channel, we can directly calculate the in/out-flow of particles at both the inlet and at the outlet. Using the analytical solutions for $n_{\ell }(x)$ and $n_{r}(x)$ given by (3.8), it is straightforward to show that these fluxes are not equal except for the trivial case of $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0$ . However, with $\unicode[STIX]{x1D6E4}_{p}/D_{s}>0$ and $0<\unicode[STIX]{x1D6FD}<1$ or with $\unicode[STIX]{x1D6E4}_{p}/D_{s}<0$ and $\unicode[STIX]{x1D6FD}>1$ , these fluxes represent a net influx of particles into the channel. Furthermore, because $n_{\ell }(x)$ and $n_{r}(x)$ specify, respectively, the particle concentrations at the inlet and outlet and because they are both steady in time, the accumulation of particles occurs at a constant rate.

In order to solve for the time-dependent particle concentrations at the peak, we must consider the full unsteady diffusiophoretic advection–diffusion equation including particle diffusion given by (3.5b ). Numerical simulations suggest that the particle concentrations centred around and at the peak, which we denote as $n_{c}(x,t)$ , grow linearly with $t$ , as shown in the inset of figure 2. Thus, we make an initial guess that $n_{c}(x,t)\propto t$ , and we use a change of variables $x^{\prime }=x-x_{p}^{\infty }$ to centre the solution around the peak. Because $D_{p}/D_{s}\ll 1$ is a small parameter that also multiplies the highest spatial derivative in the problem, we stretch the $x^{\prime }$ -axis as $X=x^{\prime }/(D_{p}/D_{s})^{1/2}$ . Then, considering the limit $D_{p}/D_{s}\ll 1$ , equation (3.4b ) can be solved to yield

(3.11) $$\begin{eqnarray}n_{c}(x,t)=kt\,\text{exp}\left\{-\frac{D_{s}(D_{s}+\unicode[STIX]{x1D6E4}_{p})}{2D_{p}\unicode[STIX]{x1D6E4}_{p}}\left(\ln \left[\frac{\unicode[STIX]{x1D6FD}-\text{e}^{Pe_{s}}}{\displaystyle \left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)(\unicode[STIX]{x1D6FD}-1)}\right]-Pe_{s}x\right)^{2}\right\}.\end{eqnarray}$$

Because we know the net in/out-flux of particles at the inlet and outlet from $n_{\ell }(x)$ and $n_{r}(x)$ , a balance on the total number of particles allows us to uniquely determine the constant of proportionality $k$ . Specifically, the time rate of change of the integral of $n_{c}(x,t)$ must equal the net influx of particles, which allows us to determine

(3.12) $$\begin{eqnarray}k=\frac{Pe_{s}^{2}(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})(1-\unicode[STIX]{x1D6FD})}{\unicode[STIX]{x1D6FD}\sqrt{2\unicode[STIX]{x03C0}}(\text{e}^{Pe_{s}}-1)}\left(\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{p}}\left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)\right)^{1/2}.\end{eqnarray}$$

This constant sets the rate at which particles accumulate in the channel and the rate at which the peak concentration grows. For small $\unicode[STIX]{x1D6FD}$ , $k\propto \unicode[STIX]{x1D6FD}^{-1}$ . Thus, reducing the outlet solute concentration by half will double the rate of particle concentration growth at the peak. The dependence on $Pe_{s}$ is even stronger. For large $Pe_{s}$ , $k\propto Pe_{s}^{2}$ , so doubling the flow velocity will quadruple the rate of particle accumulation in the pore.

With the theoretical predictions $n_{\ell }$ , $n_{r}$ , and $n_{c}$ for the piecewise colloidal particle concentration, we can now compare with 1-D numerical simulations of the original system of governing equations (2.1). Results comparing the theoretical predictions of (3.8a ), (3.8b ), and (3.11) with numerical simulations for typical, realistic physical parameters are shown in figure 4. As can be seen, with no fitting parameters, all three analytical piecewise results closely approximate the numerical results ( $n_{num}$ ) throughout the entire domain. There is a modest divergence between the theoretical predictions and the numerical results near where the solutions match together. Because there are no free parameters, it is impossible to match derivatives at the matching locations, so that the theoretical predictions for $n$ are piecewise continuous, but not smooth at the matching points. We choose the switching locations $x_{1}$ and $x_{2}$ simply based on when $n_{\ell }(x_{1})=n_{c}(x_{1},t)$ and $n_{r}(x_{2})=n_{c}(x_{2},t)$ . Note that because $n_{c}$ grows with time, the matching locations continuously spread outwards from the peak. In this model, they will eventually reach either the inlet, outlet or both, but as long as the peak location is not too close to the inlet or outlet, that breakdown of the model would occur only at very long times, and it is more likely that the predicted particle concentrations would become unphysically large before that happens. In the next section, we will show how the combined effects of fluid advection and diffusiophoresis can be used to achieve various applications for manipulating particles.

Figure 4. The particle concentration profile approaches a long-time asymptotic behaviour in which $n$ is well approximated by distinct dynamics in three different regions. To the left and right of the peak, particle dynamics is dominated by fluid advection and diffusiophoresis (i.e. particle diffusion is negligible), and the particle distribution is well represented by steady-state solutions denoted by $n_{\ell }$ and $n_{r}$ (see (3.8a ) and (3.8b )). Due to the fixed, steady influx of particles at both $x=0$ and $x=1$ , the peak itself grows as $n\propto t$ and is described well by $n_{c}$ , whose magnitude grows in time (see (3.11)). Here, $Pe_{s}=0.75$ , $D_{p}/D_{s}=6.25\times 10^{-4}$ , $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0.475$ , $\unicode[STIX]{x1D6FD}=0.01$ and $t=36.0$ .

4 Controlled particle sorting

In the previous section we presented theoretical and numerical results for the one-dimensional diffusiophoretic particle dynamics in long, narrow pores. We now consider the influence of the diffusiophoretic mobility $\unicode[STIX]{x1D6E4}_{p}$ , which is a function of both solute and particle parameters including the diffusivities of the cations and anions in the solute, as well as the particle sizes and surface charges. For details regarding the size effect on $\unicode[STIX]{x1D6E4}_{p}$ see Prieve et al. (Reference Prieve, Anderson, Ebel and Lowell1984), Prieve & Roman (Reference Prieve and Roman1987) and equation (S5) from Shin et al. (Reference Shin, Um, Sabass, Ault, Rahimi, Warren and Stone2016). Theoretical and numerical results demonstrating the influence of $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ on the suspended particle concentrations are shown in figure 5, where solutions for $n(x,t)$ at the same time but different $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ are reported. As can be seen, particles with larger $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ experience diffusiophoresis more strongly, and are able to propagate further upstream towards the channel inlet. As time progresses, particles continue to focus, and the particle concentrations will continue to grow as described in the previous section. However, after the initial $t=O(1)$ period, the locations of the peaks remain effectively stationary.

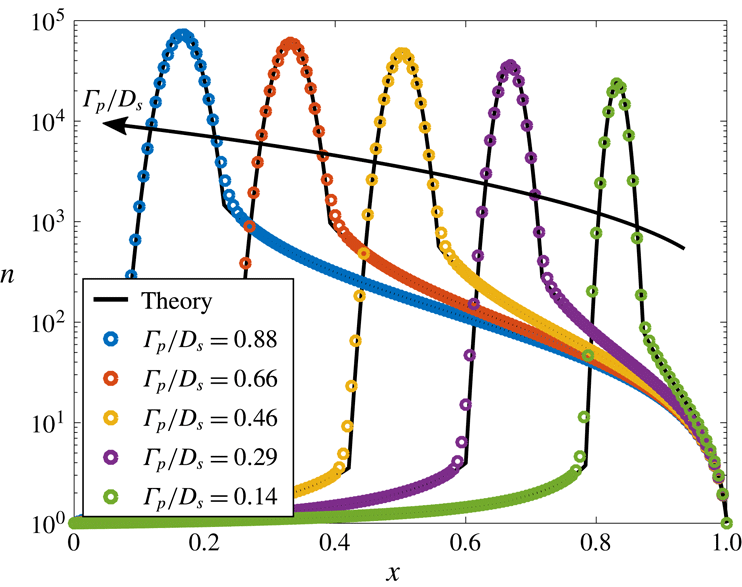

Figure 5. Suspended particle concentration profiles for particles with different diffusiophoretic mobilities $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ for $Pe_{s}=0.75$ , $D_{p}/D_{s}=6.25\times 10^{-4}$ , $\unicode[STIX]{x1D6FD}=0.01$ and $t=36.0$ . Symbols denote numerical solutions of the 1-D equation (2.1), and solid black lines indicate the corresponding theoretical predictions given by (3.8a ), (3.8b ) and (3.11). As can be seen, particles with different diffusiophoretic mobilities form distinct peaks (the locations of which are steady in time), suggesting that this type of system may have significant applications such as particle sorting, focusing and zeta potentiometry.

Another way to interpret the results of figure 5 is to consider a channel simultaneously filled with a uniform dilute concentration of five different types of particles with the values of $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ specified in the figure. Due to the combined influences of fluid advection and diffusiophoresis, as time passes, the particle concentrations will begin to focus at different locations in the channel, forming distinct concentration peaks, effectively sorting and focusing each of the particles based on their $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ .

This configuration has potential applications ranging from particle sorting, separation and focusing, to diagnostic and measurement applications. For example, since the peak concentration locations are steady in time after an initial transient of time $t=O(1)$ , and the locations for accumulation are uniquely determined by the system parameters $Pe_{s}$ , $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ , and $\unicode[STIX]{x1D6FD}$ , it is straightforward to establish the $\unicode[STIX]{x1D6E4}_{p}$ of the different particles. For example, in a microfluidic experiment, with fixed $\unicode[STIX]{x1D6FD}$ and $Pe_{s}$ , the position of the peak concentration $x_{p}^{\infty }$ for particles with unknown $\unicode[STIX]{x1D6E4}_{p}$ can easily be measured. Then, the unknown diffusiophoretic mobility can be directly calculated from (3.10) to yield

(4.1) $$\begin{eqnarray}\unicode[STIX]{x1D6E4}_{p}=D_{s}\left(\frac{\unicode[STIX]{x1D6FD}-\text{e}^{Pe_{s}}}{\text{e}^{Pe_{s}x_{p}^{\infty }}(\unicode[STIX]{x1D6FD}-1)}-1\right).\end{eqnarray}$$

This approach is similar to that described by Shin et al. (Reference Shin, Ault, Feng, Warren and Stone2017a ), who used a dead-end pore geometry. However, the configuration of figure 1 has several advantages. First, the particle concentration peak location is stationary in time, and results can be achieved based only on a single snapshot in time, whereas Shin et al.’s method requires tracking a propagating particle front. Furthermore, the precision of this approach can likely be higher than that described by Shin et al., where, for typical $\unicode[STIX]{x1D6E4}_{p}$ , the quasi-steady locations that particle fronts approach only occupy a range covering approximately 30 % of the total channel length, such that in the case of multiple particles, they lie relatively close together in the measurement. Here, $Pe_{s}$ and $\unicode[STIX]{x1D6FD}$ can be tuned to maximize separation between particles and improve measurement resolution. Finally, our proposed approach has a straightforward analytical expression given by (4.1) that can be used to calculate $\unicode[STIX]{x1D6E4}_{p}$ .

Furthermore, we note that in the thin double layer limit the diffusiophoretic mobility $\unicode[STIX]{x1D6E4}_{p}$ is a known function of both a particle’s surface charge (i.e. zeta potential) and size. Shin et al. also took advantage of this size effect, demonstrating particle separation by size using applied transient solute gradients (Shin et al. Reference Shin, Um, Sabass, Ault, Rahimi, Warren and Stone2016). For much the same reasons as stated above, the system presented here again offers additional advantages over Shin et al.’s system, specifically (i) particle peak locations are steady in time, (ii) the system undergoes steady, continuous particle focusing and accumulation in contrast to transient, limited focusing and (iii) convenient analytical expressions exist that relate $\unicode[STIX]{x1D6E4}_{p}/D_{s}$ , $Pe_{s}$ , $\unicode[STIX]{x1D6FD}$ and the steady-state particle peak location $x_{p}^{\infty }$ . As illustrated in figure 5, the flow configuration of figure 1 provides a simple, practical means to predictably manipulate particles by size and/or surface charge in long narrow channels. In the next section, we will look at two-dimensional corrections to the fluid, solute and particle dynamics due to the finite aspect ratio of channels, and especially consider the effects of diffusioosmosis at the channel walls.

5 Diffusiophoresis in 2-D narrow channel flows

In § 3, we used an asymptotic expansion with the small parameter $\unicode[STIX]{x1D716}=h/L\ll 1$ to solve for the leading-order, quasi-1-D solute and particle concentration profiles in a long, narrow channel flow. We showed that the solute and particle concentrations only depend on the mean channel velocity $\bar{U}$ (through the solute Péclet number $Pe_{s}$ ) and are independent of the distribution of velocity $\boldsymbol{u}(x,y,t)$ to leading order, i.e. the influence of diffusioosmosis on the solute and particle concentrations is negligible to leading order. Thus, the leading-order 1-D analysis fails to model the effects of both finite-aspect-ratio channels and the recirculating flows due to diffusioosmotic wall slip conditions. In this section, we extend the analysis of § 3 to higher order to include the effects of diffusioosmosis and provide 2-D corrections to the solute/particle dynamics for finite $\unicode[STIX]{x1D716}$ . Thus, in this section we quantify the influence of diffusioosmosis expressed through the diffusioosmotic mobility coefficient $\unicode[STIX]{x1D6E4}_{w}$ which is a function of, among other things, the surface charge density of the channel walls. First, we solve for the leading-order 2-D fluid velocity and pressure distributions, which are needed to develop the higher-order corrections to the solute and particle concentration profiles. Next, we calculate the higher-order 2-D correction to the solute concentration profile and use this result to determine the particle velocity components $u_{p}$ and $v_{p}$ due to both fluid advection and diffusiophoresis up to $O(\unicode[STIX]{x1D716}^{2})$ , which can be directly integrated to yield individual particle trajectories. Finally, we calculate the 2-D correction to the particle concentration around the peak for finite $\unicode[STIX]{x1D716}$ and show that the particles form a curved band depending on the strength of the diffusioosmotic effects.

5.1 Leading-order base flow

In § 3 we showed that the leading-order fluid velocity and pressure profiles are governed by (3.2), although only the mean velocity $\bar{U}$ influenced the leading-order distribution of solute ( $c_{0}$ ) and particles ( $n_{0}$ ). In order to solve for the higher-order 2-D corrections to the solute/particle dynamics, we next seek solutions to the fluid velocity, $\boldsymbol{u}_{0}=(u_{0},v_{0})$ , and pressure profiles. Subject to the leading-order boundary conditions

(5.1a,b ) $$\begin{eqnarray}\int _{0}^{1}u_{0}(x,y)\,\text{d}y=1\quad \text{and}\quad u_{0}(x,\pm 1)=-\frac{\unicode[STIX]{x1D6E4}_{w}}{L\bar{U}}\,\frac{\text{d}\ln c_{0}}{\text{d}x},\end{eqnarray}$$

the solution to (3.2) is given by

(5.2a ) $$\begin{eqnarray}\displaystyle & \displaystyle u_{0}(x,y)=\frac{1}{2}\left[3-3y^{2}-\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\left(\frac{\text{e}^{Pe_{s}x}(3y^{2}-1)(\unicode[STIX]{x1D6FD}-1)}{\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD}}\right)\right], & \displaystyle\end{eqnarray}$$

(5.2b ) $$\begin{eqnarray}\displaystyle & \displaystyle v_{0}(x,y)=Pe_{s}\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\left[\frac{\text{e}^{Pe_{s}x}(y^{3}-y)(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})(\unicode[STIX]{x1D6FD}-1)}{2(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD})^{2}}\right], & \displaystyle\end{eqnarray}$$

(5.2c ) $$\begin{eqnarray}\displaystyle & \displaystyle p_{0}(x)=3\left[1-x+\frac{\unicode[STIX]{x1D6E4}_{w}}{L\bar{U}}(\ln [(\text{e}^{Pe_{s}}-1)\unicode[STIX]{x1D6FD}]-\ln [\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD}])\right]. & \displaystyle\end{eqnarray}$$

These results are valid for times greater than $t=O(1)$ , which is the time scale for the solute concentration to approach steady state. Note that diffusiophoresis typically occurs in aqueous solutions for which $\unicode[STIX]{x1D708}\gg D_{s}$ and the flows have $Re\ll 1$ , so that the fluid velocity and pressure profiles adjust nearly instantaneously relative to the solute dynamics.

As validation of these results, we choose $Pe_{s}=10$ , $\unicode[STIX]{x1D716}=0.0025$ , $\unicode[STIX]{x1D6FD}=0.01$ and $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.1$ and compare the theoretical predictions for the fluid velocity components given by (5.2a ) and (5.2b ) with the results of 2-D numerical simulations of (2.1) in figure 6. Details of the numerical simulations are given in appendix A. We restrict the figure to the region of the channel near the outlet ( $0.99\leqslant x\leqslant 1.0$ ) because that corresponds to the region with the largest deviations from the parabolic Poiseuille flow for the chosen parameters. As can be seen, for $\unicode[STIX]{x1D6E4}_{w}>0$ diffusioosmosis drives an outflow slip boundary condition at the channel walls at the outlet, which can lead to a flow reversal along the channel centreline for sufficiently charged channel walls. This flow reversal in turn drives a recirculating flow, as seen in figure 6(b,d), which drives flow towards the channel walls.

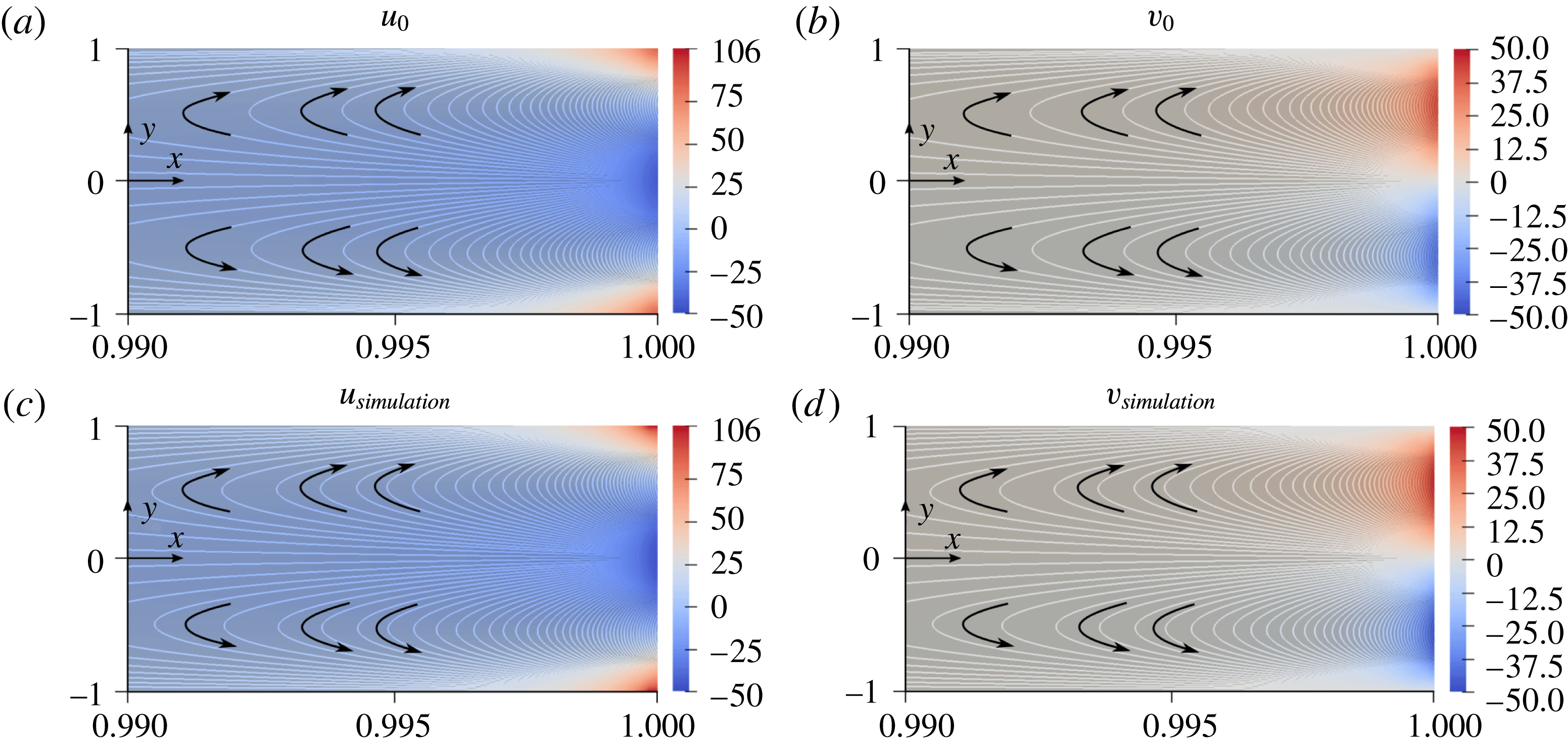

Figure 6. Steady-state fluid velocity components near the outlet ( $x=1$ ). The four panels indicate the theoretical prediction for (a) the leading-order $x$ -component of velocity $u_{0}$ and (b) the leading-order $y$ -component of velocity $v_{0}$ , as well as the results of numerical simulations for $u$ and $v$ in (c) and (d), respectively. Results correspond to $\unicode[STIX]{x1D6FD}=0.01$ , $\unicode[STIX]{x1D716}=h/L=0.0025$ , $Pe_{s}=10$ and $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.1$ . Theoretical predictions are given by (5.2a ) and (5.2b ). In the vicinity of the channel outlet, diffusioosmosis at the channel walls results in a slip boundary condition towards the outlet. If this diffusioosmosis is strong enough, conservation of mass requires that some fluid is pulled into the domain along the centreline of the outlet, resulting in a recirculating flow that can drive suspended particles outwards toward the channel walls.

This flow reversal is seen more clearly as a function of the wall surface charge $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ in figure 7. Increasing the value of $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ above 0 leads to stronger outflow at the channel walls at the outlet, in turn driving $u$ negative along the channel centreline in order to conserve mass. In contrast, decreasing the value of $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ below 0 leads to an inflow wall slip condition at the channel walls at the outlet, driving a larger outflow velocity along the channel centreline. In each case, the net mass outflux at the outlet is identical to that of parabolic Poiseuille flow ( $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0$ ), although the pressure gradient at the outlet will deviate from that of Poiseuille flow as predicted by (5.2c ) for non-zero $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ .

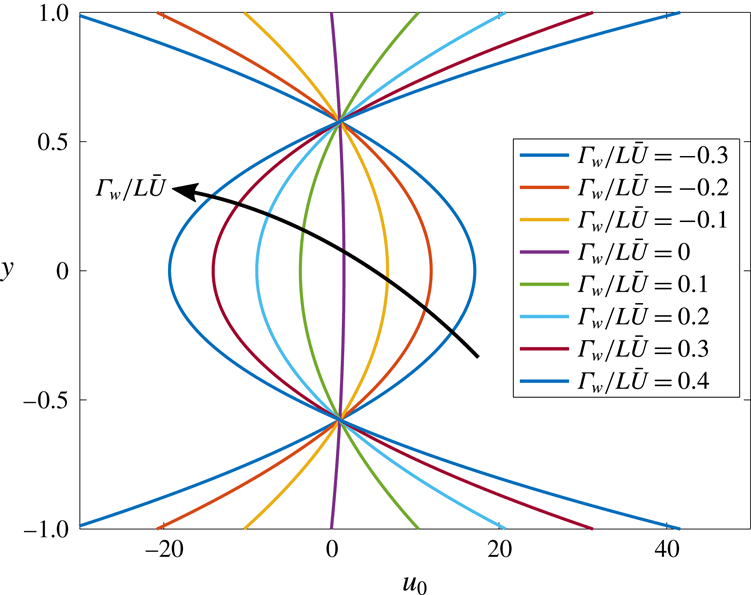

Figure 7. Influence of diffusioosmosis on the leading-order velocity profile $u_{0}$ at the channel outlet ( $x=1$ ). With $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0$ , the flow satisfies the no-slip condition $u_{0}=0$ at the channel walls. However, with $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}<0$ , fluid inflow occurs at the channel walls, and with $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}>0$ , fluid outflow occurs at the channel walls. All curves integrate to the same net mass flux in order to conserve mass along the channel, although the different profiles correspond to different total pressure drops along the pore.

Finally, the theoretical predictions for the leading-order solute concentration and fluid pressure profiles $c_{0}$ and $p_{0}$ given by (3.6) and (5.2c ) are compared with the results of 2-D numerical simulations in figure 8. As can be seen, increasing the solute Péclet number leads to steeper gradients in both the fluid pressure and solute concentration. Increasing $Pe_{s}=L\bar{U}/D_{s}$ increases the relative influence of advection to solute diffusion, extending a region of roughly uniform solute concentration from the inlet, and confining the diffusive region towards the outlet. The steeper solute concentration gradients near the outlet in turn drive stronger diffusioosmosis at the channel walls. In figure 8, $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.1$ , thus the wall slip velocity is directed towards the outlet, which leads to a flow reversal on the centreline. This in turn requires a steeper pressure gradient at the outlet in order to maintain the same flow rate. The pressure and solute concentration gradients in the boundary layer near the outlet are given by

(5.3a,b ) $$\begin{eqnarray}\frac{\text{d}p_{0}}{\text{d}x}=3\left(\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\frac{\text{e}^{Pe_{s}}(1-\unicode[STIX]{x1D6FD})}{(\text{e}^{Pe_{s}}-1)\unicode[STIX]{x1D6FD}}-1\right)\quad \text{and}\quad \frac{\text{d}c_{0}}{\text{d}x}=Pe_{s}\frac{\text{e}^{Pe_{s}}(\unicode[STIX]{x1D6FD}-1)}{\text{e}^{Pe_{s}}-1}\quad \text{at }x=1.\end{eqnarray}$$

Thus, the pressure gradient at the outlet scales linearly with $\unicode[STIX]{x1D6E4}_{w}/D_{s}$ , and the solute concentration gradient at the outlet is proportional to $Pe_{s}$ .

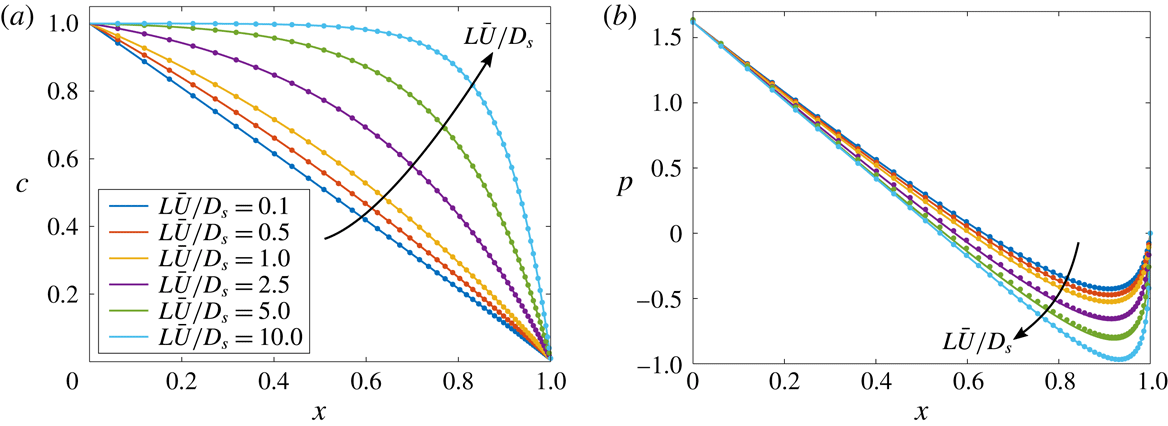

Figure 8. Steady-state results for the leading-order (a) solute concentration $c_{0}$ and (b) pressure $p_{0}$ for $\unicode[STIX]{x1D6FD}=0.01$ , $\unicode[STIX]{x1D716}=0.0025$ and $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.1$ . Solid lines represent the theoretical predictions given by (3.6) and (5.2c ), and symbols represent results from 2-D simulations of the original governing (2.1). Increasing the value of $Pe_{s}=L\bar{U}/D_{s}$ increases the relative importance of fluid advection compared to solute diffusion, leading to steeper solute concentration gradients near the outlet. This steeper gradient drives a stronger diffusioosmotic wall slip condition near the outlet, resulting in a stronger adverse pressure gradient at the outlet.

5.2 Two-dimensional solute dynamics

With leading-order relationships for the 2-D base flow in long, narrow channels including diffusioosmotic effects, we now seek the higher-order 2-D correction to the solute concentration profile. Substituting $u_{0}$ , $v_{0}$ and $c_{0}$ into the series expansions (3.1) and considering times $t>O(1)$ such that $u$ , $v$ and $c$ can all be assumed steady, equation (2.3d ) leads to

(5.4) $$\begin{eqnarray}\frac{\unicode[STIX]{x2202}^{2}c_{1}}{\unicode[STIX]{x2202}y^{2}}=\frac{\displaystyle \text{e}^{Pe_{s}x}Pe_{s}^{2}(3y^{2}-1)\left[(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)\left(1+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)\right]}{2(\text{e}^{Pe_{s}}-1)(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD})(1-\unicode[STIX]{x1D6FD})^{-1}},\end{eqnarray}$$

which has the solution

(5.5) $$\begin{eqnarray}c_{1}(x,y)=Pe_{s}^{2}\frac{\displaystyle \text{e}^{Pe_{s}x}y^{2}(y^{2}-2)\left(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}\left(1+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD}\right)}{8(\text{e}^{Pe_{s}}-1)(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD})(1-\unicode[STIX]{x1D6FD})^{-1}}+F_{2}(x),\end{eqnarray}$$

where $F_{2}(x)$ is an unknown function of $x$ that may be determined by extending the analysis to higher order and applying the boundary conditions. Fortunately, the leading-order 2-D particle trajectories can be calculated without an explicit relation for $F_{2}(x)$ since $\unicode[STIX]{x2202}c_{1}/\unicode[STIX]{x2202}y$ is known explicitly. In the next section, we calculate the leading-order 2-D particle velocity components due to both fluid advection and diffusiophoresis, and we use these to calculate the 2-D particle concentration dynamics for finite $\unicode[STIX]{x1D716}$ .

5.3 Two-dimensional particle dynamics

In this section, we extend the results of the previous sections to calculate the leading-order 2-D correction to the diffusiophoretic particle dynamics governed by (2.3e ) for finite $\unicode[STIX]{x1D716}$ . With the analytical form for $c_{1}$ given by (5.5) in the previous section, individual particle velocities can be directly computed to leading order using

(5.6a ) $$\begin{eqnarray}\displaystyle & \displaystyle u_{p}=u+\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c}{\unicode[STIX]{x2202}x}=u_{0}+\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\,\frac{\text{d}\ln c_{0}}{\text{d}x}+O(\unicode[STIX]{x1D716}^{2}), & \displaystyle\end{eqnarray}$$

(5.6b ) $$\begin{eqnarray}\displaystyle & \displaystyle v_{p}=v+\frac{1}{\unicode[STIX]{x1D716}^{2}}\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c}{\unicode[STIX]{x2202}y}=v_{0}+\frac{\unicode[STIX]{x1D6E4}_{p}}{L\bar{U}}\frac{\unicode[STIX]{x2202}\ln c_{1}}{\unicode[STIX]{x2202}y}+O(\unicode[STIX]{x1D716}^{2}). & \displaystyle\end{eqnarray}$$

Substituting in $u_{0}$ , $v_{0}$ , $c_{0}$ and $c_{1}$ , the particle velocity components are given by

(5.7a ) $$\begin{eqnarray}\displaystyle & & \displaystyle u_{p}(x,y)=\nonumber\\ \displaystyle & & \displaystyle \quad \frac{\displaystyle 3(1-y^{2})(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})+\text{e}^{Pe_{s}x}\left[3+\frac{2\unicode[STIX]{x1D6E4}_{p}+\unicode[STIX]{x1D6E4}_{w}}{D_{s}}-3\left(1+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)y^{2}\right](\unicode[STIX]{x1D6FD}-1)}{2(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD})}+O(\unicode[STIX]{x1D716}^{2}),\nonumber\\ \displaystyle & & \displaystyle\end{eqnarray}$$

(5.7b ) $$\begin{eqnarray}\displaystyle & & \displaystyle v_{p}(x,y)=\nonumber\\ \displaystyle & & \displaystyle \quad \frac{\displaystyle Pe_{s}\text{e}^{Pe_{s}x}(y^{3}-y)\left[\frac{\unicode[STIX]{x1D6E4}_{w}-\unicode[STIX]{x1D6E4}_{p}}{D_{s}}(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})-\text{e}^{Pe_{s}x}\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\left(1+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)(\unicode[STIX]{x1D6FD}-1)\right]}{2(\text{e}^{Pe_{s}}+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)-\unicode[STIX]{x1D6FD})^{2}(\unicode[STIX]{x1D6FD}-1)^{-1}}+O(\unicode[STIX]{x1D716}^{2}).\nonumber\\ \displaystyle & & \displaystyle\end{eqnarray}$$

The particle velocities given by (5.7) can be directly integrated to yield the individual particle trajectories in narrow channel flows due to fluid advection and diffusiophoresis. Furthermore, we can predict where particles will accumulate in the channel by looking at the locations where particle velocities are zero. Specifically, we see that the axial component of the particle velocity is zero along the curve given by

(5.8) $$\begin{eqnarray}y=\pm \left[\frac{\displaystyle 3(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})+\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)\left(3+2\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)}{\displaystyle 3(\text{e}^{Pe_{s}}-\unicode[STIX]{x1D6FD})+3\text{e}^{Pe_{s}x}(\unicode[STIX]{x1D6FD}-1)\left(1+\frac{\unicode[STIX]{x1D6E4}_{w}}{D_{s}}\right)}\right]^{1/2},\end{eqnarray}$$

which indicates a locus for particle accumulation.

Numerical simulations demonstrating the influence of diffusioosmosis on the suspended particle concentration $n$ are shown in figure 9. Here, we clearly see the importance of 2-D effects on the particle dynamics, as $n$ forms a curved band for finite $\unicode[STIX]{x1D716}$ . Figure 9(a) corresponds to the case with the weakest diffusioosmosis at the channel walls. The peak particle concentration forms along the channel centreline near the front of the curved band. Since the fluid velocity is approximately parabolic (due to weak diffusioosmosis in that case), the fluid velocity is fastest along the centreline, leading to the fastest particle accumulation at that point. However, increasing the value of $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ reduces the fluid velocity along the centreline, increases the magnitude of the wall slip velocity and drives a recirculating flow towards the channel walls. These combined effects drive particles to accumulate closer to the walls for larger $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ , as shown in figure 9(b–d). The dashed white lines in the figure correspond to the theoretical predictions of (5.8) and correspond to the locations where $u_{p}=0$ .

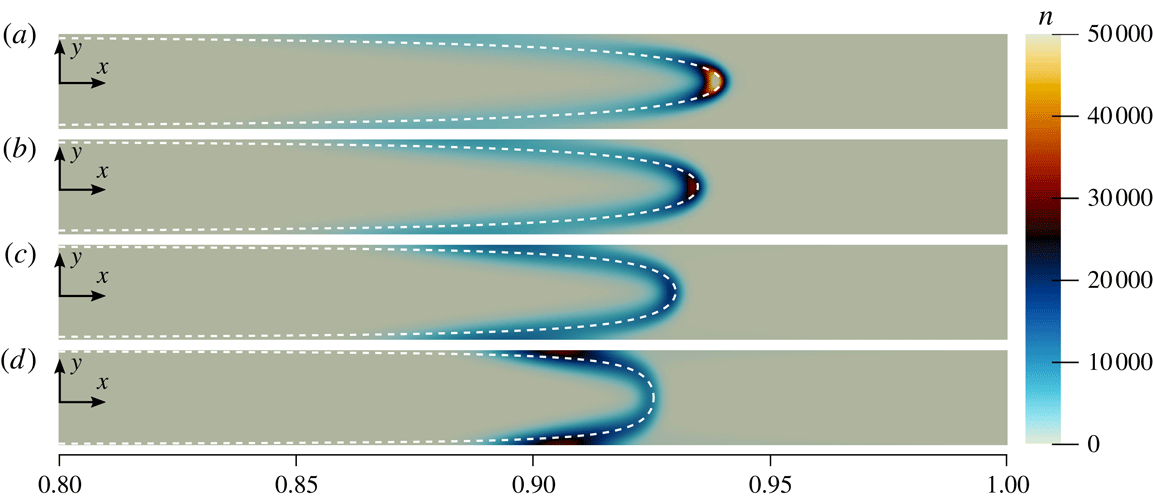

Figure 9. Influence of diffusioosmosis on suspended particle concentrations. Results based on numerical simulations of (2.1) are shown for $Pe_{s}=5.0$ , $\unicode[STIX]{x1D6FD}=0.01$ , $\unicode[STIX]{x1D716}=0.01$ , $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0.5$ , $D_{p}/D_{s}=0.00025$ and $t=1.0$ for (a) $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.02$ , (b) $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.04$ , (c) $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.06$ and (d) $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.08$ . Increasing the value of $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ increases the outflow velocity boundary condition at the walls near the outlet. Due to mass conservation, this reduces the centreline outflow velocity (even reversing the centreline flow to inflow for strong enough diffusioosmosis), leading to a shift of particle concentrations toward the inlet. The diffusioosmosis also sets up a recirculating flow that drives particles toward the channel walls. Dashed white lines correspond to the theoretical prediction of zero axial particle velocity given by (5.8).

Before proceeding to calculate the two-dimensional $O(\unicode[STIX]{x1D716}^{2})$ correction to the suspended particle concentration $n$ , we first confirm that the results of 2-D numerical simulations do in fact approach the quasi-1-D results of § 3 as $\unicode[STIX]{x1D716}\rightarrow 0$ . First, note that the numerical results in figure 9 clearly display 2-D behaviour, although $\unicode[STIX]{x1D716}$ has a relatively small value of 0.01. Indeed, the corresponding solute concentration profiles in those cases are approximately one-dimensional. Examining the governing equations given by (2.3) clarifies this apparent contradiction. Equation (2.3d ) shows that the solute concentration profile will be approximately one-dimensional for $\unicode[STIX]{x1D716}^{2}\ll 1$ and $Pe_{s}\unicode[STIX]{x1D716}^{2}\ll 1$ . We have thus far neglected this second condition because we have been considering $Pe_{s}=O(1)$ . However, equation (2.3e ) shows that in order for the particle concentration to be approximately one-dimensional, we must also have $\unicode[STIX]{x1D716}^{2}(D_{s}/D_{p})\ll 1$ , which is typically a stricter requirement than $\unicode[STIX]{x1D716}^{2}\ll 1$ , because $(D_{s}/D_{p})=O(10^{3})$ .

Numerical simulations showing the influence of $\unicode[STIX]{x1D716}$ on the suspended particle dynamics are shown in figure 10. As can be seen, 2-D effects decrease as $\unicode[STIX]{x1D716}\rightarrow 0$ , and $n$ approaches the quasi-1-D results presented in § 3. The corresponding values of $\unicode[STIX]{x1D716}^{2}(D_{s}/D_{p})$ for the cases shown in figure 10 are (a) 0.004, (b) 0.025, (c) 0.1, (d) 0.225 and (e) 0.4. These results confirm that for small enough $\unicode[STIX]{x1D716}$ , the particle concentrations do in fact approach the quasi-1D results of § 3, although for practical purposes this also requires $\unicode[STIX]{x1D716}^{2}(D_{s}/D_{p})\ll 1$ .

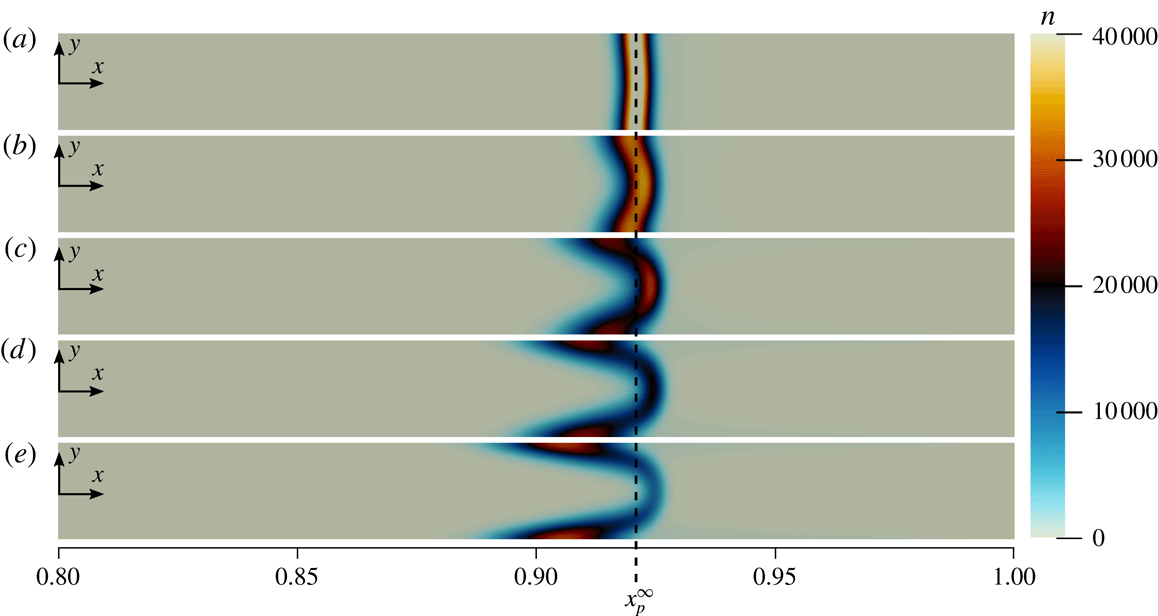

Figure 10. Influence of channel aspect ratio $\unicode[STIX]{x1D716}$ on suspended particle dynamics. Results based on numerical simulations of (2.1) show the particle concentrations at $t=1$ for $Pe_{s}=5.0$ , $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.08$ , $D_{p}/D_{s}=0.00025$ , $\unicode[STIX]{x1D6FD}=0.01$ and $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0.5$ , for (a)  $\unicode[STIX]{x1D716}=0.001$ , (b)  $\unicode[STIX]{x1D716}=0.0025$ , (c)  $\unicode[STIX]{x1D716}=0.005$ , (d)  $\unicode[STIX]{x1D716}=0.0075$ and (e)  $\unicode[STIX]{x1D716}=0.01$ . For very narrow channels, such as in (a), particle dynamics is quasi-one-dimensional and accurately match the predictions from the 1-D theory. For wider channels, the time scale for particles to diffuse across the channel increases, and the relative influence of the recirculating flow due to 2-D effects increases, shifting peak particle concentrations toward the channel walls. Aspect ratios are not to scale.

Next, with the leading-order predictions for $u_{p}$ and $v_{p}$ given by (5.7), we seek the $O(\unicode[STIX]{x1D716}^{2})$ correction to the particle distribution about the peak. Expanding $n$ as in (3.1e ) with $n_{0}=n_{c}(x,t)$ given by (3.11), equation (2.3e ) simplifies to an unwieldy ordinary differential equation (ODE) for $n_{1}(x,y,t)$ , the solution of which can be written somewhat tersely as

(5.9) $$\begin{eqnarray}\displaystyle n_{1}(x,y,t) & = & \displaystyle \frac{f_{3}(x,y)}{f_{4}(x)}\left[f_{5}(x,y,t)+f_{7}(x,y,t)+Pe_{s}^{2}tf_{1}(x)\left(-4f_{2}^{2}\left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)^{2}f_{1}(x)\right.\right.\nonumber\\ \displaystyle & & \displaystyle +\left.\left.\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}f_{6}(x,y)+f_{2}\left(1+\frac{\unicode[STIX]{x1D6E4}_{p}}{D_{s}}\right)f_{8}(x,y)\right)+f_{9}(x,y,t)\right]+F_{3}(x,t),\end{eqnarray}$$

where the $f_{i}$ are given in appendix B, and $F_{3}(x,t)$ is an unknown function of $x$ and $t$ . Thus, as with the calculation of the 2-D correction to the solute concentration profile, we have not fully specified the $\unicode[STIX]{x1D716}^{2}$ correction due to the $F_{2}(x)$ and $F_{3}(x,t)$ terms. Presumably, these may be calculated by extending this analysis to higher order and judiciously applying the boundary conditions. Fortunately, the calculated terms include all of the $y$ -dependence, and so for a given $x$ , equation (5.9) fully captures the $y$ -variation in the suspended particle concentrations to leading order.

To validate (5.9), we compare the theoretical prediction for $n_{1}$ with the results of numerical simulations in figure 11. As can be seen, both qualitative and quantitative agreement between the 2-D numerical simulations and the predictions of (5.9) are good, although the theory predicts slightly larger magnitudes for the 2-D correction. Note that because we do not have an explicit relation for $F_{3}(x,t)$ , for the 2-D predictions shown in figure 11, we simply subtracted off the centreline value of $n$ from the numerical results in order to produce the figure. The close agreement between theory and numerics supports the validity of our analysis and the use of the formal expansion given by (3.1). However, we briefly note that, as mentioned, the particle concentrations only approach the 1-D results in the limit $\unicode[STIX]{x1D716}^{2}\ll D_{p}/D_{s}$ , which is typically a stricter requirement than $\unicode[STIX]{x1D716}^{2}\ll 1$ . In the next section, we introduce a phenomenon that we call ‘diffusioosmotic pumping’, which is the diffusioosmotic analogue of electroosmotic flow (EOF) and has applications for pumping fluid against pressure gradients with the use of applied solute concentration gradients.

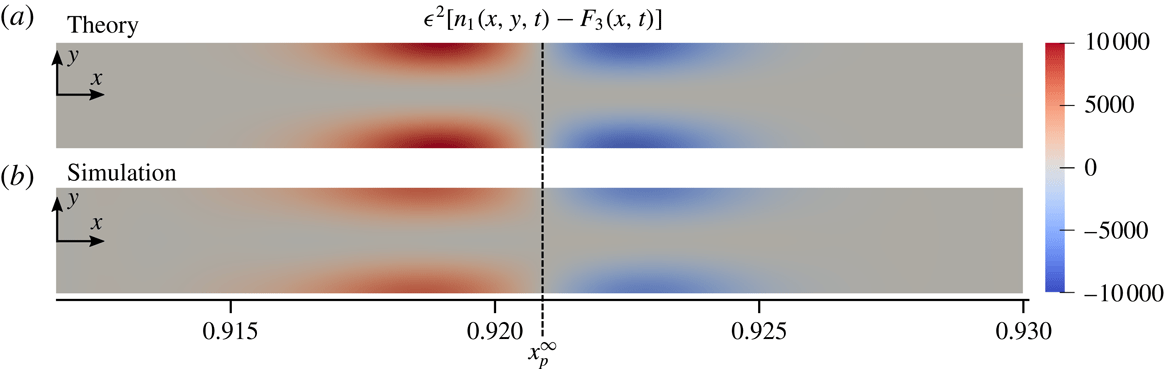

Figure 11. Comparison between theory and simulations for the leading-order correction to the particle concentration $n$ due to 2-D effects. Results are shown at $t=1$ for $Pe_{s}=5.0$ , $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0.08$ , $D_{p}/D_{s}=0.00025$ , $\unicode[STIX]{x1D6FD}=0.01$ and $\unicode[STIX]{x1D6E4}_{p}/D_{s}=0.5$ with a channel of aspect ratio $\unicode[STIX]{x1D716}=0.001$ . The predicted particle peak position according to the 1-D model is denoted by $x_{p}^{\infty }$ . As can be seen, agreement between the theoretical predictions given by (5.9) and the 2-D numerical simulations is qualitatively and quantitatively good, with the theory predicting slightly larger magnitudes for the 2-D correction. While magnitudes increase with $t$ , the same qualitative and quantitative agreement holds for long times. For the simulation data we have subtracted the centreline particle concentration from the 2-D particle concentration profile to facilitate direct comparison with $\unicode[STIX]{x1D716}^{2}[n_{1}(x,y,t)-F_{3}(x,t)]$ .

6 Diffusioosmotic pumping

In this section, we introduce the idea of diffusioosmotic pumping, which is the consequence of the theory presented in § 5, that is, the use of applied solute gradients to induce diffusioosmotic flows sufficient to pump fluid against an adverse pressure gradient. In characterizing the fluid system presented in figure 1, an intuitive first understanding would suggest that the flow in the pore is due to a pressure-driven flow. However, the derived theoretical solution for the pressure in the pore given by (5.2c ) suggests that this is not always the case. The total pressure drop along the pore $\unicode[STIX]{x0394}p=p(1)-p(0)$ is given by

(6.1) $$\begin{eqnarray}\unicode[STIX]{x0394}p=-3-3\frac{\unicode[STIX]{x1D6E4}_{w}}{L\bar{U}}\ln \unicode[STIX]{x1D6FD}.\end{eqnarray}$$

Thus, we see that for weakly charged channel walls ( $|\unicode[STIX]{x1D6E4}_{w}/L\bar{U}|\ll 1$ ) we have $\unicode[STIX]{x0394}p\approx -3$ which corresponds to typical pressure-driven Poiseuille flow. However, the diffusioosmosis induced by charged channel walls modifies the velocity profiles in the channel, which in turn modifies the pressure gradient along the channel. Thus, by modifying the surface charge of the channel walls through $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ , we can increase or decrease the pressure gradient necessary to drive the flow. In fact, for channel walls with diffusioosmotic mobilities given by

(6.2) $$\begin{eqnarray}\frac{\unicode[STIX]{x1D6E4}_{w}}{L\bar{U}}=-\frac{1}{\ln \unicode[STIX]{x1D6FD}}\end{eqnarray}$$

we will have $\unicode[STIX]{x0394}p=0$ , thus no pressure gradient is required to drive the flow, and the diffusioosmosis alone can drive the net fluid motion in the pore. For even more strongly charged channel walls, $\unicode[STIX]{x0394}p<0$ , and diffusioosmosis can drive net fluid motion through the pore against a pressure gradient.

This ‘diffusioosmotic pumping’ is shown graphically in figure 12, where we present a variety of pressure profiles in the pore as a function of $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ . As can be seen, for $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}\gtrsim 0.2$ , the inlet pressure actually goes negative, relative to the pressure at the outlet. Thus, we demonstrate theoretically that applied solute gradients can be used to pump fluid against a pressure gradient through the induced fluid motions due to diffusioosmosis. This ‘diffusioosmotic pumping’ is consistent with and analogous to the idea of electrokinetic pumps as described by Kirby (Reference Kirby2010) which consider electroosmotic flows (Manz et al. Reference Manz, Effenhauser, Burggraf, Harrison, Seiler and Fluri1994) with pressure gradients, except that the driving force here is an applied solute concentration gradient instead of an external electric field. Lee et al. (Reference Lee, Cottin-Bizonne, Biance, Joseph, Bocquet and Ybert2014) achieved an impressive experimental demonstration of flow through fully permeable nanochannels driven by solute gradients and demonstrated unprecedented sensitivity in the measurement of flow rates through the channel. However, they did not solve for the detailed fluid/solute dynamics within the channel, and they appear to have only considered the case $\unicode[STIX]{x0394}p=0$ . The results contained herein inform the detailed dynamics in such systems and consider the added complication of diffusiophoretic particle dynamics subject to the background diffusioosmotic flows.

Figure 12. Dependence of pore pressure on the dimensionless diffusioosmotic mobility $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ of the channel walls for $\unicode[STIX]{x1D6FD}=0.01$ and $Pe_{s}=0.1$ . With $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}=0$ , the pressure forms the expected linear gradient. With $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}<0$ , fluid is drawn into the channel along the channel walls at the outlet, which requires a greater inlet pressure to maintain the same flow rate. For $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}>0$ , diffusioosmosis causes outflow along the channel walls, reducing the needed inlet pressure to drive the same flow rate. For large enough $\unicode[STIX]{x1D6E4}_{w}/L\bar{U}$ , diffusioosmosis can continue to drive the flow even for negative inlet pressures. Thus, diffusioosmosis can be used to pump fluid against a net pressure gradient.
