Geological setting, occurrence and associated minerals

The Ozernovskoye deposit is located within the North Kamchatka ore region of the Central Kamchatka volcanic belt, 140 km north of the village of Klyuchi and 80 km west of the Bering Sea coast (Fig. 1).

This Au–Te–Se deposit of epithermal high sulfidation type is localised within a Miocene basaltic palaeovolcano, composed of sills and dykes of andesite–basalts, intruded by volcanic domes of andesites, andesite–dacites, dacites, magmatic breccias and tuffisites (Spiridonov et al., Reference Spiridonov, Ignatov and Shubina1990; Petrenko, Reference Petrenko1999; Litvinov et al., Reference Litvinov, Patoka and Markovsky1999; Kovalenker and Plotinskaya, Reference Kovalenker and Plotinskaya2005; Demin, Reference Demin2015).

Four prospects have been identified at the field – BAM, Intermediate, Khomut and Prometey (Fig. 2). Mineralisation is localised in steeply dipping zones of hydrothermal alteration (quartz, quartz–alunite, quartz–kaolinite–dickite metasomatites and argillisites (Naumova, Reference Naumova1995) from 1 to 120 m thick and up to 100–1040 m long. It is associated with stockworks of quartz veinlets and hydrothermal breccias containing disseminated ore minerals (pyrite, chalcopyrite, fahlores and various tellurides and selenides of gold, silver and bismuth, etc., together with native gold). Most of the known ore bodies occur in the BAM zone, where 16 ore bodies have been identified with up to 200 ppm Au, 188 ppm Ag, 450 ppm Bi, 1143 ppm Te and 1280 ppm Se (Litvinov et al., Reference Litvinov, Patoka and Markovsky1999). The vertical range of mineralisation is estimated at 250–300 m. The distribution of gold in ores is extremely uneven and most of it is localised in small bonanzas (Vakin and Naumova, Reference Vakin and Naumova1994; Naumova, Reference Naumova1995), where it can reach 1859 ppm (Litvinov et al., Reference Litvinov, Patoka and Markovsky1999).

Fig. 2. Geological sketch map of the Ozernovskoe Au–Ag deposit (after Litvinov et al., Reference Litvinov, Patoka and Markovsky1999). Legend: [1] Quaternary loose alluvial deposits; [2] Quaternary basaltic lava flows; [3] andesite lavas (N₂ – Pliocene); [4] subvolcanic bodies of andesite–basalts (N₁ – Miocene); [5] lavas and tuffs of andesites and andesite–dacites (N₁ – Miocene); [6] subvolcanic bodies of andesite–dacites (N₁ – Miocene); [7] andesite dykes, (N₁ – Miocene); [8] quartz veins; [9] ore-bearing zones of argillic and secondary dickite quartzites with quartz veins; [10] post-ore faults; and [11] designation of ore-bearing prospects: A – BAM zone; B – ‘Intermediate’; C – ‘Khomut’; D – ‘Prometheus’.

Currently, three main prospects of the deposit (BAM, Khomut and Intermediate), where commercial gold ores have been identified, are in the exploration stage by the SiGMA mining company (Demin, Reference Demin2015).

Several samples from bonanzas of the BAM zone have been studied in detail by us. Ore deposition here is related to multiple repeated cycles of extensive boiling and related hydrothermal brecciation (Fig. 3). Colloform textures with bands of quartz and precious metals are the result of boiling and supersaturation. (Fig. 4). From one to five stages of ore minerals deposition can be recognised on every deposition cycle (Fig. 5). Most sulfide minerals of all stages contain a varying amount of selenium replacing sulfur. Pyrite crystals often contain zones enriched in Se (up to 12 wt.%).

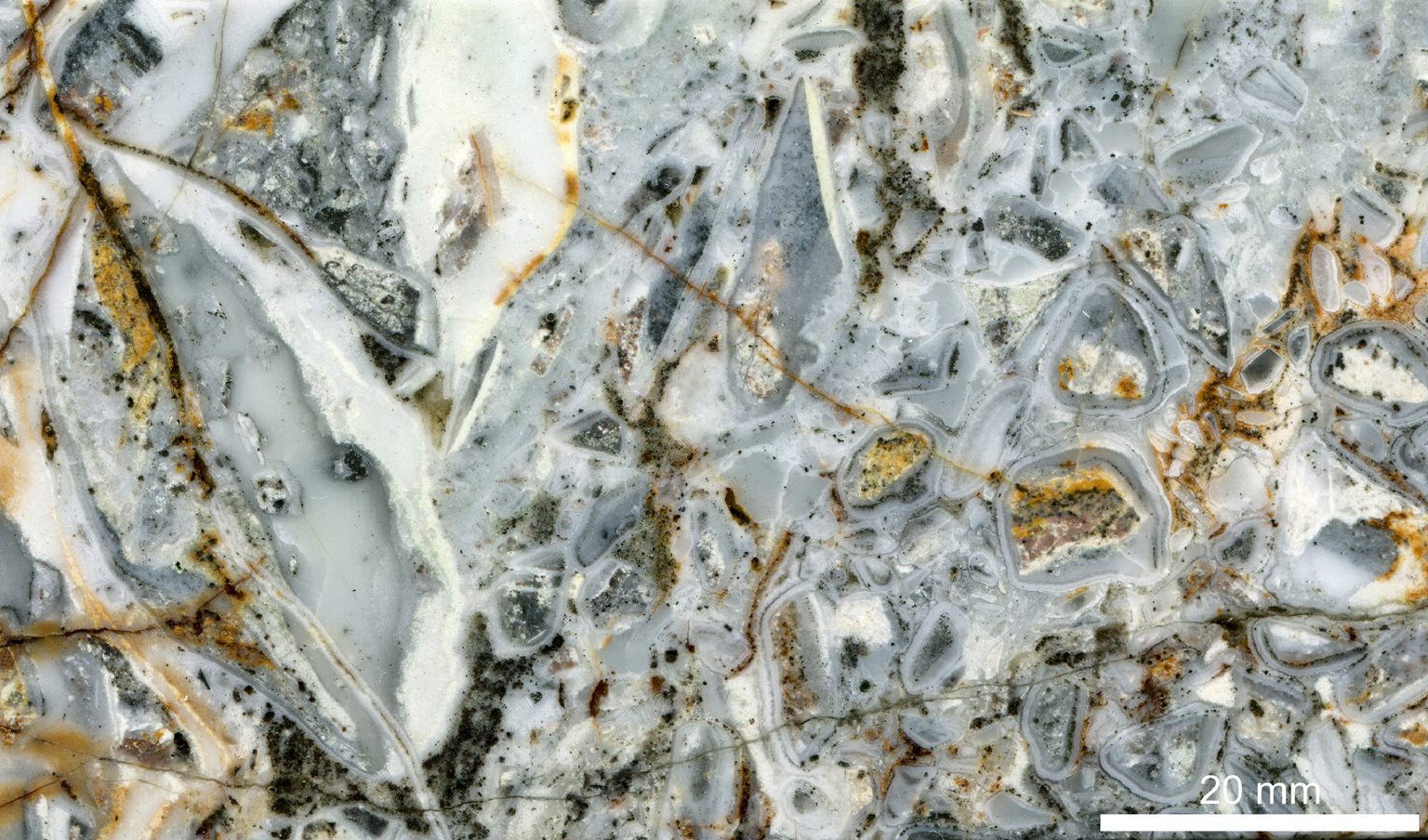

Fig. 3. Hydrothermal breccia. Clasts of altered rocks and earlier-stage banded ore-minerals bearing quartz are cemented by a matrix of quartz with disseminated pyrite. Some clasts are also breccias cementing earlier-stage clasts. BAM zone, borehole core section 14, 144 m.

Fig. 4. SEM back-scattered electron image (a) and major minerals distribution map (b) of a banded Au–Te ore sample representing stages 2 and 3 of the mineral deposition cycle (Fig. 5). Minerals determined using EDS X-ray mapping. Sample db03–0044 (NHM catalogue number BM 2020,2), BAM zone. Legend for the mineral map (b): (1) Mn-bearing dolomite (orange); (2) tellurium (blue dots); (3) sylvanite (yellow); (4) kawazulite (red); (5) Te–Se bearing tennantite–tetrahedrite series (bright green); (6) tennantite-(Fe) (yellowish green); and (7) rutile + cassiterite in a quartz clast of the stage 1 (blue and reddish blue, respectively). Matrix (dark blue) – quartz.

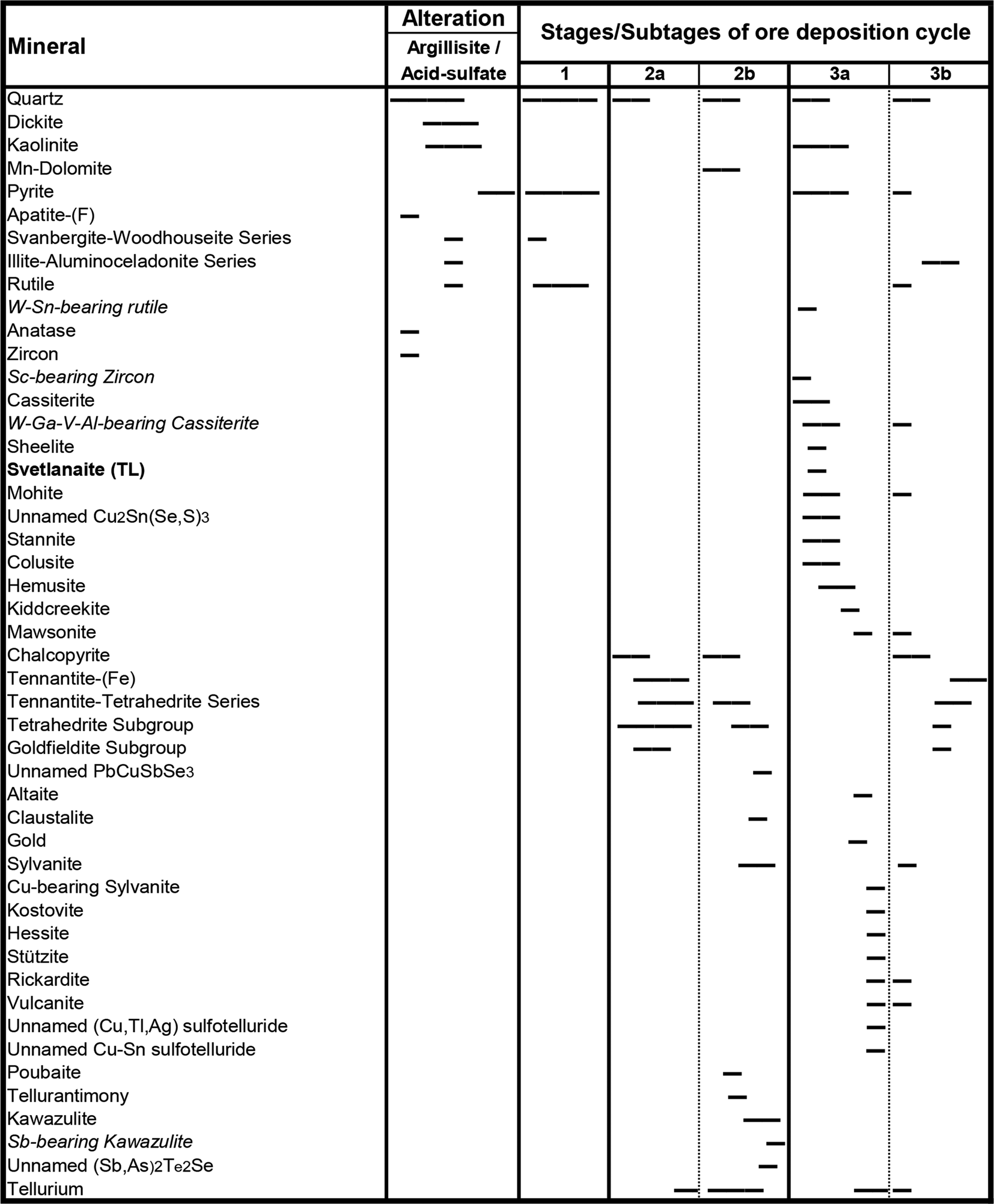

Fig. 5. Formation stages and paragenetic sequence of minerals in Sn-bearing Au–Te bonanza ores.

The above deposition sequence reflects dramatic changes of the ore-bearing fluid chemistry and temperature: from an early low-pH high-temperature (>300°C) fluid with relatively high sulfur activity (in both, H₂S and SO₂ forms) to the lower temperature (250–150°C) fluids with increased Se and then Te activity (Kovalenker and Plotinskaya, Reference Kovalenker and Plotinskaya2005) and increased pH (up to the dolomite stability field). We propose that the unusually high Se and Te activity of the later stages of the cycle could be explained partly by kinetic factors and related to the difference in evaporation rates between H₂S, H₂Se and H₂Te from the boiling fluid.

Appearance, physical and optical properties

Svetlanaite forms tiny euhedral spindles (0.5–2 μm × 10–15 μm, possibly sections of thin plates) in quartz (Fig. 6) in close association with cassiterite, rutile, Se-mohite, Se-mawsonite, kiddcreekite, hemusite, native tellurium, kostovite and Se-bearing fahlores (Se-goldfieldite–Se(Bi)-tetrahedrite–Se-tennantite).

Fig. 6. (a) A complex intergrowth of rutile (Rt) and cassiterite (Cst) relics in an aggregate of mohite (Mht) and svetlanaite (SnSe) in quartz (Qz). Back-scattered electron image, Sample 3. (b) Svetlanaite (SnSe) spindle crystal in quartz (black, Qz) with cassiterite (Cst). Back-scattered electron image, Sample 2. (c) Svetlanaite (SnSe) spindles in quartz with Se-bearing mohite, rutile (Rt), cassiterite (Cst), and native tellurium (Te). Reflected light, Sample 1. Symbols according to Warr (Reference Warr2021).

Svetlanaite is opaque with a metallic lustre. The mineral is brittle. The density calculated on the basis of the empirical formula is 6.08 g/cm³. In plane-polarised reflected light, svetlanaite is light grey in the natural assemblage of gangue and ore minerals, pleochroic from white to cream and strongly anisotropic in shades of light blue, dark blue, khaki and orange–brown. It exhibits no internal reflections.

Reflectance measurements were made on synthetic SnSe in air relative to a WTiC standard using a J & M TIDAS diode array spectrometer attached to a Zeiss Axiotron microscope. The results in comparison with herzenbergite (SnS) are tabulated in (Table 1) and illustrated in Fig. 7.

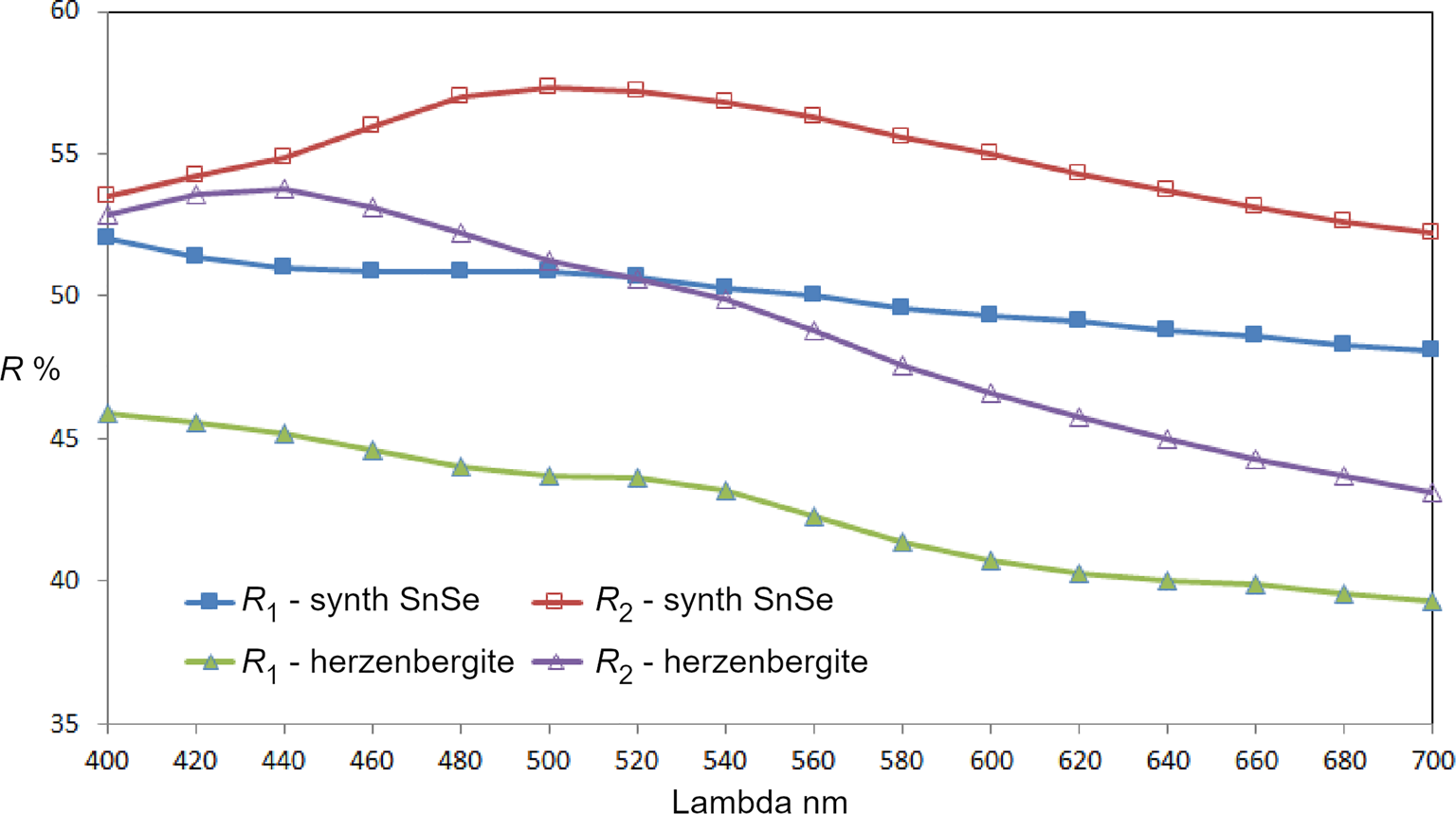

Fig. 7. Reflectance data for SnSe, the synthetic analogue of svetlanaite, in comparison with herzenbergite (SnS). The reflectance values (R %) are plotted versus wavelength, λ, in nm.

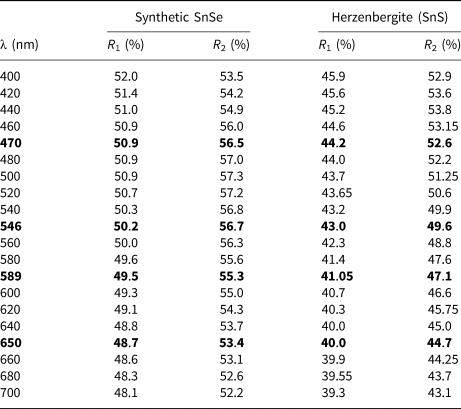

Table 1. Reflectance data for synthetic analogue of svetlanaite, SnSe and comparison with herezenbergite (SnS).

Note: The values required by the Commission on Ore Mineralogy are given in bold.

Chemical composition

Chemical analyses were performed with an Oxford Instruments Aztec Energy Scanning Electron Microscope – Energy-Dispersive Spectroscopy (SEM-EDS) system with a X-Max80 SDD detector and Inca Wave 500 wavelength-dispersive spectroscopy (WDS) system installed on a Tescan MIRA-3 SEM with a Shottky cathode located in the Tescan demo laboratory, Moscow, Russia. The following conditions were applied for the data collection: acceleration voltage 10 kV; beam current 0.4 nA, beam diameter 0.1 μm; wavelength dispersive spectrometer: acceleration voltage 10 kV; beam current 10 nA and beam diameter 1 μm. An accelerating voltage of 20 kV and 15 kV were also used to check for other possible elements present in the mineral. Qualitative WDS tests show that there are only three elements present – Sn, Se and S. There are no overlaps between X-ray lines of these elements and standard-based EDS was used for accurate quantitative analysis. A low beam current (0.4 nA) and low accelerating voltage (10 kV) were used in order to reduce electron beam interaction volume. The X-ray lines SnLα, SeLα and SKα were used for quantification. The MAC (Micro-Analysis Consultants Ltd) set of pure elements (Sn, Se) and pure natural FeS₂ for S were used as standards. The ‘XPP’ exponential model of Pouchou and Pichoir (Reference Pouchou, Pichoir, Heinrich and Newbury1991) was used for matrix correction.

Chemical analyses of the synthetic analogue were performed with a CAMECA SX–100 electron probe microanalyser (EPMA) in wavelength-dispersive mode using an electron beam focussed to 1–2 μm. Pure elements were used as standards. Concentrations were quantified on the SnLα and SeLα (with an overlap correction on SnLα3) lines with an accelerating voltage of 15 keV, and a beam current of 10 nA on the Faraday cup.

The results are given in Table 2. The empirical formulae of svetlanaite calculated on the basis of 2 atoms per formula unit is Sn_1.01(Se_0.92S_0.07)_Σ0.99 and Sn_1.00Se_1.00 for its synthetic analogue. The ideal formulae require Sn 60.05, Se 39.95, total 100 wt.%.

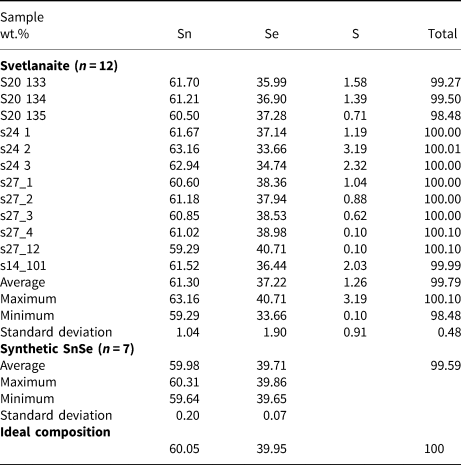

Table 2. Electron-microprobe data from the grains of svetlanaite studied and its synthetic analogue.

Synthetic analogue

The size (0.5–2 μm × 10–15 μm) of inclusions of svetlanaite, embedded in cassiterite or quartz, prevented its extraction and isolation in an amount required for relevant crystallographic and structural investigations. Therefore, these investigations were performed on the synthetic SnSe.

The synthetic phase SnSe was prepared in an evacuated and sealed silica-glass tube in a horizontal furnace in the Laboratory of Experimental Mineralogy of the Czech Geological Survey in Prague. To prevent loss of material to the vapour phase during the experiment, the free space in the tube was reduced by placing a closely fitting silica glass rod against the charge. A charge of ~400 mg was carefully weighed out from the native elements. We used, as starting chemicals a tin ingot (99.9999% purity) and selenium pebbles (99.9999% purity). The evacuated tube with its charge was sealed and then annealed at 600°C for 1 week. After cooling by cold-water bath, the charge was ground into powder in acetone using an agate mortar, and thoroughly mixed to homogenise. The pulverised charge was sealed in an evacuated silica-glass tube again, and reheated at 200°C for 6 months. The experimental product was quenched rapidly in cold water.

X-ray crystallography

The powder X-ray diffraction pattern of synthetic SnSe, used for structure refinement, was collected in Bragg-Brentano geometry on a Bruker D8 Advance diffractometer, equipped with a LynxEye XE detector using CuKα radiation. Details of data collection and basic crystallographic data are in Table 3.

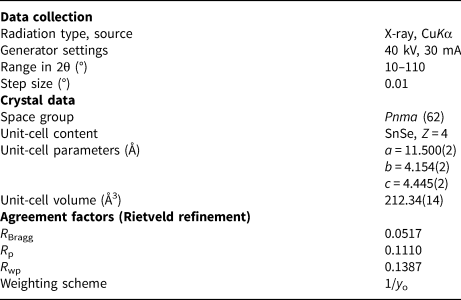

Table 3. Powder X-ray diffraction data collection and Rietveld analysis for synthetic SnSe.

The crystal structure of SnSe, the synthetic equivalent of svetlanaite was refined using the Rietveld method by the Topas 5 program (Bruker AXS, 2014). The crystal structure of SnSe by Sist et al. (Reference Sist, Zhang and Brummerstedt Iversen2016) was used as an initial structure model in our Rietveld refinement (Fig. 8). The refined crystal coordinates did not deviate more than 0.005 from their initial values, and the structure model of Sist et al. (Reference Sist, Zhang and Brummerstedt Iversen2016) was confirmed. The Rietveld refinement involved refinement of unit-cell parameters, crystal-structure coordinates, isotropic size and strain and isotropic displacement parameters. Correction for preferred orientation along [100] was applied (March–Dollas model). In total, 13 parameters were refined. Background was determined by means of a Chebychev polynomial of the 5^th order. The final Rietveld plot is shown in Fig. 8. Table 4 shows atomic positions. Note we performed the refinement in the standard setting of the Pnma space group (No. 62). Contrary to that, Wiedemaier and Schnering (1978) carried out a refinement of synthetic SnSe in the space group setting Pbnm, as this setting was originally chosen by Zachariasen (Reference Zachariasen1932) for this structure type. In order to make our results of refinement directly comparable with those of Sist et al. (Reference Sist, Zhang and Brummerstedt Iversen2016), we used the Pnma standard setting. The crystallographic information file has been deposited with the Principal Editor of Mineralogical Magazine and is available as Supplementary material.

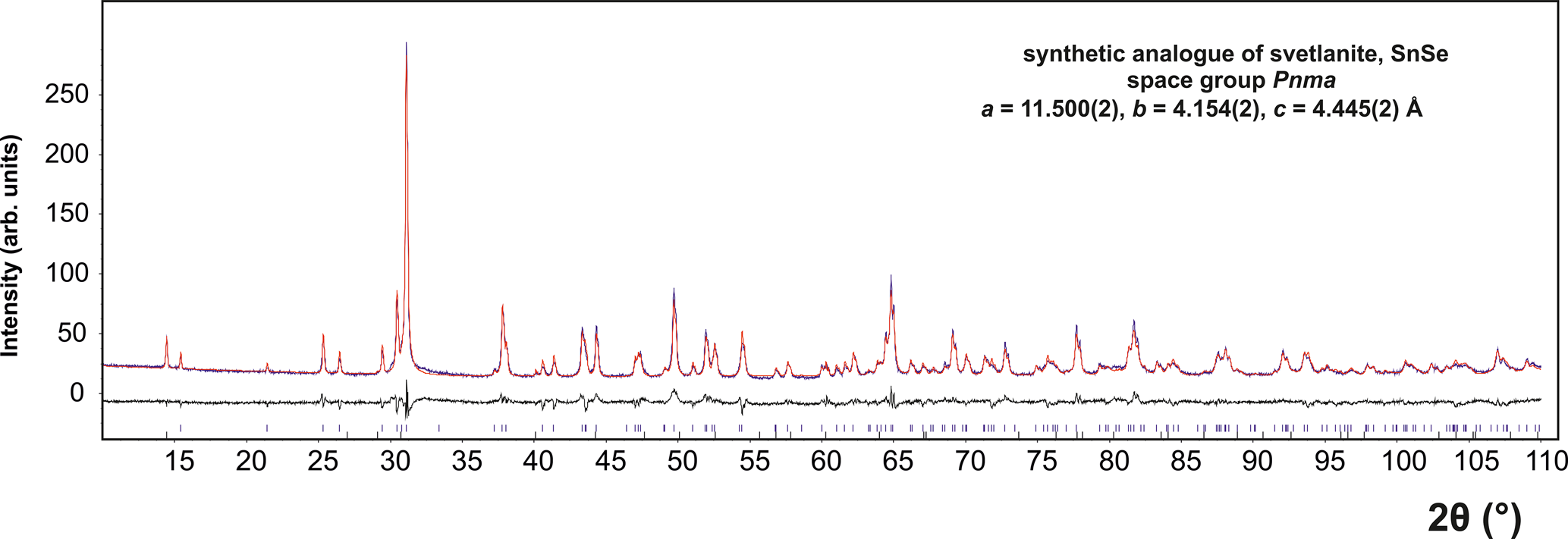

Fig. 8. The final Rietveld fit for SnSe, the synthetic analogue of svetlanaite. In addition to SnSe, the sample contains 1.5 wt.% SnSe₂ as an impurity.

Table 4. Atomic positions (space group Pnma) and isotropic displacement parameters for the synthetic equivalent of svetlanaite, SnSe. The isotropic displacement parameter (B _iso) was constrained to be equal for all atoms.

Structure description

The synthetic analogue of svetlanaite, SnSe crystalises in the GeS-structure type. It is isostructural with the mineral herzenbergite (SnS). It crystalises in a layered structure with tightly bonded double layers running parallel to (100) which are separated by spaces accommodating the lone electron pair of Sn²⁺ atoms. Tin atoms show three short [2.748(1) Å and 2.7849(3) Å × 2] and two longer [3.33548(3) Å × 2] Se contacts forming [SnSe₅] coordination pyramids with a rectangular base (see Fig. 9). Whereas the double layer is held by a system of strong covalent bonds, the interaction between the double layers is considerably weaker [Sn–Se contacts at 3.485(1) Å] resulting in a perfect cleavage along the (100) plane. The Sn–Se bond distances in svetlanaite are slightly longer than the corresponding Sn–S distances observed in herzenbergite (three short 2.617–2.661 and two long 3.284 Å) by Chattopadhayay et al. (1986). This can be explained by the larger covalent radius of Se (1.20 Å) compared to S (1.05 Å). Note that the isostructural SnS is one of the archetypes used by Makovicky (Reference Makovicky1985) for the definition and description of families of sulfosalts. Its crystal structure can alternatively be viewed as a distortion derivative of PbS, however such interpretation obscures the decisive role of stereochemically active lone electron pairs of Sn in this archetype (Makovicky, Reference Makovicky and Vaughan2006).

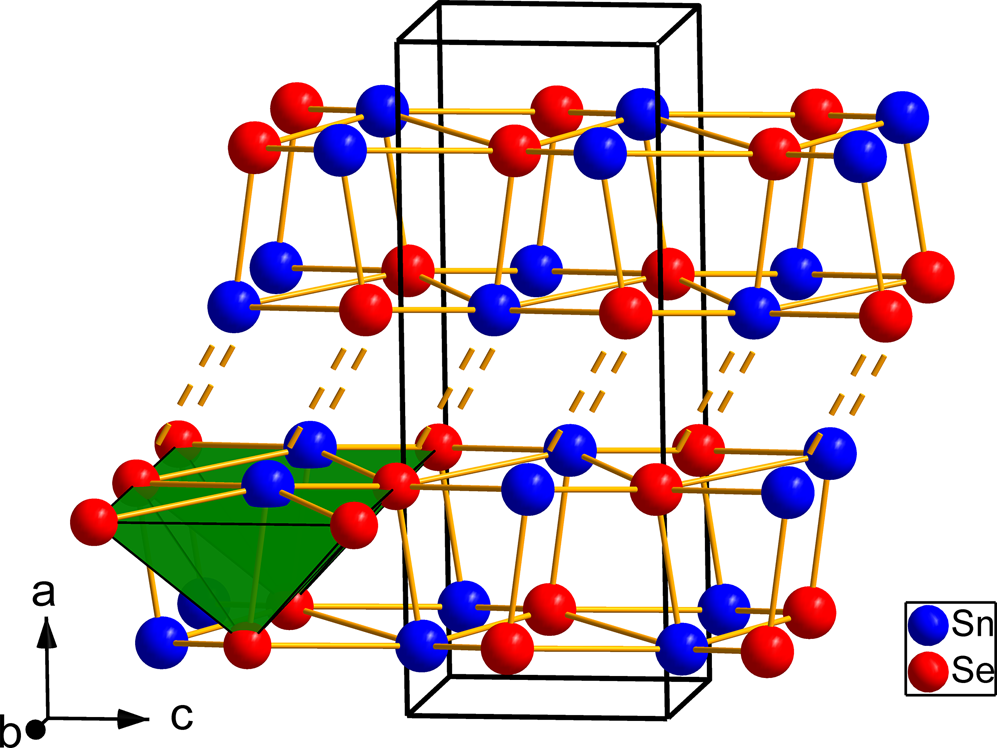

Fig. 9. Crystal structure of SnSe, the synthetic analogue of svetlanaite showing the double-layers of Sn and Se atoms. The weak interactions between the double-layers are shown by dashed lines. The [SnSe₅] coordination pyramids (green) are shown in the left side of the figure.

Proof of identity of natural and synthetic svetlanaite

The structural identity of natural svetlanaite and its synthetic analogue was confirmed by electron back-scattering diffraction (EBSD) measurements on the natural sample and comparison of the structural model for SnSe from our Rietveld refinement and crystallographic data for synthetic SnSe available in the Inorganic Crystal Structure Database (FIZ, Reference Karlsruhe2020).

A TESCAN LYRA3 FEG SEM combined with the EBSD system (Oxford Instruments AztecHKL with a NordlysNano EDSD detector) was used for the measurements. The sample surface was prepared for EBSD by polishing with colloidal silica followed by broad beam ion milling (Gatan PECS II argon ion beam system operated at 2 kV for 60 min). Acquisition conditions were: accelerating voltage 20 kV, beam current 0.4 nA and no binning (full EBSP resolution is 1344 × 1024). Indexing conditions were: refined accuracy mode, 12 bands and 60 reflectors. A search of the Inorganic Crystal Structure Database (FIZ, Reference Karlsruhe2020) found three crystal modifications existing for synthetic SnSe: (1) SnSe (Pnma) GeS-structure type, card no. 244268; (2) SnSe (Cmcm) TlI-structure type, card no. 52423; and (3) SnSe (Fm $\bar{3}$m) NaCl-structure type, card no. 76032.

The best fit (with mean angle deviation (MAD) from 0.29 to 0.46° and five determinations) was obtained for the Pnma structure with crystallographic data from our refinement of synthetic SnSe (see Table 5), and is shown in Fig. 10. The fit for the Cmcm structure (Chattopadhyay et al., Reference Chattopadhyay, Pannetier and von Schnering1986) resulted in a significantly much poorer fit (MAD 0.83–0.87°) and the Fm $\bar{3}$m structure (Palatnik and Levitin, Reference Palatnik and Levitin1954) did not fit at all. This is in accordance with the assumed temperature of formation of svetlanaite at ~200–300°C, as the Cmcm structure represents high-temperature modifications (above 533°C) of SnSe (Wiedemeier and Csillag, Reference Wiedemeier and Csillag1979). The cubic structure of synthetic SnSe reported by Palatnik and Levitin (Reference Palatnik and Levitin1954) is questionable, as synthetic SnSe melts before its possible transformation to the NaCl-structure type (Wiedemeier and Schnering, Reference Wiedemeier and von Schnering1978).

Fig. 10. Electron back-scattered diffraction patterns of natural SnSe; in the right pane the Kikuchi bands are solved (indexed).

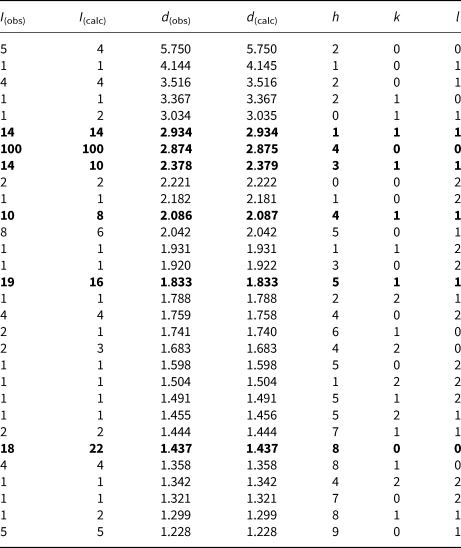

Table 5. Powder X-ray diffraction data of SnSe, the synthetic equivalent of svetlanaite (CuKα radiation, Bruker D8 Advance, Bragg-Brentano geometry, fixed divergence slit). The powder pattern is affected by preferred orientation along [100].

The six strongest lines are given in bold.

Summary and concluding remarks

Svetlanaite is a new mineral found in quartz veins of the high-sulfidation epithermal Au deposit at Ozernovskoe, Kamchatka, Russia. It occurs in an association with a wide range of Sn-, W- and Mo- bearing sulfides and sulfoselenides, tellurides and selenotellurides. Svetlanaite was most likely formed at ~200–300°C, under conditions of increasing pH and low fugacity $f_{{\rm S}_ 2}$. Svetlanaite has the GeS-type structure and is isostructural with herzenbergite (SnS).
