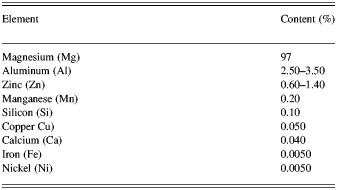

3.1. Effect of Ambient Environment and its Pressure on the Surface Morphology

SEM micrographs of Figures 2a–2d represent centrally ablated area of Mg-alloy under Ar environment after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr. From Figure 2a it is observed that by treating the sample for the lowest gas pressure of 5 Torr cones and diffused ripples are observed. It was noticed that cones and ripples are completely merged by increasing the pressure from 5 Torr (Fig. 2a) to 50 Torr (Fig. 2b). By increasing pressure from 300 Torr (Fig. 2c) to 760 Torr (Fig. 2d) cone formation is seen with an appearance of splashed surface. In addition to other features, droplets are also observed as shown in Figures 2b–2d. The density of droplets decreases and size increases with increasing pressure as the pressure is increased from 300 to 760 Torr. Figure 2d reveals that for the highest pressure of 760 Torr, splashing and melting is enhanced.

Fig. 2. SEM image revealing surface morphology of the centrally ablated area of Mg-alloy under Ar ambient, at a fluence of 1.3 J cm⁻² for different pressures (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

The SEM micrographs of Figures 3a–3d represent peripheral ablated area of Mg-alloy under Ar environment after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr. For the lowest pressure micro-sized cavities and cones with high-scale melting are observed as shown in Figure 3a. Figure 3b shows that the size and density of micro-sized cavities is reduced at a pressure of 50 Torr and ablative layers are grown along the periphery of cavities. Figure 3c shows the formation of large size cones after irradiation at a pressure of 300 Torr, whereas cavities and droplets have completely wiped out. Figure 3d shows that more distinct and large-sized cones are formed for the maximum pressures of 760 Torr.

Fig. 3. SEM image revealing surface morphology of the peripheral ablated area of Mg-alloy under Ar environment, at a fluence of 1.3 J cm⁻² for different pressure of (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

The SEM micrographs of Figures 4a–4d show centrally ablated area of Mg-alloy under Ne environment after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr. For the lowest pressure 5 Torr ripples and large density of cones are observed as shown in Figure 4a. Figure 4b illustrates the appearance of wavy-like structures at a pressure of 50 Torr. Figure 4c depicts the droplet formation at 300 Torr. Redeposition of ejected material is also observed in Figure 4c. Figure 4d displays the distinct cones, droplets along large-scale melting for the maximum pressures of 760 Torr.

Fig. 4. SEM image revealing variation of surface morphology of the centrally ablated area of Mg-alloy under Ne environment, at a fluence of 1.3 J cm⁻² for different pressures (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

The SEM micrographs of Figures 5a–5d show peripheral ablated area of Mg-alloy under Ne environment after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr. For the lowest pressure micro-sized cavities, islands with non-uniform shape and density distribution are observed as shown in Figure 5a. When the pressure increases, the size of cavities increases and their density decreases. These cavities become less distinct and merged as shown in Figures 5c and 5d and on the other hand islands have wiped out as revealed in Figures 5c and 5d. Figure 5c depicts the formation of micro-sized droplets formation at 300 Torr and they are vanished at the highest pressure of 760 Torr (Fig. 5d). Non-uniform redeposition of ablated material.

Fig. 5. SEM image revealing surface morphology of the peripheral ablated area of Mg-alloy under Ne environment, at a fluence of 1.3 J cm⁻² for different pressure of (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

SEM micrographs of Figures 6a–6d display centrally ablated area of Mg-alloy under He after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr. For the pressure 5 & 50 Torr micro-sized and unorganized ripples and droplets are observed in Figures 6a and 6b. Figures 6c and 6d exhibit the formation of ridges at 300 and 760 Torr. Redeposition of ejected material is also observed at these pressures. However, droplet formation is vanished for highest pressures.

Fig. 6. SEM image revealing variation of surface morphology of the centrally ablated area of Mg-alloy plasma under He ambient, at a fluence of 1.3 J cm⁻² for different pressures (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

The SEM micrographs of Figures 7a–7d represent peripheral ablated area of Mg-alloy under He environment after irradiation at a fluence of 1.3 J cm⁻² for different pressures of (a) 5, (b) 50, (c) 300, and (d) 760 Torr, respectively. For the lowest value of pressure 5 Torr, micro-sized cones, cavities, and island with non-uniform shape and density distribution are observed as shown in Figure 7a. As shown in Figures 7b and 7c, when the pressure increases the density of cavities increases, whereas appearance of both cones and cavities become more distinct and well defined as compared with Figure 7a. Figure 7c depicts that for high-pressures of 300 Torr these islands again become less prominent, whereas the cavities with non-uniform shape and density distribution are with distinct appearance as seen. Figure 7d also depicts that for highest pressure 760 Torr islands and cones are completely vanished and only droplets are seen.

Fig. 7. SEM image revealing surface morphology of the peripheral ablated area of Mg-alloy under He environment, at a fluence of 1.3 J cm⁻² for different pressure of (a) 5, (b) 50, (c) 300, and (d) 760 Torr.

Ripple formation as shown in Figures 2, 4, and 6a–6d can be explained on the basis of interaction between incoming laser radiation and laser-induced surface plasmons (Akram et al., Reference Akram, Bashir, Hayat, Mahmood and Ahmad2014). A critical density of electrons may present near specimen surface during laser interaction. At normal incidence the laser electric field would excite oscillations parallel to the surface. Surface irregularity might cause laser light to be dispersed tangentially to the surface, which could yield a standing wave pattern. The merged incident, reflected and diffracted waves could combine to give an electric field distribution able to generate localized plasma oscillations. This consequences into the formation of ripples on the ablated surface (Kalsoom et al., Reference Kalsoom, Bashir, Ali, Akram, Mahmood and Ahmad2012).

Hydro-dynamical instabilities (Kelvin–Helmholtz instability) are also responsible for the growth of such kind of structures (ripples) (Liu et al., Reference Liu, Jiang, Yang, Guan and Dai2011). Ridges formation as shown in Figure 6 is due to enhanced recoil pressure of the plasma which causes more material splashing toward the boundary (Yu & Lu, Reference Yu and Lu1999). An increase in the density of these ripples and ridges is attributed to enhanced energy deposition (Yu & Lu, Reference Yu and Lu1999). The density of ripples and ridges that reduces at higher pressures is due to large-scale melting, re-solidification, and correspondingly merging of individual periodic structures with each other as shown in Figures 2, 4, and 6 (Huang et al., Reference Huang, Zhao, Cheng, Xu and Xu2010).

Formation of cavities is attributed to thermal ablation on the basis of laser-induced heating, melting, explosive boiling, and thermal desorption of the target surface (Chrisey & Hubler, Reference Chrisey and Hubler1994). Cavity formation can be explained on the fact that as the plasma/vapor pressure exceeds from the surrounding pressure; the molten material can be expelled explosively from the target due to the violent recoil pressure (Körner et al., Reference Körner, Mayerhofer, Hartmann and Bergmann1996). The variation in the size of cavities is ascribed to the large number of surface defects, such as contaminants, inclusions, and small pits (Dauscher et al., Reference Dauscher, Feregotto, Cordier and Thomy1996). The increasing pressure, and increase in density is attributed to increase in recoil pressure, whereas decrease is attributed to redeposition of ablated material. These cavities vanish at the highest value of pressure due to refilling of the melted material (Yousaf et al., Reference Yousaf, Bashir, Akram, kalsoom and Ali2013). Hydro-dynamic sputtering, defects and ablation due to evaporation resistive impurities are attributed to cones formation (Dolgaev et al., Reference Dolgaev, Fernandez-Pradas, Morenza, Serra and Shafeev2006). The density of observed cones increases with the increase in ambient gas pressure which is due to enhanced energy deposition.

Islands formation with non-uniform shapes and sizes on the laser-irradiated surface of the material is due to exfoliational sputtering (Shaheen et al., Reference Shaheen, Gagnon and Fryer2013). The aggregation of such large-sized droplets is due to large-scale melting and resolidification on surface structures.

The formation of droplets is attributed to a transition from a vaporization-dominated ablation regime to a regime where melt-expulsion concurs, and “hydro-dynamical” sputtering becomes dominant. This hydro-dynamical mechanism refers to the formation and liberation of micro-size droplets from the melt at the surface of material (Bleiner & Bogaerts, Reference Bleiner and Bogaerts2006).

From Figures 2 to 7 various kind of structures such as ripples, ridges, cavities, cones, islands, and droplets are observed in different environments of Ar, Ne, and He. These structures are most distinct in case of Ar, then Ne followed by He. The difference in surface modification of Mg-alloy is due to ionization potential (E), thermal conductivity (k), and E/M ratio of environmental gases (Ar, Ne, and He) where E is energy of the first ionization state, M is the mass of gas.

The ablation of Mg-alloy in case of Ar is responsible for the growth of more distinct feature due to more energy deposition of Ar-plasma to the lattice of Mg-alloy as compared with Ne- and He-plasma. The more energy deposition is correlated with favorable cascade growth and consequently more excitation temperature as well as number density of plasma species. In case of Ar, the cascade is more favorable due to smaller values of (E/M ratio = 0.53, E = 15.546 eV) from Eq. (7) as compared with Ne and He.

Similarly the other factor which is responsible for the different growth structures is the thermal conductivity of environmental gases. The higher thermal conductivities of He [151.3(W m.K⁻¹)] as compared with Ne [49.1(W m.K⁻¹)] and Ar [17.72(W m.K⁻¹)] will be more heat dissipation losses and fast cooling of plasma. Therefore, the K.E loss will be more significant in case of He as compared with Ne and Ar (Farid et al., Reference Farid, Bashir and Mahmood2012).

3.2. Effects of Nature and Pressure of Ambient Environments on Plasma Parameters

The ambient environments and pressure are the controlling parameters of emission intensity, electron temperature, and electron number density (Shaikh et al., Reference Shaikh, Rashid, Hafeez, Jamil and Baig2006). In our experiment, all parameters laser fluence of 1.3 J cm⁻² was kept constant. Initially we performed our experiments in all environments of Ar, Ne, and He and found that at a fluence of 1.3 J.cm⁻² the emission intensity of Mg-alloy plasma is maximum. By increasing fluence from 1.3 J cm⁻², it is observed that emission intensity of Mg-alloy plasma decreases. Therefore this fluence was considered as optimum fluence and hence all the measurements related to variation in pressures were performed under this optimum fluence. With increasing laser irradiance more excited species, ions, and free electrons are generated that interact with incoming laser photon, leading to further heating and ionization and resulting in an increase in the absorption of the laser energy. The plasma progressively behaves like an optically thick medium and effectively shields the target surface from the tailing part of laser pulse (Hafeez et al., Reference Hafeez, Shaikh, Rashid and Baig2008).

Similarly, LIBS analysis of Mg-alloy was performed by varying delay times under all environment of Ar, Ne, and He. At a time delay of 2.01 μs the maximum emission intensity and correspondingly electron temperature and electron number density were observed. Therefore this delay time was considered as most favorable delay time and therefore all measurements related to pressure variation are performed under this delay time. Due to transient nature of laser-induced plasma its evolution can be subdivided into three steps: Breakdown, expansion, and confinement. During ablation when target breakdown is obtained and material is ejected, the laser pulse is still on, heating the free electrons to temperatures of the order of a few tens of thousands kelvin depending on the laser photon energy. In this stage, the ionization degree is close to unity as a consequence of the kinetic mechanisms involved in the breakdown process and of the extremely high number density of ejected atomic gas. When the laser pulse has ended, the degree of ionization is found to be much higher than the corresponding equilibrium value at the observed electron temperature. During the phase of plasma expansion, despite the cooling due to collisions with cold ambient gas atoms, the variation of particle number density and gas temperature is predominantly produced by the physical expansion of the high-pressure ablated material in the surrounding environment. As a matter of fact during the initial expansion stage, all the processes with an associated time longer than microsecond could not reach equilibrium as a consequence of the fast change of plasma particle number density and temperature. After the first stage of expansion, the plasma front stops while the shock wave continues moving in the ambient gas. At this stage the volume occupied by the plume keep the same approximate dimension for several microseconds. In this period, the variation rate of the thermodynamic parameters is mainly due to the plasma cooling effect, resulting from collisions with cold atoms in the ambient gas. This rate is markedly lower than that in the expansion phase (Cristoforetti et al., Reference Cristoforetti, Giacomo, Aglio, Lennaioli, Togoni, Palleschi and Omenetto2010).

The distance of probe from target is kept constant. The only changing parameters are ambient environments (Ar, Ne, He) and the corresponding pressure ranging from 5 to 760 Torr.

Figure 8 reveals the emission spectra of laser-irradiated Mg-alloy plasma obtained at pressure of 5 Torr under ambient environment of He at a fluence of 1.3 J.cm⁻². Five spectral lines from neutral Mg atoms are selected that is, 383.53, 470.30, 516.73, 517.27, and 518.36 nm and are labeled in the main spectrum as well as in the inset of Figure 8 (Reader et al., Reference Reader, Corliss, Wiese and Martin1980).

Fig. 8. The optical emission intensity spectrum of the laser-irradiated Mg-alloy plasma in an ambient environment of He at a pressure of 5 Torr at a fluence of 1.3 J.cm⁻².

3.2.1. Investigation of Emission Intensity

Figure 9 shows the effect of ambient environments and pressure on the emission intensity of Mg-alloy plasma. These emission intensity spectra are taken under ambient environments of (a) Ar, (b) Ne, and (c) He at a constant fluence of 1.3 J.cm⁻², respectively. Mg lines with wavelength of 383.53, 470.30, 516.73, 517.27, and 518.36 nm, respectively, are used. It is observed that emission intensity initially increases with the increasing pressure; attains its maxima at 20 Torr and then decreases. Finally it achieves saturation with further increase in pressure up to 760 Torr. Maximum emission intensity is achieved for spectral line of 383.53 nm. For other lines a very slight increase and then saturation is observed. It is also clear that emission intensity of all spectral lines in case of Ar is significantly higher than Ne and He.

Fig. 9. The variation in emission spectral intensities of the laser-irradiated Mg-alloy plasma for various pressures under ambient environment of (a) Ar, (b) Ne, and (c) He at a fluence of 1.3 J cm⁻².

3.2.2. Investigation of Electron Temperature

The excitation temperature has been evaluated by employing the Boltzmann plot method on spectroscopic data (Harilal et al., Reference Harilal, Bindhu, Nampoori and Vallabhan1998a; Reference Harilal, Bindhu, Nampoori and Vallabhan1998b) by assuming the validity of the condition of the local thermodynamic equilibrium (LTE) and calculation has been carried out using a following relation (Harilal et al., Reference Harilal, Bindhu, Nampoori and Vallabhan1998a; Reference Harilal, Bindhu, Nampoori and Vallabhan1998b).

(1)$$\ln \left( {\displaystyle{{{\rm \lambda} _{mn\; I_{mn}}} \over {g_{mA_{mn}}}}} \right) = - \left( {\displaystyle{{E_m} \over {kT_{\rm e}}}} \right) + \ln \left( {\displaystyle{{N(T)} \over {U(T)}}} \right)\;,$$

where on the left-hand side λ_mn, I_mn, g_m, and A _mn are the wavelength, intensity of the upper energy state m, statistical weight, and transition probability, respectively. On the right-hand side E _m, k, T _e, N (T), and U (T) are energy of upper state, Boltzmann constant, electron temperature, total number density, and partition function, respectively.

The related spectroscopic parameters for the transitions of the laser-induced Mg-alloy plasma used in calculations have been taken from the NIST database (Reader et al., Reference Reader, Corliss, Wiese and Martin1980; Kaufman & Martin, Reference Kaufman and Martin1990) and are listed in Table 2.

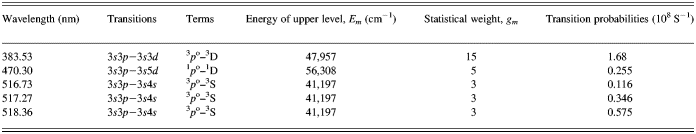

Table 2. The spectroscopic data of laser-induced Mg-alloy plasma taken from NIST database (Kaufman & Martin, Reference Kaufman and Martin1990; Reader et al., Reference Reader, Corliss, Wiese and Martin1980)

Figure 10 depicts the variation in the evaluated electron temperatures of Mg-alloy plasma for various pressures ranging from 5 to 760 Torr under three ambient environments of Ar, Ne, and He at a fixed fluence of 1.3 J cm⁻², respectively.

Fig. 10. The variation in electron temperature of the laser-induced plasma of Mg-alloy for different pressures ranging from 5 Torr to 760 Torr under three ambient environments of Ar, Ne, and He at a fluence of 1.3 J cm⁻².

The emission lines chosen for the calculation of electron temperature fulfill criterion (Lacroix et al., Reference Lacroix, Jeandel and Boudot1997; Sabbaghzadeh et al., Reference Sabbaghzadeh, Dadras and Torkamany2007)

(2)$$E_1 - E_2 = kT_{{\rm exc}},$$

where E ₁ is energy of the upper level of emission line 1., E ₂ energy of the upper level of emission line 2, k the Boltzmann constant, and T _exc the excited temperature.

By choosing two emission lines at wavelength of 470.30 and 516.73 nm the value of E ₁−E ₂ comes out to be 1.87352 eV and value of kT _exc is 1.10775 eV which fulfills criteria of Eq. (2).

In the case of Ar, the electron temperature varies from 8167 to 12,855 K. With increasing pressure a slight increase in electron temperature is observed and achieves its maxima at 10 Torr. Afterwards it decreases till 50 Torr and then the saturation is achieved up to 760 Torr. In the case of Ne, the electron temperature varies from 6725 to 10,834 K. With the increasing pressure of Ne electron temperature increases and achieves its maxima at 10 Torr. Afterwards it decreases and finally attains saturation. For He the electron temperature varies from 6628 to 10,718 K. The trend is almost similar to Ar and Ne.

The highest value of electron temperature is observed for Ar, for Ne, and then for He for all pressures.

3.2.3. Investigation of Electron Number density

The electron number density of the Mg-alloy plasma due to the Stark broadening mechanism of emission spectra can be evaluated by following relations for full width half maximum (FWHM) (Nakimana et al., Reference Nakimana, Tao, Camino, Gao, Hao and Lin2012).

(3)$$\eqalign{\Delta {\rm \lambda} _{1/2} =& 2{\rm \omega} \left(N_{\rm e}\over {10^{16}}\right) + 3.5A\left(N_{\rm e}\over {10^{16}}\right)^{1/4}\left[1 - 1.2N_{\rm D}^{-1/3}\right]\cr & \quad \times {\rm \omega}\left(N_{\rm e}\over {10^{16}}\right),}$$

where Δλ_1/2 is the FWHM, N _e is the electron number density (cm⁻³) ω is the electron impact width parameter, and A is the ion broadening parameter. Where N _D is the number of particles in the Debye sphere and can be calculated by the following relation (Shaikh et al., Reference Shaikh, Hafeez and Baig2007):

(4)$$N_{\rm D} = 1.72 \times 10^9 \displaystyle{{T_{\rm e} ^{(3/2)} ({\rm eV})} \over {N_{\rm e} ^{(1/2)} ({\rm cm}^{ - 3} )}}$$

The first term in Eq. (3) is related with electron broadening and second with ion broadening but in our case ion broadening is negligible (Griem, Reference Griem1997), so Eq. (3) reduces to,

(5)$$\; \Delta {\rm \lambda} _{(1/2)} = 2{\rm \omega} \left( {\displaystyle{{N_{\rm e}} \over {10^{16}}}} \right).$$

The Mg(I) line of 517.27 nm wavelength is used for the calculation of electron number density after insuring that particular line is not broadened and having well-fitted shape according to Lorentzian function, which indicates that self-absorption phenomenon is negligible.

The condition that the atomic and ionic sates should be populated and depopulated predominantly by the electron collisions, rather than by radiation, requires an electron number density that is sufficient to ensure the high collision rate.

The necessary condition for fulfilling the condition of LTE is McWhirter criteria (Huddlestone & Leonard, Reference Huddlestone and Leonard1965).

(6)$$N_{\rm e} \ge 1.6 \times 10^{12} \; T_{\rm e} ^{(1/2)} \Delta E^3 \,{\rm \; cm}^{ - 3},$$

where T _e is the plasma temperature in K and ΔE (eV) is the energy difference between the excited and ground states that are likely to be in LTE. At Te = 12 855 K (the highest calculated temperature), the electron number density comes out to be N _e ~ 2.503 × 10¹⁵ which describes the legitimacy of LTE.

Figure 11 exhibits the resulting calculated electron number density of Mg-alloy plasma at different pressures under three ambient environments of Ar, Ne, and He at a fluence of 1.3 J cm⁻². Values of electron number density range from 7.74 × 10¹⁷ to 19.17 × 10¹⁷ cm⁻³ for Ar, from 7.58 × 10¹⁷ to 10.07 × 10¹⁷ cm⁻³ for Ne, and from 5.40 × 10¹⁷ to 10.45 × 10¹⁷ cm⁻³ for He. In case of Ar by increasing pressure the electron number density increases, achieves its maxima at 760 Torr. In the case of Ne, number density increases slightly and attains its maxima at 200 Torr. Then it decreases slightly and saturation behavior is observed up till 760 Torr. Whereas in case of He the number density increases with increasing pressure and maxima is achieved at 50 Torr. With further increase in pressure a decrease in number density is observed. Afterwards again it shows a saturation behavior up till 760 Torr.

Fig. 11. The variation in the electron number density of laser-induced plasma of Mg-alloy at different pressures under three ambient environments of Ar, Ne, and He, at a fluence of 1.3 J cm⁻².

The results attained from LIBS show that emission spectra, electron temperature, and electron number density are strongly dependent on the nature and pressure of ambient environments. The highest values of plasma parameters for example, emission intensity, electron temperature, and electron number density are associated with Ar, then with Ne, and the least value is obtained for He.

The trend of emission intensity and electron temperature can be divided into three different regimes; in the first regime they increase with the increasing pressure of ambient environment. In the second regime, it decreases with increase in pressure. In the third regime, the saturation is achieved without any significant change. The emission intensities are effected by the amount of vaporized material which is controlled by extent of shielding effect of the ambient plasma, temperature changes due to absorption of laser radiation into the plasma and changes in plasma expansion mode (laser supported combustion wave, laser supported detonation wave, and laser supported radiation wave) (Iida, Reference Iida1990). The initial increase in emission intensity with the increase of pressure is observed and its maxima is achieved at 20 Torr which is attributed to the enhanced collisional excitation/dexcitation and confinement of the plume species at these pressures. Afterwards, further increase in pressure up to atmospheric pressure (760 Torr) leads to reduction in the line intensities. The more pronounced confinement effect now leads to the shielding effect which reduces the fraction of laser energy available to reach the target surface and hence reducing the amount of material being vaporized. A greater amount of energy is screened by the plasma and less energy is absorbed by the target at higher pressure and is responsible for reduction in emission line intensities. In addition to this, the decrease in the intensity at higher pressures can also be correlated with the decrease in temperature observed at higher pressures due to increased recombination losses. The decrease in emission intensity after 20 Torr is correlated with the self-absorption phenomenon which becomes dominant at higher pressures (Hafeez et al., Reference Hafeez, Shaikh, Rashid and Baig2008; Farid et al., Reference Farid, Harilal, Ding and Hassanein2014; Harilal et al., Reference Harilal, Farid, Freeman, Diwakar, LaHaye and Hassanein2014). The same trend is observed for electron number density except in case of Ar, in which it goes on increasing with increasing pressure. It is observed that plasma attains its maximum temperature at 10 Torr for all ambient environments.

The obtained results from the LIBS indicate that the emission intensity, electron temperature, and density are strongly dependent on ambient atmosphere as well as on its pressure variation. The highest value of the emission intensity, excitation temperature, and electron number density has been observed for Ar, then for Ne, and the least for He.

The initial increase in emission intensity, excitation temperature, and electron number density is attributable to the restricted free expansion and confinement effects of plasma (Harilal et al., Reference Harilal, Bindhu, Nampoori and Vallabhan1998a; Reference Harilal, Bindhu, Nampoori and Vallabhan1998b). With increasing pressure, collisional frequencies of plasma species are also enhanced which are responsible for enhanced momentum transfer and cascade growth (Weyl, Reference Weyl and Dekker1989). When the maxima is achieved a decrease in plasma parameters is observed. This decreasing trend is attributable to more pronounced confinement effect of the plasma species nearer to the target as a result the shielding effect near target surface takes place. Thus less amount of laser energy is being absorbed in the target material and reduces the values of excitation temperature and electron number density (Cowpe et al., Reference Cowpe, Pilkington, Astin and Hill2009). With further increase in pressure up to 760 Torr, the saturation or insignificant change in plasma parameters is observed which is due to the self-regulating regime along with plasma shielding effect (Harilal et al., Reference Harilal, Bindhu, Nampoori and Vallabhan1998a, Reference Harilal, Bindhu, Nampoori and Vallabhan1998b). In addition, breakdown of the ambient gases serves as a buffer and transfers more amount of energy to the target surface by thermal ionization which leads toward increase in emission intensity, excitation temperature, and electron number density(Harilal et al., Reference Harilal, Bindhu, Issac, Nampoori and Vallabhan1997).

The nature of environment also influences plasma parameters significantly. This trend is also explainable on the basis of cascade growth and necessary condition for cascade growth is given by the following formula (Iida, Reference Iida1990; Farid et al., Reference Farid, Bashir and Mahmood2012):

(7)$$\displaystyle{{\; d{\rm \varepsilon}} \over {dt}} = \displaystyle{{4{\rm \pi} ^2 e^2 I{\rm \nu} _{{\rm eff}}} \over {m_{\rm e} c{\rm \omega} ^2}} - \displaystyle{{2m_{\rm e} {\rm \nu} _{{\rm eff}} E} \over M}$$

where ε is the energy of the free electrons, m and e are the mass and charge of the electron, M is the mass of the background gas neutral particle, and E is the energy of the first ionization stage of gas, I is the radiation intensity, ω the cyclic frequency of radiation and υ_eff the effective frequency of electron–neutral collisions. The first term on the right-hand side of Eq. (7) represents the rate of growth of energy by the absorption of the laser pulse. This term remains constant for all ambient environments. So the second part is important and in this part E/M is influential factor to calculate amount of energy loss in cascade growth process. In the case of Ar it is 0.53, for Ne it is 1.08, and for He it is 6.04. This shows that cascade growth is more favorable for Ar, then for Ne, and He (Bashir et al., Reference Bashir, Farid, Mahmood and Rafique2012; Iida, Reference Iida1990). It explains the fact that the Mg-alloy plasma has more emission intensity, K.E as well as density in case of Ar as compared with Ne and He.

Another controlling factor of loss of energy is thermal conductivity. The thermal conductivity scales as He [151.3 W (m.K)⁻¹] > Ne [49.1 W (m.K)⁻¹] > Ar [17.72 W (m.K)⁻¹]. As higher will be the conductivity lower will be the cascade growth and higher will be the heat dissipation losses near the surface and as a consequence lower will be kinetic energies of plasma for He, then for Ne, and higher will be for Ar (Bashir et al., Reference Bashir, Farid, Mahmood and Rafique2012).

LIBS analysis is well correlated with the surface modification of Mg-alloy after laser irradiation. The highest value of electron temperature and electron number density is achieved in Ar, then in Ne followed by He. In the case of Ar, this highest value of electron temperature and electron number density is justified by well-defined and distinct structures (Khan et al., Reference Khan, Bashir, Hayat and Khaleeq-ur-Rahman2013). The initial increase in electron temperature and electron number density with increasing pressure is well correlated with the formation of cavities, islands ripples (Khan et al., Reference Khan, Bashir, Hayat and Khaleeq-ur-Rahman2013). Higher electron temperature will be responsible for more deposition of energy to the lattice and large scale ablation will take place corresponding to increased depth and size of cavities. After obtaining the maxima, both electron temperature and electron number decrease and self-regulating regime is achieved. For this regime only redeposition of ablated material is obtained. Further increase in pressure, due to smaller value of electron temperature less energy deposition of electrons to lattice cause the growth of diffusive and less distinct structures (Khan et al., Reference Khan, Bashir, Hayat and Khaleeq-ur-Rahman2013).

3.3. Effect of Nature of Ambient Environment on Micro-Hardness

Figure 12 depicts the variation in micro-hardness of laser treated surface of Mg-alloy for different pressures under three ambient environments of Ar, Ne, and He at a fluence of 1.3 J cm⁻². The micro-hardness of un-irradiated specimen is 67 (HV). It is noticed that micro-hardness of laser-treated target is increased significantly as compared with the un-irradiated sample. It is observed that the micro-hardness also increases with increasing pressure, attains its maxima and then decrease with further increase in pressure in all ambient environments. The value of micro-hardness is achieved in case of Ar, that is, four times as compared with the irradiated target. The micro-hardness values in cases of Ne and He are two times than that of the un-irradiated sample. The changes in micro-hardness are attributed to the lattice disorder. These changes are also due to changes in crystal structure and thermal compressive stresses produced in the material as a result of laser-induced heating (Hull & Bacon, Reference Hull and Bacon2011). These micro-hardness results are well correlated with SEM as well as LIBS analysis. Distinct and well defined structures are observed in the case of Ar similarly the high value of electron temperature and electron number density is achieved in the case of Ar .The maximum value of plasma parameters is responsible for maximum surface and mechanical modification of laser-treated Mg-alloy in the case of Ar.

Fig. 12. The variation in micro-hardness of laser-irradiated Mg-alloy for different pressures under three ambient environments of Ar, Ne, and He, at a fluence of 1.3 J cm⁻².

3.4. Effect of Ambient Gas on the Corrosion Resistance

Figure 13 illustrates the corrosion resistance of laser treated Mg-alloy under ambient environments of Ar, Ne, and He. The corrosion resistance of un-irradiated specimen is 0.03. However, it is observed that corrosion resistance is maximum in Ar, then in Ne followed by He as compared with un-irradiated sample. Improved corrosion resistance is attributed to phase change, microstructural refinement and extended solid solubility owing to rapid solidification (Mondal et al., Reference Mondal, Kumar, Blawert and Dahotre2008). These corrosion resistance results are well correlated with SEM morphology, LIBS analysis, and hardness.

Fig. 13. The variation of corrosion-resistance of laser-induced plasma of Mg-alloy under three ambient environments of Ar, Ne, and He at a pressure of 5 Torr.
