2.1. Satellite orbit errors

The satellite orbit error is the difference between the satellite position predicted in satellite ephemeris and the true position of the satellite. Most of the satellite orbit error can be mitigated by differential techniques. However, the residual orbit error in the differenced observables for a long baseline may still not be negligible so its effects on the positioning accuracy may still be significant.

Let dx be the error in a baseline and it is induced by the satellite orbit error d _orb, and let the length of the baseline be l, then the following equation can be used to calculate dx, i.e.

(1)

where d is the orbit altitude of Compass GEO satellites and IGSO satellites and d≈35,786 km.

According to equation (1), the errors induced by the 10 m satellite orbit error in baselines of various lengths are listed in Table 1. From this table, we can see: first, that the error in the baselines of lengths under 10 km is less than 3 mm, so it can be ignored for centimetre-level RTK positioning; and second, that the error values are about 3 cm, 15 cm, and 30 cm corresponding to the baselines with lengths of 100 km, 500 km and 1000 km respectively. This indicates that the effects of the satellite orbit error on long baselines (e.g., >100 km) are significant, thus it needs to be mitigated for high accuracy GNSS positioning.

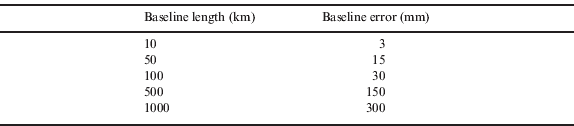

Table 1. Errors in baselines of different lengths induced by the satellite orbit error of 10 m.

2.2. Ionospheric delay error

The ionosphere is the part of the atmosphere that is in the layer of 50–1000 km above the surface of the earth. The ionosphere is partially ionized because of solar radiation. It is the layer with a high density of free electrons. When GPS signals transmit through the ionosphere, they will be refracted, and the phase velocity will be increased whilst the group velocity of the pseudo-range (group velocity) will be decreased.

The ionospheric effects on GNSS observables can be greatly reduced using differential techniques. For short baselines (e.g., <10 km), the residual ionospheric error is very small and will not affect the baseline's ambiguity resolution. However, for long baselines, the residual ionospheric error may still be significant and that will cause difficulty to quickly resolve the baseline's ambiguity.

On the other hand, even though the ambiguity has been successfully resolved for short baselines of several kilometres, the effects of the residual ionospheric delay errors cannot be always neglected, for example, in the application for the monitoring of deformation networks, as the scale factor of the baseline will be affected. The magnitude of the effects of the residual ionospheric delay errors are dependent upon the linear combinations used and the elevation angle E _min. Generally, the ionospheric delay error in GNSS observables is proportional to the total electron content (TEC) in the signal propagation path. TECU is often used as the unit of TEC, and one TECU=1016 electron/m². For the observables on the Compass B1 frequency, when the elevation cut-off angle of 15° is used, the effect of the residual ionospheric error of 10 TECU is about 1·0 ppm (i.e., 1·0 mm/km). Therefore, for medium-long baselines, the residual ionospheric delay errors should be taken into account, which is not only for ambiguity resolution but also for precise kinematic positioning.

2.3. Tropospheric delay error

The tropospheric delay generally refers to the refraction of electromagnetic waves caused by the neutral atmospheric part. The neutral atmosphere is the lower part of the atmosphere and it mainly includes the troposphere and stratosphere, which is approximately from the ground surface of the earth up to 50 km. Due to the fact that about 80% of the refraction is caused by the troposphere, the delay caused by the whole neutral atmosphere is usually called the troposphere delay.

The tropospheric delay consists of the dry and wet components. About 80 to 90% of the tropospheric delay is caused by the dry component (i.e., the dry gas) in the atmosphere. The remaining 10 to 20% of the tropospheric delay is caused by water vapour, i.e., the wet component. The typical value of the dry delay in the zenith direction is 2·3 m, and of the wet delay is about 1 to 80 cm. The tropospheric delay depends on many factors such as the climate, air pressure, temperature, humidity and elevation of the satellite. For low elevation satellites, the total tropospheric delay can reach 30 m.

The troposphere is a non-dispersive medium for GNSS signals, hence the tropospheric delay cannot be calculated from dual-frequency GNSS observations. For short baselines with small height differences, if differential techniques are used, the effects of the tropospheric delay errors can be greatly reduced. However, for long baselines or baselines with large height differences, even the same differential techniques are used, the residual tropospheric delay errors may not be negligible and so they may significantly affect both ambiguity resolution and baseline solutions. For aviation users, when a baseline's height difference is more than 6000 m, the error in the height difference induced by the residual tropospheric delay errors can reach 5 m.

According to the analysis of the residual tropospheric delay effects on baseline solutions, the residual tropospheric delay can be roughly divided into two kinds: relative and absolute tropospheric delays.

The relative tropospheric delay is the difference between the tropospheric delays at the rover station and the base station. Its effect on the baseline's height component is particularly remarkable. The error in the height component caused by the relative tropospheric delay can be calculated by:

(2)

where Δd _trop is the relative tropospheric delay and E _min is the satellite elevation angle. When E _min=20°, 1 mm Δd _trop will lead to a 3 mm error in the height component.

The absolute tropospheric delay is a common part of the tropospheric effects in both the rover station and the base stations. The scale factor of the baseline affected by the absolute tropospheric delay can be calculated by:

(3)

where d _trop is the absolute tropospheric delay, l and Δl are the baseline length and the difference of the baseline caused by d _trop respectively, R _e is the Earth radius. When E _min=20°, a 2 m of d _trop will lead to about 1 ppm scale error.

Similar to the orbit errors, the residual tropospheric delay errors will also affect baseline solutions and geometry-based ambiguity resolutions. However, considering that the residual tropospheric delay errors have the same values in the triple-frequency observations of a satellite, the ambiguity resolution based on the geometry-free mode are not influenced.

2.4. Multi-path effects

The GNSS receiver receives not only the signals directly from satellites but also the signals reflected from the surrounding buildings or objects. The reflected signals interfere with the direct ones and their effects are called multi-path effects. The multi-path effect is one of the main errors affecting high accuracy positioning especially for short baselines. Multi-path effects on pseudorange measurements can reach up to 1/2 of the code length whereas on carrier phase measurements are very small, e.g., their maximum value is about 1/4 of the carrier wavelength.

In the static measurement, multi-path effects show a periodic sinusoidal variation with the change of the satellite geometry. The part for the variation of the long-period can be estimated. The part for the variation of the short-period can be absorbed by the residuals and the effects can be eliminated using the time averaging method.

In the kinematic positioning, multi-path effects can be treated as random errors due to the changing of the measurement environment. However, for a low-speed moving receiver, multi-path effects tend to vary periodically when its surrounding objects/environments do not change much.

Multi-path effects are related to the direction of the satellite signal, the reflection coefficient and the range from a reflector. They are difficult to model due to the complex measurement environments. They cannot be mitigated by differencing methods. Generally, careful selection of sites is recommended to avoid potential multi-path effects, e.g., making the antenna away from reflectors, using choke ring antennas, improving the code and phase tracking loop and so on. In the data processing, multi-path effects are usually treated as random errors thus they can be combined with the observation noise to make the two error terms become one.

2.5. Measurement noise

The measurement noise is usually considered to be white noise, and the measurement noise among observations of different satellites is uncorrelated. The measurement noise is associated with the code correlation mode, receiver dynamic status and satellite elevation. The pseudorange noise is about 0·3 m (B3) or 0·6 m (B1/B2) for Compass, the phase noise is generally 1% percent of its wavelength. For different types of receivers and signal noise ratios, the phase noise varies between 0·1%∼3% of the wavelength.

3.1. Strategy for mitigating orbit error effects

As mentioned before, orbit errors will have effects on the geometry-based ambiguity resolution and baseline solutions. For medium-long baselines, the effects of orbit errors on baseline solutions are proportional to baseline lengths. For a baseline of 100 km, the baseline error induced by a 10 m orbit error (Compass satellites) is about 3 cm. For longer baselines, the orbits provided by the broadcast ephemeris may significantly affect the accuracy of RTK positioning. Hence, the precise ephemeris for Compass should be studied and used to mitigate the effects of orbit errors for RTK positioning applications over medium-long baselines.

3.2. Optimal ionosphere-free combinations of triple-frequency observations of Compass

The ionospheric delay error is one of the most severe errors in GNSS observations and this error will significantly affect baseline solutions even using differenced observations for medium-long baselines. However, most part of the ionospheric delay error can be eliminated from a proper linear combination, e.g., the so-called ionosphere-free combinations of different frequency observations. This is because the ionosphere is a dispersive medium thus its delay error depends on the signal frequency.

An ionosphere-free linear combination of triple-frequency observations can be expressed as:

(4)

(5)

Equation (5) can be rewritten in the following form:

(6)

where α, β, γ should satisfy the following conditions:

(7)

(8)

(9)

where, ∇ΔK ₁/f ₁² is double-difference ionospheric delay for the observations on the frequency B ₁; C is the velocity of the light; σ _∇Δφ is phase error (including measurement noise and multipath) in units of cycles for all the three frequencies; A is the ionospheric coefficient of the combination and it is generally assumed to be 0 for ionosphere-free combinations; C ₁ and C ₂ are the noise coefficient ratios of ∇ΔΦ₂ and ∇ΔΦ₃ to ∇ΔΦ₁ respectively, and C ₁=(f ₁/f ₂) · (f ₁/f ₂), C ₂=(f ₁/f ₃)· (f ₁/f ₃).

From Equation (7), one can obtain:

Substitute this equation to Equation (8):

Let β=F _a−αF_b and

Then Equation (9) has the form:

Let v=[C ₁F _a²+C ₂(1−F _a)²]−2a[C ₁F _aF_b+C ₂(1−F _a)(1−F _b)]+α ²[1+C ₁F _b²+C ₂(1−F _b)²].

Assuming that the derivative of v is equal to 0, then one can obtain:

Combined with the aforementioned two formulae:

Assuming A=0, C ₁=(f ₁/f ₂) · (f ₁/f ₂) and C ₂=(f ₁/f ₃) · (f ₁/f ₃), that is to say, the phase error in units of cycles for all the three frequencies is σ _∇Δφ, then the derived coefficients of the optimal ionosphere-free combination of the triple-frequency observations are:

From these values, one can also obtain:

where the three frequencies of the Compass system are B1=1561·098 MHz, B2=1207·14 MHz and B3=1268·52 MHz respectively.

Then the standard deviation of Φ_M can be expressed as

(10)

where σ _∇Δφ=5%.

The noise coefficients and noise levels of dual-frequency and triple-frequency ionosphere-free combinations are summarized in Table 2, respectively. Table 2 shows that the noise coefficients of triple-frequency combinations are slightly better than that of dual-frequency combinations. Considering that the ionosphere-free combination is mainly used for precise positioning, then it is concluded that the triple-frequency combinations cannot be used for largely improving positioning accuracy. But triple-frequency observations will be used for determining carrier ambiguities more easily and successfully. For short baselines, instantaneous ambiguity initialization is feasible. And for medium-long baselines, ambiguities can be determined with the geometry-free method (Fan and Wang, Reference Fan and Wang2007; Feng, Reference Feng2008; Feng and Li, Reference Feng and Li2008a, Reference Feng and Li2008b; Feng and Rizos, Reference Feng and Rizos2009; Feng et al, Reference Feng, Rizos and Higgins2007; Guo et al, Reference Guo, He and Wang2010; Han and Rizos, Reference Han and Rizos1999; Hatch, Reference Hatch2006; Li et al, Reference Li, Yang, Xu, He and Guo2011; Teunissen and Joosten, Reference Teunissen, Joosten and Tiberius2002; Teunissen et al, Reference Teunissen, Joosten and Tiberius2002).

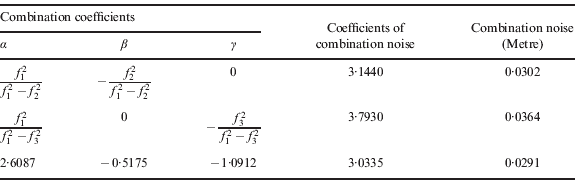

Table 2. Ionosphere-free combinations.

Note. The noise level of the above combinations is calculated under the assumption of σ _∇Δφ=5%.

3.3. RZTD parameter estimation

The tropospheric delay is one of the key limiting factors for the performance of high accuracy RTK positioning over medium-long baselines. In order to reduce the effect of the tropospheric delay, some scholars have proposed the introduction of RZTD parameters for the cases of baselines with either medium-long lengths or large height-difference. However, once the RZTD parameter is introduced along with coordinate parameters in the observation equation, the coefficient matrix of the normal equation of the Least Squares (LS) may be in an ill condition due to the strong correlation between the RTZD parameter and the height component. In this case, the parameter solution is not stable since a small error in the observation may cause a large error in the LS estimates.

Once the ambiguities of the baseline have been successfully resolved and cycle slips, if any, have been repaired, the centimetre-level accuracy RTK solutions over the medium-long baselines can be obtained using the Kalman filter. The LS can be used to estimate the coordinate and RZTD parameters for the current epoch if the prior information for the unknown parameters is not considered. The Kalman filter can also be used to acquire the estimates of the unknown parameters and their covariance if the prior information is considered. And the random walk model for residual tropospheric delay error should also be taken into account in the Kalman filter. However, one of the key issues in using the Kalman filter is how to determine the process noise and initial variances of the unknown parameters (Yang et al, Reference Yang, Gao and Zhang2010).

4.1. Data Simulation

Due to the fact that, for precise positioning, the double differencing technique is commonly used so that the clock errors of the satellite and the receiver can be cancelled out, and the effects of the satellite orbit error, the ionospheric delay and the tropospheric delay can also be largely eliminated. In the simulation for the zero-difference Compass observations, the satellite orbit error, the ionospheric and the tropospheric delays, and the measurement noise (including multipath effects) should be taken into account. The magnitudes of these errors and the models used for the generation of some of these errors for Compass (5GEO+5 IGSO+2 MEO) are as follows:

• • Satellite orbit error: 10 m;

• • Ionospheric model: broadcast ionospheric model i.e., Kobuchar model;

• • Single-difference zenith ionospheric residuals for the B1 frequency: 0·5 ppm

• • Tropospheric models: the SBAS tropospheric correction model

• • Single-difference zenith tropospheric residual: 0·5 ppm

Multipath and receiver noise (zero-difference, 1σ):

• • Pseudorange: B1: 0·6 m, B2: 0·6 m, B3: 0·3 m

• • Carrier phase: 1% cycle

Based on these error levels and models, the zero-difference pseudorange and carrier phase observations for the Compass three frequencies B1, B2, and B3 were simulated. The data session is 24 hours, the sampling rate is 30 seconds, the elevation cut-off angle was set to 10 degrees, the baseline lengths are 50 km and 100 km (selected in the Beijing area) respectively, and the ambiguity was set to 0 for each frequency.

The simulated double-difference ionospheric and tropospheric residuals, pseudorange and carrier phase observations are shown in Figures 1–3.

Figure 1. Simulated orbit errors for the COMPASS GEO (Left) and for the COMPASS IGSO/MEO (Right) satellites.

Figure 2. Simulated double-difference ionospheric (left) and tropospheric residuals for COMPASS (100 km baseline).

Figure 3. Simulated double-difference phase observations for COMPASS (the geometry distance and ionospheric delay are not included).

4.2. Analysis of the effects of orbit errors

Over medium-long baselines (50 km and 100 km), the RTK positioning errors caused by a 10 m orbit error are shown in Figure 4. It can be seen that the positioning errors of the 100 km baseline are much larger than that of the 50 km baseline. This further verifies that the magnitude of the orbit error's effect on the accuracy of the RTK positioning is proportional to the baseline length. The RTK RMS errors in the three coordinate components E-W, N-S, U-D caused by the 10 m orbit error are 1·3 cm, 2·2 cm and 3·6 cm respectively over the 100 km baseline.

Figure 4. Positioning errors induced by a 10 m satellite orbit error of COMPASS satellites with 50 km baseline (left) and 100 km baseline (right).

4.3. LS estimation with RZTD parameters

In order to verify whether it is reasonable to introduce the RZTD parameter in the LS estimation, the following two schemes were adopted to estimate the RTK positioning parameters.

1. Scheme 1: only the coordinate parameters (E/N/U) are estimated.

2. Scheme 2: the coordinate parameters (E/N/U) plus the RZTD parameter are estimated.

It is assumed that the baseline's ambiguities have been resolved successfully and the optimal triple-frequency ionosphere-free combination is used when estimating the positioning parameters based on the two schemes. The results are shown in Figures 5–7 and Table 3.

Figure 5. Positioning errors estimated from Scheme 1 (left) and Scheme 2 (right) with 50 km baseline.

Figure 6. Positioning errors estimated from Scheme 1 (left) and Scheme 2 (right) with 100 km baseline.

Figure 7. Tropospheric delay parameter estimated from Scheme 2 with 50 km baseline (left) and 100 km baseline (right).

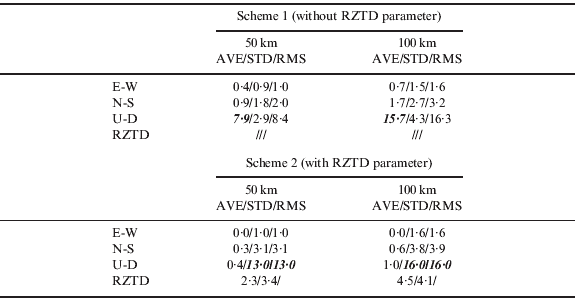

Table 3. Comparison of positioning errors (cm) from the two schemes.

Note. RMS is calculated from the difference between the estimates and the known coordinates.

From these results, we can see that, without introducing the RZTD parameter (Scheme 1), large means are in the height estimates (e.g., 7·9 cm and 15·7 cm are for the 50 km and 100 km baselines respectively). The reason is that the residual tropospheric delay error in a medium-long baseline's observation equation is large, and the large error is absorbed by the height estimate if it is not introduced and resolved as an unknown parameter. Although the mean values of the positioning errors estimated from Scheme 2 (with RZTD) are relatively small, the variances and RMS of the height components are all up to more than a dozen centimetres (e.g., 13·0 cm and 16·0 cm are for the 50 km and 100 km baselines respectively) and the reliability of the positioning solutions is very poor. From these results, the strong correlation between the RZTD and the height component estimates is further verified thus it should be considered in the RTK parameter estimation.
