2.1 Numerical method

Numerical simulations have been carried out with OpenFOAM (available from www.openfoam.org) to solve the continuity and incompressible Navier–Stokes equations:

(2.1) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}u_{i}}{\unicode[STIX]{x2202}x_{i}}=0, & \displaystyle\end{eqnarray}$$

(2.2) $$\begin{eqnarray}\displaystyle & \displaystyle \frac{\unicode[STIX]{x2202}u_{i}}{\unicode[STIX]{x2202}t}+u_{j}\frac{\unicode[STIX]{x2202}u_{i}}{\unicode[STIX]{x2202}x_{j}}=-\frac{1}{\unicode[STIX]{x1D70C}}\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}x_{i}}+\unicode[STIX]{x1D708}\frac{\unicode[STIX]{x2202}^{2}u_{i}}{\unicode[STIX]{x2202}x_{j}\unicode[STIX]{x2202}x_{j}}, & \displaystyle\end{eqnarray}$$

where $(x_{1},x_{2},x_{3})=(x,y,z)$ are Cartesian coordinates, $u_{i}$ is the velocity component in the direction $x_{i}$ , $t$ is time, $\unicode[STIX]{x1D70C}$ is fluid density, and $p$ is pressure. The same numerical approach used in Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016, Reference Jiang, Cheng, Draper and An2017) is adopted here. Specifically, the finite volume method (FVM) and the pressure implicit with splitting of operators (PISO) algorithm (Issa Reference Issa1986) are used to solve the equations. The convection, diffusion and time derivative terms are discretized, respectively, using a fourth-order cubic scheme, a second-order linear scheme, and a blended scheme consisting of the second-order Crank–Nicolson scheme and a first-order Euler implicit scheme.

2.2 Computational domain and mesh

The computational domain and mesh are determined based on a domain size dependence study carried out in Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016) and a mesh resolution dependence study carried out in Jiang et al. (Reference Jiang, Cheng, Draper and An2017). The standard 3D mesh reported in Jiang et al. (Reference Jiang, Cheng, Draper and An2017) is adopted in this study.

The details of the standard 3D mesh are as follows. As shown in figure 1(a), a hexahedral computational domain of $(L_{x},L_{y},L_{z})=(50D,G+20.5D,12D)$ , with $L_{x},L_{y}$ and $L_{z}$ being the domain sizes in the $x$ -, $y$ - and $z$ -directions, respectively, is constructed. The gap height $G$ is varied in this study. In the $x$ – $y$ plane (the plane perpendicular to the cylinder axis), the cylinder perimeter is discretized with 132 nodes for $G/D\geqslant 1.5$ and 160 nodes for $G/D<1.5$ (due to the slight change of the mesh topology at smaller gap ratios). The height of the first layer of mesh next to the moving wall and next to the cylinder surface is approximately $0.001D$ . The cell expansion ratio in the whole domain is kept below 1.1. This results in at least 30 layers of mesh in the cylinder boundary layer for all of the cases considered in this study. To capture detailed wake flow structures, a relatively high mesh resolution is used in the cylinder wake by specifying a constant mesh size along the $x$ -direction for $x/D>$ 0.7. Figure 1(b) shows a close-up view of the 2D mesh near the cylinder with a gap ratio of 0.4.

The 3D mesh is formed by replicating the 2D mesh along the $z$ -axis, resulting in an identical mesh resolution in all planes perpendicular to the cylinder. Based on the 3D mesh dependence study for an isolated cylinder performed in Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016), the spanwise cell and domain lengths are chosen as $0.1D$ and $12D$ , respectively. According to the linear stability analysis results by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2013) of flow past a circular cylinder near a moving wall with various gap ratios, the spanwise domain length of $12D$ is not always an integer multiple of the most unstable spanwise wavelength of the wake structure. This may restrict the development of 3D instability to some extent and result in an overprediction of $Re_{cr\,3D}$ . However, it has been demonstrated in Jiang et al. (Reference Jiang, Cheng, Draper and An2017) that the use of a spanwise domain length of $12D$ would only affect the accuracy of the predicted $Re_{cr\,3D}$ value by less than 1 %. Hence a uniform domain length of $12D$ is still adopted in the present study.

The boundary conditions for the 3D computational domain are listed in table 1, where $\unicode[STIX]{x2202}/\unicode[STIX]{x2202}\boldsymbol{n}=0$ denotes a zero normal gradient condition. In particular, a uniform flow velocity $U$ is specified in the $x$ -direction for the inlet and bottom boundaries. Symmetry boundary conditions are applied at the top boundary, while periodic boundary conditions are employed at the two lateral boundaries perpendicular to the cylinder span.

The time step $\unicode[STIX]{x0394}t$ adopted for each case is based on the criterion that the Courant number $(Co)$ of all the cells in the computational domain is kept below 0.5, where $Co$ is defined as

(2.3) $$\begin{eqnarray}Co=|u|\unicode[STIX]{x0394}t/\unicode[STIX]{x0394}l,\end{eqnarray}$$

where $|u|$ is the magnitude of the velocity through a cell, and $\unicode[STIX]{x0394}l$ is the cell size in the direction of the velocity.

Figure 1. (a) Schematic model of the computational domain, and (b) close-up view of the 2D mesh near the cylinder for $G/D=0.4$ .

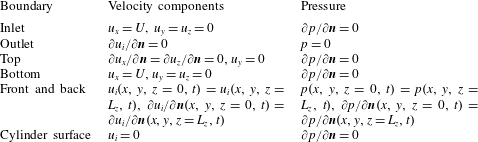

Table 1. Boundary conditions for the 3D computational domain.

2.3 Mesh convergence

For the case of flow past an isolated circular cylinder, Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016) reported a mesh convergence study on the standard 3D mesh, and obtained DNS results of wake transition of flow past an isolated circular cylinder which are in good agreement with the experimental results reported by Williamson (Reference Williamson1996).

Figure 2. Critical $Re$ for 2D and 3D wake instabilities under various gap ratios.

For the case of flow past a circular cylinder near a moving wall, the $Re_{cr\,2D}$ and $Re_{cr\,3D}$ values under various gap ratios predicted with DNS by using the standard 3D mesh (Jiang et al. Reference Jiang, Cheng, Draper and An2017) are in close agreement with the linear stability analysis results by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2015) (figure 2). The results by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2015) are believed to be improved from those in Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2013) (see figure 2) since it was noted in Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2013) that the use of a relatively small computational domain size in that study could affect the accuracy of $Re_{cr\,3D}$ by ${\sim}15\,\%$ .

In the present study, mesh convergence is further checked at $G/D=0.4$ with $Re=325$ (the largest $Re$ adopted in this study). The resolution of the standard 3D mesh is examined by using a refined 3D mesh with the number of cells in both $x$ - and $y$ -directions 1.5 times that for the standard 3D mesh. In particular, the number of cells around the cylinder is increased by 1.5 times (from 160 to 240), the height of the first layer of mesh next to the moving wall and next to the cylinder surface is reduced by 1.5 times (from $0.001D$ to $0.00067D$ ), and the number of mesh layers in the cylinder boundary layer is increased by 1.5 times (from 31 to 47). In addition, the influence of the time step on the numerical results is examined with a case which uses the standard 3D mesh but with a halved time-step size (i.e. $Co$ is kept below 0.25).

The mesh convergence is firstly checked via the drag and lift force coefficients ( $C_{D}$ and $C_{L}$ ) and Strouhal number ( $St$ ) on the cylinder, which are defined as follows:

(2.4) $$\begin{eqnarray}\displaystyle & \displaystyle C_{D}=F_{D}/(\unicode[STIX]{x1D70C}DU^{2}L_{z}/2), & \displaystyle\end{eqnarray}$$

(2.5) $$\begin{eqnarray}\displaystyle & \displaystyle C_{L}=F_{L}/(\unicode[STIX]{x1D70C}DU^{2}L_{z}/2), & \displaystyle\end{eqnarray}$$

(2.6) $$\begin{eqnarray}\displaystyle & \displaystyle St=f_{L}D/U, & \displaystyle\end{eqnarray}$$

where $F_{D}$ and $F_{L}$ are the integrated drag force and lift force on the cylinder, respectively, and $f_{L}$ is the frequency of the fluctuating lift force. For the 3D cases where the time history of $C_{L}$ may not be regular periodic, $St$ is determined using the peak frequency derived from the fast Fourier transform (FFT) of the time history of $C_{L}$ . The time-averaged drag and lift coefficients are denoted as $\overline{C_{D}}$ and $\overline{C_{L}}$ , respectively. The root-mean-square lift coefficient $C_{L}^{\prime }$ is defined as

(2.7) $$\begin{eqnarray}C_{L}^{\prime }=\sqrt{\frac{1}{N}\mathop{\sum }_{i=1}^{N}(C_{L,i}-\overline{C_{L}})^{2}},\end{eqnarray}$$

where $N$ is the number of values in the time history of $C_{L}$ . At least 800 non-dimensional time units (defined as $t^{\ast }=Ut/D$ ) of the fully developed flow are used to calculate the statistical stationary hydrodynamic forces on the cylinder. As shown in table 2, the hydrodynamic forces calculated with the two variation cases are quite close to those calculated with the standard mesh (relative differences are within 0.7 % for $St$ and $\overline{C_{D}}$ , within 1.6 % for $\overline{C_{L}}$ , and within 4 % for $C_{L}^{\prime }$ ).

Table 2. Mesh convergence results for the case of $(G/D,Re)=(0.4,325)$ .

In addition, figure 3 shows the time- and span-averaged streamwise and transverse velocity profiles at a few streamwise locations in the near wake ( $x/D=0$ , 1, 1.5, and 5) for the three cases listed in table 2. Very good agreements of the mean velocity profiles are observed in figure 3 for the three cases. The above results demonstrate that the standard 3D mesh is sufficient for the numerical simulations of this study.

Figure 3. Time- and span-averaged velocity profiles at a few streamwise locations ( $x/D=0$ , 1, 1.5 and 5) for the three cases listed in table 2: (a) streamwise velocity profiles, and (b) transverse velocity profiles.

3.1 Wake transition regimes

The 3D wake transition sequence for flow past a circular cylinder near a moving wall is studied in the parameter space of $G/D\geqslant 0.3$ and $Re$ up to 300. Based on a number of cases with discrete combinations of $G/D$ and $Re$ , the approximate wake transition regimes are mapped out in figure 4. With increasing $Re$ , the flow undergoes a transition sequence of ‘2D $\rightarrow$ Mode A $\rightarrow$ mode swapping $\rightarrow$ Mode B’ for all of the gap ratios considered. For $G/D\geqslant 1.5$ , the critical $Re$ values for the wake transition regimes are almost unchanged, which suggests that the effect of the plane boundary is still weak. With further decrease of $G/D$ , the mode swapping and Mode B regimes are gradually delayed to slightly higher $Re$ values.

Figure 5. Iso-surfaces of $\unicode[STIX]{x1D714}_{x}=\pm 0.5$ for flow past an isolated circular cylinder at $Re=200$ : (a) ordered Mode A structure at $t^{\ast }=400$ , and (b) Mode A with large-scale vortex dislocations at $t^{\ast }=1000$ . Dark grey and light yellow denote positive and negative values, respectively. The flow is from the left to the right past the cylinder on the left.

For the case of an isolated circular cylinder, the Mode A structure will evolve spontaneously into a more stable pattern with large-scale vortex dislocations (Williamson Reference Williamson1996). Hence the transition sequence can be further specified as ‘2D $\rightarrow$ Mode A with dislocations $\rightarrow$ mode swapping (with dislocations) $\rightarrow$ Mode B’. The evolution of vortex dislocations (with the evolution of the non-dimensional flow time $t^{\ast }$ ) for the case of $Re=200$ is illustrated in figure 5. The vortex structures are identified by the isosurfaces of the streamwise vorticity $\unicode[STIX]{x1D714}_{x}$ , which is defined in a non-dimensional form of

(3.1) $$\begin{eqnarray}\unicode[STIX]{x1D714}_{x}=\left(\frac{\unicode[STIX]{x2202}u_{z}}{\unicode[STIX]{x2202}y}-\frac{\unicode[STIX]{x2202}u_{y}}{\unicode[STIX]{x2202}z}\right)\frac{D}{U}.\end{eqnarray}$$

However, it is found that for flow past a circular cylinder near a moving wall, vortex dislocation is suppressed at small gap ratios, and consequently the flow undergoes a transition sequence of ‘2D $\rightarrow$ ordered Mode A $\rightarrow$ mode swapping (without dislocations) $\rightarrow$ Mode B’. According to the occurrence or suppression of vortex dislocations associated with Mode A, the Mode A and mode swapping regimes shown in figure 4 are further separated by the dashed line at $G/D\sim 1.0$ . The dashed separation line ends at the lower boundary of the Mode B regime, since beyond which point Mode A disappears and Mode B is naturally free of dislocation.

It is seen in figure 4 that the ordered Mode A regime occupies a considerable area in the parameter space. To further validate the suppression of vortex dislocation in the ordered Mode A regime, another DNS case with $(G/D,Re)=(1.0,210)$ is calculated with a doubled spanwise domain length of $24D$ . In this case, vortex dislocation is still completely suppressed. For the fully developed flow, six Mode A vortex pairs are observed along the span width, and their spanwise locations do not vary along the span in time (although the Mode A vortex pairs have slightly varied wavelengths).

It is also found that for the cases within the shadow area shown in figure 4, the wake structures are initialized with four pairs of Mode A structure along the span width. In contrast, for the rest of the cases within the Mode A and mode swapping regimes, three pairs of Mode A structure are observed at the beginning of the simulations. This is due to the variation of the most unstable spanwise wavelength of the Mode A structure. As reported by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2013) with linear stability analysis, the most unstable spanwise wavelength at $Re_{cr\,3D}$ for $G/D=0.4$ and 1.0 are $3.85D$ and $3.73D$ , respectively, but reduces to ${\sim}3.65D$ at $G/D=0.5{-}0.75$ . In addition, it is expected that the most unstable wavelength decreases with increasing $Re$ , similar to the case of an isolated cylinder as reported in Williamson (Reference Williamson1996) and Barkley & Henderson (Reference Barkley and Henderson1996). Hence it is expected that smallest most unstable wavelengths may be observed for the cases within the shadow area, and for these cases the wavelength of $3D$ (i.e. four pairs of Mode A) is more unstable than $4D$ (i.e. three pairs of Mode A).

It is worth noting that while the onset points for 3D instability obtained by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2015) and Jiang et al. (Reference Jiang, Cheng, Draper and An2017) agree well with each other (figure 2), it is apparent that the regime for Mode B instability obtained by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2015) through linear stability analysis does not coincide with either the mode swapping regime or the Mode B regime determined by the present DNS (figure 4), since the existence of Mode A instability would destabilize Mode B in the nonlinear interaction between the two modes (Henderson Reference Henderson1997). Hence a nonlinear DNS study is required for the simulation of the actual wake transition process at $Re>Re_{cr\,3D}$ .

3.2 Results at $G/D=0.4$ with varying $Re$

Based on the standard 3D mesh, a series of 3D cases is simulated at a fixed gap ratio of $G/D=0.4$ where vortex dislocation is suppressed (figure 4). As shown in figure 2, the 2D and 3D wake instabilities occur at $Re_{cr\,2D}=88.5\;(\pm 0.5)$ and $Re_{cr\,3D}=149.2$ , respectively. In this section, the wake structures and transition for $G/D=0.4$ are examined with $Re$ ranging from 80 to 325, covering the laminar and 3D wake transition regimes. The general conclusions drawn through $G/D=$ 0.4 are expected to be applicable to a range of gap ratios from 0.3 to 0.8 where the flow undergoes a transition sequence of ‘2D $\rightarrow$ ordered Mode A $\rightarrow$ mode swapping (without dislocations) $\rightarrow$ Mode B’ (figure 4). On the other hand, the transition sequence of ‘2D $\rightarrow$ Mode A with dislocations $\rightarrow$ mode swapping (with dislocations) $\rightarrow$ Mode B’ for $G/D\geqslant 1.5$ (figure 4) is expected to be similar to that of an isolated cylinder and therefore will not be elaborated in this study.

Figure 6. Time histories of the span-averaged drag and lift coefficients, as well as the point spanwise velocity sampled at $(x/D,y/D,z/D)=(3.0,0.5,6.0)$ for $G/D=0.4$ with various $Re$ . The horizontal dashed lines mark the fluctuation range of the corresponding 2D lift coefficient.

3.2.1 3D wake transition

Figure 6 shows the time histories of the span-averaged drag and lift coefficients, as well as the point spanwise velocity sampled at $(x/D,y/D,z/D)=(3.0,0.5,6.0)$ for $G/D=0.4$ with various $Re$ . In figure 6, the left column shows the entire ranges of the time histories, while the right column shows the time histories of 40 non-dimensional time units of the fully developed flow close to the end of each simulation.

For $Re>Re_{cr\,3D}\;(=149.2)$ , an exponential growth of the spanwise velocity amplitude is observed at the very beginning of each time history shown in figure 6, marking the development of 3D wake instability. As illustrated in Jiang et al. (Reference Jiang, Cheng, Draper and An2017), the $Re_{cr\,3D}$ value can be obtained from the linear relationship between the exponential growth rate and $Re$ , through interpolation at the zero growth rate point. For $Re>Re_{cr\,3D}$ , the growth rate of the spanwise velocity amplitude increases with increasing $Re$ , and therefore the growing period becomes shorter and the flow saturates more quickly (figure 6).

At the beginning of each simulation, the flow three-dimensionality in the computational domain is zero. Hence the time history of the spanwise velocity shown in figure 6 grows from $u_{z}=0$ , and the fluctuation ranges of the drag and lift coefficients calculated by 3D DNS are identical to their 2D counterparts (the fluctuation ranges of the 2D lift coefficient are marked by the horizontal dashed lines in figure 6). With growth of the flow three-dimensionality, the spanwise velocity amplitude increases, and the 3D drag coefficient and fluctuation amplitude of the 3D lift coefficient drop from their 2D counterparts. The drops in the drag coefficient and fluctuation amplitude of lift coefficient are barely visible when the spanwise velocity amplitude is within an order of magnitude of $0.01U$ , but become apparent when the spanwise velocity amplitude grows beyond ${\sim}0.1U$ (figure 6).

Figure 7. Iso-surfaces of $\unicode[STIX]{x1D714}_{x}$ for the cases with $G/D=0.4$ and $Re>Re_{cr\,3D}$ . Dark grey and light yellow denote positive and negative values, respectively. The flow is from the left to the right past the cylinder on the left. The moving wall is at the back of the structure.

Table 3. Patterns of the time histories and fully developed vortex structures for $G/D=0.4$ with $Re>Re_{cr\,3D}$ .

The vortex structures during the 3D wake transition process are examined through numerical flow visualization. At a small gap ratio of 0.4, a major difference compared with the case of an isolated cylinder is that vortex dislocation is completely suppressed. This also results in relatively regular time histories of the force coefficients and point velocity signals (whereas irregular and large-amplitude fluctuations of the time histories are observed when vortex dislocations are present). Table 3 summarizes the observed patterns of the time histories of the force coefficients and point velocity signals (some are shown in figure 6) and fully developed vortex structures represented by the isosurfaces of the streamwise vorticity $\unicode[STIX]{x1D714}_{x}$ (some are shown in figure 7).

For $Re$ between 150 and 180, three ordered Mode A streamwise vortex pairs (e.g. figure 7 a) are observed along the cylinder span for the entire simulations. The basic features of the Mode A structure for the near-wall case, e.g. the waviness of the primary vortex cores, an out-of-phase pattern for the streamwise vortices, and a spanwise wavelength of approximately $4D$ , are similar to those for an isolated cylinder, which suggests that the physical mechanism for the formation of Mode A instability for the near-wall case is similar to that for an isolated cylinder, i.e. an elliptic instability of the primary vortex cores and the formation of streamwise vortex pairs through the Biot–Savart induction (Williamson Reference Williamson1996; Leweke & Williamson Reference Leweke and Williamson1998; Thompson, Leweke & Williamson Reference Thompson, Leweke and Williamson2001). In this $Re$ range, even the time history of the point spanwise velocity (e.g. figure 6 a) is extremely regular, which suggests that the wake structure is highly repeatable in time. In particular, with the absence of vortex dislocation, the Mode A vortices do not vary along the cylinder span in time, since the formation of Mode A is self-sustaining through the Biot–Savart induction (Williamson Reference Williamson1996).

As $Re$ exceeds 200, the ordered Mode A structure remains unchanged while ordered Mode B structure starts to develop within the Mode A vortex loops. For $Re=220$ , one of the three loops (the loop at $z/D\sim 7.5$ in figure 7 b) is persistently filled with the ordered Mode B structure. For $Re=225{-}240$ , all of the three Mode A vortex loops are filled with ordered Mode B structure throughout (e.g. figure 7 c). Since all of the Mode A structures are still persistent with the evolution in time, they still do not vary along the span width. The persistent existence of three ordered Mode A streamwise vortex pairs for $Re=200{-}240$ is responsible for the relatively regular periodic time histories of the force coefficients and spanwise velocity (e.g. figure 6 b), while the additional co-existed Mode B structure may add some irregularities to the time histories.

Due to the existence of Mode A instability which destabilizes Mode B in the nonlinear interaction between the two modes (Henderson Reference Henderson1997), the present DNS results show that the Mode B structure starts to emerge at $Re$ of as low as 200, much lower than the lower boundary of the Mode B regime obtained by Rao et al. (Reference Rao, Thompson, Leweke and Hourigan2015) through linear stability analysis (figure 4). Through numerical flow visualization of the evolution of the wake structure, it is found that the Mode B structure is always initialized within the Mode A vortex loops. Since the physical mechanism for Mode B instability is a hyperbolic instability of the braid shear layer region (Williamson Reference Williamson1996; Leweke & Williamson Reference Leweke and Williamson1998; Thompson et al. Reference Thompson, Leweke and Williamson2001), the streamwise vortices of Mode A that develop in the braid shear layer region are believed to be the reason for the destabilization of Mode B.

A gradual transition from the ordered Mode A structure to relatively ordered Mode B structure is observed at $Re=250{-}275$ . It should be noted that vortex dislocation is still suppressed, and only ordered Mode A and Mode B structures are observed. In this regime, the Mode B structure fills up not only the areas within the Mode A vortex loops, but can sometimes also replace some or all of the ordered Mode A vortex pairs (e.g. figure 7 d). In figure 7(d), 15 pairs of the Mode B structure are observed along the span width at $Re=275$ , which indicates a spanwise wavelength of Mode B of approximately $0.8D$ , similar to the wavelength of Mode B for an isolated cylinder of $0.82D$ (Barkley & Henderson Reference Barkley and Henderson1996). It is also worth noting that as the self-sustaining formation of Mode A is interrupted by the replacement of Mode B, the Mode A vortices in the mode swapping regime are no longer fixed at their respective initial spanwise locations. As the mode swapping process sets in, the time histories of the force coefficients and spanwise velocity become much more irregular (e.g. figure 6 c).

Figure 8. Time histories for the appearance of all of the three Mode A vortex pairs along the span width for $Re$ in the mode swapping regime.

Figure 9. Variation of the probability of occurrence of ‘all of the three Mode A vortex pairs appear along the span width’ with $Re$ .

Figure 8 shows the time histories of the mode swapping process focusing on the intermittent appearance of the pattern of ‘all of the three Mode A vortex pairs appear along the span width’ (the shadow periods in figure 8). The statistics starts after the flow is fully developed and lasts for 1000–1150 non-dimensional time units (with an output interval of 10) to ensure that the statistical results are not strongly influenced by the sampling range. For each case, more than 100 snapshots of the wake structure are visually examined. It is seen in figure 8 that with increasing $Re$ , the durations of the shadow periods become shorter while the durations of the clear periods become longer. Therefore, as can be seen in figure 8 and more clearly in figure 9, the probability of occurrence of ‘all of the three Mode A vortex pairs appear along the span width’ reduces with increasing $Re$ . The probability of occurrence is defined as the ratio of the accumulated time of appearance of the mode being examined to the total sampling time. Assuming that this probability reduces linearly with increasing $Re$ , the range of $Re$ for the mode swapping process is between 246 and 281 (figure 9), which is slightly higher than the mode swapping regime of $Re=230{-}260$ for an isolated cylinder obtained by Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016) based on the same numerical formulation.

For $Re\geqslant 285$ , the Mode B structure occupies the entire cylinder span width for most of the time. Mode A may sometimes be observed in the form of scattered pairs but can no longer occupy the entire span width. With increasing $Re$ , the Mode B structure becomes increasingly disordered (e.g. figure 7 e), which is consistent with the even more irregular time histories of the force coefficients shown in figure 6(d).

3.2.2 Hydrodynamic forces and flow three-dimensionality

Figure 10 shows the variations of the statistically stationary force coefficients with $Re$ . For the cases of $Re\leqslant 220$ with relatively regular time histories of spanwise velocity and force coefficients, at least 500 non-dimensional time units are used for the statistics. As the time histories become less regular for $Re\geqslant 225$ , the statistical range is increased to at least 1000 non-dimensional time units. Further confirmation is carried out by calculating the 3D force coefficients using only the second half of the statistical data. It is seen in figure 10 that the 3D results calculated using the full length and second half of the data are quite close to each other, which suggests that the statistical data range is sufficient.

Figure 10. Variations of the statistically stationary force coefficients with $Re$ : (a) time-averaged drag coefficient $\overline{C_{D}}$ and (b) root-mean-square lift coefficient $C_{L}^{\prime }$ .

As shown in figure 10, the force coefficient quantities start to deviate from their 2D counterparts at $Re=Re_{cr\,3D}$ . The 3D results are all to the right of the 2D curves, i.e. the 2D simulations can achieve the same mean values and fluctuation amplitudes of the force coefficients at a lower $Re$ compared with the 3D simulations. This suggests that in 3D simulations, part of the energy is transferred to the spanwise direction. The magnitude of the flow three-dimensionality is represented by the degree of deviation between the 2D and 3D results and will be discussed later on. It should be noted that although only the time-averaged drag coefficient and root-mean-square lift coefficient are shown in figure 10, the above findings also apply to the time-averaged lift coefficient and root-mean-square drag coefficient (omitted for simplicity).

Figure 11. Variations of the statistically stationary streamwise enstrophy and spanwise kinetic energy integrated over the near-wake region of $x/D=0{-}10$ with $Re$ .

The variation of the flow three-dimensionality with $Re$ is further examined with the statistically stationary streamwise enstrophy $\unicode[STIX]{x1D700}_{x}$ and spanwise kinetic energy $E_{z}$ integrated over the near-wake region of $x/D=0{-}10$ (figure 11), where $\unicode[STIX]{x1D700}_{x}$ and $E_{z}$ are defined as

(3.2) $$\begin{eqnarray}\displaystyle & \displaystyle \unicode[STIX]{x1D700}_{x}=\frac{1}{2}\int _{V}\unicode[STIX]{x1D714}_{x}^{2}\,\text{d}V, & \displaystyle\end{eqnarray}$$

(3.3) $$\begin{eqnarray}\displaystyle & \displaystyle E_{z}=\frac{1}{2}\int _{V}(u_{z}/U)^{2}\,\text{d}V, & \displaystyle\end{eqnarray}$$

where $V$ is the volume of the flow field of interest. The same statistical data ranges as used for obtaining the statistically stationary force coefficients are adopted here for calculating $\unicode[STIX]{x1D700}_{x}$ and $E_{z}$ . It is seen in figures 11 and 10 that the variation trends of $\unicode[STIX]{x1D700}_{x}$ and $E_{z}$ are consistent with the degree of deviation between the 2D and 3D force coefficients. At $Re=150$ , which is just beyond the $Re_{cr\,3D}$ , the Mode A structure is strongly confined and extremely ordered (figure 7 a), which results in a very weak flow three-dimensionality. A gradual growth of the flow three-dimensionality is observed as $Re$ increases from 150 to 200. Within this range, the wake flow is dominated by the ordered Mode A structure. The growth rate of the flow three-dimensionality reduces at $Re=220$ as the finer-scale ordered Mode B structure is observed within one of the Mode A vortex loops (figure 7 b). A local reduction of the flow three-dimensionality is observed in figures 11 and 10 for $Re=225{-}275$ as the finer-scale Mode B structure becomes dominant (figure 7 c,d). The ordered Mode B structure is observed within all of the three Mode A vortex loops, and may even occupy the entire span width during the mode swapping process. For $Re>275$ , although the wake structure is almost fully occupied by Mode B, the Mode B structure becomes increasingly disordered (figure 7 e versus figure 7 d), which is the reason why the flow three-dimensionality experiences a sharp increase. The emergence of increasingly disordered Mode B structure and the corresponding sharp increase of flow three-dimensionality have also been observed for an isolated cylinder (Williamson Reference Williamson1996; Jiang et al. Reference Jiang, Cheng, Draper, An and Tong2016).

The hysteresis of the Mode A instability at $Re_{cr\,3D}\;(=149.2)$ is checked by adopting a case with the fully developed Mode A flow at $Re=150$ as the initial condition and a slightly reduced $Re$ of 148.5 for the simulation. Based on the examination of the flow three-dimensionality (through $\unicode[STIX]{x1D700}_{x}$ and $E_{z}$ ) in the fully developed flow, hysteresis effect is not detected. In comparison with the case of an isolated circular cylinder which shows a hysteresis effect (Williamson Reference Williamson1996), the suppression of vortex structures with large three-dimensionality and the absence of convective instability of such large disturbances may be the reasons why a hysteresis effect is not observed in the present case.

Figure 12. $St{-}Re$ relationship over the laminar and 3D wake transition regimes.

Figure 12 shows the $St{-}Re$ relationship for $G/D=0.4$ , together with the results for an isolated cylinder. The sampling data sets are identical to those for obtaining the force coefficients. It is seen in figure 12 that while the deviations between the 2D and 3D results for the near-wall case are consistent with the deviation trends of the force coefficients (figure 10) as well as the streamwise enstrophy and spanwise disturbance energy (figure 11), they are quite different from the characteristics for an isolated cylinder. At the onset of 3D wake instability, a gradual deviation of the $St$ values predicted from 2D and 3D simulations is observed for the near-wall case, whereas a sudden drop of $St$ is observed for an isolated cylinder. The gradual and continuous drop of $St$ for the near-wall case is consistent with the very weak flow three-dimensionality and very close 2D and 3D results of the force coefficients for $Re$ just above $Re_{cr\,3D}$ , and is attributed to the extremely ordered (strongly confined) Mode A structure. In contrast, the sudden drop of $St$ for an isolated cylinder is due to the well-developed Mode A structure with large-scale vortex dislocations (Williamson Reference Williamson1996).

Another difference in the $St{-}Re$ relationship shown in figure 12 is that for the near-wall case only one single vortex shedding frequency peak is observed at each $Re$ for the entire $St{-}Re$ curve, whereas for the isolated cylinder case two different frequency peaks are observed in the mode swapping regime of approximately $Re=230{-}260$ . The lower and higher frequency peaks for the isolated cylinder case correspond to Mode A with large-scale dislocations and Mode B, respectively (Williamson Reference Williamson1996). It is speculated in Williamson (Reference Williamson1996) that for an isolated cylinder, if vortex dislocations do not occur, the $St{-}Re$ curve would be a single and continuous curve, with each $Re$ corresponding to a single $St$ . However, Henderson (Reference Henderson1997) suggested that the lower frequency peak for the isolated cylinder case is due to the Mode A instability only, irrespective of the dislocations. For the present case of a circular cylinder near a moving wall, the mode swapping process does not contain relatively large-scale vortex structures of dislocations or even pure Mode A. The finer-scale structure of a mixture of ordered Modes A and B share a single frequency peak. It should be noted that for the 3D DNS study of an isolated cylinder by Jiang et al. (Reference Jiang, Cheng, Draper, An and Tong2016) at $Re=270$ (just beyond the mode swapping regime), the flow structure is also characterized by a mixture of ordered Modes A and B, and only a single frequency peak is present.

Prior to the mode swapping regime of the near-wall case, an obvious increase of $St$ is observed when $Re$ increases from 220 to 225, as the wake structure changes from large-scale-dominant (mainly pure Mode A) to small-scale-dominant (Mode B occupies all of the Mode A loops and may even occupy the entire span width). This seems to support the argument by Henderson (Reference Henderson1997) that a lower frequency peak is due to the Mode A structure (large-scale structure), whereas vortex dislocation is not a necessity. For the near-wall case, large-scale structures are observed for the entire simulations of $Re=150{-}220$ and finer-scale structures are observed for the entire simulations of $Re=225{-}275$ . Hence a sudden increase of $St$ is observed at $Re=220{-}225$ , but only one frequency peak is observed for each case. In contrast, for the mode swapping process of the isolated cylinder case, large-scale structure (Mode A with dislocations) and finer-scale structure (a mixture of ordered Modes A and B) occur alternately in the same simulation case (see Jiang et al. Reference Jiang, Cheng, Draper, An and Tong2016). As a result, two different frequency peaks are observed.

While it is demonstrated above that the relatively large-scale Mode A structure may be responsible for a lower frequency peak, further support will be given in § 3.3 to show that vortex dislocation may not be the reason for a lower frequency peak.

Figure 13. Frequency spectra of $C_{L}$ for $G/D=0.4$ and $Re$ in the range of 150–325.

Figure 13 shows some of the frequency spectra of $C_{L}$ which are used to determine $St$ . The amplitude of $C_{L}$ shown in figure 13 is normalized with $1/(\sqrt{2}C_{L}^{\prime })$ , which is calculated from the same sampling data set. In this way, the normalized amplitude of $C_{L}$ becomes 1 if the time history of $C_{L}$ is sinusoidal with an arbitrary amplitude. Each vertical line under the frequency spectrum shown in figure 13 represents a discrete point on the spectrum curve. The spacing between the discrete vertical lines is due to the use of a finite data range of the time history of $C_{L}$ for the FFT.

It is seen in figure 13 that for $Re\leqslant 225$ , since the time history of the lift coefficient is relatively regular (figure 6), the frequency spectrum is represented by a single frequency value with the normalized amplitude very close to 1. In the mode swapping regime of $Re=250{-}275$ , as the time history of the lift coefficient becomes relatively irregular, the frequency spectrum is represented by a sharp peak together with small-scale fluctuations, and the peak amplitude reduces to around 0.9. As the Mode B structure becomes increasingly disordered at $Re\geqslant 285$ , the frequency spectrum becomes increasingly broadband and the peak amplitude further drops to approximately 0.6.

Figure 14. Frequency spectra of $C_{L}$ for $Re=200$ and $G/D$ in the range of 0.4–19.5.

3.3 Results at $Re=200$ with varying $G/D$

A series of cases with $Re=200$ and $G/D$ ranging between 0.4 and 19.5 is studied. As shown in figure 4, the wake transition regime changes from ‘ordered Mode A (without dislocations)’ to ‘Mode A with dislocations’ when $G/D$ increases from 1.2 to 1.5. Consequently, the time histories of the force coefficients and point spanwise velocity change from a relatively regular pattern which is similar to the case of $(G/D,Re)=(0.4,200)$ (figure 6 b) into a chaotic irregular pattern which is similar to the case of an isolated cylinder. Similar to figure 13, figure 14 shows the frequency spectra of $C_{L}$ for $Re=200$ with the amplitude normalized with $1/(\sqrt{2}C_{L}^{\prime })$ . For $G/D\leqslant 1.2$ (without dislocations), a single frequency value is observed in the frequency spectrum and the normalized amplitude is very close to 1. For $G/D\geqslant 1.5$ (with dislocations), however, the frequency spectrum is broadband and the peak amplitude reduces to approximately 0.6.

Figure 15. Variations of the statistically stationary quantities with $G/D$ : (a) Strouhal number and (b) time-averaged drag coefficient and root-mean-square lift coefficient.

Figure 15 shows the variations of the statistically stationary Strouhal number and force coefficients with $G/D$ . It is seen that the 3D results of the Strouhal number and force coefficients are decreased from their 2D counterparts to a similar degree for all of the gap ratios considered. Particularly, there is no abrupt variation of the quantities shown in figure 15 when $G/D$ increases from 1.2 (without dislocations) to 1.5 (with dislocations). This suggests that the Strouhal number and force coefficients are not strongly influenced by the occurrence or suppression of vortex dislocation. This seems to support the argument by Henderson (Reference Henderson1997) that the particular shedding frequency is due to the Mode A instability only, rather than the occurrence of dislocation, whereas the occurrence of dislocation accounts for a broadband frequency spectrum (see figure 14).

Figure 16. Iso-surfaces of $\unicode[STIX]{x1D714}_{x}=\pm 0.2$ for $Re=200$ with various gap ratios, overlaid with the locations of the positive (P) and negative (N) primary vortex cores. Dark grey and light yellow denote positive and negative values, respectively. The flow is from the left to the right past the cylinder on the left.

The confinement of the wake structures at different gap ratios is examined through numerical flow visualization. Figure 16 shows the isosurfaces of $\unicode[STIX]{x1D714}_{x}$ for various $G/D$ with $Re=200$ , overlaid with the locations of the positive (P) and negative (N) primary vortex cores determined from the isosurfaces of the second negative eigenvalue $\unicode[STIX]{x1D706}_{2}$ of the tensor $\unicode[STIX]{x1D733}^{2}+\unicode[STIX]{x1D734}^{2}$ , where $\unicode[STIX]{x1D733}$ and $\unicode[STIX]{x1D734}$ are the symmetric and antisymmetric parts of the velocity gradient tensor, respectively (Jeong & Hussain Reference Jeong and Hussain1995). For $0.4\leqslant G/D\leqslant 1.0$ where vortex dislocation is suppressed, the fully developed wake structure is presented. For $G/D\geqslant 1.5$ where vortex dislocation will evolve spontaneously, the pure Mode A structure at the time just before the occurrence of dislocation is shown. For each case, three relatively ordered Mode A streamwise vortex pairs are observed along the cylinder span width (in the $x$ – $z$ plane), among which a half of a vortex pair is shown in figure 16 (in the $x$ – $y$ plane).

The time evolution of the vortex structure has been examined in a full vortex shedding cycle (with a shedding period of $T$ ). The non-dimensional flow time $t^{\ast }\;(=Ut/D)$ is normalized with the non-dimensional shedding period $T^{\ast }\;(=UT/D)$ so that $t^{\ast }/T^{\ast }$ ranges from 0 to 1 in this shedding cycle (discarding the previous flow time). The shedding cycle starts at the time instant $t^{\ast }/T^{\ast }=0$ where the lift coefficient on the cylinder reaches its maximum, and a negative primary vortex core develops at the upper side of the cylinder. Each case in figure 16 is shown at the phase of its earliest confinement (in terms of the streamwise location $x/D$ ) of the negative streamwise vortices by the plane wall in the shedding cycle. As expected, the earliest confinement point moves downstream as the gap ratio increases.

Figure 16(e) shows the lower envelope of the streamwise vortices for the case of an isolated cylinder at $Re=200$ . It is seen that the earliest confinement points for $0.4\leqslant G/D\leqslant 1.5$ all fall onto this envelope, which suggests that the confinement of the negative streamwise vortices is largely due to the interference of the plane wall with the natural development of the streamwise vortices in the cylinder wake. For $G/D=3.0$ , there is no intersection point between the envelope of the streamwise vortices and the plane wall (figure 16 e), and consequently the wake structure is not noticeably affected (omitted for simplicity).

For each case shown in figure 16, alternate vortex shedding is observed, which is represented by a row of negative primary vortex cores shed from the upper side of the cylinder and a row of positive primary vortex cores shed from the lower side of the cylinder. For the case of an isolated cylinder (figure 16 e), the primary vortex cores and streamwise vortices with opposite signs developed on the two sides of the cylinder possess a $Z_{2}$ spatiotemporal symmetry (spatial reflection of the flow about the wake centreline after every $T/2$ time evolution) as they propagate downstream. With decrease of the gap ratio, both rows of primary vortex cores are deflected upwards. The negative streamwise vortices downstream of the earliest confinement point are squeezed by the plane wall and the neighbouring positive streamwise vortex. The positive streamwise vortices downstream of the earliest confinement point are also slightly confined by the plane wall at their lower ends, each displaying a wedge-shaped lower end extending towards the upstream side. The distortions of the streamwise vortices become stronger as they propagate downstream (figure 16 a–d), since for an isolated cylinder the lower envelope of the streamwise vortices reaches further lower positions (figure 16 e). At small gap ratios, the extended lower ends of the positive streamwise vortices may even be strong enough to merge with the subsequent positive streamwise vortices (e.g. figure 16 a).

For $G/D\geqslant 1.5$ , it is found that any large-scale vortex dislocation is always initialized with the local dislocation of a particular Mode A vortex loop after it grows to be stronger than other Mode A vortex loops along the span width. Hence the suppression of vortex dislocation for $G/D\leqslant 1.2$ is believed to be due to the confinement of the Mode A streamwise vortices by the plane wall, which suppresses the excess growth and local dislocation of any Mode A vortex loop.

It is found that vortex dislocation is also suppressed for the case of flow past a circular cylinder in proximity to a symmetry boundary (rather than a moving wall) with $(G/D,Re)=(1.2,200)$ . This case suggests that the suppression of vortex dislocation is not due to the shear layers developed on the plane wall.

Figure 17. Iso-surfaces of $\unicode[STIX]{x1D714}_{x}=\pm 0.1$ for flow past a circular cylinder with two near-wake wires at $Re=220$ . Dark grey and light yellow denote positive and negative values, respectively. The flow is from the left to the right past the cylinder on the left.

It is worth mentioning that similar suppression of vortex dislocation of the Mode A flow is also observed for flow past a circular cylinder with two near-wake wires (of an equal diameter of $0.05D$ ) placed at $(x/D,y/D)=(0.75,\pm 0.75)$ . In this case, the near-wake wires are the reasons for the confinement of the streamwise vortices (figure 17) and consequently the suppression of local dislocation of Mode A vortex loops.
