Occurrence

Jeankempite was discovered amongst coatings of arsenate minerals on a specimen of oxidised copper arsenides in calcite from the Mohawk No. 2 mine, Mohawk, Keweenaw County, Michigan, USA (47°17'40”N, 88°22'35”W). The Mohawk mine is located adjacent to and underneath the village of Mohawk, ~14 miles north-northeast of Houghton, Michigan, and is well-known to mineral collectors for the occurrence of ‘mohawkite’, a mixture of copper and nickel arsenides consisting primarily of domeykite (Cu₃As), algodonite (Cu_6±xAs) and arsenical copper with rammelsbergite (NiAs₂) and rare domeykite-β (Cu_3–xAs) (Moore, Reference Moore1962). Considering the semi-metallic nature of As, the term ‘copper arsenide’ may not be correctly applied to certain Cu–As minerals, especially species with large ratios of Cu:As that contain primarily intermetallic Cu–Cu bonds, such as algodonite. Currently, the International Union of Pure and Applied Chemistry (IUPAC, Reference Connelly, Hartshorn, Damhus and Hutton2005) provides no guidance for the naming of intermetallic compounds and we prefer to retain historical use of the term ‘copper arsenide’, acknowledging that this nomenclature is subject to change.

The arsenide-bearing fissure at the Mohawk mine was exposed by a large stope that spanned the 11th and 12th levels, where the arsenide veins varied in thickness, reaching up to four feet wide in places. We have been unable to trace by whom or when the holotype sample was collected; however, Moore (Reference Moore1971) explains that the actions of mine water on the arsenides led to the formation of “numerous hydrated calcium and copper arsenates”, suggesting it may be at least 60 years old, if brought to the surface by Moore (or others) before the shaft was sealed in the mid 1960s.

Copper and nickel arsenides occurred in great abundance at the Mohawk mine, with over 230,000 pounds removed between 1900 and 1901; arsenides also occurred as large lens-shaped masses in fissures intersecting bedded copper deposits at the nearby and interconnected Ahmeek and Seneca mines, and several large fissures were encountered sporadically in the Isle Royale lode further north (Butler and Burbank, Reference Butler and Burbank1929; Robinson, Reference Robinson2004). In fact, native copper was noted to be arsenical throughout the Keweenaw copper district. Deep lodes positioned near the intersection of the Keweenaw fault generally contained higher arsenic content than those exploited nearer to the surface and it has been suggested by Butler and Burbank (Reference Butler and Burbank1929, p. 115) that, “..this may be so because the solution that mineralized these lodes had flowed for a relatively short distance in them and therefore had been less completely oxidized than the solution that mineralized the higher lodes”. The hypothesis remains untested, though, to some extent, is supported in that arsenide veins and arsenical copper were commonly encountered near large fissures that may have allowed an As-bearing solution to ascend without experiencing strong volatilisation or oxidation. Further details on the geology of the Keweenaw, including the age and the prevailing model of copper deposition can be found in Bornhorst et al. (Reference Bornhorst, Paces, Grant, Obradovich and Huber1988) and Brown (Reference Brown2006), respectively.

Jeankempite occurs intimately with calcite, ankerite and several copper arsenides, along with other arsenates such as guérinite, Ca₅(AsO₄)₂(AsO₃OH)₂(H₂O)₉, rauenthalite, Ca₃(AsO₄)₂(H₂O)₁₀, annabergite, Ni₃(AsO₄)₂(H₂O)₈, lavendulan, NaCaCu₅(AsO₄)₄Cl(H₂O)₅ and an additional unidentified calcium arsenate hydrate phase detected during powder X-ray diffraction analyses. Sponge-like, brown to yellow-brown blebs of an unidentified copper arsenide mineral are also found on the surfaces of oxidised specimens. The arsenates in this assemblage formed due to post-mining oxidation of copper and nickel arsenides, accompanied by dissolution of calcite as a source of calcium. Jeankempite, which we hypothesise has formed by dehydration of guérinite, possesses a distinct structure that fills gaps in our knowledge of the structural relationships between the hydrated calcium arsenate minerals. Although the dehydration of guérinite to jeankempite was not directly observed, it may occur via a topotactic transition that was necessarily slow to yield the relatively large and well-crystalised domains studied here.

Physical and optical properties

Jeankempite occurs as lamellar bundles of plates up to 1 mm wide and is visually indistinguishable from guérinite, with which it forms intergrowths (Fig. 1). Jeankempite is transparent to translucent with a waxy lustre and white streak, has a Mohs hardness of ca. 1.5 and has brittle tenacity with uneven fracture. No fluorescence was observed under longwave or shortwave ultraviolet illumination. Crystals exhibit perfect cleavage on {01$\bar{ 1}$} and are flattened on {01$\bar{ 1}$}; no other forms could be distinguished with certainty. The density is 2.92(2) g⋅cm^–3 measured by flotation in a mixture of diidomethane and toluene; the calculated density is 2.93 g⋅cm^–3 based on the empirical formula and 2.92 g⋅cm^–3 based on the ideal formula.

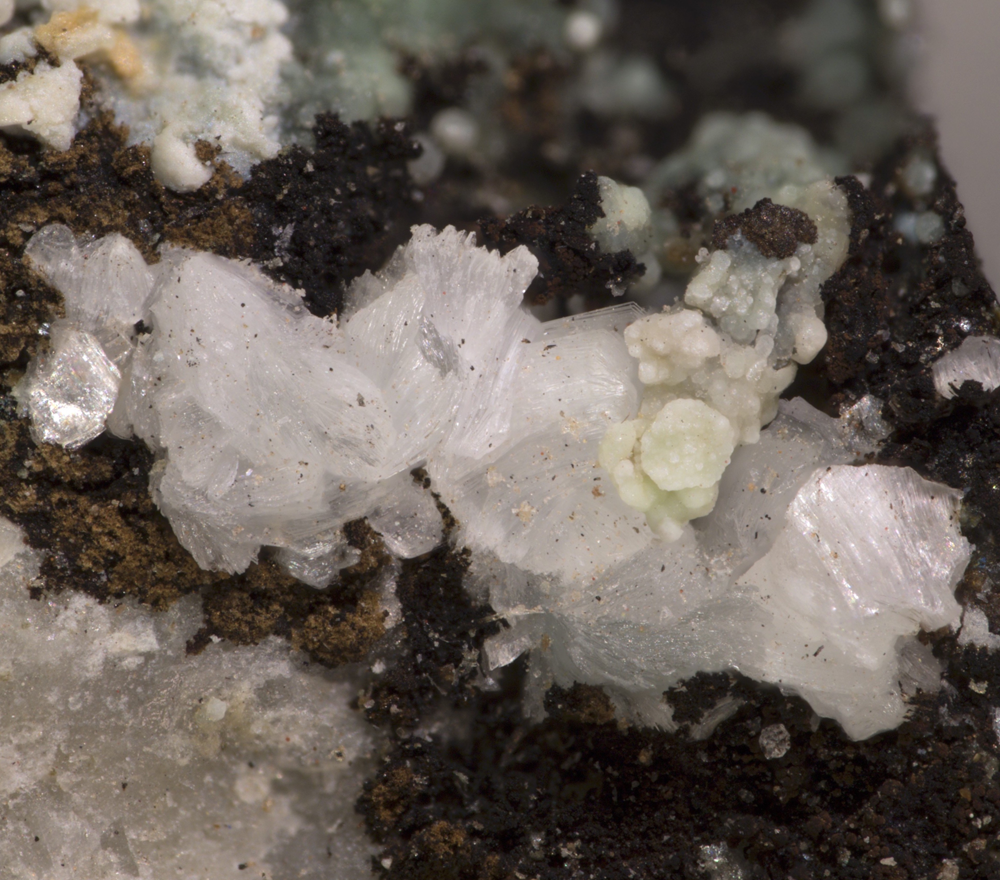

Fig. 1. Lamellar bundles of jeankempite intergrown with guérinite on altered α-domeykite, with annabergite, calcite and cream coloured ankerite. Horizontal field of view is 3.0 mm.

Optically, jeankempite is biaxial (+), with α = 1.601(2), β = 1.607(2) and γ = 1.619(2), measured in white light. The 2V_meas. = 72(2)° based on extinction data collected on a spindle stage and analysed using EXCALIBRW (Gunter et al., Reference Gunter, Weaver, Bandli, Bloss, Evans and Su2004); the 2V_calc. = 71.0°. Dispersion is weak, r < v. Pleochroism is absent and the optical orientation is X ^ c = 45°, Y ^ b = 35° and Z ^ a = 27°. The Gladstone–Dale compatibility, 1 – (K _p/K _c), is –0.010 (superior) for the ideal formula and –0.017 (superior) for the empirical formula using the k values given by Mandarino (Reference Mandarino2007).

Infrared spectroscopy

The attenuated total reflectance (ATR) Fourier-transform infrared (FTIR) spectrum was collected using a SENSIR Technologies IlluminatIR with a liquid N₂ cooled MCT detector mounted to an Olympus BX51 microscope. A “ContactIR” ATR objective (ZnSe and diamond composite lens) was pressed into jeankempite crystals and the spectrum was measured from 4000 to 650 cm^–1 (Fig. 2). The following IR and Raman band assignments for jeankempite are made with guidance from Makreski et al. (Reference Makreski, Todorov, Makrievski, Pejov and Jovanovski2018, Reference Makreski, Todorov, Jovanovski, Stojanovska and Petrushevski2019). A broad, multicomponent band spanning from ~3500 to ~2100 cm^–1 is attributed to the ν (O–H) stretching vibrations of water molecules and AsO₃OH units. The series of fitted bands in this region have maxima at 3392, 3170, 2887, 2680 and 2390 cm^–1. Approximate O–H⋅⋅⋅O hydrogen bond-lengths calculated from the observed stretching frequencies occur within the range ~2.8 to 2.6 Å using the correlation given by Libowitzky (Reference Libowitzky1999). A broad band found at 1624 cm^–1 is assigned to the ν₂ (δ)-bending vibration of water molecules. The weak set of enveloped bands at ~1280 and 1242 cm^–1 probably correspond to δ (O–H) bending vibrations of AsO₃OH units, and the very strong band at 911 cm^–1 with weak shoulders at 948 and 978 cm^–1 is attributed to the ν₃ symmetric stretching vibrations of AsO₄ and AsO₃OH units. A second set of weak overlapping bands at 799 and 773 cm^–1 are assigned to either bending δ (As–O–H) or stretching ν₁ (As-O–H/As-O) modes, while the weak and broad band at 689 cm^–1 is assigned to libration modes of H₂O coinciding with ν (As–OH) modes.

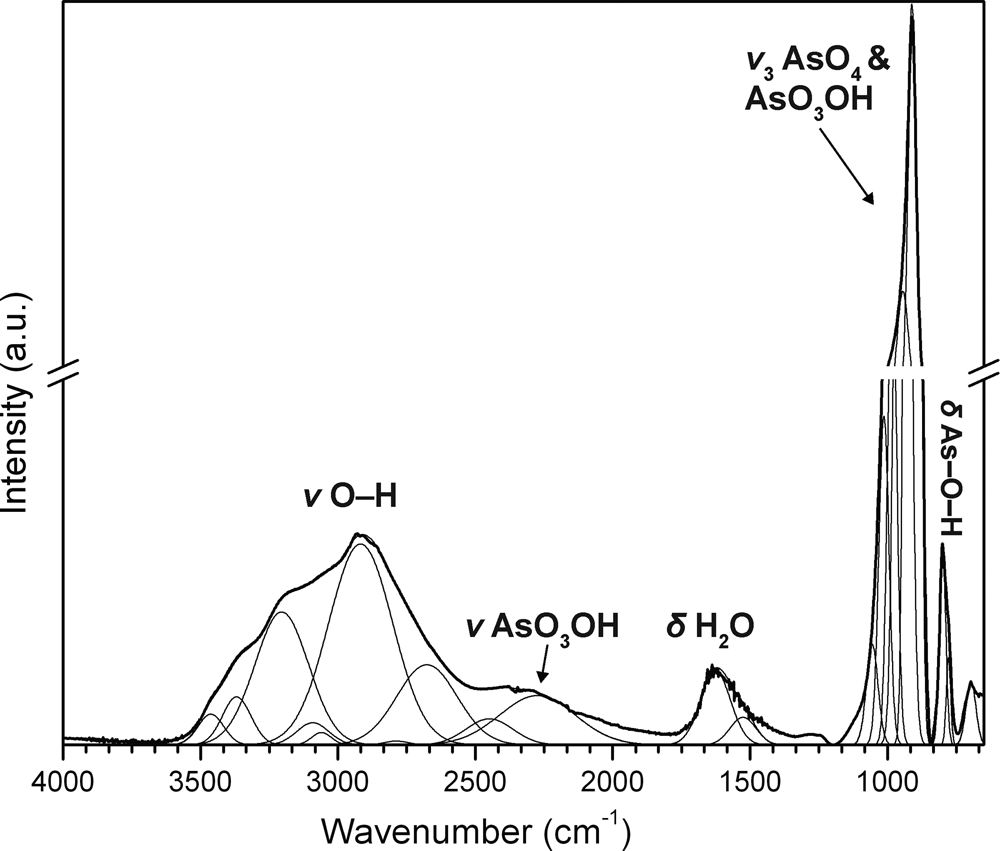

Fig. 2. The infrared spectrum of jeankempite from 4000 to 650 cm^–1.

Raman spectroscopy

The Raman spectrum of jeankempite was measured using a Horiba XploRA PLUS instrument with 532 nm diode laser operated at full power, with a spot size of 100 μm and ~5 cm^–1 resolution (Fig. 3). The spectrum was acquired using a 100× objective, from 5 to 4000 cm^–1 using 20 exposures of 5 s, aligned roughly perpendicular to the cleavage plane. A set of broad bands related to ν (O–H) stretching vibrations of H₂O molecules and AsO₃OH groups occurs between ~3600 and 2700 cm^–1 with fitted maxima at 3604, 3524, 3487, 3382, 3259, 3182, 3092, 2933 and 2734 cm^–1. A single weak band at 2381 cm^–1 is assigned to ν (O–H) stretching modes of AsO₃OH groups. A very weak band at ~1090 cm^–1 originates from δ (O–H) bending modes of AsO₃OH groups. The spectrum between ~910 to ~770 cm^–1 displays a complex set of overlapping bands due to ν₃ and ν₁ stretching modes of AsO₄ and AsO₃OH groups. This region was successfully fit using 12 bands, in accordance with the expected number of bands from six independent arsenate groups in the structure, which lie at 909, 891, 884, 872, 866, 851, 837, 826, 823, 804, 779 and 770 cm^–1. A moderately intense band at 704 cm^–1 and weak band at 650 cm^–1 are both assigned to stretching ν (As–OH) modes. The weak set of overlapping bands at 448, 426 and 407 cm^–1 belong to ν₄ and ν₂ stretching modes of AsO₄ and AsO₃OH groups. Three overlapping bands of moderate intensity at 379, 354 and 334 cm^–1 are assigned to Ca–O stretching vibrations, possibly in coincidence with ν₂ (AsO₃OH) stretches. Remaining fitted bands with moderate to low intensity at 260, 250, 238, 195, 177, 157, 115, 98 and 87 cm^–1 originate from lattice vibrations.

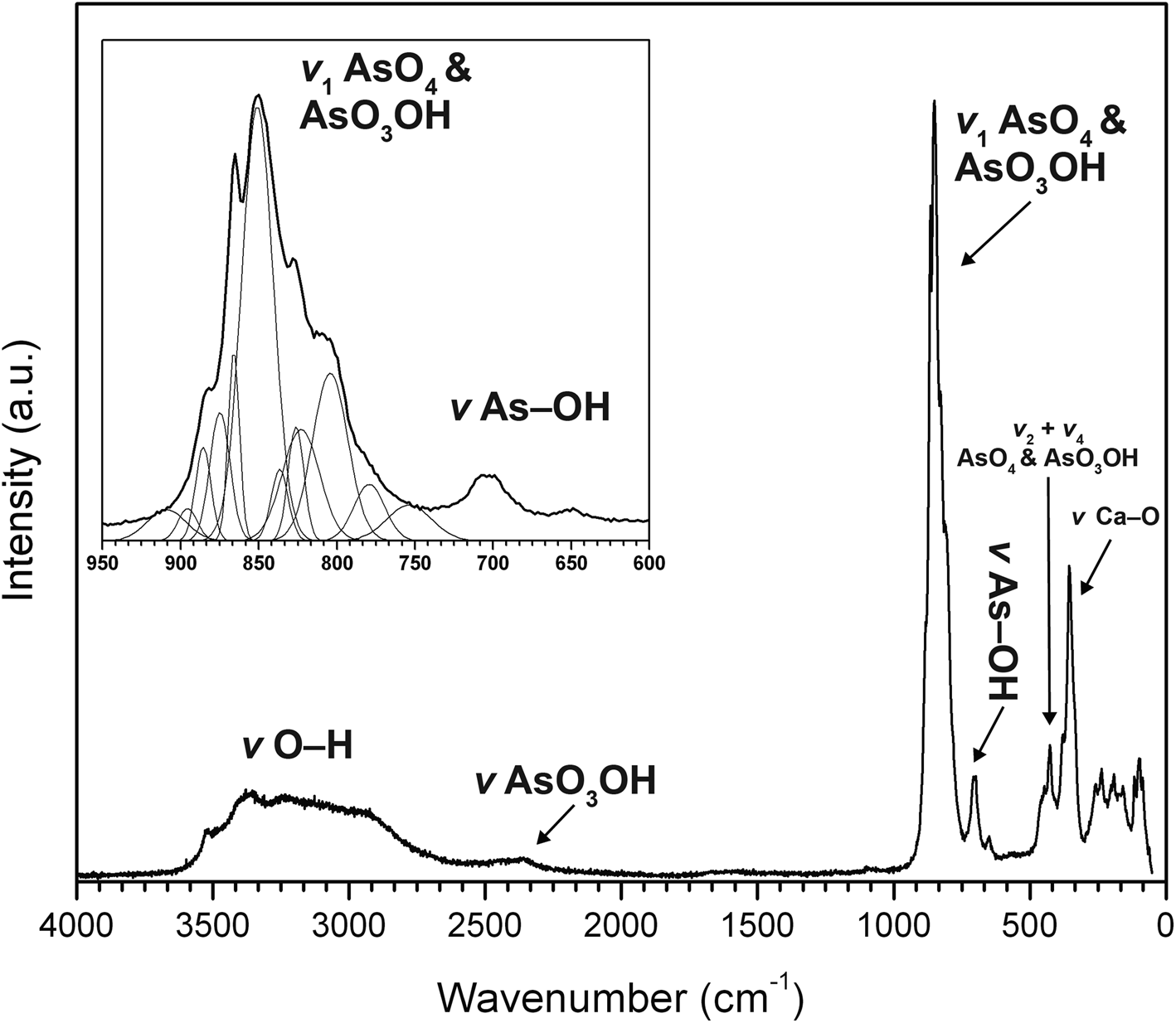

Fig. 3. The Raman spectrum of jeankempite from 4000 to 50 cm^–1.

DSC-TGA measurements

Differential scanning calorimetry (DSC)-thermal gravimetric analysis (TGA) measurements were performed with a Setaram SetSYS Evolution instrument. Powdered crystals (1.056 mg) were placed into an alumina crucible and heated under N₂ flow (20 mL/min) from 30°C to 800°C at 10°C/min. The retrieved material after thermal decomposition was a mixture of CaO (5 mol.) and As₂O₅ (2 mol.). The TG curve (Fig. 4) indicates at least four independent losses occurred in this heating range, totalling 16.82% (~8.25 H₂O), close to the expected loss for jeankempite, 16.30%, or eight H₂O. Powder diffraction analysis indicated that crystals of jeankempite are associated intimately with guérinite and we expect that the excess loss measured is due to this impurity. We estimate the heated sample contained ~13% guérinite, assuming that this mineral transforms into jeankempite within the first ~120°C; however, there is no evidence that rapid heating of guérinite produces jeankempite. Indeed, the relatively broad and multicomponent endothermic reaction between ~60 and ~120°C indicates that a complex structural rearrangement has occurred in this temperature range. A 6.02% mass loss between 120–210°C corresponds to the loss of ~three H₂O groups from jeankempite, which occurred in at least two steps as evidenced by two endothermic reactions. The strong endothermic reaction beginning at ~150°C may correspond to the formation of an unidentified tetrahydrate intermediate that is relatively stable, though more experiments are needed to state definitively. The weight equivalent to one H₂O group, 1.99%, is lost between 238 and 267°C, possibly due to decomposition of OH from the two hydrogen arsenate groups. This process may begin at lower temperatures, though, as elimination of OH from AsO₃OH units between ~200 and 300°C was observed during hot-stage FTIR studies of pharmacolite and picropharmacolite (Makreski et al., Reference Makreski, Todorov, Jovanovski, Stojanovska and Petrushevski2019). The final loss from 267 to 800°C probably corresponds to the dehydroxylation of intermediate phases of undetermined stoichiometry (equivalent to ~three H₂O groups) and transformation to the oxides.

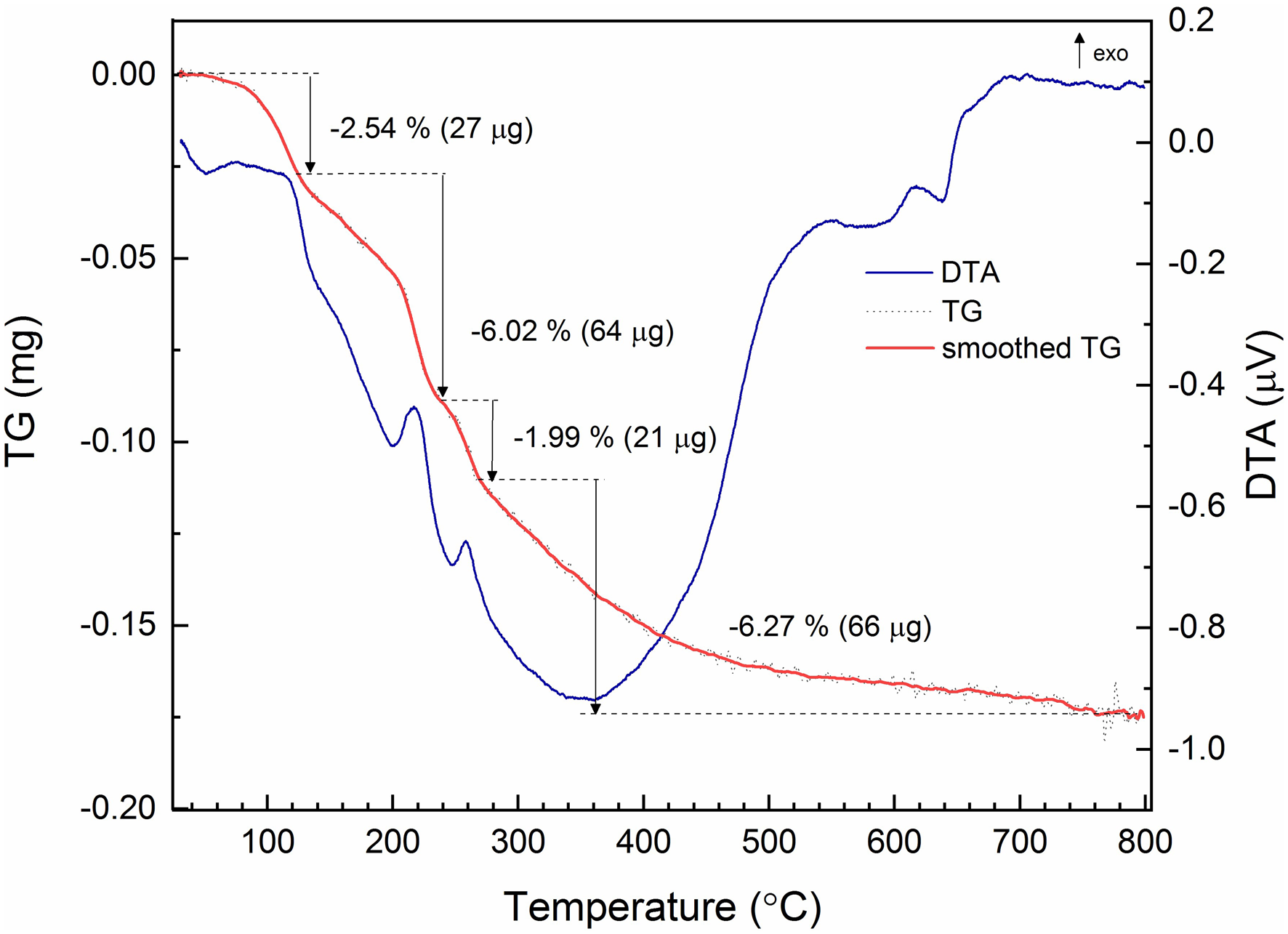

Fig. 4. DSC-TGA analysis of jeankempite. The DSC trace is given as the blue solid line, with the raw TGA trace in black dash and smoothed TGA trace in solid bold red.

Chemical composition

Chemical analyses (n = 7) were performed using a JEOL JXA-8230 electron microprobe using Probe for EPMA software, operating at an accelerating voltage of 15 kV, with a beam current of 10 nA and 8 μm spot diameter. Jeankempite contains major Ca and As, with trace Na, Mg and S; no other elements were detected. Matrix effects were accounted for using the ϕρ(z) correction routine (Pouchou and Pichoir, Reference Pouchou, Pichoir, Heinrich and Newbury1991) and the analytical data are given in Table 1. The presence of H₂O and AsO₃OH groups was confirmed by infrared and Raman spectroscopy. The empirical formula has been calculated based upon 23 O from the structure and 16 H atoms per formula unit (apfu) as determined by TGA: (Ca_4.97Na_0.013Mg_0.017)(As_3.99S_0.01)₄O₂₃H₁₆. The ideal formula is Ca₅(AsO₄)₂(AsO₃OH)₂(H₂O)₇, which requires CaO 31.71, As₂O₅ 51.99, H₂O 16.30, for a total 100 wt.%.

Table 1. Analytical data (wt.%) for jeankempite.

S.D. – standard deviation. *Based on the structure.

Powder X-ray diffraction

Room temperature powder X-ray diffraction (PXRD) data (Table 2) were recorded using a Rigaku R-Axis Rapid II curved imaging plate microdiffractometer with monochromatised MoKα radiation. A Gandolfi-like motion on the φ and ω axes was used to randomise diffraction from the sample. Observed d values and intensities were derived by profile fitting using JADE 2010 software (Materials Data, Inc.). Unit-cell parameters refined from the powder data using whole pattern fitting in JADE 2010 are as follows: a = 6.704(5) Å, b = 14.912(5) Å, c = 15.926(5) Å, α = 73.56(2)°, β = 81.99(2)°, γ = 82.81(2)° and V = 1506.0(13) Å³.

Table 2. Powder X-ray data for jeankempite (d values in Å).

The strongest lines are given in bold.

Single-crystal X-ray diffraction

Single-crystal X-ray diffraction data were collected at 150 K using an Apex II CCD-based detector and MoKα X-rays from a microfocus source mounted to a Bruker Quazar three-circle diffractometer. Corrections for Lorentz, polarisation and background effects were made using the Bruker program SAINT within the Apex3 suite of programs. A multi-scan semi-empirical absorption correction was applied using equivalent reflections in SADABS-2015 (Krause, Reference Krause, Herbst-Irmer, Sheldrick and Stalke2015). The |E ²–1| value calculated during data reduction was close to that expected for a centrosymmetric structure (~0.98), and an initial solution in the space group P $\bar{1}\;$was given via the Superflip algorithm (Palatinus and Chapuis, Reference Palatinus and Chapuis2007) within the JANA2006 software package (Petříček et al., Reference Petříček, Dušek and Palatinus2014). The structure was refined on the basis of F² to a final R ₁ of 0.0591 for 2781 reflections with I _obs > 3σI. The final model included anisotropic-displacement parameters for atoms except O and the data were not of sufficient quality to locate H atoms; however, hydrogen-bond strengths for select atoms are calculated on the basis of O–O interatomic distances. Further details regarding the data collection and refinement are given in Table 3. The atomic coordinates and equivalent displacement parameters are given in Table 4, anisotropic displacement parameters in Table 5 and interatomic distances in Table 6. The bond-valence sums, calculated using the parameters of Gagné and Hawthorne (Reference Gagné and Hawthorne2015) and hydrogen-bond strength from Ferraris and Ivaldi (Reference Ferraris and Ivaldi1988) are presented in Table 7. The crystallographic information file has been deposited with the Principal Editor of Mineralogical Magazine and is available as Supplementary material (see below).

Table 3. Data collection and structure refinement details for jeankempite.

Table 4. Atomic coordinates and equivalent isotropic displacement parameters (Ų) for jeankempite.

*0.5 occupancy, **0.1 occupancy.

Table 5. Anisotropic atomic displacement parameters (Ų) for jeankempite.

Table 6. Selected bond distances (in Å) for jeankempite.

*Acidic OH; **disordered acidic OH.

Table 7. Bond-valence analysis in valence units* for jeankempite.

*Bond-valence parameters are from Gagné and Hawthorne (Reference Gagné and Hawthorne2015). Bond valences to select O atoms are included, while contributions to H₂O and OH sites are not. Hydrogen-bond strengths are based on O⋅⋅⋅O bond lengths from Ferraris and Ivaldi (Reference Ferraris and Ivaldi1988). Anion sums for atom O19 are scaled to account for disorder.

Features of the crystal structure

The crystal structure of jeankempite is built from a network of edge- and vertex-sharing CaO₆, CaO₇ and AsO₄ polyhedra (Fig. 5). Atoms Ca1 through Ca7 are coordinated by seven oxygen atoms as irregular polyhedra, whose shape can be likened to an octahedron with one double vertex. Ca8 is a six-coordinated distorted octahedron disordered over the inversion centre with 0.5 occupancy and total site population of 1 Ca apfu. The Ca–O distances are close to expected values except for the Ca6–O10 distance of 2.85 Å, although similarly long Ca–O distances up to 2.87 Å are observed in guérinite (Catti and Ferraris, Reference Catti and Ferraris1974). All As atoms occur as tetrahedral arsenate groups and several form bonds to oxygen atoms that are fully protonated (As4 and As5) or partially protonated (As2 and As6) based on bond-valence calculations and are distinguished by their elongated As–O bonds, with further details given below.

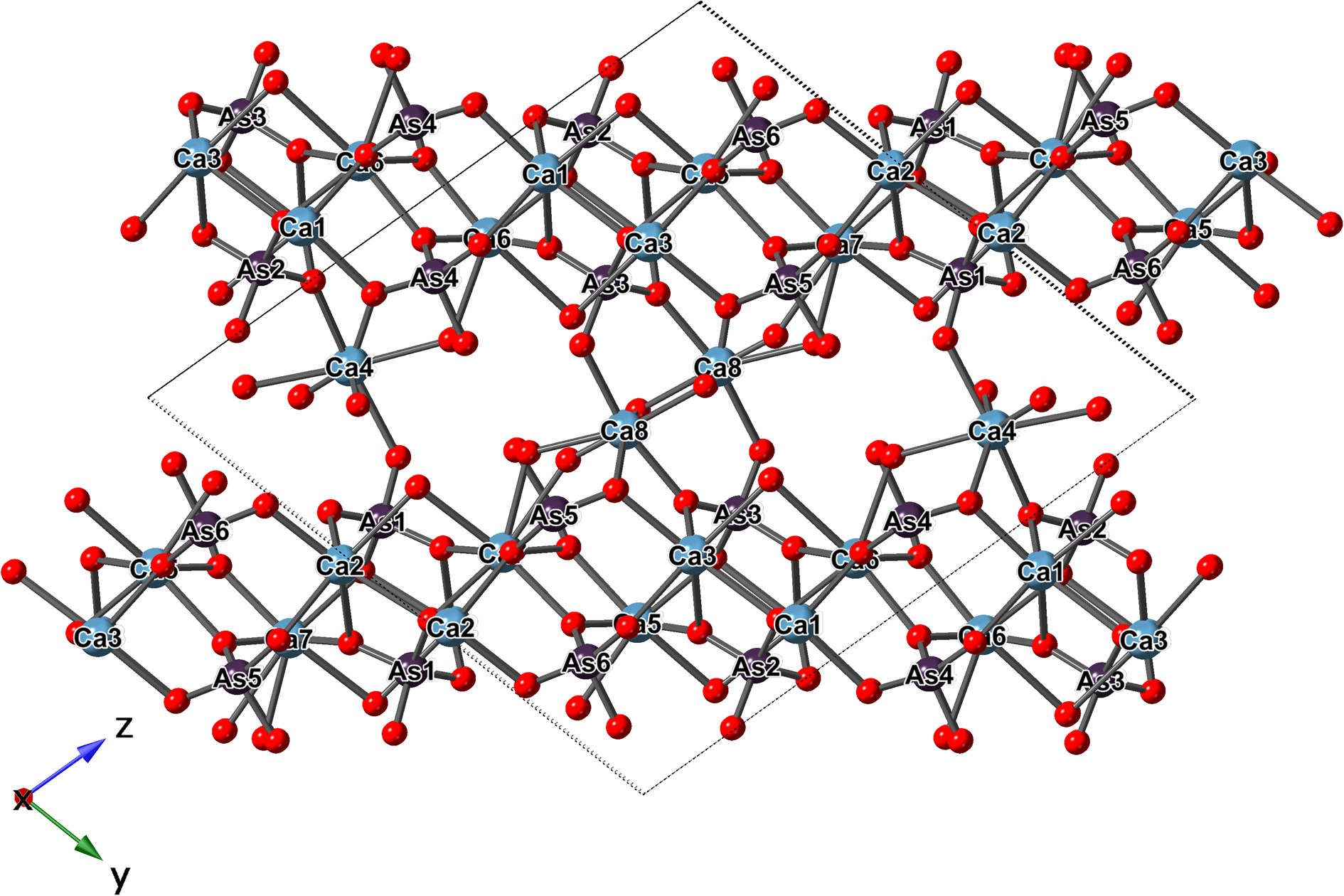

Fig. 5. The ball-and-stick representation of the structure of jeankempite.

The polyhedra centred by Ca1 through Ca7 bind to edges and vertices of arsenate groups, forming a sheet parallel to {0$\bar{ 1}$1} which corresponds to the observed plane of perfect cleavage. Connectivity between the sheets occurs in several ways: through the interlayer atoms Ca4 and Ca8 that share O atoms of arsenate groups, by the edges shared between pairs of Ca polyhedra (Ca4–Ca1 and Ca8–Ca3) and finally through the disordered O atom of an H₂O group (O34/O34’) shared between Ca8 and Ca7. The connectivity between sheets also involves significant hydrogen bonding between H₂O groups, H atoms of AsO₃OH groups and arsenate O atoms. Two empty channels, extending along {100}, occur between sheets and are rimmed by the H carriers O16, O23, O26 and O29 of the protonated arsenate groups (Fig. 6). Based on their elongated As–O bond distances (≥1.72 Å) and valence sums, we deduce that the first channel is lined by fully protonated atoms O23 and O26, and in the second channel by partially protonated O16 and O29, which lie only 2.69 Å apart and possibly share a disordered H atom; in total, corresponding to two OH groups pfu.

Fig. 6. A view along a of the two empty channels found within the interlayer of jeankempite.

In all, 6.73 O atoms of H₂O groups were located during the refinement, and all but the isolated and partially occupied H₂O group O35 are bound to Ca atoms. The large channel formed between pairs of protonated O16, O20 and O29 atoms, measuring roughly ~37 Å², may accommodate an additional isolated H₂O group (i.e. ~seven H₂O pfu), but there were no significant difference-Fourier density residues present. Based on the thermogravimetric analyses and congruence between the chemical, density and optical data, we propose the ideal formula for jeankempite as Ca₅(AsO₄)₂(AsO₃OH)₂(H₂O)₇.

Topotactic dehydration and relationship to other species

Jeankempite is related structurally to guérinite, having a z parameter two thirds that of guérinite and a more ordered structure. (Fig. 7). In the structure of guérinite, ($\bar{ 1}$01) layers of Ca- and As-centred polyhedra are linked by shared vertices, edges, and faces of interlayer Ca polyhedra and numerous hydrogen bonds (Catti and Ferraris, Reference Catti and Ferraris1974). The ($\bar{ 1}$01) layers are interrupted along [001] by two disordered Ca atoms, distributed over 4 sites with a combined occupancy of one Ca apfu. Considering the intimate intergrowth of jeankempite and guérinite observed in PXRD analyses, we hypothesise that jeankempite may have formed through a topotactic reaction resulting from the dehydration of guérinite. In a topotactic reaction, structural rearrangements occur in the solid state along crystallographically equivalent orientations relative to the parent crystal, with an exchange of local components that proceeds throughout the entire volume of the parent crystal, resulting in the conservation of certain structural elements of the parent in one, two, or three dimensions (Günter and Oswald, Reference Günter and Oswald1975). The potential topotactic relationship between jeankempite and guérinite is revealed when comparing the arrangement of arsenate tetrahedra in each mineral (Fig. 8). Upon dehydration, reorganisation of hydrogen bonds and convergence of the guérinite ($\bar{ 1}$01) layers may proceed approximately along [201], locking into place to form contiguous sheets as found in jeankempite. A layer shift from the guérinite structure would be accompanied by reordering of the two disordered Ca atoms and relocation of one interlayer Ca atom to the newly formed sheet, yielding the disordered dimeric Ca8 configuration in jeankempite. According to the scheme for topotactic reactions developed by Günter and Oswald (Reference Günter and Oswald1975), the rearrangement can be classified as the type in which three-dimensional structural elements are conserved; in this case, sections of the disordered ($\bar{ 1}$01) layers in guérinite become infinite sheets in jeankempite. Several Ca–O/Ow and As–O–Ca bonds must be broken to achieve layer convergence during dehydration, suggesting that the reaction kinetics may proceed relatively slowly, because such rearrangements require higher activation energy than those involving loss of loosely bound H₂O molecules; e.g. phaunouxite Ca₃(AsO₄)₂⋅11H₂O → rauenthalite Ca₅(AsO₄)₂⋅10H₂O (Catti and Ivaldi, Reference Catti and Ivaldi1983). A topotactic rearrangement brought on by relatively slow dehydration may explain how the large single crystals of jeankempite studied here were able to form from pre-existing guérinite.

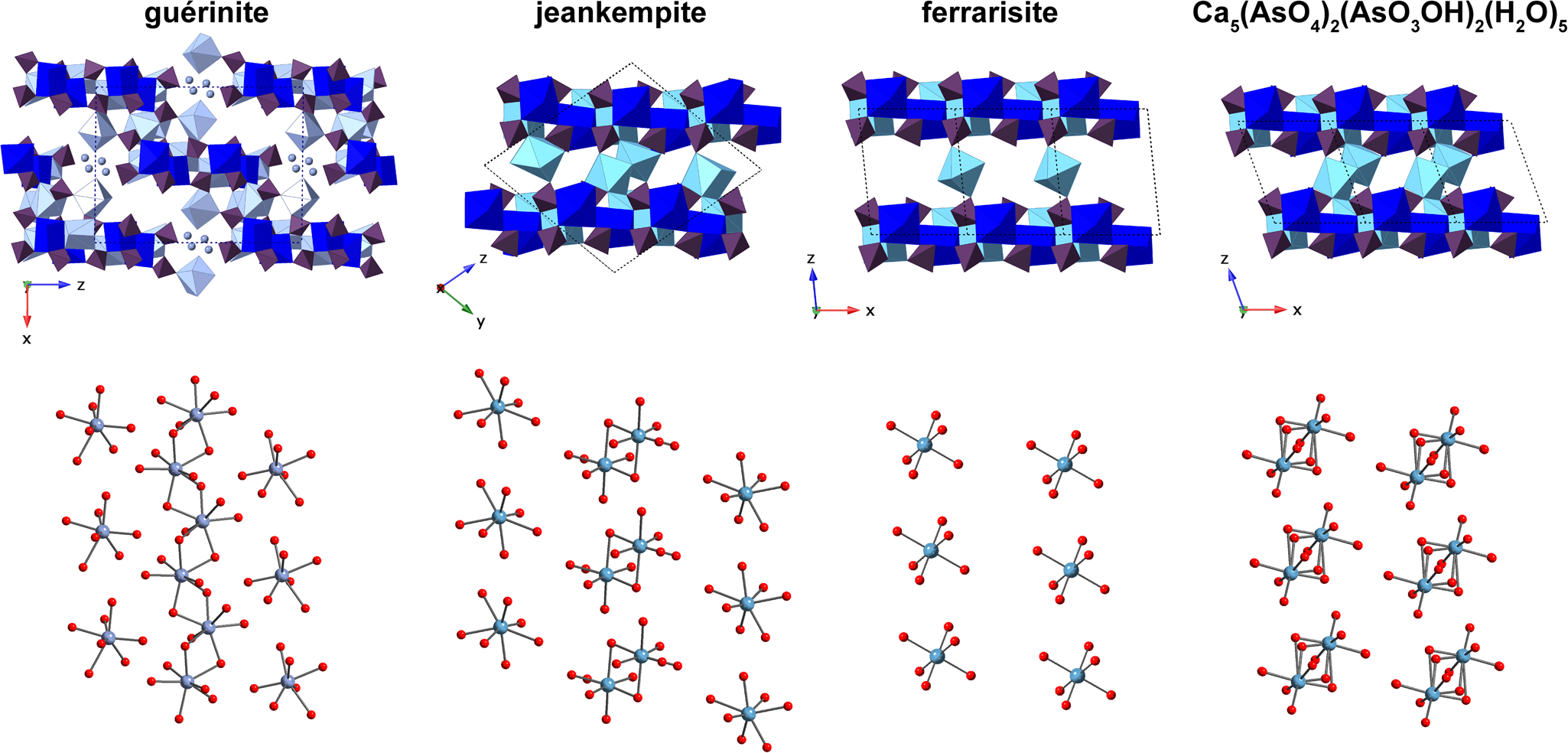

Fig. 7. A comparison of the layer (top) and interlayer (bottom) arrangement in jeankempite with related arsenates. Calcium polyhedra are presented in shades of blue and teal, arsenate tetrahedra are purple and O atoms are red spheres. Disordered calcium atoms in the polyhedral representation of guérinite are shown as light blue spheres. Some O of lattice H₂O are omitted for clarity.

Fig. 8. Diagram depicting the possible topotactic rearrangement during dehydration from guérinite to jeankempite. Arsenate tetrahedra are shown in purple, with the unit cell as a solid black line.

The structure of jeankempite also closely resembles ferrarisite and the dehydrated phase Ca₅(AsO₄)₂(AsO₃OH)₂⋅5H₂O, produced by heating ferrarisite (Catti and Ivaldi, Reference Catti and Ivaldi1981) (Fig. 7). Sheets in these three structures are nearly identical, deviating only marginally with respect to the orientation of Ca- and As-centred polyhedra and the alignment of adjacent layers. Together with the pentahydrate phase, Ferraris et al. (Reference Ferraris, Chiari and Catti1980) observed an additional unidentified dehydration product of ferrarisite that was distinct from the first two dehydration products of guérinite. Unfortunately, structural data for the dehydration products are no longer available and will require re-examination using a combination of natural and synthetic material heated at variable rates (M. Catti, 2018, pers. comm.). Jeankempite and the unknown calcium arsenate hydrate detected on the holotype specimen may be related to the unidentified dehydration phases produced by heating, and we intend to explore these potential relationships while searching for additional evidence of topotactic reactions brought on by dehydration of calcium arsenate minerals.
