2. EXPERIMENTAL PROCEDURES

The material studied was an as-cast AZ91D Mg alloy with the following chemical composition (wt. %): Al 8.97, Zn 0.78, Mn 0.31, Si 0.023, Cu 0.002, Ni 0.0005, and Mg balance. Millisecond pulse Nd:YAG laser (with wavelength of 1064 nm) was used under the following parameters at atmospheric pressure and room temperature in air: power density 3.82 × 10⁴ W/cm², frequency 100 Hz, pulse duration1.0 ms, and single firing pulse. Microstructural features of the molten pool were studied using JEOL 5600 LV SEM equipped with EDS. The EDS measurements provided information on the chemical composition.

A novel aspect of the experiment was to make use of Si substrate to collect the plume generated during laser irradiation, as shown in Figure 1. The distance between the Si substrate and the laser firing point on Mg sample was 3 mm. The Si substrate was H-terminated by cleaning in organic solvents and subsequent immersion in HF aqueous solution (Li et al., Reference Li, Yow, Lui, Yakovlev, Sun, Swenson and Moran2004). The plum deposited on the Si substrate was studied using SEM and further analyzed using time-of-flight secondary ion mass spectrometry (TOF-SIMS). Scan area of spectrometry on Si was nearly 200 µm × 200 µm. Mass-resolved images (MRIs) for chemical mapping of vaporized elements were reconstructed from 500 µm × 500 µm in the deposited plume, and depth profile was performed within the MRIs area as 150 µm × 150 µm. Chemical content of elements was calculated by normalizing ion intensity to sum of major elements in the substrate.

Fig. 1. (Color online) Diagram showing experimental set-up for collecting plume generated by laser firing.

3. RESULTS AND DISCUSSIONS

Figure 2a shows typical microstructure and chemical distribution in AZ91D Mg alloy before and after laser surface melting. Bulk and lamellar β-Mg₁₇Al₁₂ phase distributed non-homogeneously in α-Mg matrix is indicated in the as-received microstructure of substrate. In the molten pool, solidification microstructure consisted of cellular/dendrite structure, which was derived from refined α-Mg and β-Mg₁₇Al₁₂ phases, are observed (Guan et al., Reference Guan, Zhou, Li and Zheng2009a; Reference Guan, Zhou and Zheng2009b; Reference Guan, Zhou and Zheng2009c). The distribution of main elementary compositions Mg and Al based on EDS analysis revealed that average Al content increased in the molten pool. Quantitative analyses of the micrographs confirmed that Al content was in the range of 10.7–12.1 wt. % and was enriched at the dendrite/cellular boundaries in the range of 30.8–33.3 wt. %, which were higher than 9.0 wt. % in the untreated substrate. The enrichment of Al in the molten pool has been validated to be a key factor responsible for improved bio-corrosion resistance and surface wettability of laser-melt AZ91D Mg alloy, and the detailed information is not repeated here (Song, Reference Song2010; Guan et al., Reference Guan, Zhou and Zheng2009b; Reference Guan, Zhou and Zheng2009c).

Fig. 2. (Color online) (a) EDS line scan indicating distribution of main elements Al and Mg in the molten pool of AZ91D Mg alloy induced by laser surface melting. (b) SEM image indicating morphology of deposited plume on Si wafer and locations of SIMS analysis. (c) MRIs showing chemical mapping of main elements in (b).

Figure 2b shows surface morphology of the plume deposited on Si substrate after laser firing. The deposited plume revealed an ellipse shape with dimension around 500 µm × 1500 µm, and the average thickness was measured as 322 nm in 15 different points of the plume. Location of MRIs and depth profile analysis are also illustrated in Figure 2b. A few liquid ejected droplets of molten material was observed, indicating phase explosion phenomenon with a mixture of liquid and vapor during laser processing (Steen, Reference Steen2003; Goodall et al., Reference Goodall, Johnson and Wood1995).

The MRIs results are shown in Figure 2c. According to color contrast of Si, boundary between the deposited plume, and the Si substrate was indicated as a white line. According to color contrast of Si, boundary between the deposited plume and the Si substrate was indicated as a white line since chemical images were generated by collecting mass spectrum at every pixel during TOF-SIMS measurement. It is further noted that concentration of Mg species is much higher than that of Al and Zn inside the plume. Moreover, distribution of Mg species is found to be uniform in the whole area, while distribution of Al species increases with the distance starting from the boundary. Zn species are very few in the deposited plume. The signal of Mg, Al, and Zn species below the boundary line was due to edge effect during deposition process.

The normalized Mg and Al contents in the depth profile area are shown in Figure 3. Figure 3a provides schematic diagram of cross section view for depth profile measurement on different positions of the deposited plume. Figure 3b shows the ratio of Mg:Al contents along the plume thickness though depth profile measurements. At the surface, the ratio was calculated as 61.3:1, which was much higher than base metal composition as 10:1. With the increasing sputtering time, Mg concentration decreased rapidly, while Al concentration increased. When it reached to the sub-surface indicated as position b, Al was enriched and the ratio of Mg:Al reduced to 9.66:1. When further increased to position c, the ratio of Mg:Al reduced to 1.21:1, and the final ratio of Mg:Al was 3:1 at position d due to very low Mg and Al contents. The corresponding sub-surface locations of b, c, and d were estimated to be 181 nm, 265 nm, 1228 nm. In other words, Mg dropped rapidly from the surface (position a) to the sub-surface (position b to position d), while Al increased first and then decreased. Al content was higher than that of Mg in the deep sub-surface, as indicated from position c to position d. Therefore, at the initial stage of vaporization and deposition process, the number of Mg species deposited on Si sheet was less than that of Al. With the increasing time, Mg species increased rapidly compared to that of Al. At the final stage, Mg species remained increasing, while Al species dropped to nearly zero.

Fig. 3. (Color online) (a) Schematic diagram of cross section view for TOF-SIMS depth profile measurement on the deposited plume above Si substrate, while a, b, c and d showing different positions from top surface towards subsurface of the deposited plume; (b) Chemical content distribution of vaporized Mg and Al species at bottom of deposited plume with sputtering time using TOF-SIMS depth profile. It shows that Mg:Al ratio is very low at initial deposition of laser-generated plume on Si substrate (d), and it changes rapidly with the process due to high concentration of Mg compared to Al (c to a).

The chemical content distribution of vaporized Mg and Al species on the surface of whole plume in Figure 2b were further calculated, and listed in Table 1. Total length of the plume was measured as 1500 µm as shown in Figure 2b, and it was divided into three categories according to the rapid change of Mg distribution: (1) 500 µm and below, (2) 500–800 µm, and (3) 800 µm and above. In bottom plume I from 200 µm to 500 µm, Mg did not decrease too much, and the average ratio of Mg:Al was more than 50:1. This is in agreement with the results in Figures 2b and 3b, and it indicates that the vaporization of Mg is far exceeded than that of Al. In middle plume 1from 500 µm to 800 µm, Al concentration increased from 1.8 wt. % to 3.3 wt. % while Mg concentration started to drop, which indicates that Al “flies” further compared that of Mg (similar to MRIs in Fig. 2c). In top plume 2 from 800 µm to 1400 µm, both Mg and Al dropped significantly rapidly, from 76.3 wt. % to 0.3 wt. % and from 3.3 wt. % to 0.3 wt. %, respectively. In addition, the ratio of Mg:Al decreased significantly from 23.0:1 to 0.9:1. It should be noted that Al distribution in deposited plume has similar trend for both depth profile and top surface measurement, which increased first and then dropped. The reason for such phenomenon will be explained in the following.

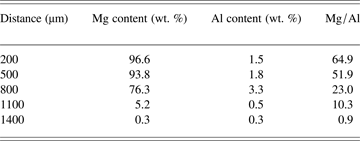

Table 1. Chemical content distribution of vaporized Mg and Al species on whole surface of the deposited plume using TOF-SIMS scanning

The ratio of Mg:Al was 10:1 in the base composition of AZ91D Mg alloy, and vaporization rate of Mg was calculated as almost two orders of magnitude greater than that of Al according to Zhao and Debroy (Reference Zhao and Debroy2001) and He et al. (Reference He, DebRoy and Fuerschbach2004). Therefore, the combined effect of different vaporization rate and original chemical composition resulted in the great ratio of Mg:Al in the deposited plume, as shown in Figure 3 and Table 1.

Distribution of vaporized Mg and Al species in the plume is further explained in Figure 4. At the bottom of plume, which was indicated as near-field region, density of vaporized species was very high and local vapor pressure exceeded ambient pressure when the plume generated from molten pool surface (Steen, Reference Steen2003; Yoo et al., Reference Yoo, Jeong, Greif and Russo2000). According to Table 1, height of the near-field region was estimated as 800 µm. When the plume expanded into surrounding environment, vapor pressure decreased significantly. Simultaneously, pressure difference between the core region and the atmosphere would lead to a far-field region at the top of the plume (Cieslak & Fuerschbach, Reference Cieslak and Fuerschbach1988; Yoo et al., Reference Yoo, Jeong, Greif and Russo2000). Correspondingly, the density of vaporized species decreased rapidly in such far-field region, and this was shown as low contents of Mg and Al from 1100 µm to 1400 µm in Table 1. Such conclusion is in strong agreement with the findings of Li (Reference Li, Yow, Lui, Yakovlev, Sun, Swenson and Moran2004), who has observed three different regions of deposited plume in polyimide film and polycarbonate substrates. Our result also supports Debroy's calculation in terms of experimental evidence aspect that vaporization is concentrated in a small active region where local vapor pressure exceeds ambient pressure under laser beam (Zhao & Debroy, Reference Zhao and Debroy2001; He et al., Reference He, DebRoy and Fuerschbach2004).

Fig. 4. (Color online) Schematic showing near-field region and far-field region in the plume generated from molten pool surface during laser irradiation. Dark spots inside the plume indicates high diffusivity of Al vapors compared to the remaining Mg vapors. Liquid droplets of molten materials are not presented.

The discrepancy distribution of Mg and Al both at the top surface and in the sub-surface of the deposited plume was proposed to transport rate of vaporized species from the molten pool surface to the plume. The transport rate of vaporized alloying elements is reported to be depended on nature of boundary layer and diffusivities of vaporized species (Willmott & Huber, Reference Willmott and Huber2000; Collur et al., Reference Collur, Paul and Debroy1987) Based on Chapman-Enskog theory (Collur et al., Reference Collur, Paul and Debroy1987), the diffusivities of Mg and Al vapors in Ar gas at various temperatures are calculated, and the diffusivity of Al is nearly two to three times than that of Mg at high temperature range from 2500 K to 3500 K. In the near-field region, high diffusivity of Al results in its vaporized species “fly” far than that of Mg in both bottom and middle of plume due to high temperature. In the far-field region, however, Al concentration decreases correspondingly when temperature drops significantly, as shown in Figures 2c, 3, and Table 1. Therefore, we suggest that the reason for Al distribution in the deposited plume was caused by higher transport rate of vaporized Al species during vaporization and deposition process, especially in the near-field region of plume.
