2.1. Evaluation methods

Compared with LNAV, CNAV provides extended orbit parameterisation including a change rate for the semi-major axis $\Delta \dot{A}$ and the mean motion $\Delta \dot{n}_{A}$, in addition, four ISC parameters representing differences of L1C/A, L2C, L5I5 and L5Q5 signals with respect to the L1P(Y) signal are proposed in CNAV for civil user positioning (Wang et al., Reference Wang, Huang and Zhao2014; Steigenberger et al., Reference Steigenberger, Montenbruck and Hessels2015; Wang et al., Reference Wang, Yuan, Zhang and Li2016a; Du et al., Reference Du, Liu, Zhou, Fang, Liu and Ma2017).

At present, the accuracy of GPS precise orbit and clock products provided by the IGS analysis centres is at the 2–3 cm level (Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2015), which can be adopted as a reference to evaluate the accuracy of broadcast ephemeris for LNAV and CNAV. To remove temporal/spatial reference discrepancies between broadcast ephemeris and precise products, some key points should be taken into account. (1) The precise ephemeris of the IGS is under the International Terrestrial Reference System (ITRF) framework, while the broadcast ephemeris uses the World Geodetic System-84 (WGS-84) coordinate system. The deviation between the two systems is about 1–2 cm; compared with broadcast ephemeris error, it is much smaller and can be neglected in comparison (Petit and Luzum, Reference Petit and Luzum2010). (2) Clock offset values of precise and broadcast ephemerides cannot be compared directly due to differences in the underlying realisation of the GNSS-specific system time scales. These differences affect all GPS satellites in the same manner and produce a systematic bias that may vary from epoch to epoch. In order to eliminate this bias, an ensemble clock difference is generally computed at each epoch from the average broadcast- minus-precise clock values of satellites in a constellation, and then the individual clock offset differences are corrected for this ensemble average. However, to account for avoiding the influence of a few satellites' clock gross error, we chose this ensemble median as a systematic bias (Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2015; Zhang et al., Reference Zhang, Chen, Zhou, Yang, Wang, Chen and Gong2016). (3) The GPS precise ephemerides refer to the Centre-of-Mass (CoM) of the satellites whereas the broadcast ephemerides of all constellations directly provide the mean antenna phase centre location in the Earth fixed reference frame, which requires a proper antenna offset correction by using the empirically derived satellite antenna z-offsets in Montenbruck et al. (Reference Montenbruck, Steigenberger and Hauschild2018) and “ATX” (for example, igs08.atx and igs14.atx) antenna models (Schmid et al., Reference Schmid, Steigenberger, Gendt, Ge and Rothacher2007; Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2015; Zhang et al., Reference Zhang, Chen, Zhou, Yang, Wang, Chen and Gong2016; Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2018).

SISRE is a key performance indicator, which describes the statistical uncertainty of the modelled pseudorange due to errors in the broadcast ephemeris (Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2018). The orbit-only contribution to the signal-in-space range error can be described as follows:

(1)$$SISRE\lpar orb\rpar =\sqrt {\lpar \alpha g R\rpar ^2+\beta g\lpar A^2+C^2\rpar } $$

The combined orbit and clock SISRE is obtained from Equation (2):

(2)$$SISRE=\sqrt {\lpar \alpha g R-Clk\rpar ^2+\beta g \lpar A^2+C^2\rpar }$$

where R, A, C represent broadcast orbit errors in radial, along-track and cross-track directions, respectively; Clk denotes the error of the broadcast clock offset and the weight factors α and β depend on the altitude of the GNSS satellite. For GPS satellites, these values are 0·98 and 1/49, respectively (Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2015).

2.2. Analysis of CNAV/LNAV broadcast ephemeris error and SISRE

Broadcast ephemeris error and SISRE for CNAV and LNAV over a 26-month period from Day 1 in 2016 to Day 62 in 2018 was analysed. IGS precise products of orbit and clock offset were adopted as a reference by considering the three above-mentioned corrections (Montenbruck et al., Reference Montenbruck, Steigenberger and Hauschild2018). It should be noted that the SVN G70 and G73 satellites have provided the CNAV broadcast ephemeris since Day 126 in 2016, for 22 months of the data period. SISRE outliers exceeding a limit of 15 m were rejected (Steigenberger et al., Reference Steigenberger, Montenbruck and Hessels2015).

Results of the broadcast ephemeris errors comparison between CNAV and LNAV for the 19 satellites are shown in Figure 1, which illustrates the Root-Mean-Square (RMS) of radial, along-track and cross-track orbit errors, as well as that of the clock errors. The horizontal and vertical axis represents SVN and PRN (Pseudo Random Noise, which corresponds to SVN during testing) and errors, respectively in Figure 1. Table 1 presents the mean RMS of CNAV and LNAV broadcast ephemeris errors for the Block IIR-M and Block IIF constellations and their mean SISRE.

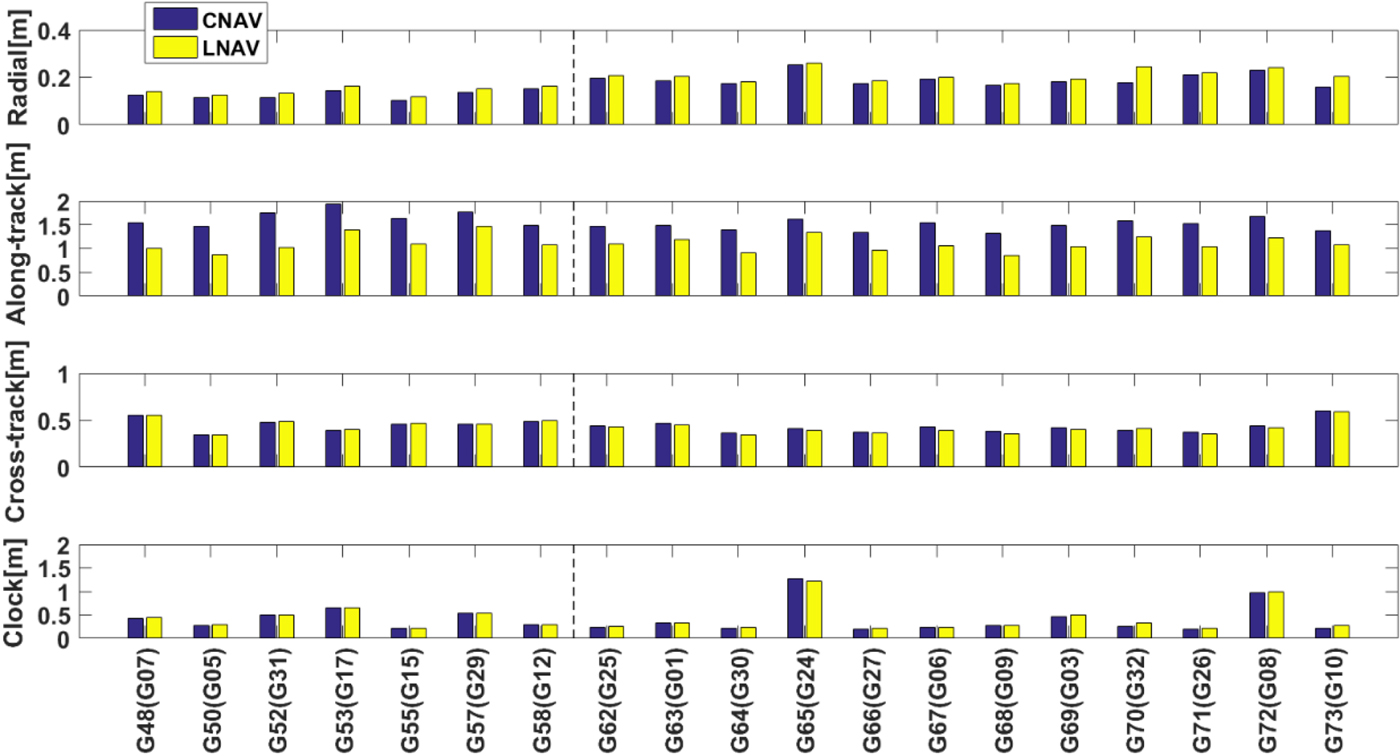

Figure 1. Comparison of broadcast ephemeris errors between CNAV and LNAV (January 2016 - March 2018). The vertical line separates Block IIR-M satellites (G48-G58) from Block IIF satellites (G62-G73).

Table 1. Broadcast ephemeris errors in radial (R), along-track (A) and cross-track (C) directions, and clock errors (T) as well as SISRE for both CNAV and LNAV transmitted by Block IIR-M and Block IIF satellites in a 26-month test period. All values are given in metres.

Note: (*) is the mean value for BLOCK-IIF type by excluding G65 and G72.

Orbit-only contributions are indicated by “orb”.

Compared with LNAV, the orbit error of CNAV is slightly smaller in the radial component, but obviously larger errors in the along-track component were observed, which agrees with the findings in Steigenberger et al. (Reference Steigenberger, Montenbruck and Hessels2015) but improves from 2·23 m to 1·54 m. The mean RMS of the CNAV clock error for the 19 satellites is almost identical to the LNAV of no more than 0·5 m, which shows an improvement of around a factor of two compared to the results in Steigenberger et al. (Reference Steigenberger, Montenbruck and Hessels2015). The improvement is mainly due to the age of CNAV orbit predictions being changed from three to four days to one day.

The majority of the Block IIF satellites have better accuracy in the clock error than Block IIR-M. Among all the satellites, however, the accuracy of clock error of two Block IIF satellites of G65 and G72 reaches 1·29 m and 0·98 m, respectively, as they are equipped with caesium clocks. The mean SISRE of all Block IIF satellites is therefore slightly worse than the Block IIR-M satellites. Excluding G65 and G72, mean clock precision and SISRE of all Block IIF satellites reaches 0·26 m and 0·39 m.

CNAV and LNAV SISREs are both at the 0·5 m level, which is further improved in comparison with the results of 0·6 m from 2014 to 2015 published in Steigenberger et al. (Reference Steigenberger, Montenbruck and Hessels2015). SISRE results show that the worse accuracy of the along-track component in satellite orbits does not affect the overall performance of CNAV.

3.1. ISC data and update frequency

GPS broadcast clock parameters refer to the ionosphere-free linear combination of the L1P(Y) and L2P(Y) pseudorange signals, DCBs have to be considered to correct for systematic effects when carrying out SPP using civil pseudorange observables (Montenbruck and Hauschild, Reference Montenbruck and Hauschild2013b; Montenbruck et al., Reference Montenbruck, Hauschild and Steigenberger2014). Four additional Inter-Signal Correction (ISC) parameters as a new type of DCB product are introduced in the CNAV message to provide corrections for the legacy L1C/A signal and the new L2C and L5 (L5I5 and L5Q5) signals with respect to L1P(Y), and the detailed definition of ISCs is described in Yin et al. (Reference Yin, Morton, Carroll and Vinande2014) and Wang et al. (Reference Wang, Yuan, Zhang and Li2016a).

Figure 2 shows the updating epochs of TGD and four ISC parameters of CNAV from Day 1 in 2016 to Day 62 in 2018. In Figure 2, the TGDs of the SVN G048, G050, G052, G055 and G062 satellites have never been updated and that of the SVN G053, G057, G063, G064, G065, G067 and G073 satellites were only updated once or twice during the 26 months. The TGDs/ISCs updating frequency of other satellites is relatively higher.

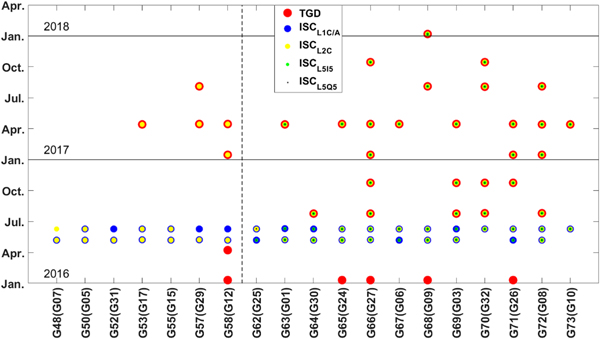

Figure 2. GPS CNAV broadcast TGD and ISC parameters update time interval. The vertical line separates Block IIR-M satellites (G48-G58) from Block IIF satellites (G62-G73).

L1C/A ISC, as the only intra-frequency bias parameter, has the lowest update frequency, which has only been updated once for SVN G048, G70 and G73 and twice (that is, day of year (doy) 127 and 160 in 2016) for other satellites. The update frequency of the L2C ISC is higher than TGD and other ISC parameters, where L2C ISC of SVN G066 and G068-072 are updated more than four times. It can be seen that ISCs of L5I5 and L5Q5 of the Block IIF satellites were updated at the same time as the L2C.

The TGD and ISCs of CNAV broadcast ephemerides for the 19 GPS satellites are plotted in Figure 3. Multiple values exist for some parameters of the same satellites, which demonstrate small parameter variations during each updating. Apparent differences are observed in the TGDs and L2C ISC of Block IIR-M and Block IIF, where they have opposite signs for these two Block types. The L1C/A ISCs have the smallest variation range as they refer to different signals of the same frequency, where the scatter is 2·5 ns for satellites of the Block IIF type and 0·7 ns for the Block IIR-M satellites. On the other hand, the TGD/ISCs of the different Block type satellites show greater differences in comparison with the same Block type satellites, which reaches even more than 20 ns in case of the TGD.

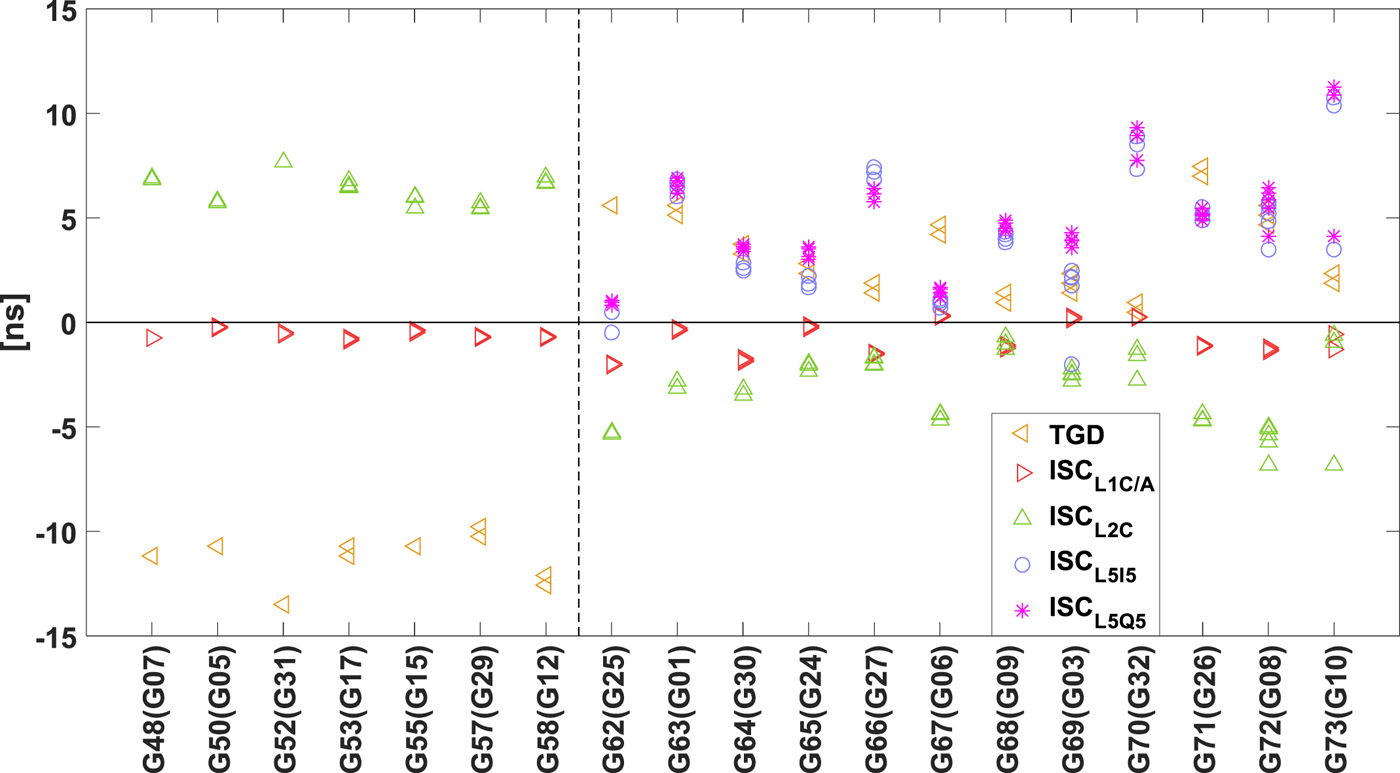

Figure 3. GPS broadcast TGD and ISC values of each individual satellite (January 2016 – March 2018). The vertical line separates Block IIR-M satellites (G48-G58) from Block IIF satellites (G62-G73). Multiple values exist for some parameters of the same satellites, which demonstrate small parameter variations during each updating.

3.2. ISC comparison and discussion

The accuracy of two different DCB products provided by Deutsches Zentrum für Luft-und Raumfahrtn (DLR) and the Center for Orbit Determination in Europe (CODE) are at the precision of 0·2 ns and 0·1 ns, respectively (Schaer, Reference Schaer2008; Montenbruck et al., Reference Montenbruck, Hauschild and Steigenberger2014; Wang et al., Reference Wang, Yuan, Li, Montenbruck and Tan2016b), which are used as a reference to evaluate the precision of the TGD/ISCs in the CNAV broadcast ephemeris. Table 6 in Steigenberger et al. (Reference Steigenberger, Montenbruck and Hessels2015) lists the detailed relations between TGD/ISCs from the CNAV message and DCBs from DLR and CODE. The TGD and ISCs in CNAV are derived by referring to a calibrated reference receiver at the NGA monitoring station, whereas a zero-mean condition is applied for the DLR and CODE DCBs (Feess et al., Reference Feess, Cox, Howard and Kovach2013; Montenbruck et al., Reference Montenbruck, Hauschild and Steigenberger2014). Considering these different estimation approaches, all values have been re-aligned with the same condition covering the affected satellites, and the detailed realignment method is described in Wang et al. (Reference Wang, Yuan, Zhang and Li2016a). More specifically, all Block IIF satellites as reference satellites are selected for constructing a new zero-mean condition since L5 ISCs cannot be provided by Block IIR-M satellites.

Figure 4 and Table 2 show the mean bias and Standard Deviation (STD) of the broadcast TGD and ISCs relative to the DLR and CODE DCBs, respectively. It should be noted that L5I5 ISCs are not presented in Figure 4, because no commercial GNSS receiver could provide observations from the L5I data channel during the validation time period. The mean biases of the CNAV-DLR TGDs vary from −0·46 ns to 0·50 ns, which is obviously larger than that of the CNAV-CODE TGDs (−0·26 ns ~ 0·29 ns). This may be due to the DLR TGDs being estimated daily, whereas the CODE TGDs represent a monthly average. The agreement of mean L1C/A ISCs between CNAV and DLR/CODE does not exceed 0·14 ns. For the L2C ISCs, mean biases range between [−0·55 ns 0·79 ns] and [−0·20 ns, 0·44 ns] compared to the DLR and CODE DCBs. The L5Q5 ISCs are compared to DLR DCBs as no such products from CODE were available, and mean biases are in the range [−0·27 ns, 0·41 ns].

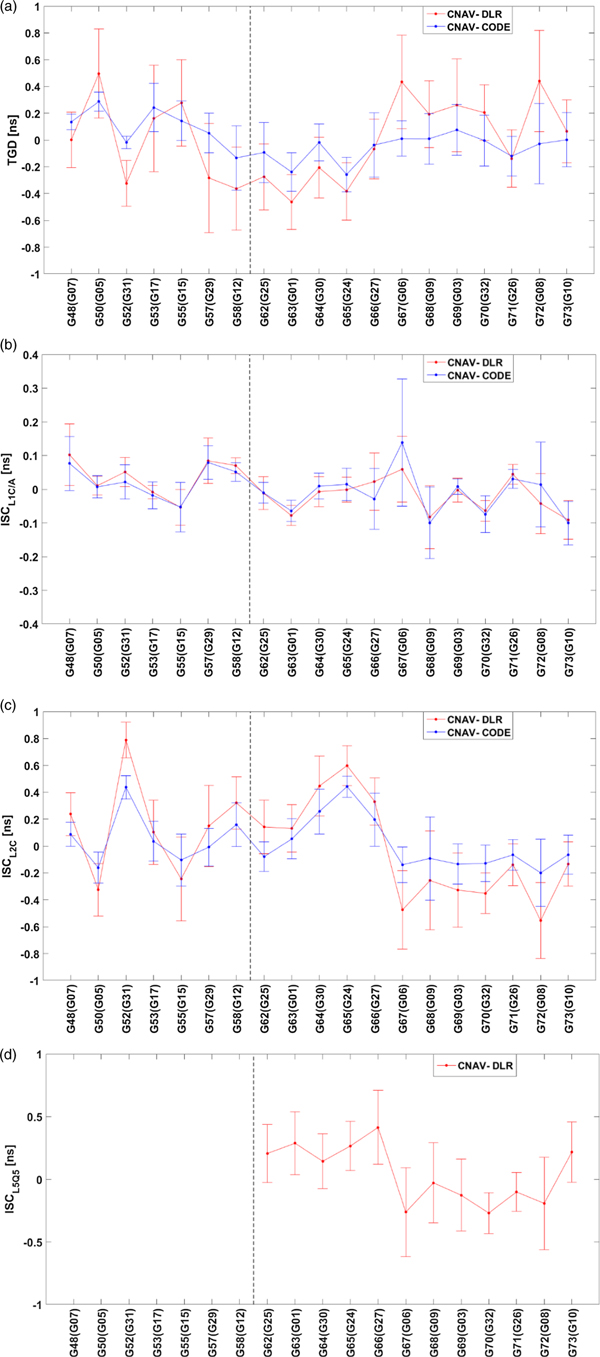

Figure 4. Mean bias and STD (represented by error bar) of CNAV (a) TGD and (b, c, d) ISCs relative to the DCB products of DLR and CODE. (January 2016 – March 2018). The vertical line separates Block IIR-M satellites (G48-G58) from Block IIF satellites (G62-G73).

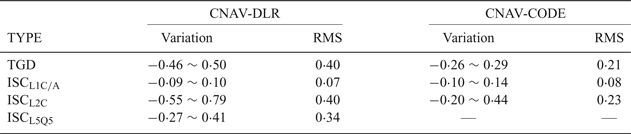

Table 2. Consistency of the CNAV TGD and ISCs relative to that of DLR and CODE. (January 2016 - March 2018). All values are given in nanoseconds.

In general, these results show that the precision of CNAV TGDs and ISCs are about two times worse than those of the DLR/CODE products. Both DLR and CODE use a global tracking network of more than 200 stations, while CNAV data are based on a quite small tracking network of around ten stations (Steigenberger et al., Reference Steigenberger, Montenbruck and Hessels2015). Although the current CNAV network can provide full global coverage and meet the requirements of real-time processing, the accuracy of CNAV TGDs and ISCs could be further improved if more stations were added.

4.1. Test data and processing strategy

To further assess the performance of CNAV, we apply the CNAV/LNAV for SPP in different scenarios. 22 MGEX stations shown in Figure 5 and a 30-day period of Day 70 to Day 99 in 2018 was selected. A Hatch filter was applied to smooth the pseudo-range to reduce the impact of the code noise (Hatch, Reference Hatch1982; Chang et al., Reference Chang, Hu, Guo, Cao, Wu, Wang and Dong2015). Other SPP process settings were as follows: the orbits and clocks from broadcast ephemeris; the ionosphere-free linear combination of P code observations at a sampling rate of 30 s was used for dual-frequency SPP with a cut-off angle of 10^°; a Global Ionosphere Map (GIM) model was applied to correct the ionospheric error for single-frequency SPP (Schaer and Werner, Reference Schaer and Werner1998; Jee et al., Reference Jee, Lee, Kim, Chung and Cho2010); tropospheric errors were corrected by the GPT2w model (Böhm et al., Reference Böhm, Möller, Schindelegger, Pain and Weber2015), and the coordinates and receiver clocks were estimated epoch by epoch in a Kalman filter.

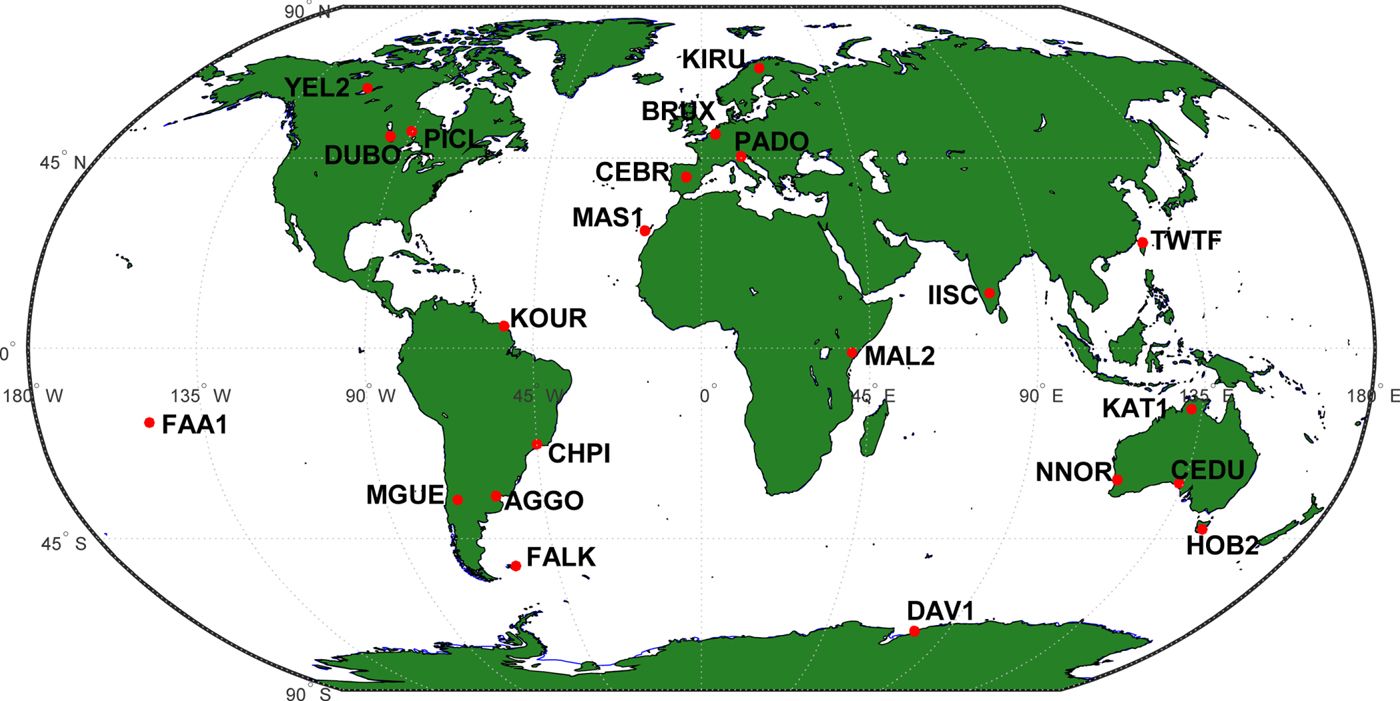

Figure 5. Distribution of the selected 22 MGEX stations.

As only 12 GPS Block IIF satellites transmitted L5Q signals during the validation time period, we utilised the P code observables C1C, C2L, C1W and C2W of the 19 GPS satellites for positioning and specific scenarios are as follows:

1. (1) C1C/C1W and C2L/C2W-based kinematic single-frequency SPP using the broadcast ephemeris of LNAV-only, CNAV-only and CNAV  +  ISC, where LNAV-only and CNAV-only mean using satellite orbits/clocks from LNAV and CNAV without consideration of ISC, and CNAV  +  ISC refers to the use of satellite orbits/clocks of CNAV together with an ISC parameter. Since there are no ISCs for C1W and C2W, C1W and C2W-based SPP using LNAV-only and CNAV-only are compared.

   The pseudo-range observation equations with and without the consideration of ISCs on the L1 and L2 frequency can be expressed as:

   (3)$$\left.{\matrix{P_{r\comma f_1 }^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +c\cdot TGD+dTrop+\lambda_1 \cdot dIon+\varepsilon_P \hfill \cr P_{r\comma f_1 }^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +c\cdot TGD-c\cdot ISC_{L1C/A} +dTrop+\lambda_1 \cdot dIon+\varepsilon_P}}\right\}$$
   (4)$$\left. {\matrix{P_{r\comma f_2 }^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +c\cdot \lpar \, f_1 /f_2 \rpar^2\cdot TGD+dTrop+\lambda_2 \cdot dIon+\varepsilon_P \hfill \cr P_{r\comma f_2 }^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +c\cdot TGD-c\cdot ISC_{L2C} +dTrop+\lambda_2 \cdot dIon+\varepsilon_P}}\right\}$$
   where $P_{r\comma f_{1} }^{s} $, $P_{r\comma f_{2} }^{s}$ are the pseudo-range observations on the L1 and L2 frequencies, respectively; $\rho _{r}^{s} $ is the geometric range between the receiver and satellites; dT _r and dT ^s are the receiver and satellite clock bias, respectively; dTrop is the slant tropospheric delay, $\lambda _{i} =40{\cdot}28/f_{i}^{2}$ (i = 1, 2) and λ_i · dIon is the slant ionospheric delay; c is light speed and ε_P is a noise term.

2. (2) C1C/C2L ionosphere-free combination-based kinematic dual-frequency SPP using the broadcast ephemeris of LNAV-only, CNAV-only and CNAV  +  ISC, respectively.

   The dual-frequency pseudo-range observation equations with and without the consideration of ISCs can be expressed as

   (5)$$\left. {\matrix{P_{r\comma IF}^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +dTrop+\varepsilon_P \hfill \cr P_{r\comma IF}^s =\rho_r^s +c\cdot \lpar dT_r -dT^s\rpar +c\cdot TGD-c\cdot \displaystyle{{ISC_{L2C} -\lpar \, f_1 /f_2 \rpar^2\cdot ISC_{L1C/A}}\over{1-\lpar \, f_1 /f_2 \rpar^2}}+dTrop+\varepsilon_P}} \right\}$$

3. (3) Dual-frequency SPP based on the C1C/C2L ionosphere-free combination (using broadcast ephemeris of CNAV  +  ISC) and dual-frequency SPP based on the C1W/C2W ionosphere-free combination using the broadcast ephemeris of LNAV-only and CNAV-only.

4.2. Precision analysis of GPS SPP with and without ISCs

Using the 19 satellites only, the upper subgraph in Figure 6 shows the average number of visible satellites and mean Position Dilution of Precision (PDOP) in a daily SPP solution for selected MGEX stations. The lower subgraph in Figure 6 gives the percentage of epochs with PDOP less than 5·0 in the total epochs of one day for each station. An average of five to seven satellites could be observed at each station, but most of these stations had less than six satellites in view. The mean PDOP varied from 2·6 to 3·1 and the percentage of healthy epochs (PDOP  <  5) was from 77·8% to 98·6% for all stations; only one third of the total stations exceeded 90%.

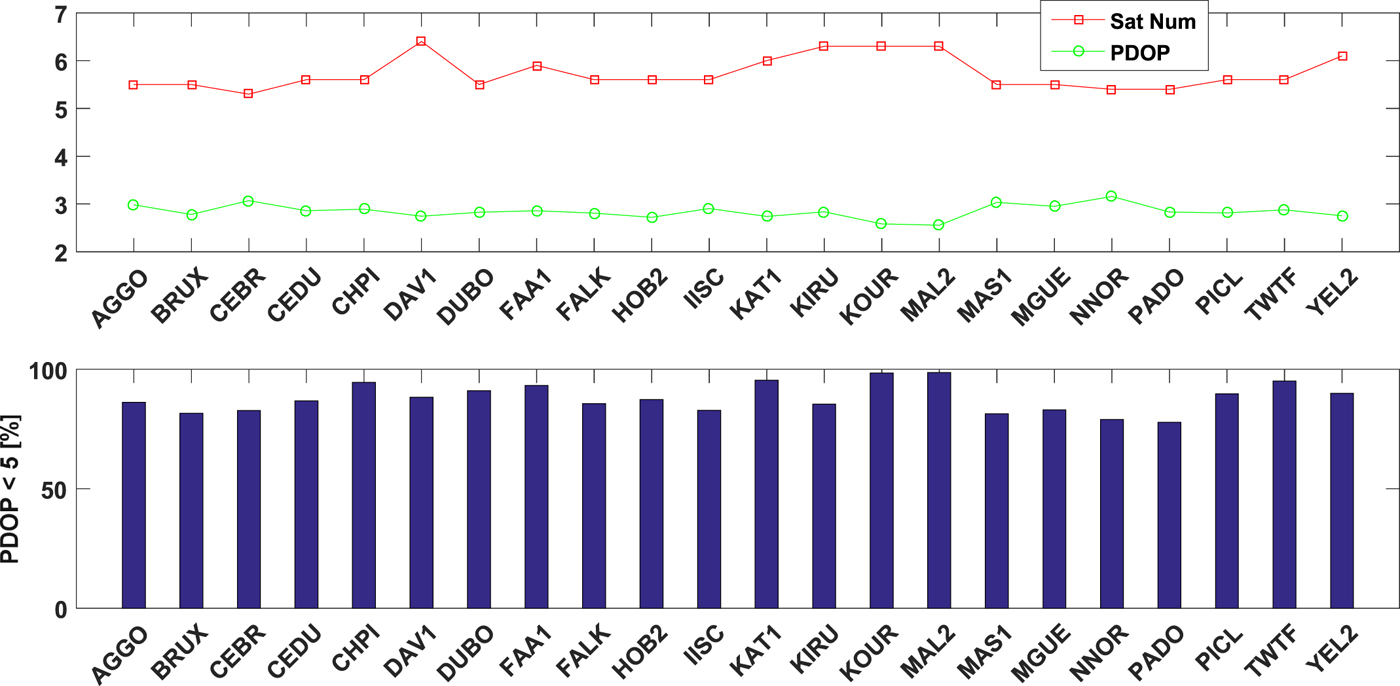

Figure 6. Mean of PDOP, visible satellites number and the percentage of PDOP less than 5·0 for 22 MGEX stations.

Figure 7 shows the RMS of SPP positioning errors under the above-mentioned different scenarios for the 22 MGEX stations in the test period, and mean RMS of single- and dual-frequency SPP positioning errors in the horizontal, vertical and Three-Dimensional (3D) components are described in Table 3.

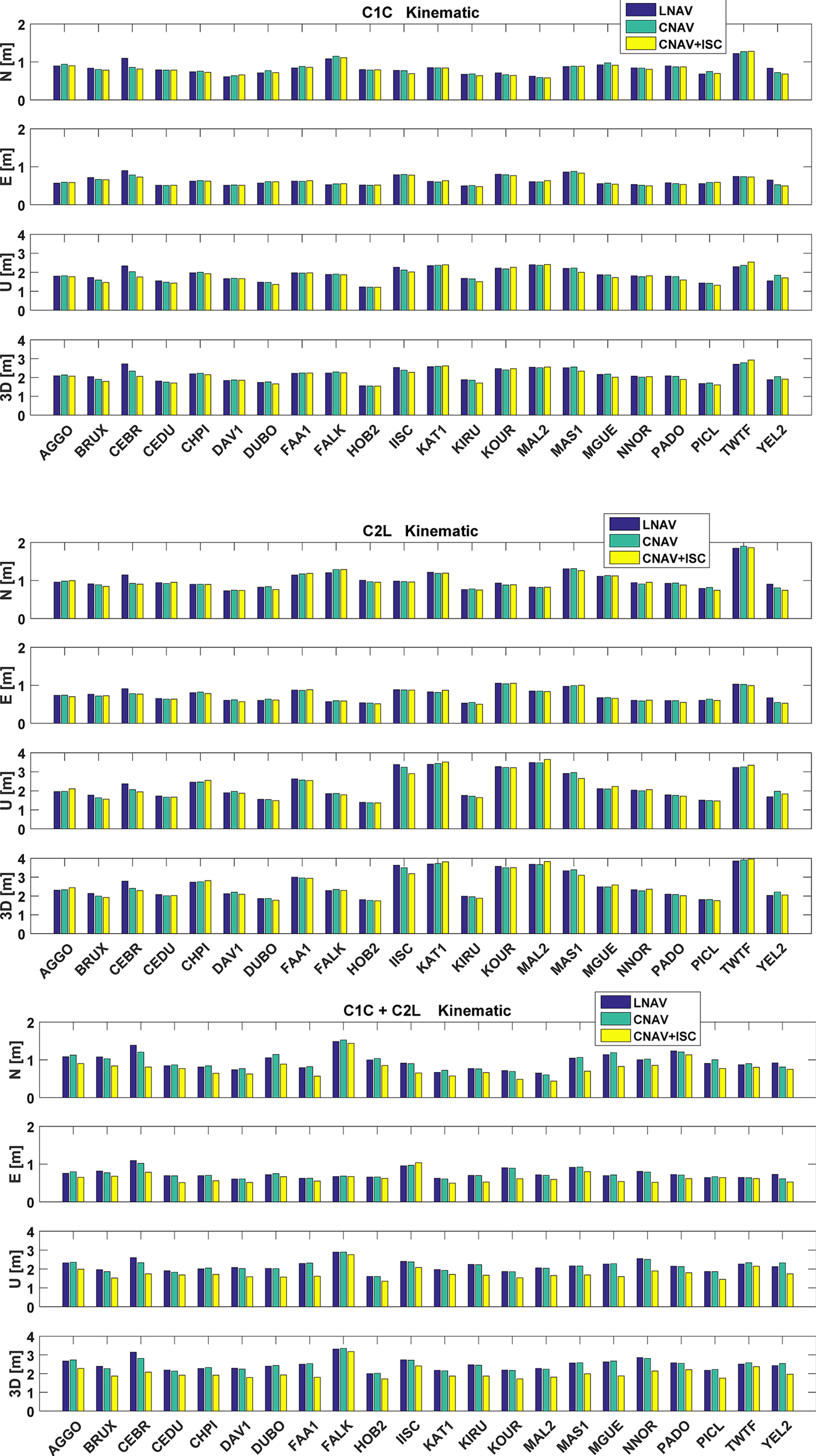

Figure 7. RMS of positioning errors in north-south, east-west, up and 3D components for 22 MGEX stations in different SPP schemes.

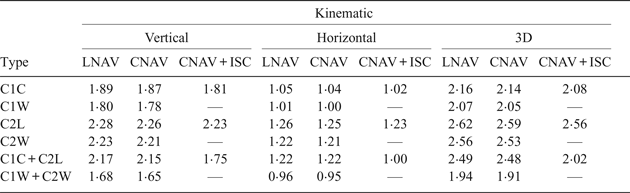

Table 3. RMS of positioning errors in different SPP schemes. All values are given in metres.

C1C/C1W and C2L/C2W-based single-frequency SPP based on LNAV-only/CNAV-only achieves the same precision as that of single-frequency SPP with the consideration of ISCs using CNAV  +  ISC. C1C/C1W-based single-frequency SPP has a precision of about 2·1 m in 3D and that of C2L/C2W is a little bit worse at around 2·6 m, due to a relatively larger range of noise.

C1C/C2L ionosphere-free combination-based dual-frequency SPP without ISC correction exhibits RMS of 1·22 m and 2·15 m in horizontal and vertical components, respectively. Considering the ISCs results in smaller positioning errors with RMS of 1·00 m in the horizontal direction and 1·75 m in the vertical and 3D RMS was improved by about 18·6%. More interestingly, the C1W/C2W ionosphere-free combination-based dual-frequency SPP under scenario 3, where no ISCs corrections were applied, achieved the best precision among all scenarios. Its position RMS is less than 1·00 m and 1·70 m in horizontal and vertical directions, respectively. This implies that the ISCs of C1W and C2W may be quite close and thus they have little impact on SPP.
