2.1 Description of the problem

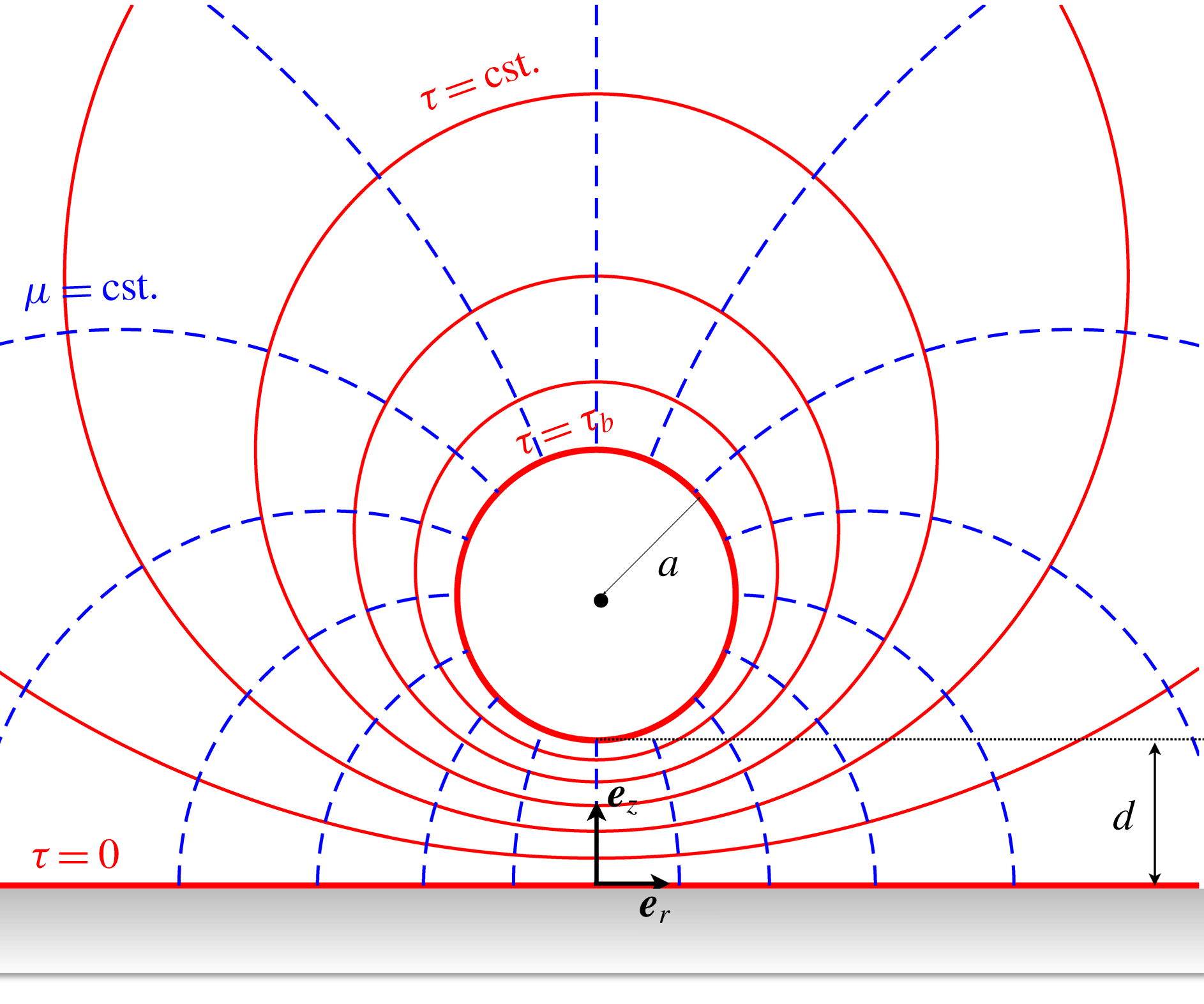

Figure 1. Schematic of the problem along with the bi-spherical coordinate system. The surface of the bubble (respectively the wall) corresponds to $\unicode[STIX]{x1D70F}=\unicode[STIX]{x1D70F}_{b}$ (respectively $\unicode[STIX]{x1D70F}=0$ );  $a$ and $d$ are the bubble’s radius and minimum distance to the wall, respectively.

We consider here the fluid motion and resulting displacement of a growing gas bubble initially located at a distance $d_{0}^{\ast }$ from a fixed flat infinite, rigid boundary $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{w}$ , with infinitesimal initial radius $a_{0}^{\ast }\ll d_{0}^{\ast }$ . At a given time $t$ , the radius of the growing bubble is noted $a^{\ast }(t)$ and the shortest distance from the wall to its surface is noted $d^{\ast }(t)$ (see figure 1). The fluid has mass density $\unicode[STIX]{x1D70C}$ and dynamic viscosity $\unicode[STIX]{x1D702}$ . The rate of change ${\dot{a}}^{\ast }(t)$ of the bubble radius is prescribed here with a characteristic magnitude $U^{\ast }$ , and may result from gas dissolution within the bulk fluid or phase transition (e.g. evaporation) at the liquid–gas interface. Inertial effects and bubble deformation are neglected (i.e. $Re=U^{\ast }d_{0}^{\ast }/\unicode[STIX]{x1D708}\ll 1$ and $Ca=\unicode[STIX]{x1D702}U^{\ast }/\unicode[STIX]{x1D6FE}\ll 1$ , with $\unicode[STIX]{x1D708}=\unicode[STIX]{x1D702}/\unicode[STIX]{x1D70C}$ the kinematic viscosity and $\unicode[STIX]{x1D6FE}$ the surface tension). Since buoyancy forces scale with the volume of the bubble while hydrodynamic forces scale with its radius, buoyancy effects are also negligible for sufficiently small bubbles, $a^{\ast }\ll \sqrt{\unicode[STIX]{x1D702}U^{\ast }/\unicode[STIX]{x1D70C}g}$ with $g$ the gravitational acceleration, and the bubble in that case is hydrodynamically force free.

In the following, $U^{\ast }$ and $d_{0}^{\ast }$ are chosen as characteristic velocity and length scales, respectively, and the typical hydrodynamic pressure scales as $\unicode[STIX]{x1D702}U^{\ast }/d_{0}^{\ast }$ . The non-dimensional kinematic variables are $a(t)=a^{\ast }(t)/d_{0}^{\ast }$ and $d(t)=d^{\ast }(t)/d_{0}^{\ast }$ . The initial distance to the wall is now $d_{0}=1$ . The resulting viscous hydrodynamic problem for the flow velocity, $\boldsymbol{u}$ , and dynamic pressure, $p$ , are solutions of the incompressible Stokes equations, written in non-dimensional form as

(2.1a,b ) $$\begin{eqnarray}\unicode[STIX]{x1D6FB}^{2}\boldsymbol{u}=\unicode[STIX]{x1D735}p,\quad \unicode[STIX]{x1D735}\boldsymbol{\cdot }\boldsymbol{u}=0.\end{eqnarray}$$

The impermeability condition at the surface of the bubble and no-slip condition at the wall take the form

(2.2a,b ) $$\begin{eqnarray}\boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{n}=\boldsymbol{U}\boldsymbol{\cdot }\boldsymbol{n}+{\dot{a}}\quad \text{on }\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{b},\quad \boldsymbol{u}=0\quad \text{on }\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{w},\end{eqnarray}$$

with $\boldsymbol{n}$ the local unit normal vector pointing into the liquid domain and $\boldsymbol{U}=({\dot{a}}+{\dot{d}})\boldsymbol{e}_{z}$ the translation velocity of the centre of the bubble and we use $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{b}$ and $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{w}$ to denote the surface of the bubble and the wall, respectively.

To close the problem for $(\boldsymbol{u},p,\boldsymbol{U})$ , an additional condition must be applied on each boundary in order to describe the nature of the surface (e.g. perfect slip, no slip  $\ldots$ ). To account for impurity of the bubble and present a generic framework, we assume in the following a slip-length model

(2.3) $$\begin{eqnarray}(\boldsymbol{I}-\boldsymbol{n}\boldsymbol{n})\boldsymbol{\cdot }(\boldsymbol{u}-\boldsymbol{u}_{ref})=\unicode[STIX]{x1D706}(\boldsymbol{I}-\boldsymbol{n}\boldsymbol{n})\boldsymbol{\cdot }(\unicode[STIX]{x1D735}\boldsymbol{u}+\unicode[STIX]{x1D735}\boldsymbol{u}^{\text{T}})\boldsymbol{\cdot }\boldsymbol{n}\quad \text{on }\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{b},\end{eqnarray}$$

where $\unicode[STIX]{x1D706}$ is the slip length on the bubble, which characterises the purity of the interface: $\unicode[STIX]{x1D706}=\infty$ corresponds to a perfect slip condition and a ‘clean’ bubble, while $\unicode[STIX]{x1D706}=0$ is equivalent to an inflating spherical shell (e.g. armoured bubble with large surface concentration of surfactants). In what follows, it will also be referred to as the ‘rigid shell’ limit: for an inflating sphere, this should be understood as a system for which the relative tangential velocity (i.e. in the moving frame of its centre) is strictly zero while the relative normal velocity is given by ${\dot{a}}$ . In the previous equation, $\boldsymbol{u}_{ref}=\boldsymbol{U}+{\dot{a}}\boldsymbol{n}$ is the reference velocity of the rigid shell from which the slip-length model is defined. Finally, the flow velocity must satisfy the no-slip boundary condition, i.e. $\boldsymbol{u}=0$ on the wall, $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{w}$ .

Importantly, we assume throughout this work that the value of the slip length $\unicode[STIX]{x1D706}$ remains constant. If the slip length was used as model for the behaviour of the surface in the presence of surfactants, clearly one would expect the value of $\unicode[STIX]{x1D706}$ to vary during the growth process, which would require a more detailed treatment of the surface boundary conditions. Yet, the presence of slip, despite being taken as constant in this paper, allows us to treat a range of problems within a unique mathematical formulation and, as we will see below, to illustrate the singular nature of clean bubbles.

At each instant $t$ independently, the velocity and pressure fields are obtained by solving the hydrodynamic problem prescribed by the instantaneous geometry, $a(t)$ and $d(t)$ , and the instantaneous translation velocity ${\dot{d}}(t)$ and inflation rate ${\dot{a}}(t)$ . The total hydrodynamic force on the bubble is then computed by integrating the hydrodynamic stress on the bubble surface. Since the problem is axisymmetric, we may write $\boldsymbol{F}=F\boldsymbol{e}_{z}$ and using the linearity and instantaneous nature of the Stokes flow problem, it can be expressed as

(2.4) $$\begin{eqnarray}F=\boldsymbol{e}_{z}\boldsymbol{\cdot }\int _{\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{b}}\unicode[STIX]{x1D748}\boldsymbol{\cdot }\boldsymbol{n}\,\text{d}S=C_{T}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})a{\dot{d}}+C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})a{\dot{a}},\end{eqnarray}$$

where $C_{T}$ and $C_{I}$ are the non-dimensional force coefficients associated with the translation of the bubble (holding its radius $a$ constant) and the increase of its radius (holding the minimum bubble–wall distance $d$ constant), respectively, and which only depend on the relative magnitude of the three lengths characterising the instantaneous problem, namely the gap width $d$ , the bubble radius $a$ and the constant slip length $\unicode[STIX]{x1D706}$ (i.e. the reference length scale $d_{0}$ associated with the initial condition is irrelevant here). Hence, we define them as functions of the instantaneous relative gap width $\unicode[STIX]{x1D700}=d/a$ and reduced slip length $\tilde{\unicode[STIX]{x1D706}}=\unicode[STIX]{x1D706}/a$ .

2.2 Bi-spherical coordinates

The viscous flow resulting from the motion of two spherical bodies, or of one sphere next to a wall, in an otherwise quiescent fluid can be obtained analytically in bi-spherical coordinates (Stimson & Jeffery Reference Stimson and Jeffery1926), and has in fact been used extensively to obtain the forces and fluid dynamics around bubbles or rigid spheres (Brenner Reference Brenner1961; O’Neill Reference O’Neill1964; Cooley & O’Neill Reference Cooley and O’Neill1969; Haber, Hetsroni & Solan Reference Haber, Hetsroni and Solan1973). However, these previous studies consider specifically spheres of constant volume. The classical framework needs therefore to be adapted here to account for the growth of the bubble.

The geometry of a single spherical particle near a flat wall is conveniently described using bi-spherical coordinates $(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707},\unicode[STIX]{x1D719})$ , obtained from the classical cylindrical polar coordinates $(r,\unicode[STIX]{x1D719},z)$ associated with the axis of symmetry of the problem (figure 1), as

(2.5a,b ) $$\begin{eqnarray}r=\frac{k\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}},\quad z=\frac{k\sinh \unicode[STIX]{x1D70F}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}},\end{eqnarray}$$

with $k$ a scaling constant defined from the problem’s geometry, equation (2.9), and metric coefficients and unit vectors defined from $\unicode[STIX]{x2202}\boldsymbol{x}/\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}=h_{\unicode[STIX]{x1D70F}}\boldsymbol{e}_{\unicode[STIX]{x1D70F}}$ , etc. as

(2.6a,b ) $$\begin{eqnarray}\hspace{-84.0pt}\boldsymbol{e}_{\unicode[STIX]{x1D70F}}=\frac{1-\unicode[STIX]{x1D707}\cosh \unicode[STIX]{x1D70F}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}}\boldsymbol{e}_{z}-\frac{\sinh \unicode[STIX]{x1D70F}\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}}\boldsymbol{e}_{r},\quad \hspace{0.47992pt}h_{\unicode[STIX]{x1D70F}}=\frac{k}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}},\end{eqnarray}$$

(2.7a,b ) $$\begin{eqnarray}\boldsymbol{e}_{\unicode[STIX]{x1D707}}=\frac{\sinh \unicode[STIX]{x1D70F}\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}}\boldsymbol{e}_{z}+\frac{1-\unicode[STIX]{x1D707}\cosh \unicode[STIX]{x1D70F}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}}\boldsymbol{e}_{r},\quad h_{\unicode[STIX]{x1D707}}=\frac{k}{(\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707})\sqrt{1-\unicode[STIX]{x1D707}^{2}}},\end{eqnarray}$$

(2.8a,b ) $$\begin{eqnarray}\hspace{-84.0pt}\boldsymbol{e}_{\unicode[STIX]{x1D719}}=-\cos \unicode[STIX]{x1D719}\,\boldsymbol{e}_{x}+\sin \unicode[STIX]{x1D719}\,\boldsymbol{e}_{y},\quad \hspace{67.20007pt}h_{\unicode[STIX]{x1D719}}=\frac{k\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707}}.\end{eqnarray}$$

In what follows, we consider an axisymmetric problem so all the fields are independent of $\unicode[STIX]{x1D719}$ . The surface of the bubble is defined by $\unicode[STIX]{x1D70F}=\unicode[STIX]{x1D70F}_{b}>0$ while the confining boundary corresponds to $\unicode[STIX]{x1D70F}=\unicode[STIX]{x1D70F}_{w}=0$ . Hence, in (2.5) the semi-infinite fluid domain corresponds to $(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})\in [\unicode[STIX]{x1D70F}_{w},\unicode[STIX]{x1D70F}_{b}]\times [-1,1]$ . Note that the configuration of a curved obstacle could be easily described using the same framework by taking $\unicode[STIX]{x1D70F}_{w}\neq 0$ .

The constants $k$ and $\unicode[STIX]{x1D70F}_{b}$ are determined uniquely from the radius $a$ of the particle and the minimum distance $d$ to the wall, specifically

(2.9a,b ) $$\begin{eqnarray}k=\sqrt{d(d+2a)},\quad \cosh \unicode[STIX]{x1D70F}_{b}=1+\frac{d}{a}.\end{eqnarray}$$

2.3 Viscous flow and forces on an inflating bubble near a confining boundary

The general axisymmetric solution of Stokes equation outside an inflating bubble can be written as the sum of a potential and viscous contributions, $\boldsymbol{u}=\boldsymbol{u}^{pot}+\boldsymbol{u}^{visc}$ (Michelin, Guérin & Lauga Reference Michelin, Guérin and Lauga2018), where

(2.10) $$\begin{eqnarray}\boldsymbol{u}^{pot}=\unicode[STIX]{x1D735}\unicode[STIX]{x1D711},\quad \unicode[STIX]{x1D711}=-\frac{Q\,\text{e}^{\unicode[STIX]{x1D70F}/2}(\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707})^{1/2}}{k\sqrt{2}},\end{eqnarray}$$

with $Q=a^{2}{\dot{a}}$ leads to a potential flow solution accounting for the net volume change of the bubble, and $\boldsymbol{u}^{visc}$ is the classical axisymmetric volume-preserving solution obtained by Stimson & Jeffery (Reference Stimson and Jeffery1926) defined in terms of the axisymmetric streamfunction $\unicode[STIX]{x1D713}$ as

(2.11) $$\begin{eqnarray}\unicode[STIX]{x1D713}=\frac{\unicode[STIX]{x1D712}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})}{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{3/2}},\quad \text{with }\unicode[STIX]{x1D712}=\mathop{\sum }_{n=1}^{\infty }V_{n}(\unicode[STIX]{x1D707})U_{n}(\unicode[STIX]{x1D70F})\quad \text{and }\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})=\cosh \unicode[STIX]{x1D70F}-\unicode[STIX]{x1D707},\end{eqnarray}$$

and, noting $P_{n}(\unicode[STIX]{x1D707})$ the Legendre polynomial of degree $n$ ,

(2.12) $$\begin{eqnarray}V_{n}(\unicode[STIX]{x1D707})=P_{n-1}(\unicode[STIX]{x1D707})-P_{n+1}(\unicode[STIX]{x1D707})=\frac{2n+1}{n(n+1)}(1-\unicode[STIX]{x1D707}^{2})P_{n}^{\prime }(\unicode[STIX]{x1D707}),\end{eqnarray}$$

(2.13) $$\begin{eqnarray}\displaystyle U_{n}(\unicode[STIX]{x1D70F}) & = & \displaystyle A_{n}\cosh \left(n-{\textstyle \frac{1}{2}}\right)\unicode[STIX]{x1D70F}+B_{n}\sinh \left(n-{\textstyle \frac{1}{2}}\right)\unicode[STIX]{x1D70F}+C_{n}\cosh \left(n+{\textstyle \frac{3}{2}}\right)\unicode[STIX]{x1D70F}\nonumber\\ \displaystyle & & \displaystyle +\,D_{n}\sinh \left(n+{\textstyle \frac{3}{2}}\right)\unicode[STIX]{x1D70F}.\end{eqnarray}$$

The components of the velocity field and tangential stress can be obtained directly in terms of the streamfunction $\unicode[STIX]{x1D713}$ (or $\unicode[STIX]{x1D712}$ ) and velocity potential $\unicode[STIX]{x1D711}$ as

(2.14) $$\begin{eqnarray}\displaystyle & \displaystyle u_{\unicode[STIX]{x1D70F}}=-\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{2}}{k^{2}}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D713}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}}+\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})}{k}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D711}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}}, & \displaystyle\end{eqnarray}$$

(2.15) $$\begin{eqnarray}\displaystyle & \displaystyle u_{\unicode[STIX]{x1D707}}=\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{2}}{k^{2}\sqrt{1-\unicode[STIX]{x1D707}^{2}}}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D713}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}}+\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{k}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D711}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}}, & \displaystyle\end{eqnarray}$$

(2.16) $$\begin{eqnarray}\displaystyle \unicode[STIX]{x1D70E}_{\unicode[STIX]{x1D70F}\unicode[STIX]{x1D707}} & = & \displaystyle \frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}}\left(\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})u_{\unicode[STIX]{x1D707}}}{k}\right)+\sqrt{1-\unicode[STIX]{x1D707}^{2}}\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}}\left(\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})u_{\unicode[STIX]{x1D70F}}}{k}\right)\nonumber\\ \displaystyle & = & \displaystyle \frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{3/2}}{k^{3}\sqrt{1-\unicode[STIX]{x1D707}^{2}}}\left[\frac{\unicode[STIX]{x2202}^{2}\unicode[STIX]{x1D712}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}^{2}}-(1-\unicode[STIX]{x1D707}^{2})\frac{\unicode[STIX]{x2202}^{2}\unicode[STIX]{x1D712}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}^{2}}-\frac{3\unicode[STIX]{x1D712}}{4}\left(1+\frac{2\sinh ^{2}\unicode[STIX]{x1D70F}}{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{2}}\right)\right]\nonumber\\ \displaystyle & & \displaystyle +\,\frac{\sqrt{1-\unicode[STIX]{x1D707}^{2}}}{k^{2}}\left\{\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}}\left[\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{2}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D711}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}}\right]+\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D707}}\left[\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})^{2}\frac{\unicode[STIX]{x2202}\unicode[STIX]{x1D711}}{\unicode[STIX]{x2202}\unicode[STIX]{x1D70F}}\right]\right\}.\end{eqnarray}$$

The impermeability condition on $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{b}$ (where $\boldsymbol{n}=-\boldsymbol{e}_{\unicode[STIX]{x1D70F}}$ ) and $\unicode[STIX]{x2202}\unicode[STIX]{x1D6FA}_{w}$ (where $\boldsymbol{n}=\boldsymbol{e}_{\unicode[STIX]{x1D70F}}$ ) are written respectively as

(2.17a,b ) $$\begin{eqnarray}u_{\unicode[STIX]{x1D70F}}(\unicode[STIX]{x1D70F}_{b})=\boldsymbol{u}\boldsymbol{\cdot }\boldsymbol{e}_{\unicode[STIX]{x1D70F}}=({\dot{a}}+{\dot{d}})\boldsymbol{e}_{z}\boldsymbol{\cdot }\boldsymbol{e}_{\unicode[STIX]{x1D70F}}-{\dot{a}},\quad u_{\unicode[STIX]{x1D70F}}(0)=0.\end{eqnarray}$$

These can be integrated along each boundary to obtain $\unicode[STIX]{x1D712}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})$ and $\unicode[STIX]{x1D712}(0,\unicode[STIX]{x1D707})$ (by symmetry, the vertical axis is always a streamline so that $\unicode[STIX]{x1D712}=0$ for $\unicode[STIX]{x1D707}=-1$ ) as

(2.18) $$\begin{eqnarray}\unicode[STIX]{x1D712}(0,\unicode[STIX]{x1D707})=\frac{Q(1-\unicode[STIX]{x1D707})}{\sqrt{2}}\left[3\sqrt{\frac{1-\unicode[STIX]{x1D707}}{2}}-(2-\unicode[STIX]{x1D707})\right],\end{eqnarray}$$

(2.19) $$\begin{eqnarray}\displaystyle \unicode[STIX]{x1D712}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})\! & = & \displaystyle \!-\frac{Q\text{e}^{\unicode[STIX]{x1D70F}_{b}/2}}{\sqrt{2}}\left[\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{2}-\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{3/2}\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},-1)^{1/2}+\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})-\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{3/2}}{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},-1)^{1/2}}\right]\nonumber\\ \displaystyle & & \displaystyle +\,Q\sinh ^{2}\unicode[STIX]{x1D70F}_{b}\!\left[\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{1/2}-\frac{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{3/2}}{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},-1)}-\frac{1-\unicode[STIX]{x1D707}^{2}}{2\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{1/2}}\!\right]\!-\frac{k^{2}{\dot{d}}(1-\unicode[STIX]{x1D707}^{2})}{2\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{1/2}},\nonumber\\ \displaystyle & & \displaystyle\end{eqnarray}$$

with $\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F},\unicode[STIX]{x1D707})$ defined in (2.11). Projecting (2.18) and (2.19) onto $P_{n}^{\prime }(\unicode[STIX]{x1D707})$ leads to

(2.20) $$\begin{eqnarray}U_{n}(0)=\frac{3Q\sqrt{2}}{(2n-1)(2n+1)(2n+3)}-\frac{\unicode[STIX]{x1D6FF}_{n1}Q\sqrt{2}}{3},\end{eqnarray}$$

(2.21) $$\begin{eqnarray}\displaystyle U_{n}(\unicode[STIX]{x1D70F}_{b}) & = & \displaystyle -\frac{3Q\sqrt{2}}{4(2n+1)}\left[\frac{\text{e}^{-(n+3/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n+3}-\frac{\text{e}^{-(n-1/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n-1}\right]\nonumber\\ \displaystyle & & \displaystyle \times \,\left(1+2\sinh ^{2}\frac{\unicode[STIX]{x1D70F}_{b}}{2}-\frac{2n(n+1)\sinh ^{2}\unicode[STIX]{x1D70F}_{b}}{3}\right)\nonumber\\ \displaystyle & & \displaystyle +\,\frac{Q\sqrt{2}\sinh ^{2}\unicode[STIX]{x1D70F}_{b}}{2(2n+1)}\text{e}^{-(n+1/2)|\unicode[STIX]{x1D70F}_{b}|}-\frac{\unicode[STIX]{x1D6FF}_{n1}Q\text{e}^{\unicode[STIX]{x1D70F}_{b}/2}\sqrt{2}}{3}\nonumber\\ \displaystyle & & \displaystyle -\,\frac{k^{2}n(n+1)\sqrt{2}}{2(2n+1)}\left[\frac{\text{e}^{-(n-1/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n-1}-\frac{\text{e}^{-(n+3/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n+3}\right]{\dot{d}}.\end{eqnarray}$$

The no-slip condition at the wall and slip condition on the surface of the bubble are respectively given by

(2.22a,b ) $$\begin{eqnarray}u_{\unicode[STIX]{x1D707}}(0,\unicode[STIX]{x1D707})=0,\quad -\unicode[STIX]{x1D706}\unicode[STIX]{x1D70E}_{\unicode[STIX]{x1D70F}\unicode[STIX]{x1D707}}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})=u_{\unicode[STIX]{x1D707}}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})-({\dot{a}}+{\dot{d}})\,\boldsymbol{e}_{\unicode[STIX]{x1D707}}\boldsymbol{\cdot }\boldsymbol{e}_{z},\end{eqnarray}$$

which can be rewritten respectively as

(2.23) $$\begin{eqnarray}\mathop{\sum }_{m=1}^{\infty }V_{m}(\unicode[STIX]{x1D707})U_{m}^{\prime }(0)=-\frac{Q}{2\sqrt{2}}(1-\unicode[STIX]{x1D707}^{2}),\end{eqnarray}$$

and

(2.24) $$\begin{eqnarray}\displaystyle & & \displaystyle \mathop{\sum }_{m=1}^{\infty }V_{m}(\unicode[STIX]{x1D707})\left\{-\unicode[STIX]{x1D706}\left[U_{m}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})+\left(m-\frac{1}{2}\right)\!\!\left(m+\frac{3}{2}\right)U_{m}(\unicode[STIX]{x1D70F}_{b})\right]\!\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{2}-k\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})U_{m}^{\prime }(\unicode[STIX]{x1D70F}_{b})\right.\nonumber\\ \displaystyle & & \displaystyle \quad +\left.\frac{3\sinh \unicode[STIX]{x1D70F}_{b}}{2}(k+\unicode[STIX]{x1D706}\sinh \unicode[STIX]{x1D70F}_{b})U_{m}(\unicode[STIX]{x1D70F}_{b})\right\}=\frac{Q\text{e}^{\unicode[STIX]{x1D70F}_{b}/2}}{2\sqrt{2}}(1-\unicode[STIX]{x1D707}^{2})\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})[3\unicode[STIX]{x1D706}(\text{e}^{-\unicode[STIX]{x1D70F}_{b}}-\unicode[STIX]{x1D707})+k]\nonumber\\ \displaystyle & & \displaystyle \quad -\,\frac{k\sinh \unicode[STIX]{x1D70F}_{b}(1-\unicode[STIX]{x1D707}^{2})}{\unicode[STIX]{x0394}(\unicode[STIX]{x1D70F}_{b},\unicode[STIX]{x1D707})^{1/2}}(Q\sinh ^{2}\unicode[STIX]{x1D70F}_{b}+k^{2}{\dot{d}}).\end{eqnarray}$$

Projecting these two equations along $P_{n}^{\prime }(\unicode[STIX]{x1D707})$ , and using (2.14)–(2.16) leads to

(2.25a,b ) $$\begin{eqnarray}U_{1}^{\prime }(0)=-\frac{Q}{3\sqrt{2}},\quad U_{n\geqslant 2}^{\prime }(0)=0,\end{eqnarray}$$

and

(2.26) $$\begin{eqnarray}\displaystyle & & \displaystyle -\unicode[STIX]{x1D706}\!\left[\cosh ^{2}\unicode[STIX]{x1D70F}_{b}+\frac{2n^{2}+2n-3}{(2n-1)(2n+3)}\right]\!\tilde{U} _{n}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})+2\unicode[STIX]{x1D706}\cosh \unicode[STIX]{x1D70F}_{b}\!\left[\frac{(n+1)\tilde{U} _{n-1}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})+n\tilde{U} _{n+1}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})}{2n+1}\right]\nonumber\\ \displaystyle & & \displaystyle \quad -\,\frac{\unicode[STIX]{x1D706}n(n+1)}{2n+1}\left[\frac{\tilde{U} _{n+2}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})}{2n+3}+\frac{\tilde{U} _{n-2}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})}{2n-1}\right]+\frac{(n+1)kU_{n-1}^{\prime }(\unicode[STIX]{x1D70F}_{b})+nkU_{n+1}^{\prime }(\unicode[STIX]{x1D70F}_{b})}{2n+1}\nonumber\\ \displaystyle & & \displaystyle \quad -\,k\cosh \unicode[STIX]{x1D70F}_{b}\,U_{n}^{\prime }(\unicode[STIX]{x1D70F}_{b})+\frac{3\sinh \unicode[STIX]{x1D70F}_{b}}{2}(\unicode[STIX]{x1D706}\sinh \unicode[STIX]{x1D70F}_{b}+1)U_{n}(\unicode[STIX]{x1D70F}_{b})=f_{n}(\unicode[STIX]{x1D707}),\end{eqnarray}$$

with

(2.27) $$\begin{eqnarray}\displaystyle f_{n}(\unicode[STIX]{x1D707}) & = & \displaystyle -k\sinh \unicode[STIX]{x1D70F}_{b}\left(\frac{n(n+1)\sqrt{2}}{2n+1}\right)\left[\frac{\text{e}^{-(n-1/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n-1}-\frac{\text{e}^{-(n+3/2)|\unicode[STIX]{x1D70F}_{b}|}}{2n+3}\right](k^{2}{\dot{d}}+Q\sinh ^{2}\unicode[STIX]{x1D70F}_{b})\nonumber\\ \displaystyle & & \displaystyle +\,\frac{Q\text{e}^{\unicode[STIX]{x1D70F}_{b}/2}}{2\sqrt{2}}\left[(k+3\unicode[STIX]{x1D706}\sinh \unicode[STIX]{x1D70F}_{b})\left(\frac{2}{3}\cosh \unicode[STIX]{x1D70F}_{b}\unicode[STIX]{x1D6FF}_{n,1}-\frac{2}{5}\unicode[STIX]{x1D6FF}_{n,2}\right)\right.\nonumber\\ \displaystyle & & \displaystyle +\left.3\unicode[STIX]{x1D706}\left(\frac{10\cosh ^{2}\unicode[STIX]{x1D70F}_{b}+2}{15}\unicode[STIX]{x1D6FF}_{n,1}-\frac{4}{5}\cosh \unicode[STIX]{x1D70F}_{b}\unicode[STIX]{x1D6FF}_{n,2}+\frac{8}{35}\unicode[STIX]{x1D6FF}_{n,3}\right)\right],\end{eqnarray}$$

(2.28) $$\begin{eqnarray}\hspace{-180.60004pt}\tilde{U} _{n}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})=U_{n}^{\prime \prime }(\unicode[STIX]{x1D70F}_{b})+\left(n-{\textstyle \frac{1}{2}}\right)\left(n+{\textstyle \frac{3}{2}}\right)U_{n}(\unicode[STIX]{x1D70F}_{b}).\end{eqnarray}$$

Truncating the expansion of the streamfunction $\unicode[STIX]{x1D713}$ , equation (2.11), to the first $N$ modes, equations (2.20), (2.21), (2.25) and (2.26) provide a set of $4N\times 4N$ linear equations for the coefficients $A_{n}$ , $B_{n}$ , $C_{n}$ and $D_{n}$ defining $U_{n}(\unicode[STIX]{x1D70F})$ and the flow around the bubble uniquely as a function of $Q=a^{2}{\dot{a}}$ and ${\dot{d}}$ . In the following, $N$ was chosen sufficiently large so as to ensure that truncation errors are negligible: in practice, $N$ ranged from 100 to 1600 depending on the aspect ratio $d/a$ (thinner gaps require higher azimuthal resolution).

The potential contribution $\boldsymbol{u}^{pot}$ associated with the bubble growth does not contribute to the net force on the bubble (Michelin et al. Reference Michelin, Guérin and Lauga2018). The hydrodynamic force on the bubble therefore takes the same form as the classical result of Stimson & Jeffery (Reference Stimson and Jeffery1926)

(2.29) $$\begin{eqnarray}F=\frac{2\unicode[STIX]{x03C0}\sqrt{2}}{k}\mathop{\sum }_{n=1}^{\infty }(2n+1)(A_{n}+B_{n}+C_{n}+D_{n})=C_{T}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})a{\dot{d}}+C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})a{\dot{a}}.\end{eqnarray}$$

It should however be noted that the values of the coefficients $A_{n}$ , $B_{n}$ , $C_{n}$ and $D_{n}$ differ from those obtained by Stimson & Jeffery (Reference Stimson and Jeffery1926) as they are related to the bubble growth problem through the boundary conditions. Equation (2.29) defines the force coefficients $C_{T}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})$ and $C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})$ uniquely. For a force-free bubble ( $F=0$ for all time), this equation provides a direct relationship between the growth rate of the bubble ${\dot{a}}$ and the rate of change of its smallest distance to the confining wall ${\dot{d}}$ (or alternatively the translation velocity of its centre of mass ${\dot{a}}+{\dot{d}}$ ).

3.1 Dynamic evolution of the fluid gap width

The growth of a single force-free bubble is thus considered. At $t=0$ the bubble has an infinitesimal radius, i.e. $a(0)=a_{0}=0$ , and is located at a distance $d(0)=d_{0}=1$ from the planar rigid wall (this initial distance was chosen here as a reference length scale). For $t>0$ , the bubble radius grows (e.g. due to dissolved gas absorption or evaporation) and the bubble translates under the effect of the resulting flow. Neglecting any external force (e.g. buoyancy) on the bubble other than hydrodynamic stresses, the evolution of the fluid gap thickness $d(t)$ follows from the previous analysis by writing $F=0$ as

(3.1) $$\begin{eqnarray}\frac{\text{d}d}{\text{d}t}=-\frac{C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})}{C_{T}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})}\frac{\text{d}a}{\text{d}t}.\end{eqnarray}$$

In the previous equation, $\unicode[STIX]{x1D700}(t)\equiv d(t)/a(t)$ and $\tilde{\unicode[STIX]{x1D706}}(t)\equiv \unicode[STIX]{x1D706}/a(t)$ denote the instantaneous relative gap width and relative slip length, respectively.

Equivalently, the distance to the wall can be found as a function of the bubble radius only $d\equiv D(a)$ (for fixed initial distance $d_{0}$ and slip length $\unicode[STIX]{x1D706}$ ) and $D(a)$ satisfies

(3.2) $$\begin{eqnarray}\frac{\text{d}D}{\text{d}a}=-\frac{C_{I}(D/a,\unicode[STIX]{x1D706}/a)}{C_{T}(D/a,\unicode[STIX]{x1D706}/a)},\quad D(0)=d_{0}.\end{eqnarray}$$

The linearity and time independence of the steady Stokes equations essentially transform the problem into a purely geometric one, providing a direct link between $a$ and $d$ . Physico-chemical details determining the growth rate of the bubble will only affect the rate at which this parametric trajectory $d=D(a)$ is followed.

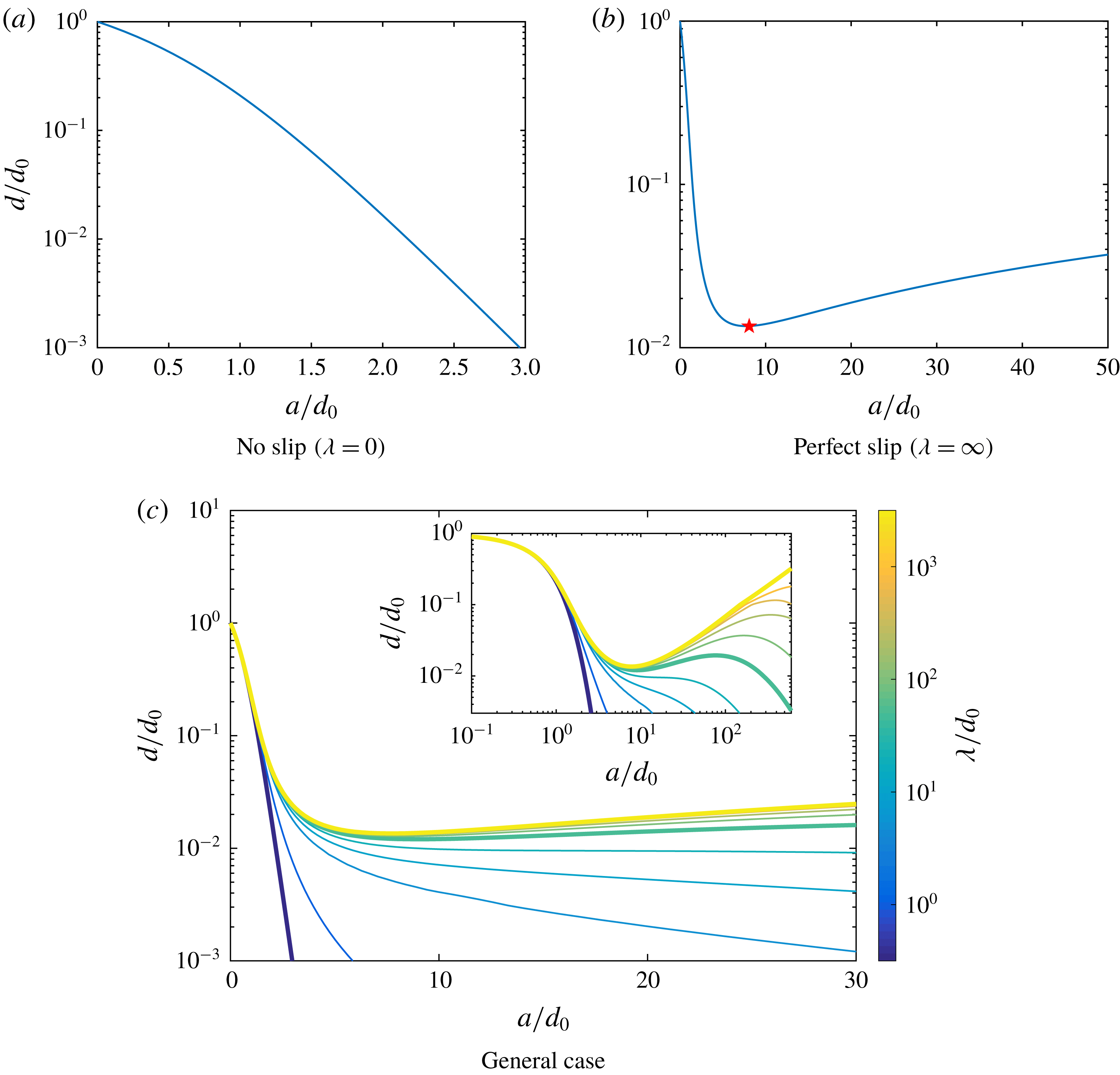

Figure 2. Evolution of the dimensionless gap width, $d/d_{0}$ , between a growing rigid shell (a, $\unicode[STIX]{x1D706}=0$ ) or clean bubble (b, $\unicode[STIX]{x1D706}=\infty$ ) and a no-slip wall for increasing radius $a$ . In (b), the red star denotes the minimum gap width $d_{min}/d_{0}\approx 1.35\,\%$ attained for $a/d_{0}\approx 8.1$ when $\unicode[STIX]{x1D706}=\infty$ . (c) Evolution of the gap width for varying $\unicode[STIX]{x1D706}/d_{0}$ . Results are shown for $\unicode[STIX]{x1D706}/d_{0}=0$ , 1, 5, 10, 20, 50, 100, 200, 500, 1000 and $\infty$ , and the three thicker lines correspond to the three configurations chosen to analyse the flow field in figure 4. Inset: results shown for a longer range of $a/d_{0}$ values.

The evolution of $d$ with the bubble radius $a$ is shown on figure 2 for different values of the slip length $\unicode[STIX]{x1D706}$ (measured in units of $d_{0}$ ). The early dynamics is identical in all cases when the bubble is still far from the wall in comparison with its radius (i.e. $d\gg a$ ). In that case, the problem is equivalent to an isolated bubble in unbounded flow, whose growth does not lead to any translation, the flow is isotropic, $\boldsymbol{u}=(a^{2}{\dot{a}}/r^{3})\boldsymbol{r}$ , for any $\unicode[STIX]{x1D706}$ , and by geometric construction ${\dot{d}}=-{\dot{a}}$ .

When the effect of confinement is significant (i.e. $d\lesssim a$ ), a fundamentally different behaviour is observed depending on the nature of the bubble boundary via the value of $\unicode[STIX]{x1D706}/d_{0}$ . In the case of a rigid spherical shell ( $\unicode[STIX]{x1D706}=0$ , no tangential slip), the gap between the sphere and the wall decreases monotonically during the growth process (figure 2 a), and the asymptotic dynamics is an exponential decay of the thin lubricating film, leading to its complete drainage in infinite time (i.e. $d\rightarrow 0$ when $a\rightarrow \infty$ ). In practice, surface roughness effects will lead to contact with the confining wall in finite time when the thickness of the film is reduced below the typical roughness scale.

A clean bubble, whose surface cannot sustain any tangential stress ( $\unicode[STIX]{x1D706}=\infty$ ), presents a strikingly different dynamics. After the early bubble growth and closing of the lubricating film, confinement effects slow down and even reverse the fluid drainage within the film when $\unicode[STIX]{x1D700}=d/a$ is small enough. A minimum value $d_{m}/d_{0}\approx 0.014$ of the fluid gap is reached for $a_{m}/d_{0}\approx 8.1$ , beyond which any further increase in bubble size leads to a reopening of the fluid gap (i.e. increasing $d(t)$ , figure 2 b). Near the axis of symmetry of the problem the net flow must therefore now be oriented inward.

For intermediate slip lengths ( $0<\unicode[STIX]{x1D706}<\infty$ ), two different behaviours are observed:

1. (I) When $\unicode[STIX]{x1D706}/d_{0}\lesssim 20$ , a monotonic drainage of the film is found, similarly to, albeit slower than, the strictly rigid limit $\unicode[STIX]{x1D706}=0$ .

2. (II) When $\unicode[STIX]{x1D706}/d_{0}\gtrsim 20$ , a rebound of the film thickness is observed at intermediate times in response to confinement. After an initial decrease of $d(t)$ with increasing bubble size, further increase of the bubble radius $a(t)$ leads to a repulsion of the bubble by the wall and an increase in the thickness of the fluid layer. This increase is however only transient, and eventually drainage is observed when $a(t)/d_{0}$ is large enough. The ‘duration’ of this transitory repulsion (in terms of the range of $a(t)$ ) is an increasing function of the value of $\unicode[STIX]{x1D706}/d_{0}$ , i.e. of the inability of the bubble surface to sustain shear stresses.

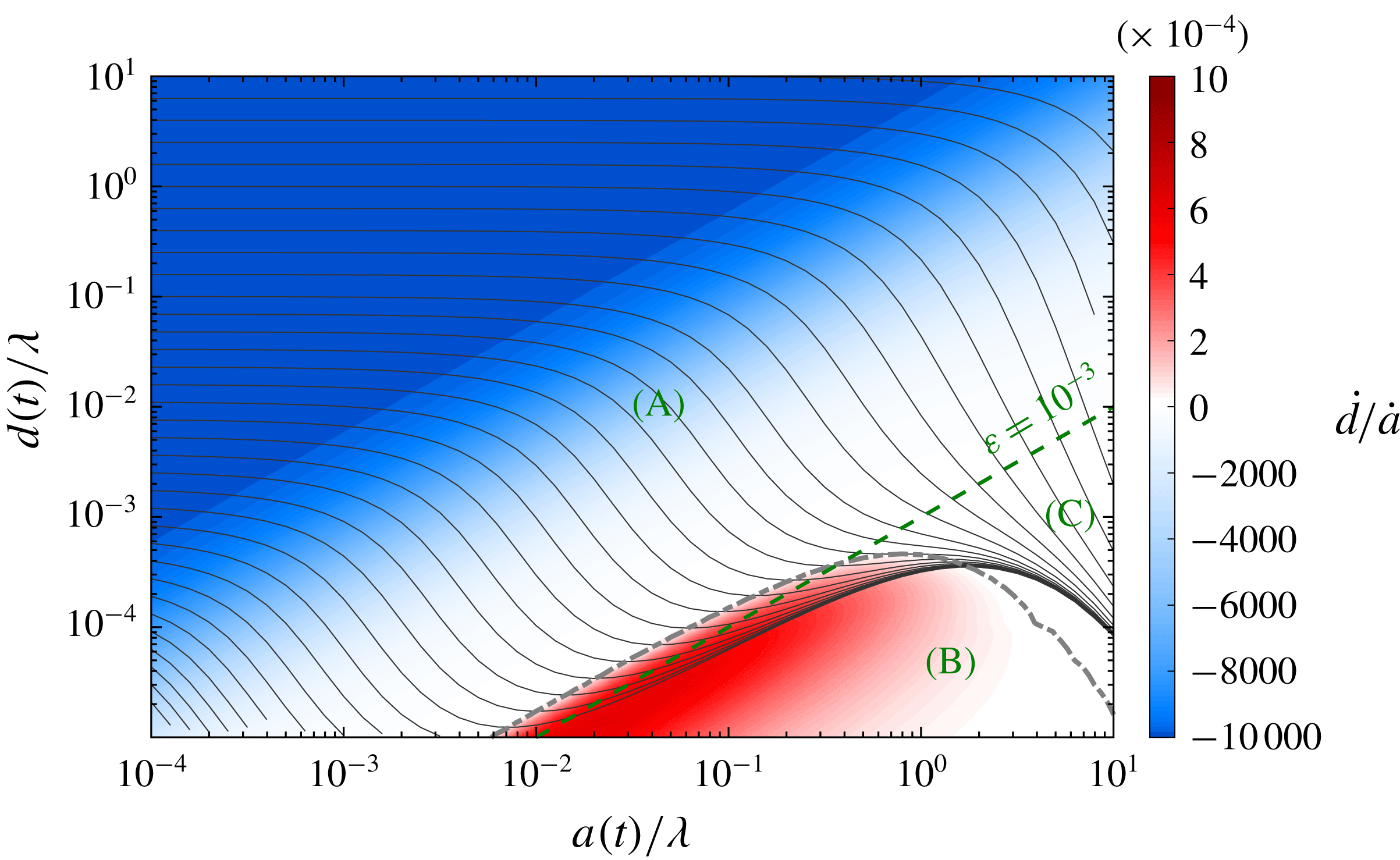

Figure 3. Phase-space trajectory ( $a(t)/\unicode[STIX]{x1D706}$ , $d(t)/\unicode[STIX]{x1D706}$ ) for different values of the initial bubble-to-wall distance $d_{0}$ (with zero initial radius, $a_{0}=0$ ) relative to the slip length $\unicode[STIX]{x1D706}$ (solid lines). The rate of change of the gap thickness ( $\text{d}D/\text{d}a={\dot{d}}/{\dot{a}}$ ) is also shown (colour) with the dash-dotted grey line marking the boundary between collapsing and expanding lubrication film. Note the difference of scales for positive and negative velocity. A line of constant relative gap width ( $\unicode[STIX]{x1D700}=d/a=10^{-3}$ ) is also shown for reference (green dashed). The three different dynamical regimes (A), (B) and (C) as well as their boundaries are also shown (see text).

These results can be alternatively presented by holding the material properties of the problem fixed, i.e. representing $d/\unicode[STIX]{x1D706}$ as a function of $a/\unicode[STIX]{x1D706}$ , with results shown in figure 3. Three different regions can be distinguished:

1. (A) $\unicode[STIX]{x1D700}=d/a\gg 10^{-3}$ : this corresponds to the regime of low confinement. As the bubble grows, the fluid layer is drained monotonically. For $\unicode[STIX]{x1D700}\gtrsim 10^{-1}$ , this drainage is approximately linear, as discussed previously. The effect of $\unicode[STIX]{x1D706}$ is only marginal and limited to the smaller values of $\unicode[STIX]{x1D700}$ when wall influence induces non-isotropic flow.

2. (B) $\unicode[STIX]{x1D700}=d/a\lesssim 10^{-3}$ and $a\ll \unicode[STIX]{x1D706}$ : in this lubrication regime, the drainage of the fluid layer is reversed (i.e. positive values of ${\dot{d}}$ or $\text{d}D/\text{d}a$ ) by the wall-induced confinement, and this corresponds to a bubble repulsion by the wall. In that region, trajectories follow approximately lines of constant $\unicode[STIX]{x1D700}$ and the growth of the fluid layer is slightly slower than that of the radius of the bubble.

3. (C) $\unicode[STIX]{x1D700}=d/a\lesssim 10^{-3}$ and $a\gg \unicode[STIX]{x1D706}$ : in this lubrication regime, monotonic film drainage is observed leading to a contact in infinite time between the bubble surface and the confining wall.

The boundary between (B) and (C) is described qualitatively above by comparing the radius of the bubble to the slip length on the bubble and we will characterise this boundary more quantitatively in § 6. For all inflating bubbles, phase-space trajectories, $D(a)$ , always initiate in region (A) and eventually end in region (C) with the final drainage of the film (and contact between the bubble and the wall) for $a=\infty$ . Depending on the initial distance relative to $\unicode[STIX]{x1D706}$ (i.e. $d_{0}/\unicode[STIX]{x1D706}$ ), phase-space trajectories may or may not cross region (B), corresponding to the two different behaviours identified in figure 2, namely a monotonic decrease of the film layer thickness (small $\unicode[STIX]{x1D706}/d_{0}$ , case I) or a transitory rebound (large $\unicode[STIX]{x1D706}/d_{0}$ , case II).

Importantly, for any $\unicode[STIX]{x1D706}\neq \infty$ , the lubrication film will therefore always asymptotically drain in infinite time. In the case of a rebound of the film thickness, how long this rebound lasts (i.e. how large a radius the bubble needs to achieve for bubble growth to lead to a decrease in the gap thickness) scales linearly with $\unicode[STIX]{x1D706}$ (in figure 3, this corresponds to the change in direction of the phase-space trajectories for $a\approx 2\unicode[STIX]{x1D706}$ ).

A surprising result can also be observed in figure 3, namely the existence of a region of the physical space (for $d/\unicode[STIX]{x1D706}\leqslant 10^{-3}$ and intermediate $a/\unicode[STIX]{x1D706}$ ) through which no trajectory originated at $a=0$ can be found. It is thus not possible to create bubbles with $(a,d)$ within this region, starting from an initially infinitesimal bubble without exerting an external force.

In practical situations, the mathematical limit $d\rightarrow 0$ is not necessarily relevant as finite roughness effects may lead to the contact between the bubble surface and the wall at a finite value of $D$ . This is equivalent to introducing a finite lower limit for $d$ at which the evolution described by this model becomes invalid. Then, two families of bubbles can be identified: bubbles initially close to the wall (small $d_{0}/\unicode[STIX]{x1D706}$ ), for which the effective contact to the wall is made rather quickly and for small bubble radius, and bubbles which start further away from the wall, and first experience a rebound in gap width before touching the wall at much larger values of  $a$ .

3.2 Flow field within the gap

In figure 4, we illustrate the evolution of the flow field around the growing bubble (and within the lubricating film) throughout the growth process for three different cases: a rigid shell (no slip), a perfectly clean bubble (no stress) and a finite slip-length condition. The comparison of these three configurations provides physical insight into the fluid dynamics processes involved both in the outer region around the bubble and within the thin fluid film in the lubrication limit.

For all three boundary conditions, the initial growth of the bubble is qualitatively similar. Streamlines point radially out of the bubble and are tilted by the presence of the wall. Quantitative details of the flow field depend weakly on the value of $\unicode[STIX]{x1D706}$ as only the non-isotropic flow is influenced by this property. This flow pattern corresponds to region (A) in figure 3.

Figure 4. Streamlines (white solid lines) and velocity magnitude (colour) around the inflating bubble/sphere for (a) $\unicode[STIX]{x1D706}/d_{0}=0$ (rigid shell), (b) $\unicode[STIX]{x1D706}/d_{0}=50$ and (c) $\unicode[STIX]{x1D706}/d_{0}=\infty$ (clean bubble), shown for $a/d_{0}=0.5$ , 2, 20 and 400 (from top to bottom). The current position of the bubble centre is shown as a black cross and the initial bubble position is shown for reference (light grey). Insets show the same information within the lubricating gap (the horizontal limits of the insets are $\pm 0.075a$ , and vertical scale is stretched so as to show the entire gap width). In all panels, the streamline $\unicode[STIX]{x1D713}=0$ is highlighted as a thick orange line indicating the boundary of recirculation regions.

The three different cases differ however in their subsequent dynamics when the thickness of the fluid layer becomes comparable or smaller than the radius of the bubble. For the rigid shell, a lubricating film is established and forced by the displacement of the sphere’s surface (remember that no slip is allowed here). As a consequence the fluid velocity is maximum in the centre of the gap and oriented outward as the film is draining. In the outer flow, a toroidal recirculation region is observed around the contact region and fluid is actually pumped (weakly) toward the inflating sphere just above the no-slip wall and at a finite distance that scales with the radius of the sphere. This flow pattern is characteristic of region (C) of figure 3.

The clean bubble limit presents a fundamentally different behaviour, once the lubricating film is established. Because the surface of the inflating bubble cannot sustain any tangential stress, it cannot force an outward flow within the lubricating film as it did in the case of a rigid shell. In the outer part of the film, the growth of the bubble indeed forces fluid out of the lubrication region but the flow is qualitatively different from the rigid shell limit as the fluid velocity reaches its maximum at the bubble’s surface (instead of the centre of the lubrication film). This outward flow (associated with a downward motion of the bubble interface) is only present outside a cylindrical recirculation region (closed streamlines) whose dimensions scale linearly with the bubble size, and increases with $\unicode[STIX]{x1D706}$ . In that region, the net displacement of the bubble surface is oriented upward. This flow pattern is characteristic of region (B) of figure 3.

In the intermediate regimes where $\unicode[STIX]{x1D706}$ is finite (but large enough for a rebound to occur), the three flow patterns associated with regimes (A)–(C) are observed successively. While the fluid gap is small but $a$ is also sufficiently small (with respect to $\unicode[STIX]{x1D706}$ ) the flow pattern observed for a bubble is found (recirculation within the lubricating film), while the final dynamics eventually returns to that of a rigid shell (recirculation region in the outer flow).

Note that figure 4 allows for a characterisation of the three regimes identified in figure 3 in terms of flow field:

1. (A) Isotropic flow near the growing bubble and far from the wall, limited displacement of the bubble centre and bending of the streamlines by the confinement.

2. (B) Lubricating film with a recirculation region whose extent is proportional to the bubble radius, the ratio being an increasing function of $\unicode[STIX]{x1D706}$ . Outward flow in the rest of the lubricating film with maximum velocity at the surface of the bubble. Outward flow in the outer region.

3. (C) Lubricating film with an outward flow within the entire film, with maximum velocity at the centre. Toroidal recirculation in the outer region close to the wall and at a finite distance from the bubble (i.e. its inner limit scales with the bubble radius).

In contrast with other classical problems involving rigid spheres and constant volume bubbles in Stokes flow in close proximity to a rigid wall, the present results identify the possibility for non-monotonic drainage of the lubricating film when the inflating bubble is increasing in size while remaining hydrodynamically force free. Clean bubbles (i.e. with perfect slip condition) in fact experience a repulsion from the wall for small film thickness, in the sense that the absolute size of the film is increasing with $a$ (the relative gap width $d/a$ is however decreasing). For finite slip length $\unicode[STIX]{x1D706}$ , this repulsion regime is experienced provided that $\unicode[STIX]{x1D706}$ is large compared to the bubble radius. For a sufficiently large bubble, the boundary of the bubble behaves again as a rigid surface and the thickness of the lubrication film decreases exponentially.

4.1 Flow forces for arbitrary gap width

The framework obtained in § 2 provides a semi-analytical definition of the force coefficients $C_{T}$ and $C_{I}$ , respectively associated with the translation of the bubble (for fixed radius $a$ ) and its growth/collapse (for fixed gap width $d$ ), for arbitrary slip length  $\unicode[STIX]{x1D706}$ .

Their evolution with the relative gap width $\unicode[STIX]{x1D700}=d/a$ and reduced slip length $\tilde{\unicode[STIX]{x1D706}}=\unicode[STIX]{x1D706}/a$ is reported on figure 5. Note that by convention $C_{T}>0$ (respectively $C_{T}<0$ ) corresponds to a hydrodynamic force pointing away from (respectively toward) the wall for a bubble translating away from the wall (i.e. ${\dot{d}}>0$ or upward), and $C_{I}>0$ (respectively $C_{I}<0$ ) corresponds to a hydrodynamic force pointing away from (respectively toward) the wall for a growing bubble ( ${\dot{a}}>0$ ). As for $C_{T}$ , $C_{I}<0$ corresponds to the intuitive resistance behaviour of Stokes flow to the general upward motion of the bubble (for ${\dot{d}}=0$ , the upper half and most of the rest of the bubble surface is moving upward, pushing fluid in that direction).

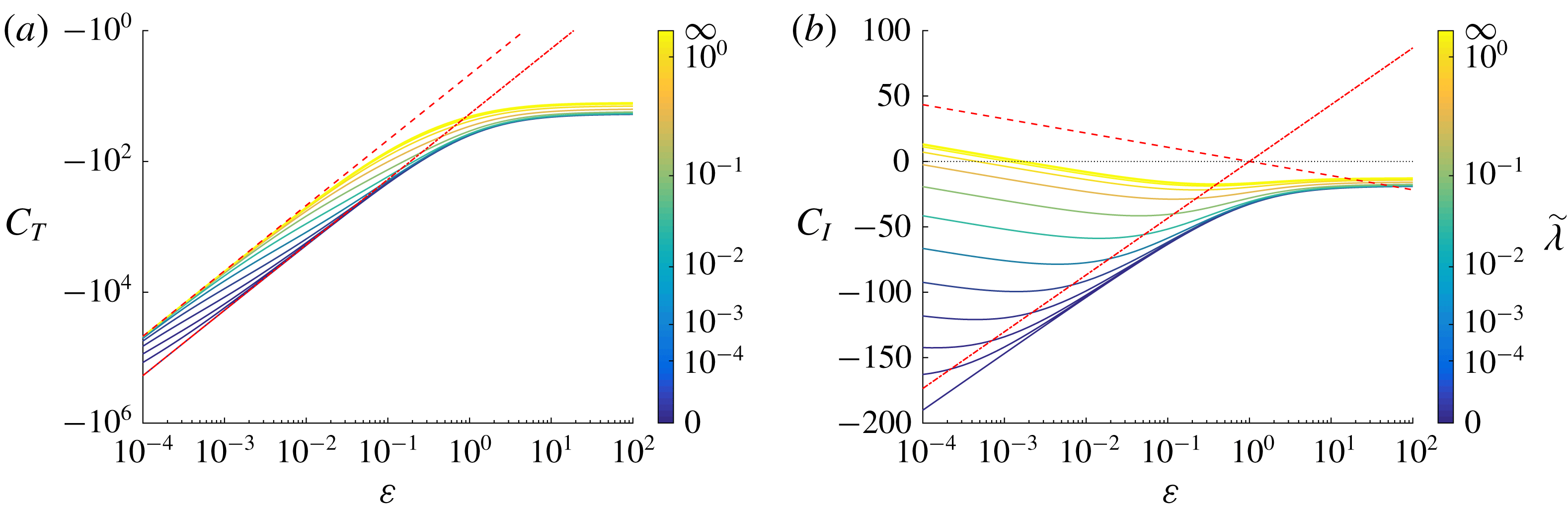

Figure 5. Dependence of the force coefficients associated with (a) upward translation of the bubble (fixed radius $a$ ) and (b) growth of the bubble (fixed gap width $d$ ) on the relative gap width, $\unicode[STIX]{x1D700}=d/a$ , and reduced slip length, $\tilde{\unicode[STIX]{x1D706}}=\unicode[STIX]{x1D706}/a$ . The leading-order asymptotic approximations obtained in § 5 for a perfectly clean bubble ( $\tilde{\unicode[STIX]{x1D706}}=\infty$ ) and rigid spherical shell ( $\tilde{\unicode[STIX]{x1D706}}=0$ ) are shown in red dashed and dash-dotted lines respectively.

Inspecting the results in figure 5, we see that the translation of the bubble always results in a resistive hydrodynamic force ( $C_{T}<0$ ) that diverges when the bubble is close to the wall, as expected. The scaling in ${\sim}1/\unicode[STIX]{x1D700}$ is consistent with classical results on the dynamics of thin viscous fluid films (Kim & Karilla Reference Kim and Karilla1991; Leal Reference Leal2007). For the limiting cases of a perfectly clean bubble ( $\tilde{\unicode[STIX]{x1D706}}=\infty$ ) and rigid spherical shell ( $\tilde{\unicode[STIX]{x1D706}}=0$ ), the results are found in excellent quantitative agreement with the leading-order asymptotic expansion provided by the lubrication analysis presented in § 5 (see also Leal Reference Leal2007). In particular, the magnitude of the drag on a clean bubble is a quarter of that on a spherical shell.

For $0<\tilde{\unicode[STIX]{x1D706}}<\infty$ (i.e. intermediate slip lengths), the behaviour of the force coefficient transitions from one limit to the other for $\unicode[STIX]{x1D700}\sim \tilde{\unicode[STIX]{x1D706}}$ . This can be understood as follows: the hydrodynamic force on the bubble (or at least its correction to its unbounded value) is dominated by the effect of the wall, and the physical behaviour of the boundary is conditioned by the relative magnitude of the slip length $\unicode[STIX]{x1D706}$ and the distance to the wall $d$ . For $d\ll \unicode[STIX]{x1D706}$ (i.e. $\unicode[STIX]{x1D700}\ll \tilde{\unicode[STIX]{x1D706}}$ ), the surface of the bubble appears effectively clean and the problem is identical to that of the perfect-slip limit $\unicode[STIX]{x1D706}=\infty$ , while for $d\gg \unicode[STIX]{x1D706}$ (i.e. $\unicode[STIX]{x1D700}\gg \tilde{\unicode[STIX]{x1D706}}$ ), the surface of the bubble is effectively rigid and the rigid shell limit is recovered.

The force coefficient associated with bubble growth ( $C_{I}$ ) displays more complex variations. Its general scaling in $\log \unicode[STIX]{x1D700}$ diverges more slowly than $C_{T}$ for small gap, as expected since the minimum gap width is held fixed. Here, the no-slip ( $\tilde{\unicode[STIX]{x1D706}}=0$ ) and perfect-slip ( $\tilde{\unicode[STIX]{x1D706}}=\infty$ ) limits display fundamentally different behaviours. The no-slip case results in a negative hydrodynamic force (with ${\dot{a}}>0$ ), which increases in magnitude as the gap width $\unicode[STIX]{x1D700}$ is reduced. This is the result of the superposition of two intuitive effects, namely the $O(1)$ negative hydrodynamic force resisting the upward motion of the upper boundary of the sphere (the gap width being held fixed, ${\dot{a}}>0$ imposes a general upward motion of most of the bubble surface) and the resistance to the lubrication film drainage associated with the increase in bubble radius (albeit much smaller than what is observed for translation). The latter accounts for the logarithmic divergence of $C_{I}$ for small $\unicode[STIX]{x1D700}$ .

In the opposite clean bubble limit, the hydrodynamic force is shown to increase with decreasing gap width, eventually becoming positive for $\unicode[STIX]{x1D700}<\unicode[STIX]{x1D700}_{c}^{\tilde{\unicode[STIX]{x1D706}}=\infty }\approx 1.8\times 10^{-3}$ . For small gaps, a growing bubble experiences therefore a hydrodynamic force that pushes it away from the wall. This can be understood qualitatively as the result of the superposition of two competing effects: an $O(1)$ hydrodynamic resistance associated with the upward motion of the outer boundary of the bubble (as above), and a singular (positive) force associated with the film dynamics.

Intermediate cases $0<\tilde{\unicode[STIX]{x1D706}}<\infty$ show again a transition between the two regimes around $\unicode[STIX]{x1D700}\approx \tilde{\unicode[STIX]{x1D706}}$ : in that configuration, the resistance to bubble growth ( $C_{I}<0$ ) exhibits a maximum in magnitude for a finite distance.

4.2 Flow field between a growing bubble and a wall for a fixed fluid gap

The surprising result of the previous analysis is that the force experienced by a growing bubble near a wall can, when the fluid gap width is held fixed, reverse sign depending on the wall proximity and the value of the slip length. As a result, a force-free growing clean bubble with a thin lubrication gap is repelled by the confining wall, in contrast with what happens for a rigid shell or for weaker confinement. This reversal stems from a fundamentally different behaviour of the flow field for an effectively rigid interface ( $\unicode[STIX]{x1D706}\ll d$ ) and for an effectively stress-free one ( $\unicode[STIX]{x1D706}\gg d$ ), which we illustrate in figure 6 where the streamlines and velocity magnitude are shown for the two limiting cases of surfaces with zero and infinite slip length and varying gap width.

Figure 6. Streamlines (white lines) and velocity magnitude (colour) for the flow generated around (a–c) an inflating rigid shell ( $\unicode[STIX]{x1D706}=0$ ) and (d–f) a clean bubble ( $\unicode[STIX]{x1D706}=\infty$ ) for fixed gap width (a,d) $\unicode[STIX]{x1D700}=2$ , (b,e) $\unicode[STIX]{x1D700}=0.2$ and (c,f) $\unicode[STIX]{x1D700}=10^{-2}$ . For $\unicode[STIX]{x1D700}=0.01$ , the insets show the same information within the lubricating gap (the horizontal limits of the inset are $\pm 0.075a$ , and the vertical scale is stretched so as to display the entire gap width). In all panels, $a=1$ , ${\dot{a}}=1$ and ${\dot{d}}=0$ , and dividing streamlines between recirculating and expanding regions are shown as thick orange lines.

Let us first consider as a reference the case of an inflating bubble or sphere far from the wall. Holding its bottom boundary fixed leads in both cases to the formation of a recirculation torus near the wall and around the axis of symmetry of the problem, pumping fluid inward along the wall. Outside this recirculation region, the flow is oriented outward, forced by the radial displacement of the bubble’s boundary. Far from the wall, the topology of the recirculating regions is roughly similar for both $\unicode[STIX]{x1D706}=0$ and $\unicode[STIX]{x1D706}=\infty$ , with the main difference being only a weaker flow velocity behind a clean surface which allows for fluid slip and is therefore not able to drive a tangential fluid motion.

The two limits $\unicode[STIX]{x1D706}=0$ and $\unicode[STIX]{x1D706}=\infty$ differ however fundamentally in the behaviour of this recirculation zone when the distance to the wall is reduced. In the case of a no-slip boundary ( $\unicode[STIX]{x1D706}=0$ ), a recirculation torus whose size scales with the radius of the bubble is maintained around the bubble and within the thin lubricating film in the limit $\unicode[STIX]{x1D700}\rightarrow 0$ . This is only possible because the surface of the sphere can sustain a net shear stress and continues driving the fluid tangentially to its surface and out of the gap. Note that this recirculation region leads to a reversal of the flow field within the lubrication gap, which imposes the pressure within the lubricating film to be smaller than the outer pressure (see § 5). As a result, the effect of the lubricating film is to pull the inflating bubble downward (i.e. $C_{I}<0$ ).

In contrast, for a no-stress boundary ( $\unicode[STIX]{x1D706}=\infty$ ), the recirculation torus still exists but it only scales with the lubrication gap width, since the surface of the bubble can only exert normal stresses on the fluid and cannot counteract the effect of the no-slip wall. In the limit $\unicode[STIX]{x1D700}\rightarrow 0$ , it is therefore confined to the immediate vicinity of the axis and its impact on the total force on the bubble all but disappears. The flow within the lubricating film is now unidirectional and the lubricating pressure is higher than that in the outer flow leading to a hydrodynamic repulsion ( $C_{I}>0$ ).

5.1 Lubrication equations

In the limit of small gap width, $\unicode[STIX]{x1D700}\ll 1$ , classical lubrication theory can be used to solve for the flow field within the thin layer of fluid separating the inflating bubble from the wall. This thin film is described in polar coordinates by the location of the bubble’s surface $z=h(r,t)$ , given exactly instantaneously by

(5.1) $$\begin{eqnarray}h(r,t)=d(t)+a(t)-\sqrt{a(t)^{2}-r^{2}}.\end{eqnarray}$$

Without any approximation on the thickness of the film, the impermeability condition at the bubble surface is given by

(5.2) $$\begin{eqnarray}u_{z}(r,h)=\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}t}+u_{r}(r,h)\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}r}.\end{eqnarray}$$

Similarly, using the definition of the tangential and normal unit vectors $\boldsymbol{t}$ and $\boldsymbol{n}$ ,

(5.3a,b ) $$\begin{eqnarray}\boldsymbol{t}=\frac{\boldsymbol{e}_{r}+h^{\prime }\boldsymbol{e}_{z}}{\sqrt{1+h^{\prime 2}}},\quad \boldsymbol{n}=\frac{h^{\prime }\boldsymbol{e}_{r}-\boldsymbol{e}_{z}}{\sqrt{1+h^{\prime 2}}},\end{eqnarray}$$

and that of the reference surface velocity $\boldsymbol{u}^{ref}=({\dot{a}}+{\dot{d}})\boldsymbol{e}_{z}+{\dot{a}}\boldsymbol{n}$ , equation (2.3) is given in the general case by

(5.4) $$\begin{eqnarray}\displaystyle h^{\prime }\sqrt{1+h^{\prime 2}}({\dot{d}}+{\dot{a}}) & = & \displaystyle (u_{r}+h^{\prime }u_{z})\sqrt{1+h^{\prime 2}}\nonumber\\ \displaystyle & & \displaystyle +\,\unicode[STIX]{x1D706}\left[(1-h^{\prime 2})\left(\frac{\unicode[STIX]{x2202}u_{z}}{\unicode[STIX]{x2202}r}+\frac{\unicode[STIX]{x2202}u_{r}}{\unicode[STIX]{x2202}z}\right)+2h^{\prime }\left(\frac{\unicode[STIX]{x2202}u_{z}}{\unicode[STIX]{x2202}z}-\frac{\unicode[STIX]{x2202}u_{r}}{\unicode[STIX]{x2202}r}\right)\right].\end{eqnarray}$$

In the lubrication assumption, the typical film thickness $h$ is much smaller than the scale of its variations in the radial direction and so is its slope. In that limit,

(5.5) $$\begin{eqnarray}h(r,t)=d+\frac{r^{2}}{2a(t)}+O(\unicode[STIX]{x1D700}^{3/2}),\end{eqnarray}$$

and the lubrication framework is classically only valid within a $O(\sqrt{ad})$ region located near the axis of symmetry (Leal Reference Leal2007). Therefore, in the lubrication limit $h\sim d$ and $r\sim d\unicode[STIX]{x1D700}^{-1/2}$ .

Stokes’ equations are linear and time independent. The lubrication problem considered here can therefore be solved as the superposition of two instantaneous and independent problems, respectively associated with the bubble translation (forced by ${\dot{d}}$ with $a$ fixed) and growth (forced by ${\dot{a}}$ with $d$ fixed). One could treat these two problems completely independently, and they are only presented jointly here for brevity, as the derivation follows the same structure.

Denoting by $V$ the typical leading-order vertical velocity scale for each problem, and using the fact that the fluid incompressibility imposes $u_{r}\sim \unicode[STIX]{x1D700}^{-1/2}u_{z}$ at leading order, different scalings are obtained for the vertical velocity in each problem. Specifically, $V\sim {\dot{d}}$ for the translation problem and $V\sim \unicode[STIX]{x1D700}{\dot{a}}$ for the inflation problem. Keeping only the dominant terms for each problem, the leading-order contribution to the dynamic boundary condition (5.4) becomes

(5.6) $$\begin{eqnarray}\unicode[STIX]{x1D706}\frac{\unicode[STIX]{x2202}u_{r}}{\unicode[STIX]{x2202}z}+u_{r}=h^{\prime }{\dot{a}}.\end{eqnarray}$$

Note that there is no forcing in ${\dot{d}}$ in that equation as it would be subdominant to that introduced by the impermeability condition, equation (5.2).

At leading order in $\unicode[STIX]{x1D700}$ , the equations of motion for the fluid flow within the lubricating film are written in non-dimensional form as

(5.7a-c ) $$\begin{eqnarray}\frac{1}{r}\frac{\unicode[STIX]{x2202}(ru_{r})}{\unicode[STIX]{x2202}r}+\frac{\unicode[STIX]{x2202}u_{z}}{\unicode[STIX]{x2202}z}=0,\quad \frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}=\frac{\unicode[STIX]{x2202}^{2}u_{r}}{\unicode[STIX]{x2202}z^{2}},\quad \frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}z}=0.\end{eqnarray}$$

In the following, we focus exclusively on the leading-order contributions remembering that higher-order corrections are at least $O(\unicode[STIX]{x1D700})$ smaller.

5.2 Flow profile and pressure distribution

Solving the system above follows the classical approach (Leal Reference Leal2007). The dynamic pressure $p$ is invariant across the lubricating film and the previous equations can be integrated explicitly as

(5.8a,b ) $$\begin{eqnarray}u_{r}=\frac{z^{2}}{2}\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}+\unicode[STIX]{x1D6FC}z,\quad u_{z}=-\frac{z^{3}}{6r}\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}r}\left(r\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}\right)-\frac{z^{2}}{2r}\frac{\unicode[STIX]{x2202}(r\unicode[STIX]{x1D6FC})}{\unicode[STIX]{x2202}r},\end{eqnarray}$$

where $\unicode[STIX]{x1D6FC}(r,t)$ is determined by the dynamic boundary condition, equation (5.6),

(5.9) $$\begin{eqnarray}\unicode[STIX]{x1D6FC}=-\frac{h(h+2\unicode[STIX]{x1D706})}{2(h+\unicode[STIX]{x1D706})}\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}+\frac{{\dot{a}}}{h+\unicode[STIX]{x1D706}}\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}r}.\end{eqnarray}$$

From (5.2), (5.5) and (5.9), the Reynolds equation for the pressure gradient is obtained as

(5.10) $$\begin{eqnarray}\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}t}=\frac{1}{12r}\frac{\unicode[STIX]{x2202}}{\unicode[STIX]{x2202}r}\left[rh^{3}\left(\frac{h+4\unicode[STIX]{x1D706}}{h+\unicode[STIX]{x1D706}}\right)\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}-\frac{6rh^{2}{\dot{a}}}{h+\unicode[STIX]{x1D706}}\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}r}\right]={\dot{d}}-\frac{(h-d){\dot{a}}}{a}.\end{eqnarray}$$

This equation can be integrated in $r$ (since $\unicode[STIX]{x2202}p/\unicode[STIX]{x2202}r=0$ on the axis by symmetry), and using $\unicode[STIX]{x2202}h/\unicode[STIX]{x2202}r=r/a+O(\unicode[STIX]{x1D700}^{3/2})$ , we obtain

(5.11) $$\begin{eqnarray}\frac{\unicode[STIX]{x2202}p}{\unicode[STIX]{x2202}r}=\left[\frac{6a(h+\unicode[STIX]{x1D706}){\dot{d}}}{h^{3}(h+4\unicode[STIX]{x1D706})}+\frac{3{\dot{a}}[h^{2}+(d-\unicode[STIX]{x1D706})h+\unicode[STIX]{x1D706}d]}{h^{3}(h+4\unicode[STIX]{x1D706})}\right]\frac{\unicode[STIX]{x2202}h}{\unicode[STIX]{x2202}r}.\end{eqnarray}$$

Integrating once more in $r$ , the dominant pressure profile is obtained within the thin lubricating film as

(5.12) $$\begin{eqnarray}\displaystyle p(r) & = & \displaystyle p_{\infty }+\frac{3{\dot{a}}}{64\unicode[STIX]{x1D706}^{2}}\left[\left(3d-20\unicode[STIX]{x1D706}\right)\log \left(1+\frac{4\unicode[STIX]{x1D706}}{h}\right)-\frac{8d\unicode[STIX]{x1D706}^{2}}{h^{2}}+\frac{4\unicode[STIX]{x1D706}(4\unicode[STIX]{x1D706}-3d)}{h}\right]\nonumber\\ \displaystyle & & \displaystyle +\,\frac{3a{\dot{d}}}{32\unicode[STIX]{x1D706}^{2}}\left[3\log \left(1+\frac{4\unicode[STIX]{x1D706}}{h}\right)-\frac{8\unicode[STIX]{x1D706}^{2}}{h^{2}}-\frac{12\unicode[STIX]{x1D706}}{h}\right],\end{eqnarray}$$

where the radial dependence is implicit through the dependence on $h(r,t)$ and where $p_{\infty }$ is an $O(1)$ function of time only related to the pressure outside the lubricating film. In particular, in the two limit cases of a rigid shell or clean bubble, this profile simplifies as

(5.13) $$\begin{eqnarray}\displaystyle & \displaystyle p(r)=p_{\infty }-\frac{3a{\dot{d}}}{h^{2}}-\frac{3(d+2h){\dot{a}}}{2h^{2}},\quad \unicode[STIX]{x1D706}=0\text{ (rigid shell),} & \displaystyle\end{eqnarray}$$

(5.14) $$\begin{eqnarray}\displaystyle & \displaystyle p(r)=p_{\infty }-\frac{3a{\dot{d}}}{4h^{2}}+\frac{3(2h-d){\dot{a}}}{8h^{2}},\quad \unicode[STIX]{x1D706}=\infty \text{(clean bubble).} & \displaystyle\end{eqnarray}$$

These results confirm the qualitative analysis of the flow field seen in figure 6. When $\unicode[STIX]{x1D706}=0$ , the pressure associated with the bubble’s growth ( ${\dot{a}}$ ) is lower than the background pressure, which results in an opposite forcing to that associated with the motion of the bubble’s surface, and as a result the flow direction reverses across the lubrication film, revealing the existence of a recirculation region. In contrast, for $\unicode[STIX]{x1D706}=\infty$ , the pressure associated with bubble growth is greater than the background pressure, forcing the flow in the same direction as the bubble’s surface and thus the flow within the gap is oriented outward across the whole film.

5.3 Forces on the inflating and translating bubble

The dominant contribution to the vertical force on the bubble from the lubrication film is classically given by the pressure and can be evaluated by integrating the pressure force over the region $0\leqslant r\leqslant R$ with $\sqrt{ad}\ll R\ll a$ , leading to

(5.15) $$\begin{eqnarray}\displaystyle F_{lub} & = & \displaystyle \left[\frac{3\unicode[STIX]{x03C0}a{\dot{a}}}{8\unicode[STIX]{x1D706}}\left\{(3d-20\unicode[STIX]{x1D706})\left[\left(1+\frac{h}{4\unicode[STIX]{x1D706}}\right)\log \left(1+\frac{4\unicode[STIX]{x1D706}}{h}\right)-1\right]+\frac{2d\unicode[STIX]{x1D706}}{h}-16\unicode[STIX]{x1D706}\log h\right\}\right.\nonumber\\ \displaystyle & & \displaystyle +\left.\frac{3\unicode[STIX]{x03C0}a^{2}{\dot{d}}}{4\unicode[STIX]{x1D706}}\left\{3\left[\left(1+\frac{h}{4\unicode[STIX]{x1D706}}\right)\log \left(1+\frac{4\unicode[STIX]{x1D706}}{h}\right)-1\right]+\frac{2\unicode[STIX]{x1D706}}{h}\right\}\right]_{d}^{h(R)}+O(1).\end{eqnarray}$$

The dominant terms arise from the central region ( $r=0$ and $h=d$ ). Keeping in mind that we so far neglected corrections that are $O(\unicode[STIX]{x1D700})$ smaller, and that the matching with the outer solution introduces corrections that are $O(\unicode[STIX]{x1D700}\log \unicode[STIX]{x1D700})$ smaller than the leading-order term as well as $O(1)$ pressure forces (Cooley & O’Neill Reference Cooley and O’Neill1969; Kim & Karilla Reference Kim and Karilla1991), the force coefficients can be rewritten

(5.16) $$\begin{eqnarray}\displaystyle & \displaystyle C_{T}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})=-\frac{3\unicode[STIX]{x03C0}}{2\unicode[STIX]{x1D700}}-\frac{9\unicode[STIX]{x03C0}}{4\tilde{\unicode[STIX]{x1D706}}}\left[\left(1+\frac{\unicode[STIX]{x1D700}}{4\tilde{\unicode[STIX]{x1D706}}}\right)\log \left(1+\frac{4\tilde{\unicode[STIX]{x1D706}}}{\unicode[STIX]{x1D700}}\right)-1\right]+O(\log \unicode[STIX]{x1D700}), & \displaystyle\end{eqnarray}$$

(5.17) $$\begin{eqnarray}\displaystyle & \displaystyle C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})=6\unicode[STIX]{x03C0}\log \unicode[STIX]{x1D700}-\frac{3\unicode[STIX]{x03C0}}{8\tilde{\unicode[STIX]{x1D706}}}(3\unicode[STIX]{x1D700}-20\tilde{\unicode[STIX]{x1D706}})\left[\left(1+\frac{\unicode[STIX]{x1D700}}{4\tilde{\unicode[STIX]{x1D706}}}\right)\log \left(1+\frac{4\tilde{\unicode[STIX]{x1D706}}}{\unicode[STIX]{x1D700}}\right)-1\right]+O(1),\qquad & \displaystyle\end{eqnarray}$$

where we recall that $\tilde{\unicode[STIX]{x1D706}}=\unicode[STIX]{x1D706}/a$ is the reduced slip length.

For arbitrary slip length, two different regimes can be identified depending on the relative magnitude of the three length scales of the problem (i.e. $d$ , $a$ and $\unicode[STIX]{x1D706}$ ). When $\unicode[STIX]{x1D706}\ll d\ll a$ , the dominant expression for the force coefficients is

(5.18a,b ) $$\begin{eqnarray}C_{T}(\unicode[STIX]{x1D700})=-\frac{6\unicode[STIX]{x03C0}}{\unicode[STIX]{x1D700}}+O(\log \unicode[STIX]{x1D700}),\quad C_{I}(\unicode[STIX]{x1D700})=6\unicode[STIX]{x03C0}\log \unicode[STIX]{x1D700}+O(1).\end{eqnarray}$$

This is essentially the result obtained from (5.13) in the case of a rigid sphere ( $\unicode[STIX]{x1D706}=0$ ). In contrast when $d\ll (a,\unicode[STIX]{x1D706})$ , the dominant expression for the force coefficients is now

(5.19a,b ) $$\begin{eqnarray}C_{T}(\unicode[STIX]{x1D700})=-\frac{3\unicode[STIX]{x03C0}}{2\unicode[STIX]{x1D700}}+O(\log \unicode[STIX]{x1D700}),\quad C_{I}(\unicode[STIX]{x1D700})=-\frac{3\unicode[STIX]{x03C0}\log \unicode[STIX]{x1D700}}{2}+O(1),\end{eqnarray}$$

which is the result obtained from (5.14) in the case of a perfectly clean bubble ( $\unicode[STIX]{x1D706}=\infty$ ). Note that the scaling for the leading-order correction in (5.16)–(5.19) is only shown with respect to $\unicode[STIX]{x1D700}$ for fixed $\tilde{\unicode[STIX]{x1D706}}$ , and may include singular terms when $\tilde{\unicode[STIX]{x1D706}}\ll 1$ (see below).

Noticeably, for a sufficiently small gap, the leading-order values of the force coefficients do not depend on the particular value chosen for $\tilde{\unicode[STIX]{x1D706}}$ . Two regimes can therefore be distinguished for gap width smaller than the slip length (clean bubble limit) or larger than the slip length (rigid boundary limit) and the calculation above suggests a transition between the two regimes for $d\sim \unicode[STIX]{x1D706}$ .

For all $\unicode[STIX]{x1D706}\neq 0$ , an asymptotic approximation of $C_{I}$ can therefore be obtained as

(5.20) $$\begin{eqnarray}C_{I}^{\ast }(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})=-\frac{3\unicode[STIX]{x03C0}}{2}\log \unicode[STIX]{x1D700}+F^{\ast }(\tilde{\unicode[STIX]{x1D706}}),\end{eqnarray}$$

where $F^{\ast }(\tilde{\unicode[STIX]{x1D706}})$ is independent of $\unicode[STIX]{x1D700}$ , and defined such $C_{I}^{\ast }(\unicode[STIX]{x1D700}^{\ast },\tilde{\unicode[STIX]{x1D706}})=C_{I}(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})$ for a given value of $\unicode[STIX]{x1D700}^{\ast }\ll 1$ (note that the value of $F(\tilde{\unicode[STIX]{x1D706}})$ obtained does not depend on $\unicode[STIX]{x1D700}^{\ast }$ provided it is small enough; $\unicode[STIX]{x1D700}^{\ast }=10^{-5}$ was used here). However, the dominant term in $C_{I}$ is only $O(\log \unicode[STIX]{x1D700})$ and for finite $\tilde{\unicode[STIX]{x1D706}}\ll 1$ , a very small gap $\unicode[STIX]{x1D700}$ might be required to obtain a correct approximation of the force due to bubble growth using (5.20). This asymptotic result for the hydrodynamic force on the bubble agrees very well with the full semi-analytical solution from § 2, as illustrated in figure 7(a).

Equation (5.17) may yet provide a significantly improved estimation of the force coefficient for small but arbitrary slip length. Specifically, isolating singular terms in $\log \tilde{\unicode[STIX]{x1D706}}$ introduced for $\unicode[STIX]{x1D700}\ll 1$ by the form of (5.17) leads to

(5.21) $$\begin{eqnarray}\displaystyle C_{I}^{\dagger }(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}}) & = & \displaystyle 6\unicode[STIX]{x03C0}\log \unicode[STIX]{x1D700}-\frac{3\unicode[STIX]{x03C0}}{8\tilde{\unicode[STIX]{x1D706}}}(3\unicode[STIX]{x1D700}-20\unicode[STIX]{x1D706})\left[\left(1+\frac{\unicode[STIX]{x1D700}}{4\tilde{\unicode[STIX]{x1D706}}}\right)\log \left(1+\frac{4\tilde{\unicode[STIX]{x1D706}}}{\unicode[STIX]{x1D700}}\right)-1\right]\nonumber\\ \displaystyle & & \displaystyle -\,\frac{15\unicode[STIX]{x03C0}}{2}\log (1+4\tilde{\unicode[STIX]{x1D706}})+F^{\dagger }(\tilde{\unicode[STIX]{x1D706}}),\end{eqnarray}$$

where $F^{\dagger }(\tilde{\unicode[STIX]{x1D706}})$ is defined using the same approach as $F^{\ast }$ above. Physically, $F^{\dagger }(\tilde{\unicode[STIX]{x1D706}})$ includes contributions of the outer problem (the hydrodynamic force introduced on the top of the sphere for example) as well as $O(1)$ contributions already included in $C_{I}^{\dagger }$ . Figure 7 demonstrates that this approach provides a much improved approximation of the force induced by the bubble growth dynamics (including the transition between the two regimes $\unicode[STIX]{x1D706}=0$ and $\unicode[STIX]{x1D706}=\infty$ for small gaps). A more quantitative comparison would actually show that $|C_{I}-C_{I}^{\dagger }|$ is $O(\unicode[STIX]{x1D700})$ for all $\unicode[STIX]{x1D706}$ when $\unicode[STIX]{x1D700}\rightarrow 0$ . Also it should be noted that $F^{\dagger }(\tilde{\unicode[STIX]{x1D706}})$ remains finite for all values of $\tilde{\unicode[STIX]{x1D706}}$ and in particular in the limit $\tilde{\unicode[STIX]{x1D706}}\ll 1$ and $\tilde{\unicode[STIX]{x1D706}}\gg 1$ (figure 7 b).

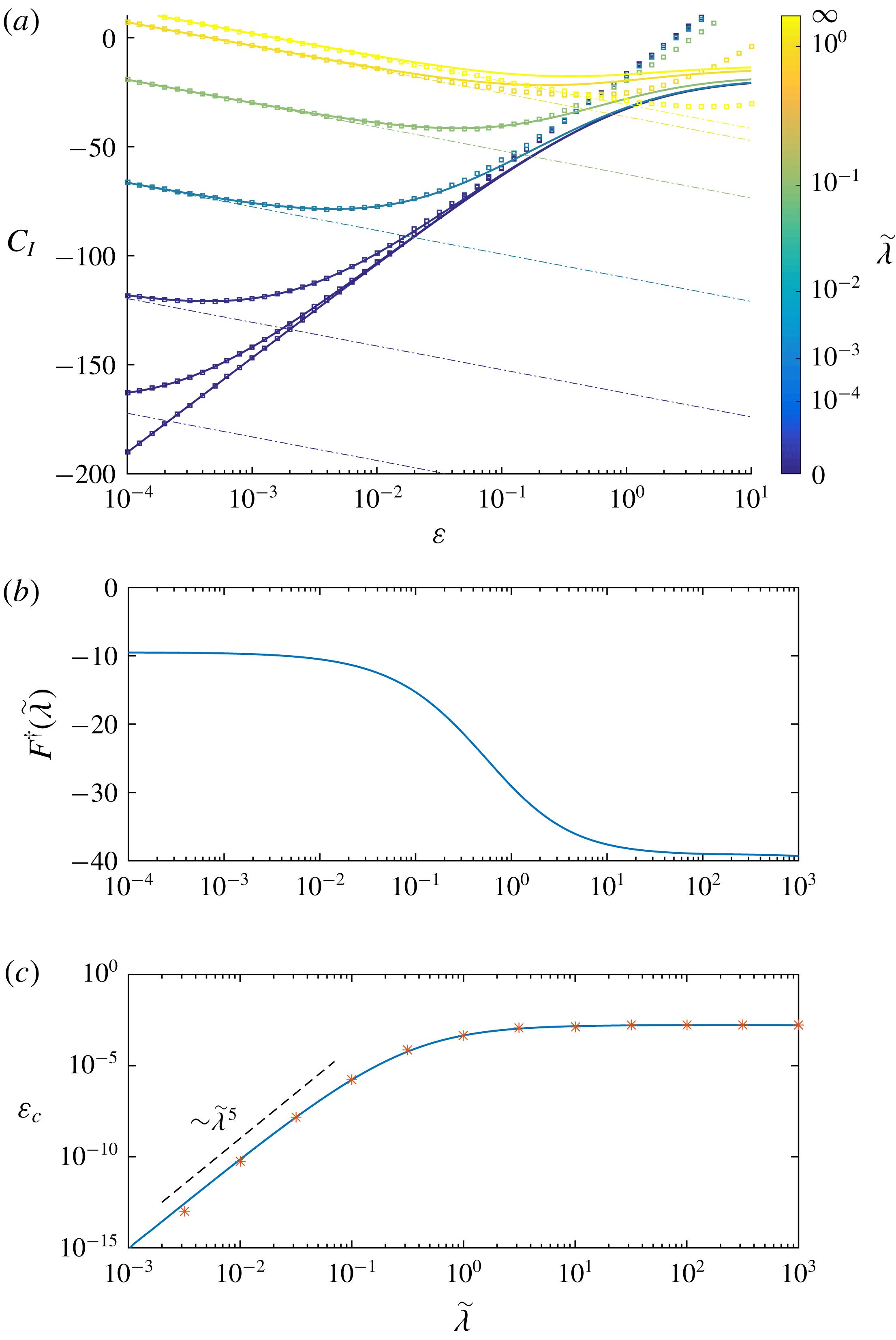

Figure 7. (a) Dependence of the force coefficient associated with bubble growth (for fixed gap width) with the relative gap width, $\unicode[STIX]{x1D700}$ , and different values of the relative slip length, $\tilde{\unicode[STIX]{x1D706}}$ . For each value of $\tilde{\unicode[STIX]{x1D706}}$ , the full semi-analytical solution from § 2 is shown (solid line) and compared with the asymptotic approximations $C_{I}^{\ast }$ in (5.20) (dash-dotted line) and $C_{I}^{\dagger }$ in (5.21) (square symbols). (b) Function $F^{\dagger }(\unicode[STIX]{x1D706})$ as defined in (5.21). (c) Dependence of $\unicode[STIX]{x1D700}_{c}$ on $\tilde{\unicode[STIX]{x1D706}}$ , such that $C_{I}>0$ for $\unicode[STIX]{x1D700}\leqslant \unicode[STIX]{x1D700}_{c}$ . The results obtained from (5.21) are shown as a solid line while the symbols correspond to the full semi-analytical solution from § 2.

5.4 Emergence of a repulsive force for a growing bubble with fixed gap

These results allow for a quantitatively accurate estimate of the critical aspect ratio $\unicode[STIX]{x1D700}_{c}(\tilde{\unicode[STIX]{x1D706}})$ that leads to $C_{I}>0$ and the onset of repulsion from the wall induced by bubble growth (for a fixed gap). Such sign change always occurs when $\unicode[STIX]{x1D700}\ll \tilde{\unicode[STIX]{x1D706}}$ , i.e. when the gap width is much smaller than the slip length (figure 7). For large $\tilde{\unicode[STIX]{x1D706}}$ , $\unicode[STIX]{x1D700}_{c}$ converges to a finite value $\unicode[STIX]{x1D700}_{c}^{\tilde{\unicode[STIX]{x1D706}}=\infty }\approx 1.8\times 10^{-3}$ (figure 7 c). When $\unicode[STIX]{x1D700}\ll \tilde{\unicode[STIX]{x1D706}}\ll 1$ , equation (5.17) takes the form

(5.22) $$\begin{eqnarray}C_{I}=-\frac{3\unicode[STIX]{x03C0}}{2}\log \left(\frac{\unicode[STIX]{x1D700}}{\tilde{\unicode[STIX]{x1D706}}^{5}}\right)+O(1),\end{eqnarray}$$

where the $O(1)$ term here remains finite when $\tilde{\unicode[STIX]{x1D706}}\rightarrow 0$ and $\unicode[STIX]{x1D700}/\tilde{\unicode[STIX]{x1D706}}\rightarrow 0$ . The critical aspect ratio $\unicode[STIX]{x1D700}_{c}(\tilde{\unicode[STIX]{x1D706}})$ corresponds to the value of $\unicode[STIX]{x1D700}$ leading to $C_{I}=0$ . When $\tilde{\unicode[STIX]{x1D706}}\rightarrow 0$ , $\unicode[STIX]{x1D700}_{c}(\tilde{\unicode[STIX]{x1D706}})$ must therefore scale as $\unicode[STIX]{x1D700}_{c}\sim \tilde{\unicode[STIX]{x1D706}}^{5}$ which is consistent with the results of the exact semi-analytical solution, as shown in figure 7(c).

6.1 Asymptotic behaviour for regime B

When $d\ll a\ll \unicode[STIX]{x1D706}$ , equation (5.19) provides the leading-order dynamics of the film as

(6.1) $$\begin{eqnarray}\frac{\text{d}D}{\text{d}a}=-\frac{C_{I}(D/a,\unicode[STIX]{x1D706}/a)}{C_{T}(D/a,\unicode[STIX]{x1D706}/a)}=-\frac{D}{a}\log \left(\frac{D}{a}\right),\end{eqnarray}$$

whose solution for some initial (or intermediate) condition $D(a^{\ast })=d^{\ast }$ is obtained (with $\text{e}=\text{exp}(1)$ ) as

(6.2) $$\begin{eqnarray}D(a)=a\text{e}\left(\frac{d^{\ast }}{\text{e}a^{\ast }}\right)^{a^{\ast }/a}.\end{eqnarray}$$

As $a\gg a^{\ast }$ , the film thickness grows linearly with $a$ , and $\unicode[STIX]{x1D700}$ remains roughly constant, consistently with the results presented in figures 2 and 3 (regime B, bottom left). This regime, and the approximation underlying (5.19), eventually breaks down when $a\sim \unicode[STIX]{x1D706}$ (transition to regime C).

6.2 Asymptotic behaviour for regime C

When $\unicode[STIX]{x1D706}\ll d\ll a$ , equation (5.18) provides the leading-order dynamics of the film as

(6.3) $$\begin{eqnarray}\frac{\text{d}D}{\text{d}a}=-\frac{C_{I}(D/a,\unicode[STIX]{x1D706}/a)}{C_{T}(D/a,\unicode[STIX]{x1D706}/a)}=\frac{D}{a}\log \left(\frac{D}{a}\right),\end{eqnarray}$$

whose solution for $D(a^{\ast })=d^{\ast }$ is

(6.4) $$\begin{eqnarray}D(a)=a\text{e}\left(\frac{d^{\ast }}{\text{e}a^{\ast }}\right)^{a/a^{\ast }},\end{eqnarray}$$

and decays exponentially with $a$ , consistently with figure 3 (regime C). Note however, that this regime cannot describe the final dynamics of the film, since within this regime $\unicode[STIX]{x1D700}$ decays exponentially, but $\tilde{\unicode[STIX]{x1D706}}$ only decays algebraically. Eventually, $d$ becomes (much) smaller than $\unicode[STIX]{x1D706}$ , which violates the assumptions for regime C.

6.3 Final dynamics

The final dynamics corresponds to a very large bubble radius compared to both $d_{0}$ and $\unicode[STIX]{x1D706}$ . This final regime satisfies therefore necessarily $(\unicode[STIX]{x1D700},\tilde{\unicode[STIX]{x1D706}})\ll 1$ . The previous section showed that $\tilde{\unicode[STIX]{x1D706}}\ll \unicode[STIX]{x1D700}$ cannot hold indefinitely, so in the final regime $\unicode[STIX]{x1D700}$ is at most $O(\tilde{\unicode[STIX]{x1D706}})$ . Maintaining $\unicode[STIX]{x1D700}=O(\tilde{\unicode[STIX]{x1D706}})$ asymptotically is however impossible since $\unicode[STIX]{x1D700}>\unicode[STIX]{x1D700}_{c}\sim \tilde{\unicode[STIX]{x1D706}}$ leads to a decrease in the lubrication film thickness $d$ with $a$ so that $\unicode[STIX]{x1D700}/\tilde{\unicode[STIX]{x1D706}}\ll 1$ eventually.

The only possible configuration for the final dynamics is therefore $\unicode[STIX]{x1D700}\ll \tilde{\unicode[STIX]{x1D706}}\ll 1$ . Then, the dominant scaling of (5.22) applies and the leading-order dynamics is obtained as

(6.5) $$\begin{eqnarray}\frac{\text{d}D}{\text{d}a}=-\frac{C_{I}(D/a,\unicode[STIX]{x1D706}/a)}{C_{T}(D/a,\unicode[STIX]{x1D706}/a)}=-\frac{D}{a}\log \left(\frac{Da^{4}}{\unicode[STIX]{x1D706}^{5}}\right),\end{eqnarray}$$

whose solution for $D(a^{\ast })=d^{\ast }$ is given by

(6.6) $$\begin{eqnarray}D(a)=\frac{\unicode[STIX]{x1D706}^{5}\text{e}^{4}}{a^{4}}\left(\frac{d^{\ast }a^{\ast 4}}{\unicode[STIX]{x1D706}^{5}\text{e}^{4}}\right)^{a^{\ast }/a}.\end{eqnarray}$$

The final dynamics of the film follows $\unicode[STIX]{x1D700}\sim \tilde{\unicode[STIX]{x1D706}}^{5}$ and thus amounts to an algebraic decay of the lubrication film thickness as $d\sim \unicode[STIX]{x1D706}^{5}/a^{4}$ . For force-free growing bubbles, this corresponds to the accumulation of trajectories at the lower boundary of regime C in figure 3. This final algebraic regime is therefore universal: regardless of the value of $\unicode[STIX]{x1D706}$ (provided it is not strictly zero or infinite), the lubrication film thickness always eventually decays algebraically with the bubble radius and reaches contact in asymptotically infinite time, whether after a transient growth of the film thickness (for $\unicode[STIX]{x1D706}\gtrsim d_{0}$ ) or after a monotonic and transient exponential decay ( $\unicode[STIX]{x1D706}\lesssim d_{0}$ ).
